B8333636 STAR-KNOBS 33, with knurls

B8333636

STAR-KNOBS 33, with knurls

Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Version

With knurls

Supply

1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

  • Components/Accessories
  • View Customising Options

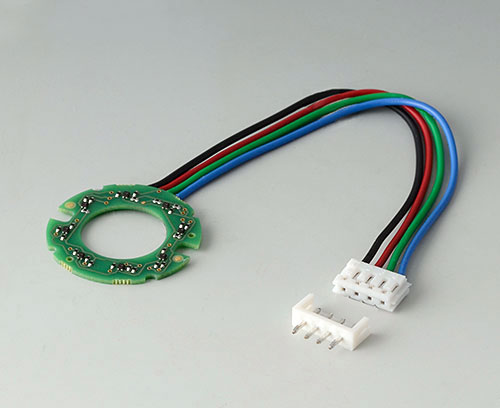

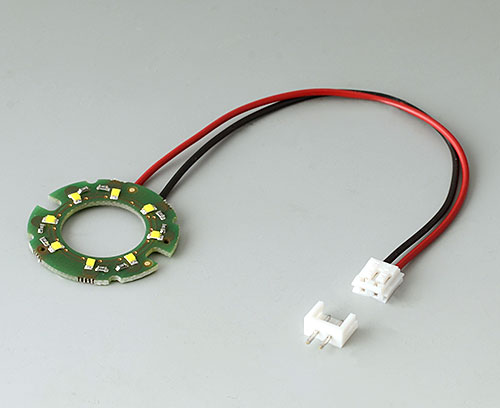

Flush-fitting with LED illumination

Flush-fitting without illumination

Surface-mounted with LED illumination

Surface-mounted without illumination

Customising options for B8333636

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
sapphire
Diameter
33 mm
Height
14 mm
Bore hole ″
1/4″
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
10 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
