MOTEC

Motec

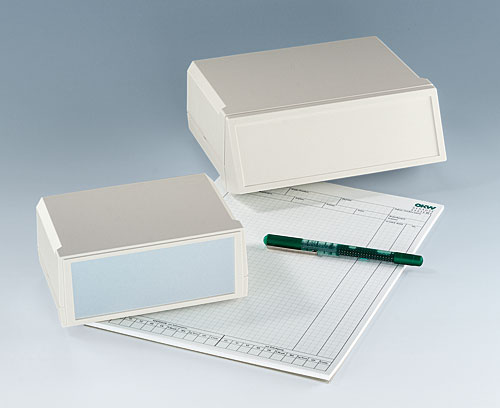

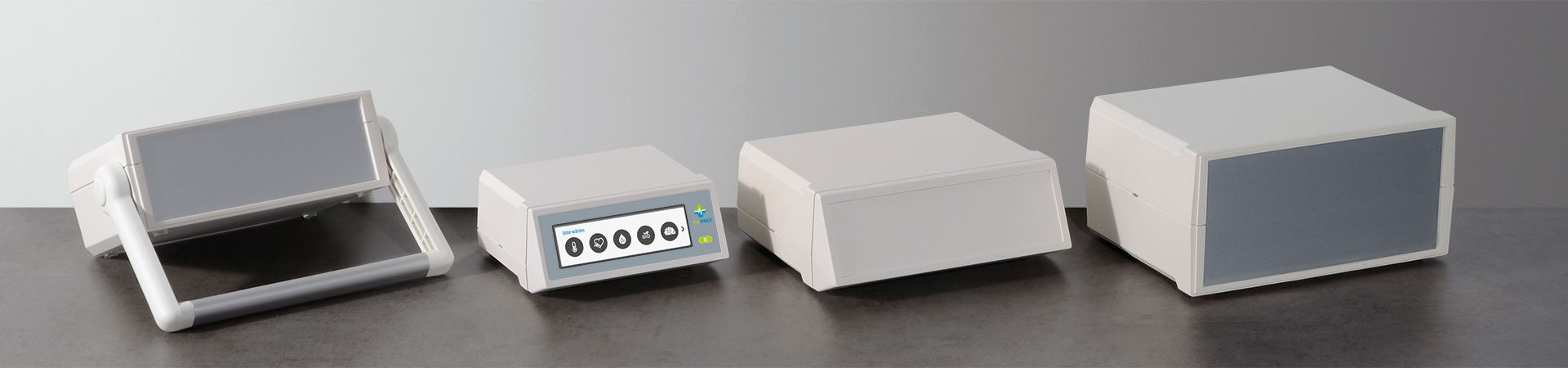

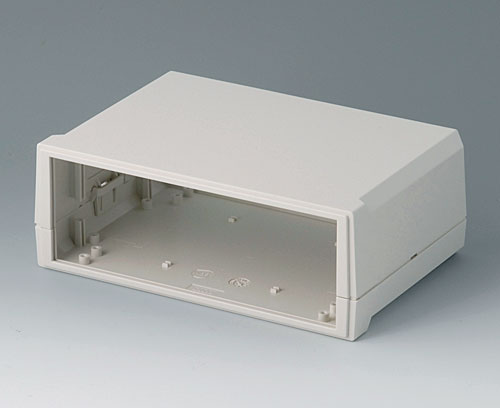

Modern desktop enclosures with wide front panels

With their generous dimensions, stylish design and ergonomic control panels, our MOTEC plastic enclosures are designed to distinguish your electronics from more conventional systems.

  • stylish range of instrument enclosures

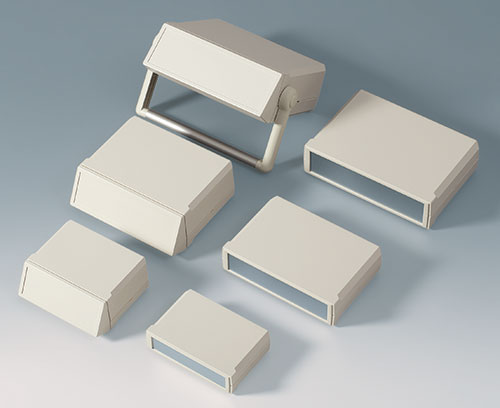

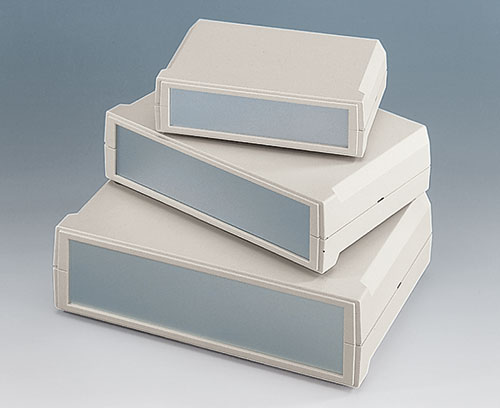

  • three plan sizes
  • different case heights for individual configurations
  • high-quality material ABS (UL 94 HB)

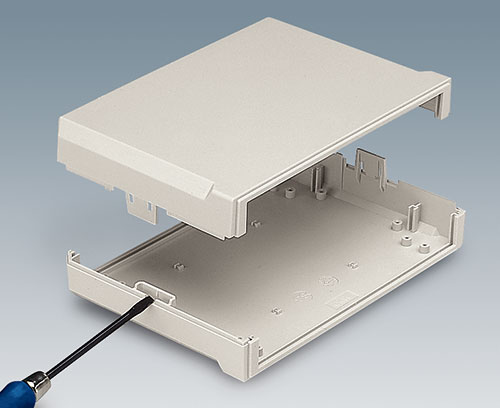

  • robust clip-together assembly to minimize your assembly work
  • access with flat screwdriver only, for security

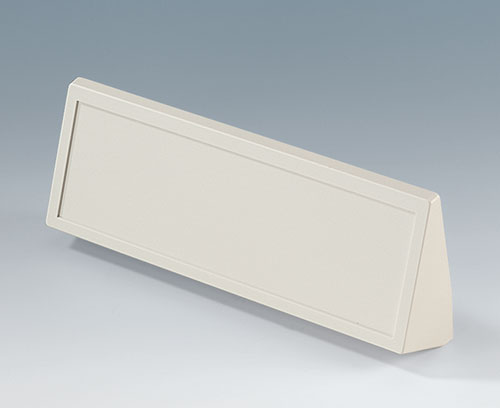

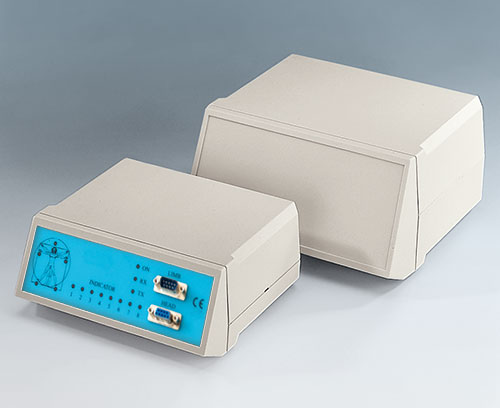

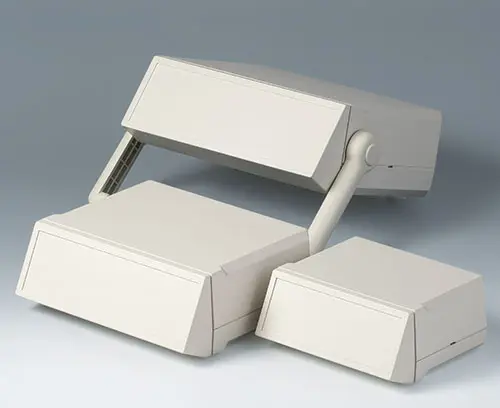

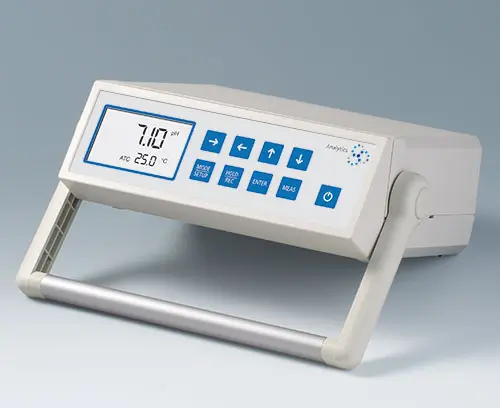

  • ergonomic, moulded sloping control panel with recessed area for a membrane keypad
  • aluminium panels ordered separately

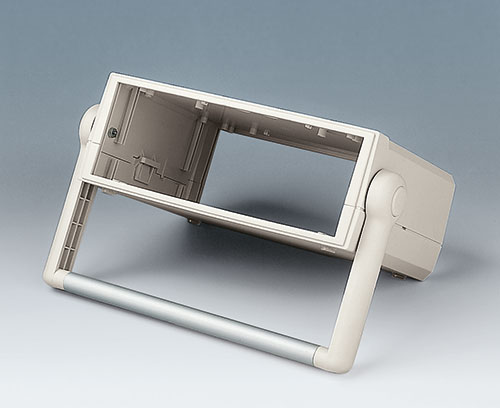

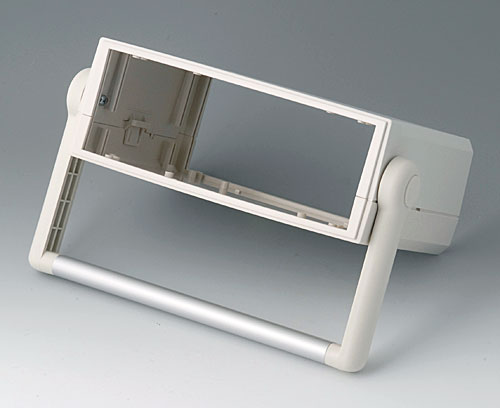

  • versions with handle for ergonomically tilted position or carrying
  • four non-slip self-adhesive feet included
  • protection class IP 40

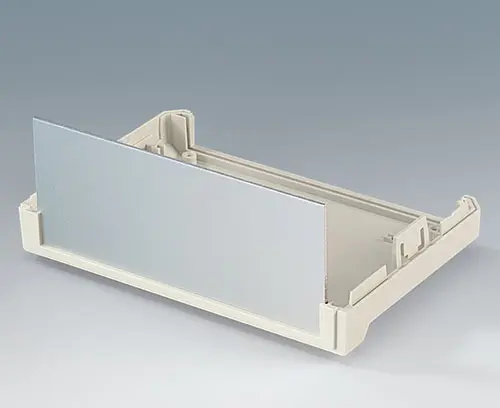

  • internal guide grooves for the vertical insertion of partitions and PCBs
  • internal screw pillars for PCBs etc.
  • Application Examples

Application fields

  • Measuring and control technology
  • Feedback control
  • Peripheral devices and interfaces, switchboxes, modems
  • Laboratory equipment
  • Medical and wellness devices
  • Select Versions
  • Accessories
  • Catalogue Documents
  • View Customising Options

Select which version/size you want and click "select".

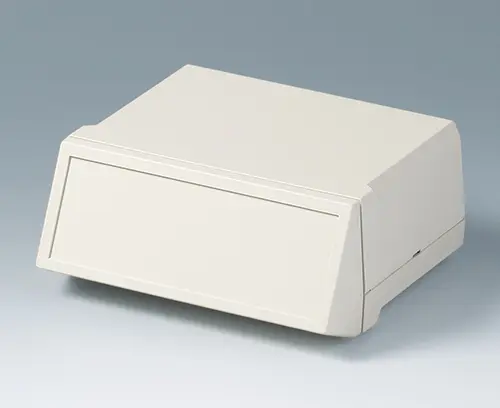

Without handle

MOTEC without handle

With handle

MOTEC with handle

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Close

A9199008

Set of screws
B3115100 Front / rear panel S

B3115100

Front / rear panel S Suitable for MOTEC S B3015117 with flat base and top part.

Supply 1 front panel

Close

B3115100

Front / rear panel S Aluminium
matt anodised
136x32x1.5mm

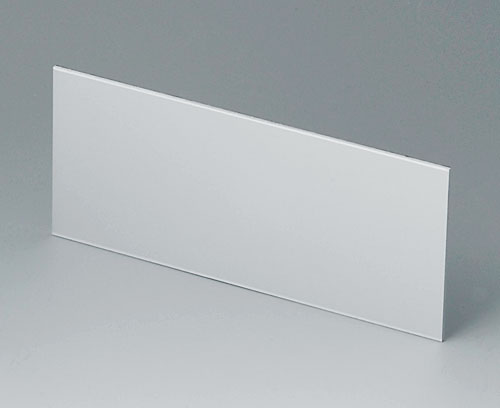

B3115110 Front / rear panel S

B3115110

Front / rear panel S Suitable for MOTEC S B3015127 with flat base and high top part.

Supply 1 front panel

Close

B3115110

Front / rear panel S Aluminium
matt anodised
136x57x1.5mm
B3115120 Front / rear panel S

B3115120

Front / rear panel S Suitable for MOTEC S B3015137 with high base and top part.

Supply 1 front panel

Close

B3115120

Front / rear panel S Aluminium
matt anodised
136x82x1.5mm

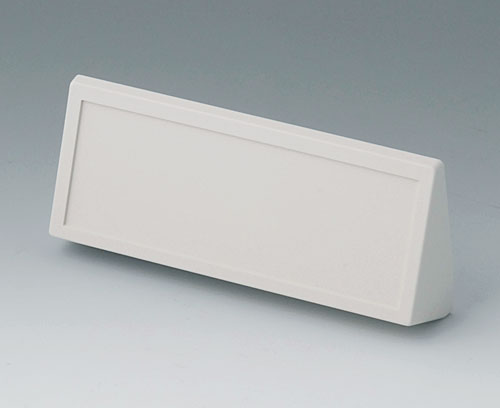

B3115167 Sloping control panel S

B3115167

Sloping control panel S Suitable for MOTEC S B3015127 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Close

B3115167

Sloping control panel S ABS (UL 94 HB)
off-white RAL 9002

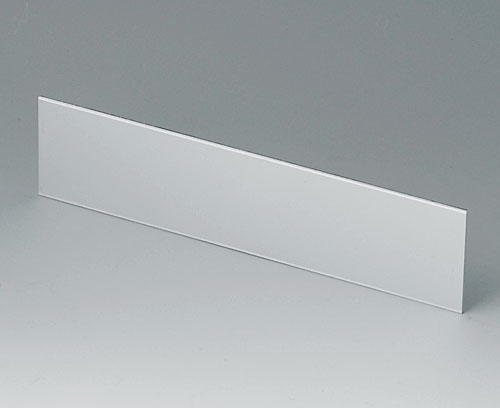

B3120100 Front / rear panel M

B3120100

Front / rear panel M Suitable for MOTEC M B3020117 with flat base and top part.

Supply 1 front panel

Close

B3120100

Front / rear panel M Aluminium
matt anodised
185x42x1.5mm
B3120110 Front / rear panel M

B3120110

Front / rear panel M Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part.

Supply 1 front panel

Close

B3120110

Front / rear panel M Aluminium
matt anodised
185x67x1.5mm
B3120120 Front / rear panel M

B3120120

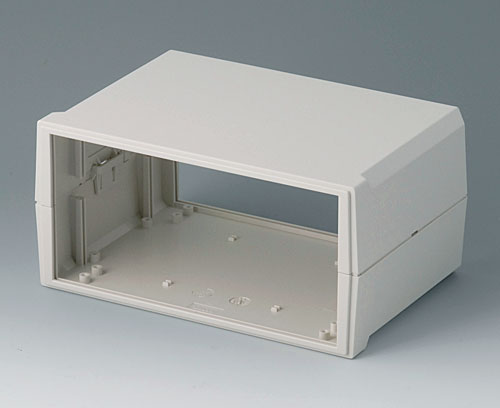

Front / rear panel M Suitable for MOTEC M B3020137 with high base and top part.

Supply 1 front panel

Close

B3120120

Front / rear panel M Aluminium
matt anodised
185x92x1.5mm

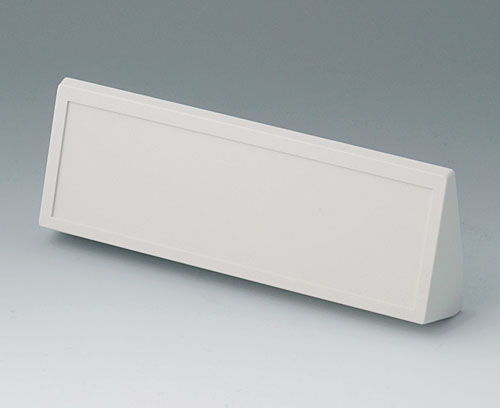

B3120167 Sloping control screws M

B3120167

Sloping control screws M Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Close

B3120167

Sloping control screws M ABS (UL 94 HB)
off-white RAL 9002

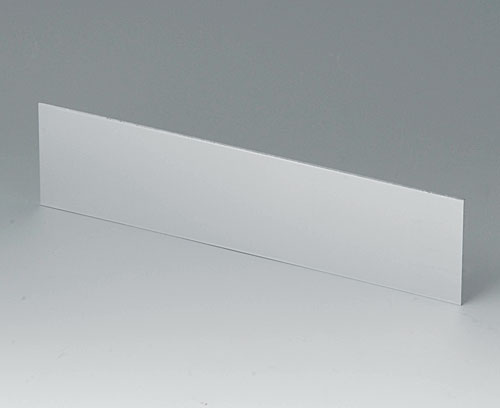

B3123100 Front / rear panel L

B3123100

Front / rear panel L Suitable for MOTEC L B3023117 with flat base and top part.

Supply 1 front panel

Close

B3123100

Front / rear panel L Aluminium
matt anodised
214x52x1.5mm
B3123110 Front / rear panel L

B3123110

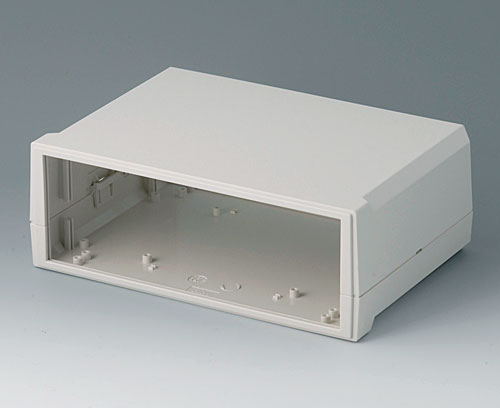

Front / rear panel L Suitable for MOTEC L B3023127 and B3023147 with flat base and high top part.

Supply 1 front panel

Close

B3123110

Front / rear panel L Aluminium
matt anodised
214x77x1.5mm

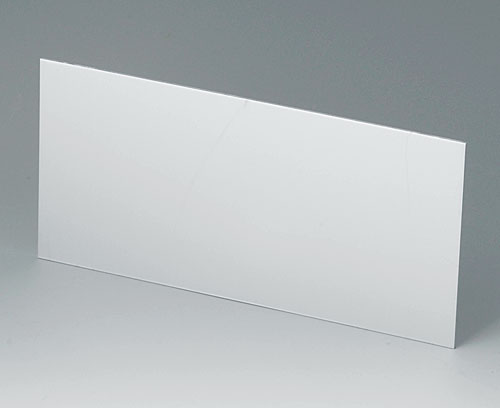

B3123120 Front / rear panel L

B3123120

Front / rear panel L Suitable for MOTEC L B3023137 with high base and top part.

Supply 1 front panel

Close

B3123120

Front / rear panel L Aluminium
matt anodised
214x102x1.5mm
B3123167 Sloping control panel L, flat/high

B3123167

Sloping control panel L, flat/high Suitable for MOTEC L B3023127 and B3023147 with high top and flat base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Close

B3123167

Sloping control panel L, flat/high ABS (UL 94 HB)
off-white RAL 9002

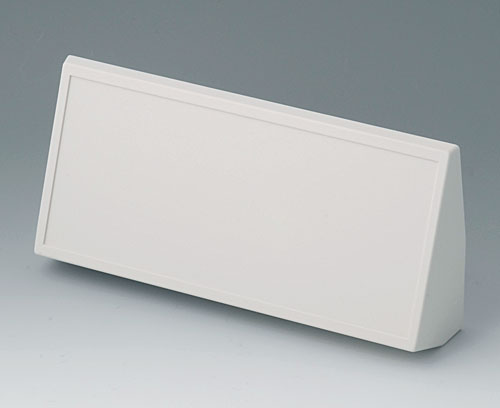

B3123177 Sloping control panel L, high/high

B3123177

Sloping control panel L, high/high Suitable for MOTEC L B3023137 with high top and base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Close

B3123177

Sloping control panel L, high/high ABS (UL 94 HB)
off-white RAL 9002

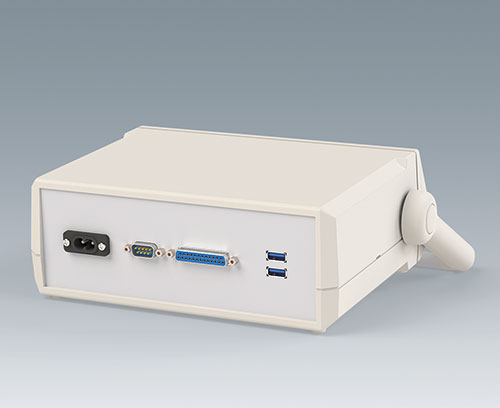

Customising options for Motec

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
