B3123100

Front / rear panel L

Suitable for MOTEC L B3023117 with flat base and top part.

Supply

1 front panel

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for B3123100

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

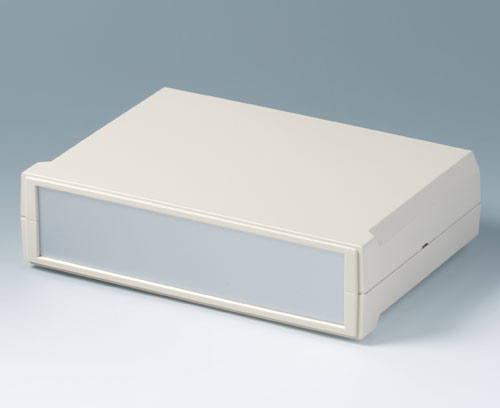

B3023117 MOTEC-L, flat/flat

B3023117

MOTEC-L, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

B3023117

MOTEC-L, flat/flat
product added to your basket

off-white RAL 9002
235x165x60mm

Customising options for B3123100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
matt anodised
Standards
RoHS compliant
REACH compliant
Width
214 mm
Height
52 mm
Thickness
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
45 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B3123100 and don't forget to request a quotation!
