INTERFACE-TERMINAL

Interface-Terminal

Multifunction electronic enclosures

Highly innovative modular plastic enclosures system which can be configured to meet all the requirements of today’s man-machine interfaces.

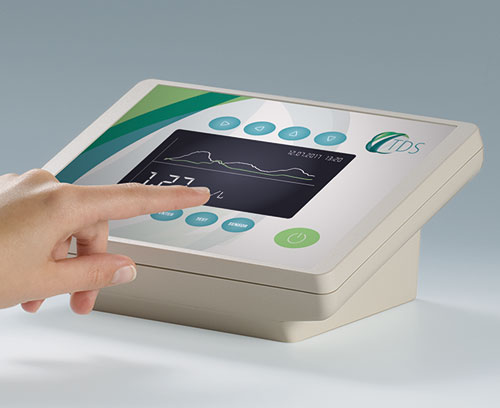

  • aesthetic and ergonomic design
  • uniquely, the operator can decide to use the electronics as a mobile or as a stationary unit

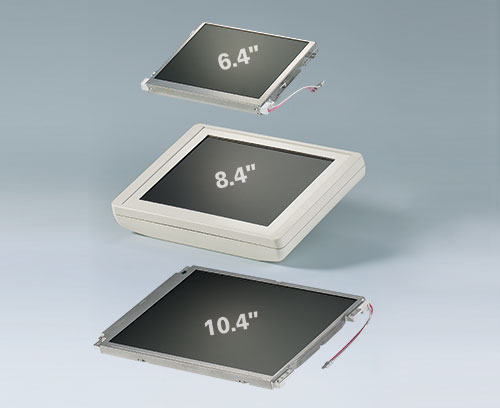

  • plenty of space for operating elements, graphic displays and touch screens (S: 6.4"/16 cm, M: 8.4"/21 cm, L: 10.4"/26 cm)
  • available with either flat or high bottom part for individual installation configurations, interfaces, cable inputs and outputs etc.
  • optional front panel styles: ABS cover and flat panel, aluminium front panel and glass panel for touch screens
    installation of tablets on demand
  • protection class IP 54 with sealing gaskets (accessory)

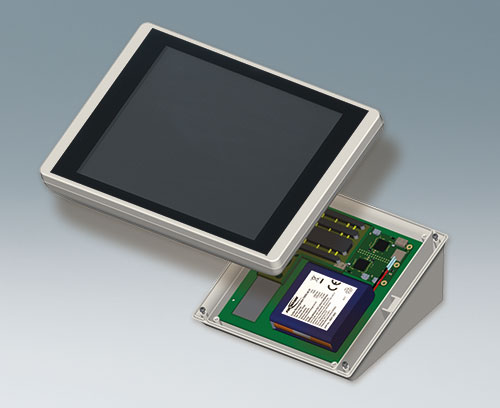

  • internal fastening pillars for PCBs and components
  • ordered as individual components for multiple configurations:

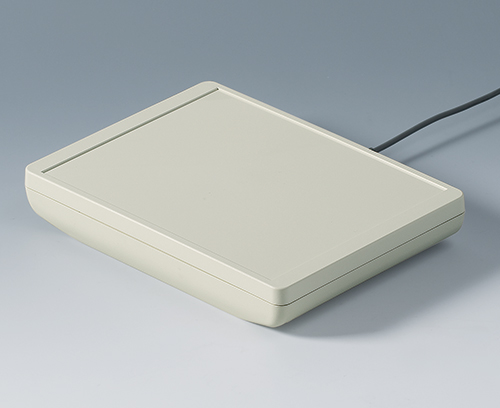

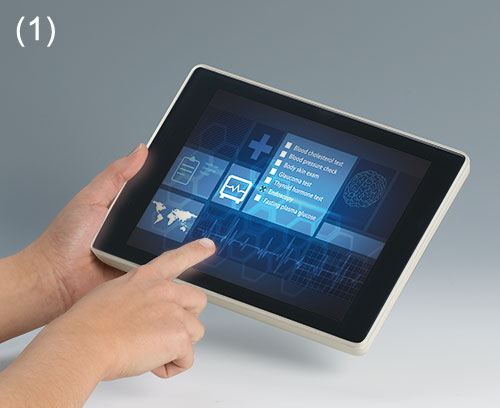

  • mobile (1)

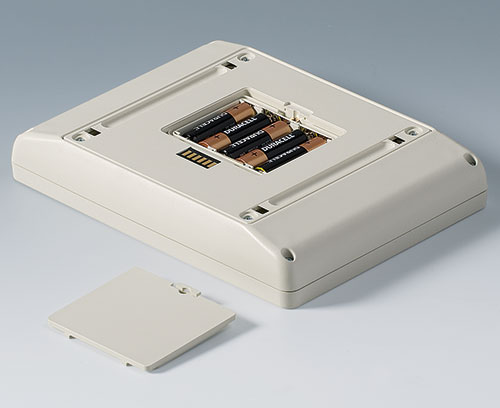

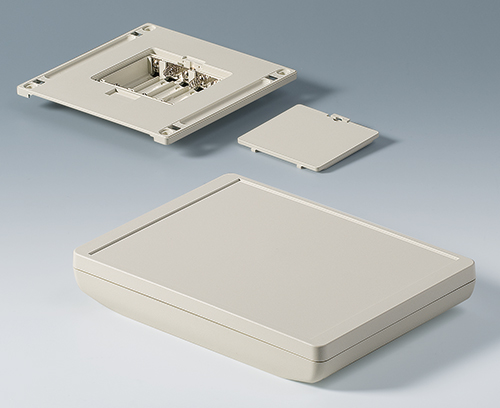

    with/without battery compartment (5 x AA), accessible from the outside, incl. protection against incorrect insertion as well as anti-rotation device; user-friendly design with attractive flat styling in the handle area; finger recesses on the underside ensure a secure grip

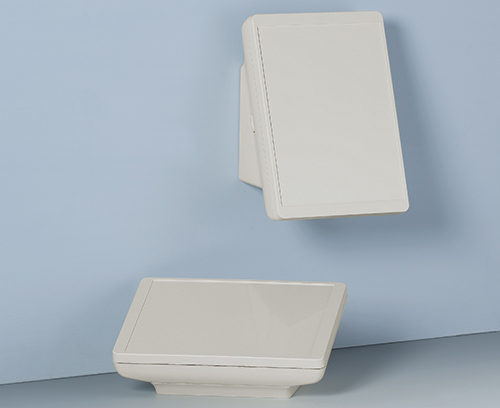

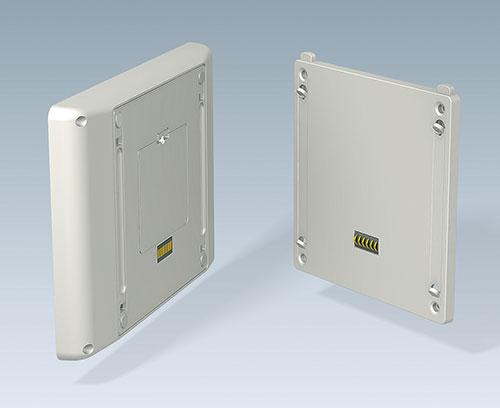

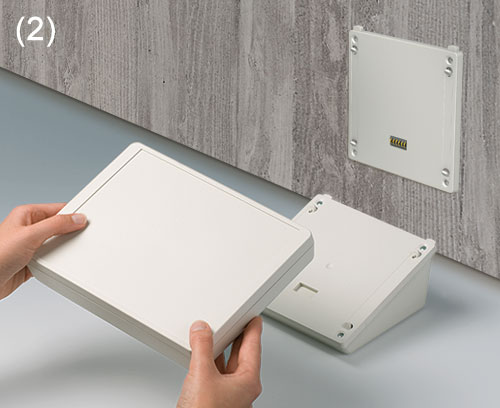

  • enclosures with base or flat wall suspension element (2)
    for data transmission and charging the enclosure snaps into base or flat wall suspension element; contacts available as accessories; operating panel can be mounted either vertically or horizontally; the ergonomically inclined base offers plenty of space for electronics

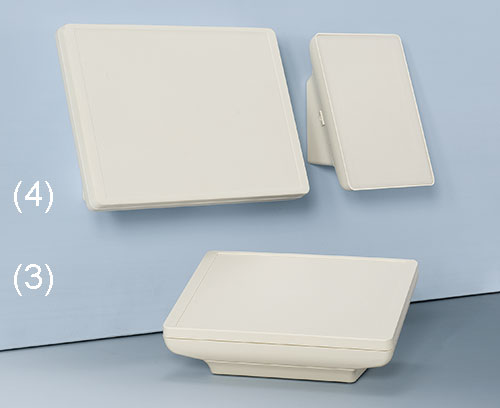

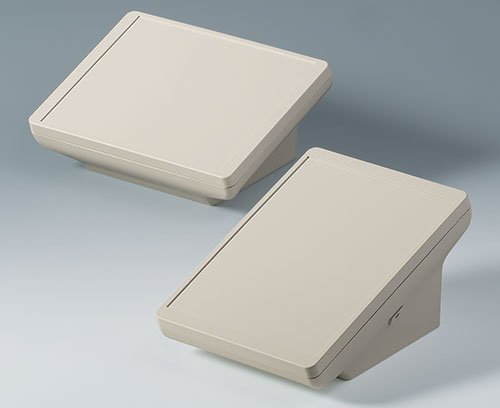

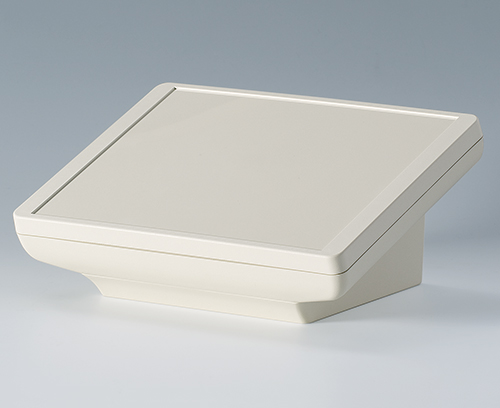

  • desk-top screwed (3)
    operating panel inclined by 20° whether vertically or horizontally mounted; hidden screw fixing; the ergonomically inclined base offers plenty of space for connectors and cable glands; rubber feet supplied with the case ensures non-slip desktop positioning

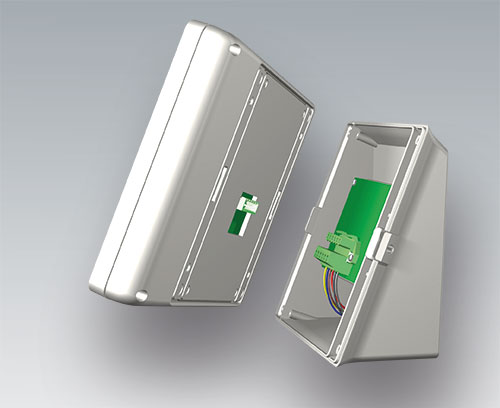

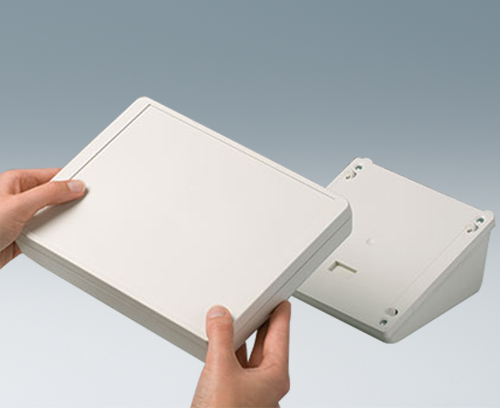

  • desk-top/wall mounting, secured  by latch lock (4)

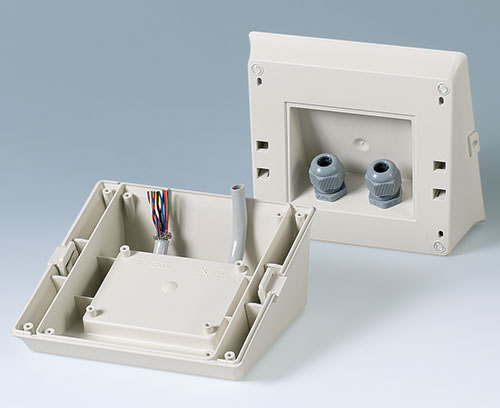

    unique interface between a stationary and a mobile component; simplified assembly by snap-in interfaces; the ergonomically inclined base offers plenty of space for plug connectors, electronics as well as wiring; base freely accessible; direct wall mounting of the base; mobile unit can be mounted either vertically or horizontally

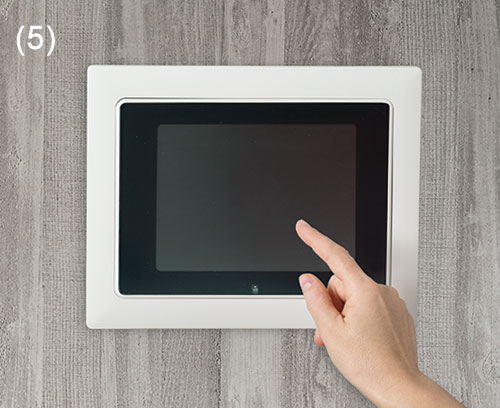

  • installation enclosures (5)
    if the architectural standards are particularly high, i.e. in historically buildings, INTERFACE-TERMINAL enclosures can also be harmoniously integrated in walls or front panels; installation in plant and machinery is also possible; easy wall installation with installation assembly kit
  • Application Examples

Application fields

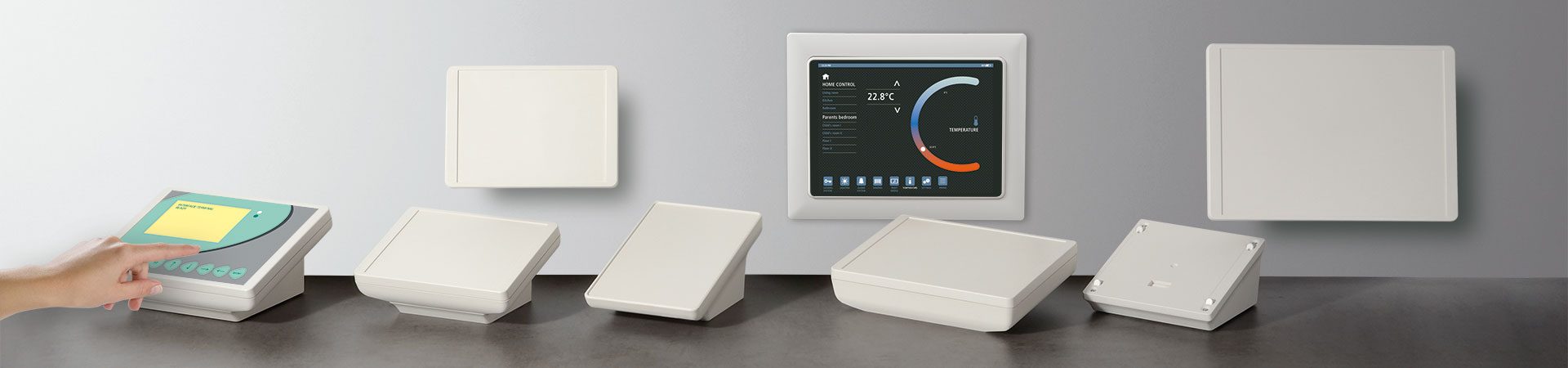

Unique variety of applications: handheld – desk-top – wall mounted – installation

  • Peripheral and interface equipment
  • Office applications
  • Communications technology
  • Safety engineering
  • Biometrics
  • Medical and laboratory technology
  • Health care
  • IoT/IIoT
  • Gateways
  • Automation
  • Measuring/regulating/controlling
  • Select Versions
  • Accessories
  • Catalogue Documents
  • View Customising Options

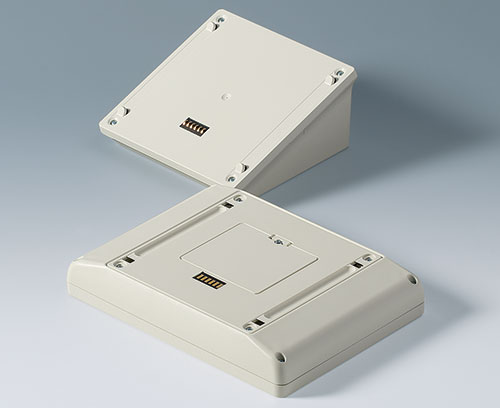

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Close

A9178007

Contacts, male
product added to your basket
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Close

A9178008

Contacts, female
product added to your basket
gold-plated
B4142005 Sealing S (bottom part - front design)

B4142005

Sealing S (bottom part - front design) For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).

Supply 1 sealing

Close

B4142005

Sealing S (bottom part - front design)
product added to your basket
SEBS (TPE)
B4142006 Sealing S (bottom part - base/bot. panel/bat. comp...)

B4142006

Sealing S (bottom part - base/bot. panel/bat. comp...) For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).

Supply 1 sealing

Close

B4142006

Sealing S (bottom part - base/bot. panel/bat. comp...)
product added to your basket
SEBS (TPE)
B4144005 Sealing M (bottom part - front design)

B4144005

Sealing M (bottom part - front design) For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).

Supply 1 sealing

Close

B4144005

Sealing M (bottom part - front design)
product added to your basket
SEBS (TPE)
B4144006 Sealing M (bottom part - base/bot. panel/bat. comp...)

B4144006

Sealing M (bottom part - base/bot. panel/bat. comp...) For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).

Supply 1 sealing

Close

B4144006

Sealing M (bottom part - base/bot. panel/bat. comp...)
product added to your basket
SEBS (TPE)
B4146005 Sealing L (bottom part - front design)

B4146005

Sealing L (bottom part - front design) For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).

Supply 1 sealing

Close

B4146005

Sealing L (bottom part - front design)
product added to your basket
SEBS (TPE)
B4146006 Sealing L (bottom part - base/bot. panel/bat. comp...)

B4146006

Sealing L (bottom part - base/bot. panel/bat. comp...) For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).

Supply 1 sealing

Close

B4146006

Sealing L (bottom part - base/bot. panel/bat. comp...)
product added to your basket
SEBS (TPE)

Customising options for Interface-Terminal

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
