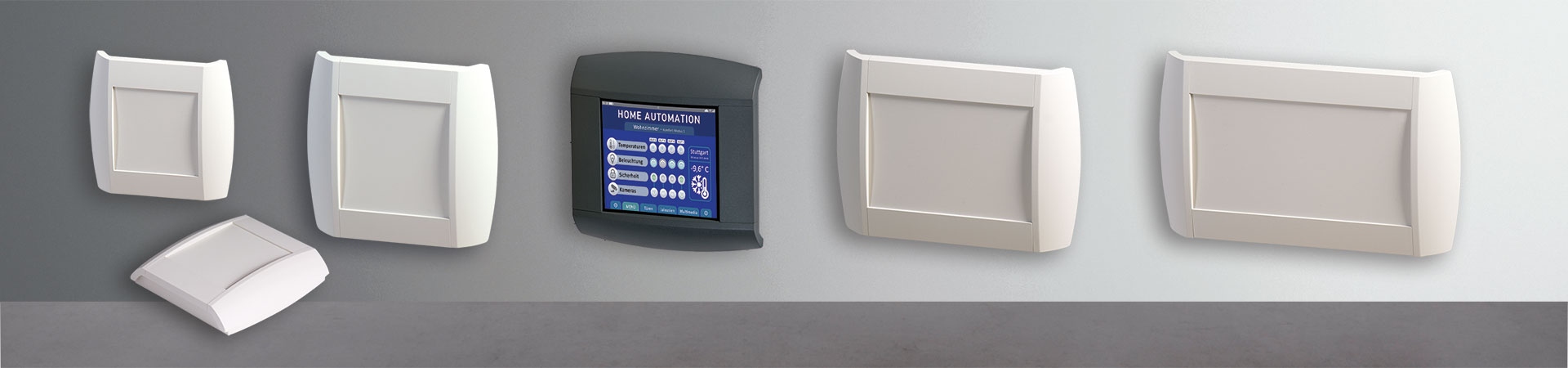

Attractive low profile plastic enclosures

These highly attractive tablet style enclosures are especially suitable for living and working environments – ideal for communication and network equipment.

  • modern, flat enclosure design for wall mounted and desktop electronics

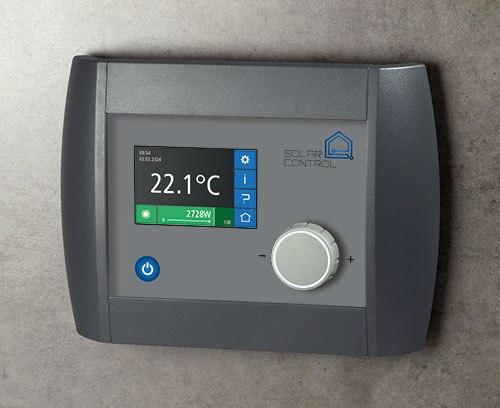

  • central control panel for mounting a keypad, touch screen or display unit

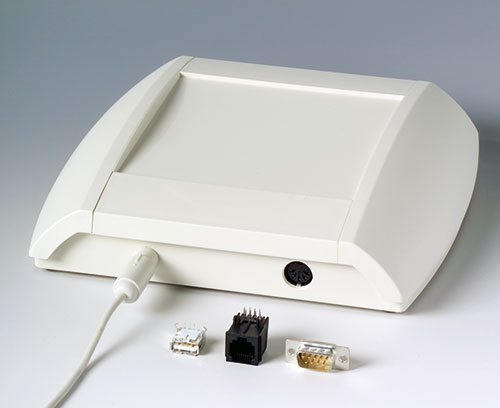

  • recessed area for installation and protection of interfaces, plug-in connections, cable glands etc.

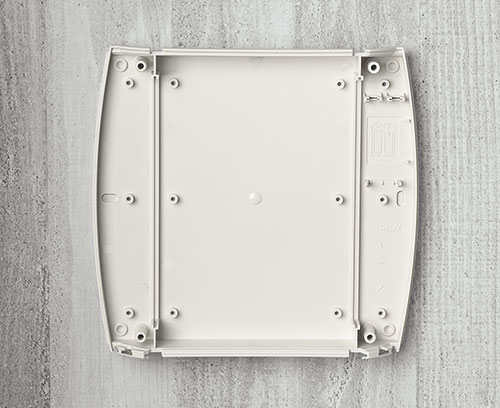

  • easy, invisible wall mounting; knockouts in base for wall fixings

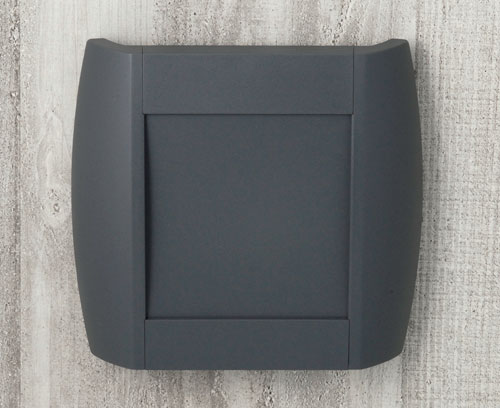

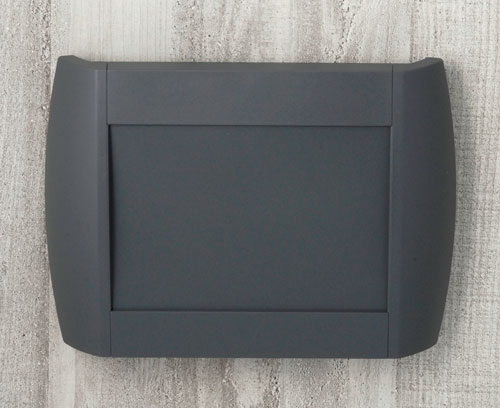

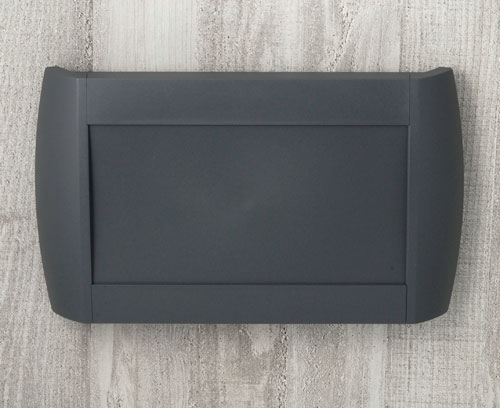

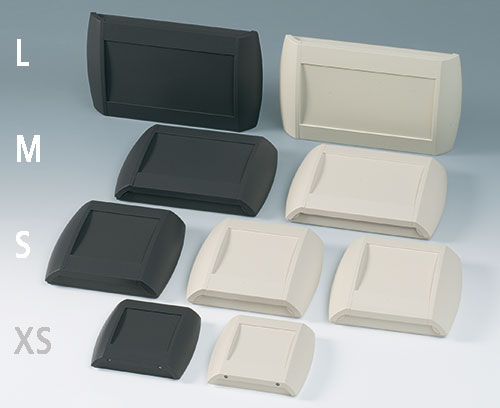

  • four sizes in two colours

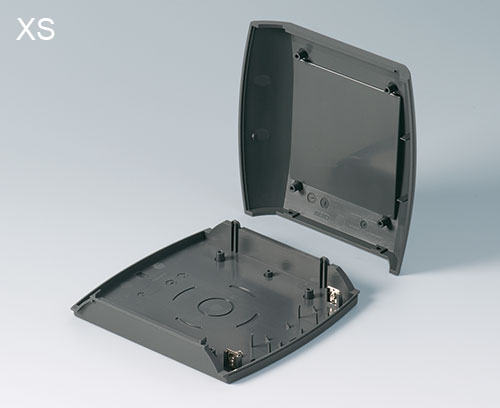

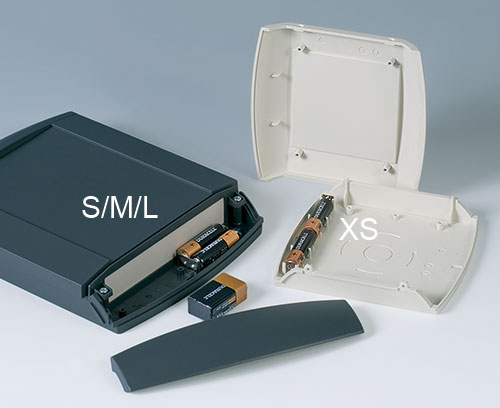

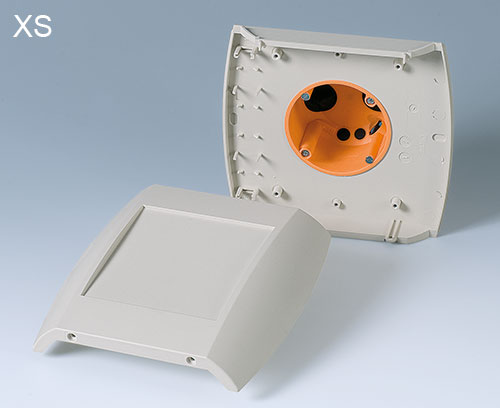

  • DIATEC XS: two-piece case, consisting of a top and bottom part, screwed together, integrated battery holder for 2 x AA, pre-shaped flush-mounting box contoured in the bottom part

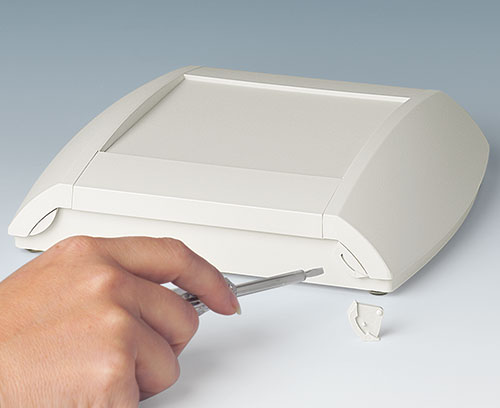

  • DIATEC S, M, L: four-piece case, consisting of a top and bottom part as well as two covers for concealing the assembly screws; if required, the snap-on covers can be locked to prevent unauthorised access; integrated battery compartment for 2 x AA or 1 x 9 V

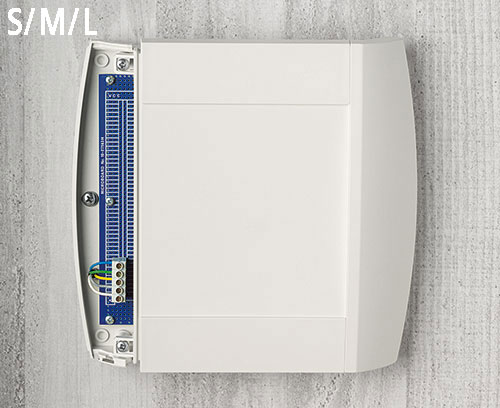

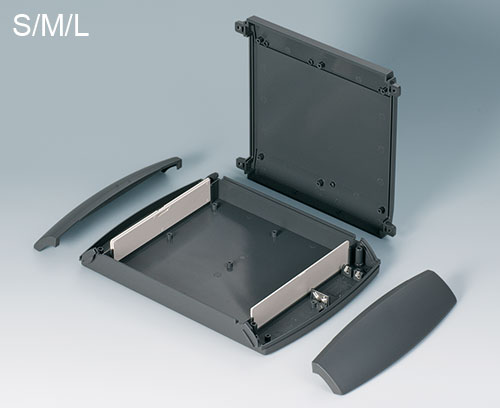

  • slot-in panels (accessories) can be used to separate the electronics and terminal areas
  • snap-on side panels allow installation without disassembly of the top panel  (S, M, L)
  • hinged lids in solid ABS, and translucent or transparent polycarbonate  (accessories S, M, L)
  • internal screw pillars for mounting PCBs

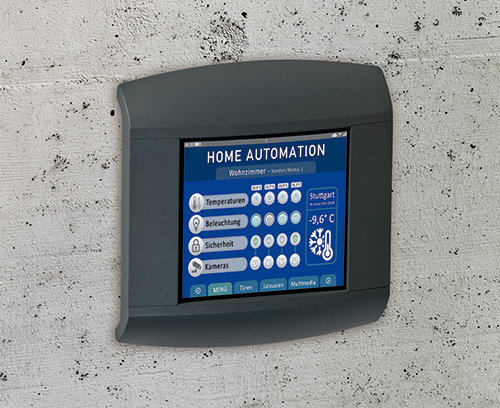

  • Application Examples

Application fields

  • Peripheral equipment for computers
  • IoT/IIoT
  • Gateways
  • Data system engineering
  • Systems for data collection on the job
  • Access and security controls
  • Measuring and controlling devices
  • Medical, wellness and laboratory technology
  • Select Versions
  • Accessories
  • Catalogue Documents
  • View Customising Options

Select which version/size you want and click "select".



Size XS

DIATEC size XS

Sizes S / M / L

DIATEC sizes S / M / L

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V (PP3)
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Close

A9190002

Set of battery clips, 2xN/2xAA/2xAAA Steel
tin-plated

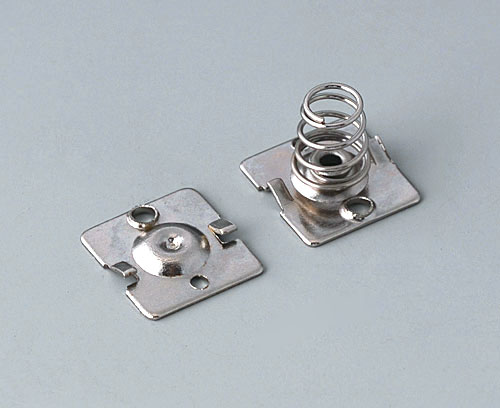

A9190015 Set of battery clips, 2 x AA

A9190015

Set of battery clips, 2 x AA For contacting the batteries. Complies with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly!

Supply 1 single contact positive, 1 single contact negative

Close

A9190015

Set of battery clips, 2 x AA Steel
nickel-plated
A9193121 Hinged lid S, L

A9193121

Hinged lid S, L Hinged lid for covering the dialog zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Close

A9193121

Hinged lid S, L PC (UL 94 V-0)
translucent
A9193122 Hinged lid S, L

A9193122

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Close

A9193122

Hinged lid S, L PC (UL 94 V-0)
translucent
A9193127 Hinged lid S, L

A9193127

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Close

A9193127

Hinged lid S, L ABS (UL 94 HB)
off-white RAL 9002
A9193128 Hinged lid S, L

A9193128

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Close

A9193128

Hinged lid S, L ABS (UL 94 HB)
lava
A9193131 Hinged lid S, L

A9193131

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Close

A9193131

Hinged lid S, L PC (UL 94 V-0)
clear
A9193132 Hinged lid S, L

A9193132

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Close

A9193132

Hinged lid S, L PC (UL 94 V-0)
clear
A9194007 Slot-in panel

A9194007

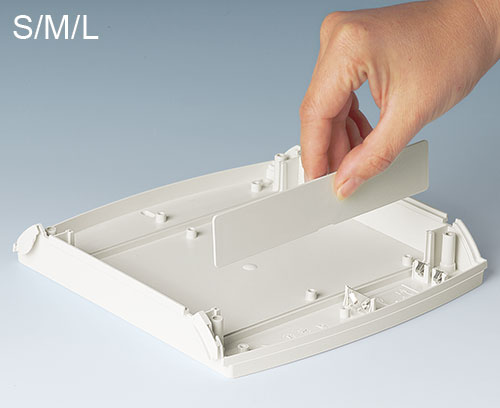

Slot-in panel The slot-in panel can be used as interior partition or separation, for example to protect the electronics when changing batteries. Integrated guide ridges, max. 2 slot-in panels each case.

Supply 1 slot-in panel

Close

A9194007

Slot-in panel ABS (UL 94 HB)
off-white RAL 9002
156x30x3mm
A9194121 Hinged lid M

A9194121

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Close

A9194121

Hinged lid M PC (UL 94 V-0)
translucent
A9194122 Hinged lid M

A9194122

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Close

A9194122

Hinged lid M PC (UL 94 V-0)
translucent
A9194127 Hinged lid M

A9194127

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Close

A9194127

Hinged lid M ABS (UL 94 HB)
off-white RAL 9002
A9194128 Hinged lid M

A9194128

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Close

A9194128

Hinged lid M ABS (UL 94 HB)
lava
A9194131 Hinged lid M

A9194131

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Close

A9194131

Hinged lid M PC (UL 94 V-0)
clear
A9194132 Hinged lid M

A9194132

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Close

A9194132

Hinged lid M PC (UL 94 V-0)
clear
A9207150 Rubber feet 6.5 x 2 mm

A9207150

Rubber feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Rubber feet 6.5 x 2 mm transparent
A9212330 Rubber feet 12 x 3.5 mm

A9212330

Rubber feet 12 x 3.5 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9212330

Rubber feet 12 x 3.5 mm transparent
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Close

B1360048

Wall suspension elements ABS (UL 94 HB)
pebble grey RAL 7032

Customising options for Diatec

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
