Connect

The optimum connection

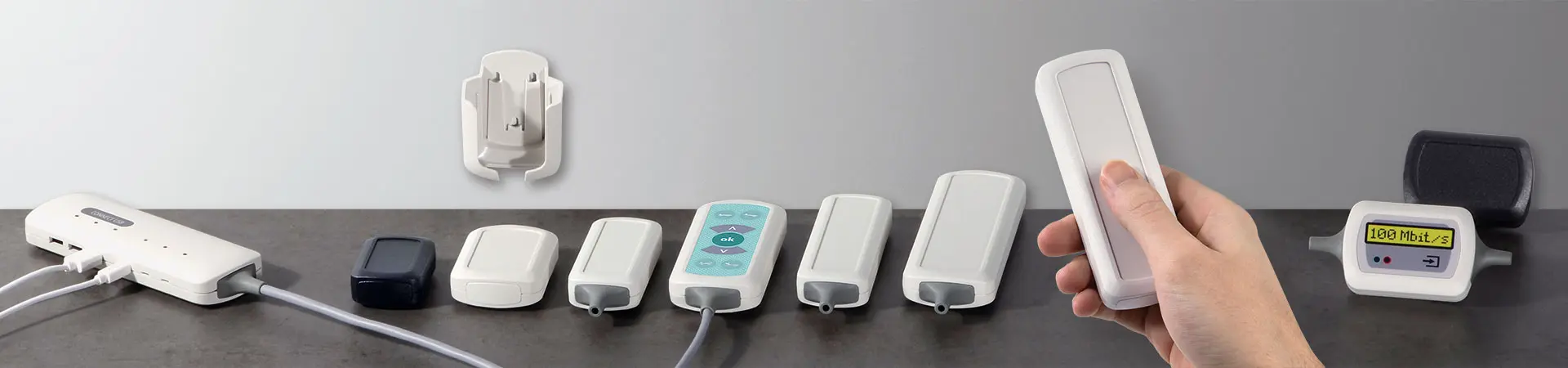

CONNECT plastic enclosures are ideal for wired applications.

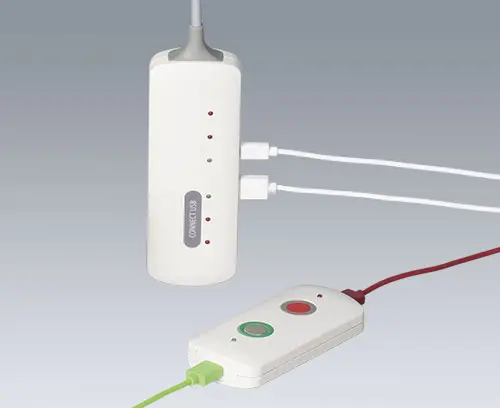

  • two enclosure shells, convex and flattened with a recessed panel
  • the two shells snap into each other, no screws required, this saves time during assembly, and you can also choose the front side of the device
  • cutouts at both ends; to complete the enclosure, end parts and/or cable glands can be fitted

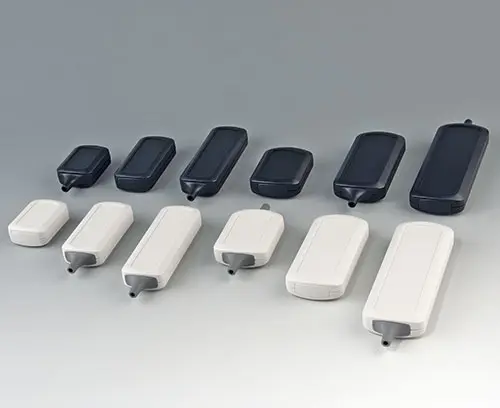

  • three enclosure lengths
  • the enclosure shells and the end parts are made of UV-stabilised V-0 material

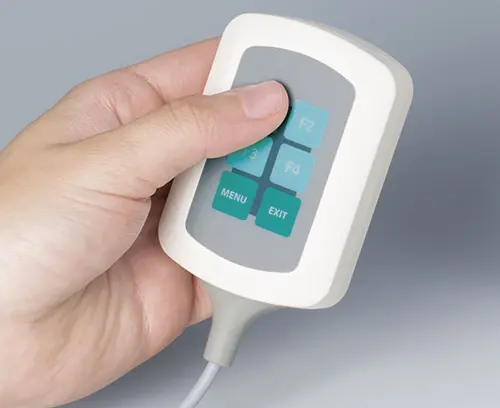

  • integrated strain relief with the cable gland kit

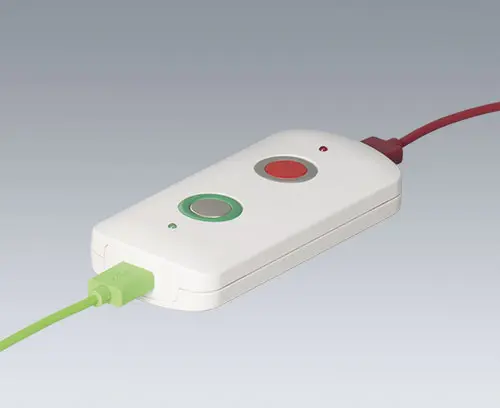

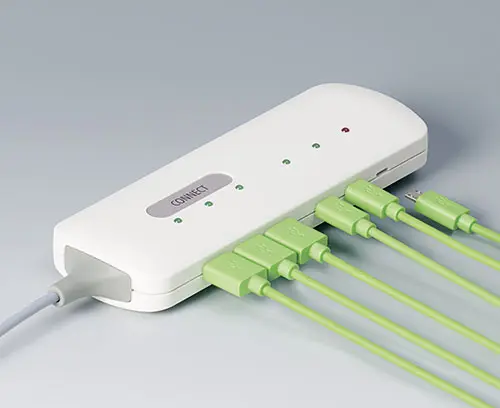

  • enough room for the installation of compact displays, LEDs and USB connectors

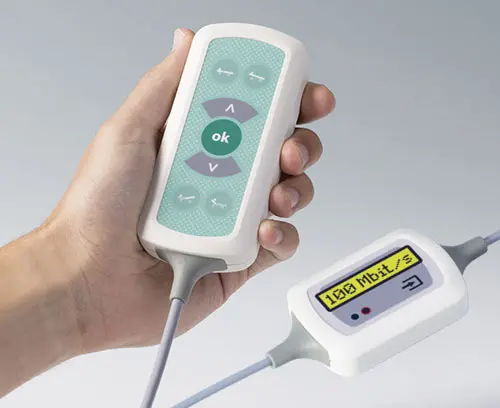

  • recessed surface to protect the membrane keyboard, decor foil or label

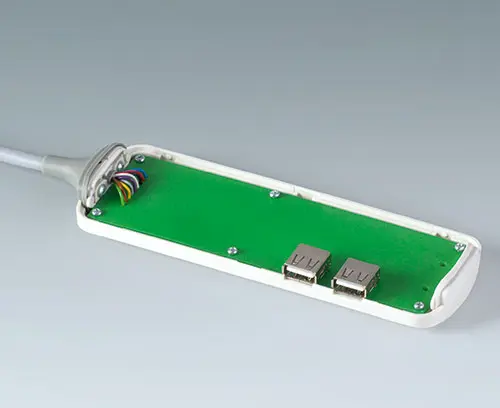

  • attachment pillars for PCBs and components in the flat enclosure shell

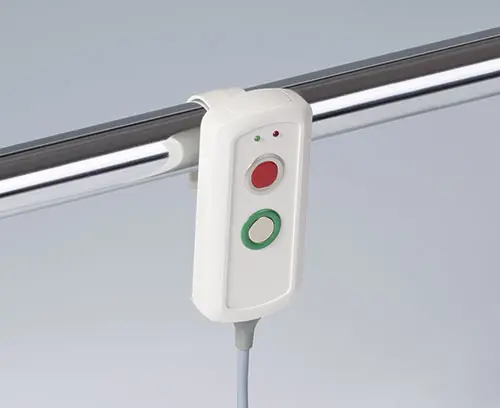

  • holding clamps for round tubes up to ø 32 mm available as accessories (for enclosure lengths 116 and 156 mm)
  • Video
  • Application Examples

Application fields

  • Data systems engineering
  • Network technology
  • Building services systems
  • Safety engineering

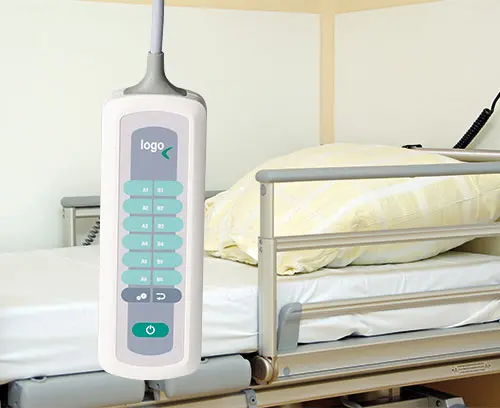

  • Medical and therapeutic applications

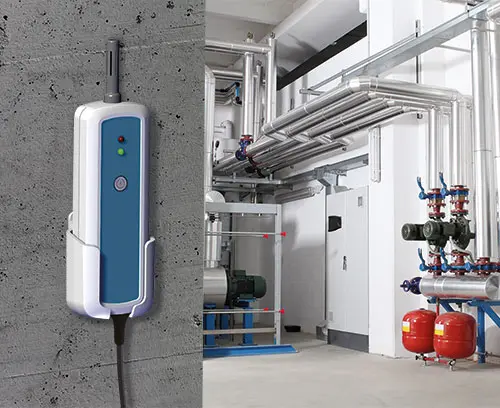

  • Measuring and control technology
  • Browse Full List
  • Accessory
  • Catalogue Documents
  • View Customising Options
B2832107 Connect

B2832107

Connect Basic enclosure, 2-piece, with convex and flattened shell with operating area. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Enclosure snaps together.

Supply Convex and flattened shell with operating area

Close

B2832107

Connect ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
76x54x22mm
IP 40
B2833107 Connect

B2833107

Connect Basic enclosure, 2-piece, with convex and flattened shell with operating area. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Enclosure snaps together.

Supply Convex and flattened shell with operating area

Close

B2833107

Connect ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
116x54x22mm
IP 40
B2834107 Connect

B2834107

Connect Basic enclosure, 2-piece, with convex and flattened shell with operating area. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Enclosure snaps together.

Supply Convex and flattened shell with operating area

Close

B2834107

Connect ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
156x54x22mm
IP 40
A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
A9167027 Holding clamp

A9167027

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Close

A9167027

Holding clamp PA 6 (UL 94 HB)
off-white RAL 9002

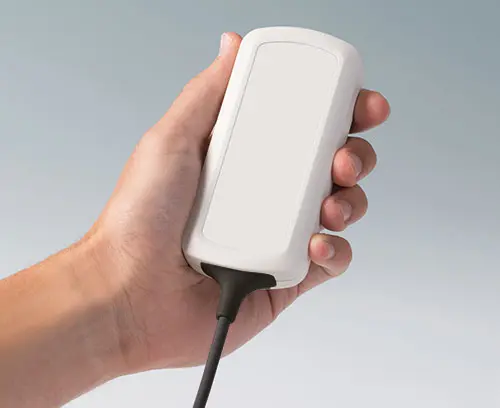

B2911308 Cable gland kit, 3.4 - 4.2

B2911308

Cable gland kit, 3.4 - 4.2 For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Close

B2911308

Cable gland kit, 3.4 - 4.2 SEBS (TPE)
volcano
B2911318 Cable gland kit, 4.2 - 5.0

B2911318

Cable gland kit, 4.2 - 5.0 For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Close

B2911318

Cable gland kit, 4.2 - 5.0 SEBS (TPE)
volcano
B2911328 Cable gland kit, 5.0 - 5.9

B2911328

Cable gland kit, 5.0 - 5.9 For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Close

B2911328

Cable gland kit, 5.0 - 5.9 SEBS (TPE)
volcano

Customising options for Connect

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
