Accessories for enclosures
A9305017
Wall suspension elements

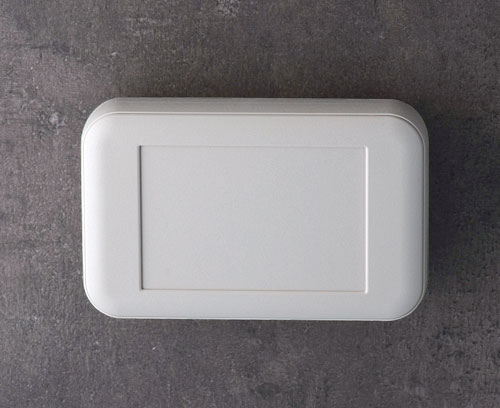

Universal wall suspension element suitable for small plastic enclosures with a flat base.

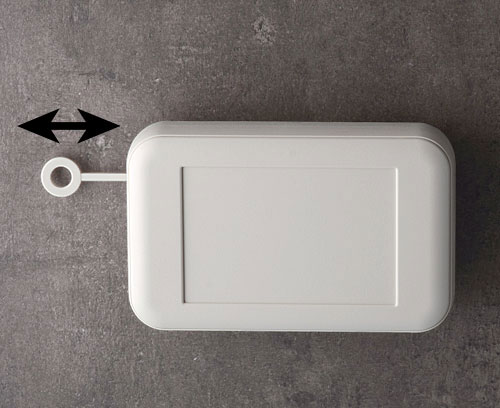

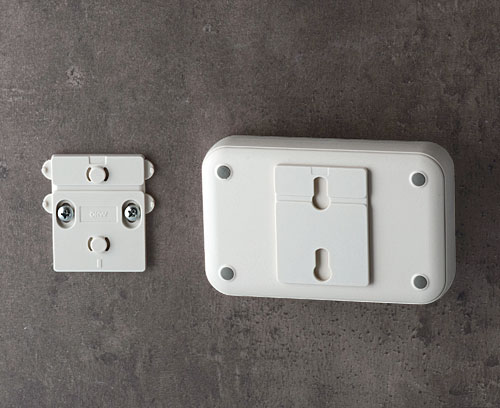

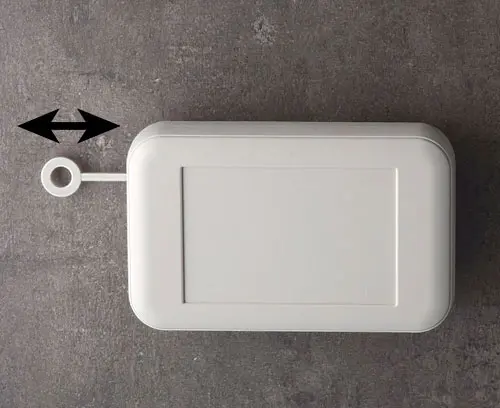

The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.
*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

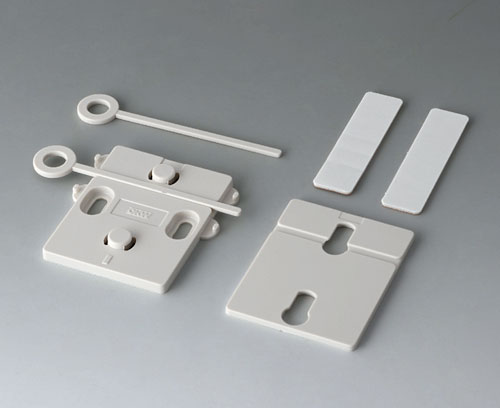

1 adapter, 2 adhesive foils, 1 holder, 2 locking pins
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9305017
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory
A9305147

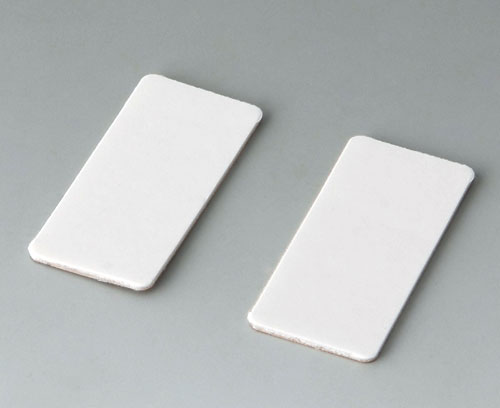

Adhesive foil holder
For self-adhesive installation of the holder (from wall suspension elements A9305017/ A9305019). Double-sided adhesive foil with foam rubber carrier, 42 x 20 mm each.
Supply 2 adhesive foils
A9305147
Adhesive foil holderproduct added to your basket
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 194 KB
- AutoCAD DWG-File 345 KB
- AutoCAD DXF-File 1,106 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 101 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00020242.x_t 451 KB
- 00020242.step 1,131 KB
- 00020242.sat 1,131 KB
Weight/1 part
32 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
