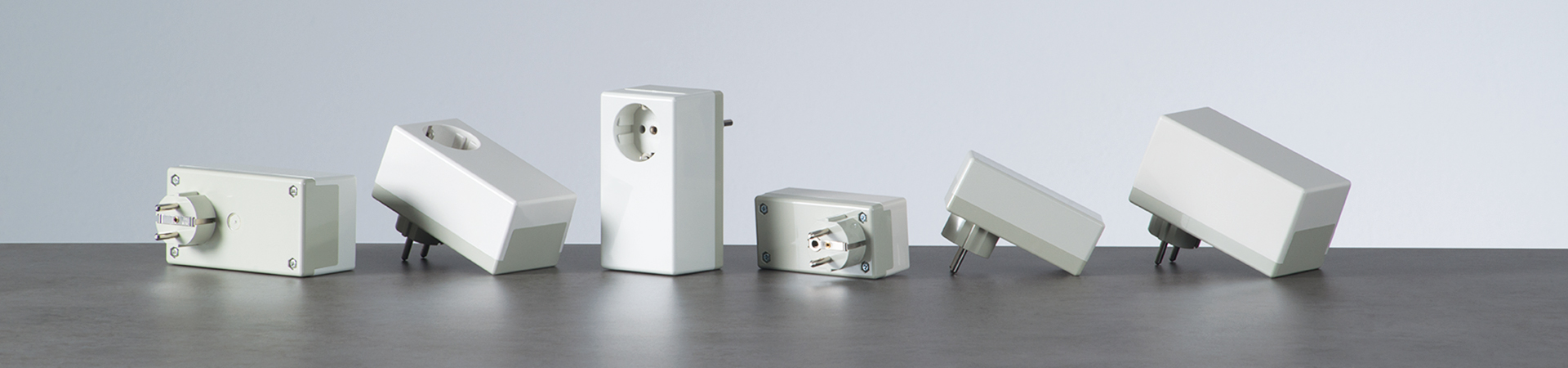

Plug Cases

Enclosures with integrated plug

Our PLUG CASES provide an extremely functional solution for your electronics: robust and impact resistant.

  • plastic enclosures in flame-resistant material (UL 94 V-0)
  • country-specific  versions “Germany” and “France”
  • German version also with integrated socket
  • robust and impact-resistant material; the ball-thrust hardness test is performed at 125°C
  • internal fastening pillars for PCBs; four self-tapping screws are included
  • protection class IP 40

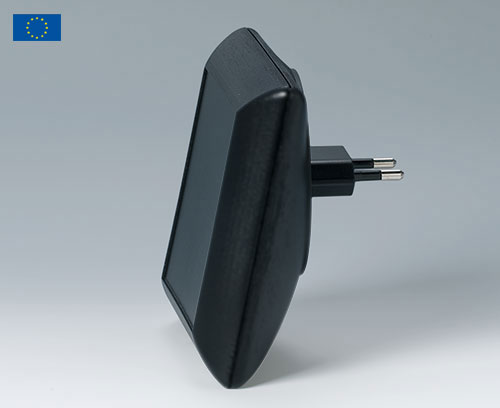

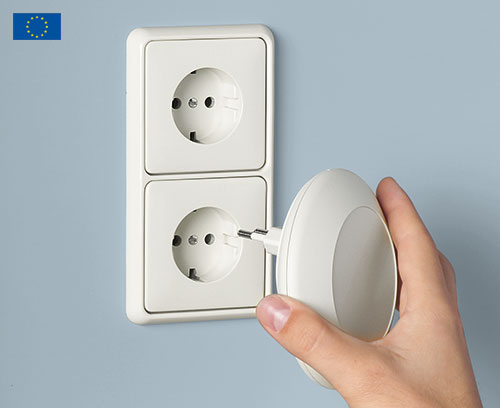

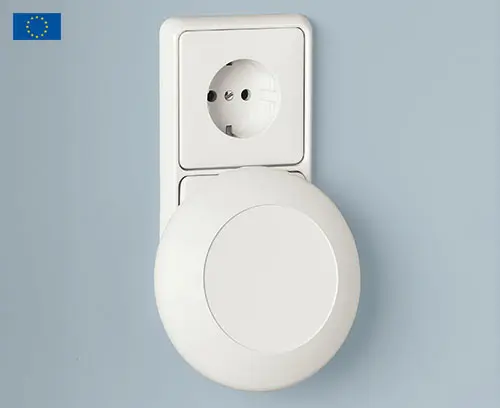

For enclosures with integrated Euro plugs please refer to our ART-CASE range

Application fields

  • Units with direct mains supply for controllers, signaling, switches, networks etc.
  • Browse Full List
  • Accessories
  • Catalogue Documents
  • View Customising Options

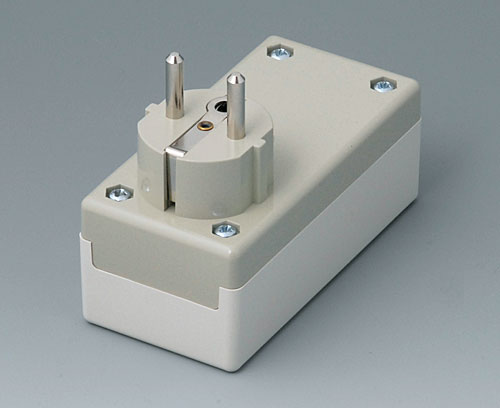

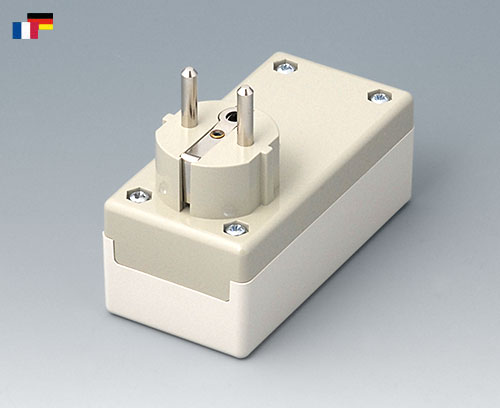

A9011665 PLUG CASE F / D, Vers. I

A9011665

PLUG CASE F / D, Vers. I Two-part plug case, French / German version. Live parts ABS-PC V-0. Fixing towers for the PCB assembly.

Version Without integrated socket, plug according to DIN 49441 R2

Supply 1 top and base part, assembly kit including 4 screws for the PCB fixing

Close

A9011665

PLUG CASE F / D, Vers. I ABS (UL 94 V-0)
off-white RAL 9002
100x50x40mm

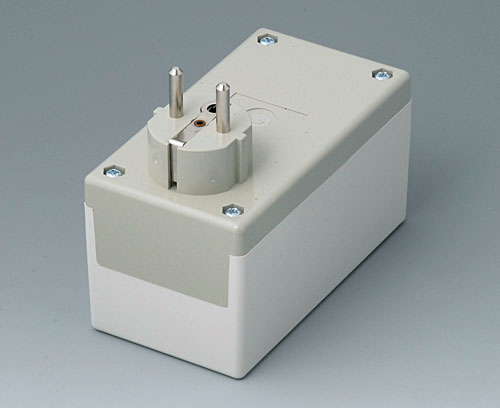

A9021665 PLUG CASE F / D, Vers. I

A9021665

PLUG CASE F / D, Vers. I Two-part plug case, French / German version. Live parts ABS-PC V-0. Fixing towers for the PCB assembly.

Version Without integrated socket, plug according to DIN 49441 R2

Supply 1 top and base part, assembly kit including 4 screws for the PCB fixing

Close

A9021665

PLUG CASE F / D, Vers. I ABS (UL 94 V-0)
off-white RAL 9002
120x65x65mm

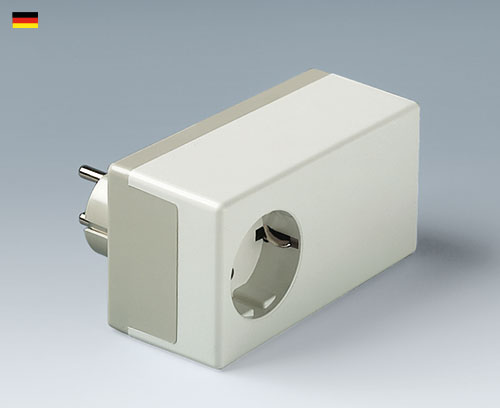

A9022465 PLUG CASE D, Vers. II

A9022465

PLUG CASE D, Vers. II Two-part plug case, German version. Live parts ABS-PC V-0. Fixing towers for the PCB assembly.

Version With integrated socket DIN 49440 and plug section DIN 49441 R2

Supply 1 top and base part, assembly kit including 4 screws for the PCB fixing

Close

A9022465

PLUG CASE D, Vers. II PC+ABS (UL 94 V-0)
off-white RAL 9002
120x65x55mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 3 x 8 mm (PZ1)

Customising options for Plug Cases

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
