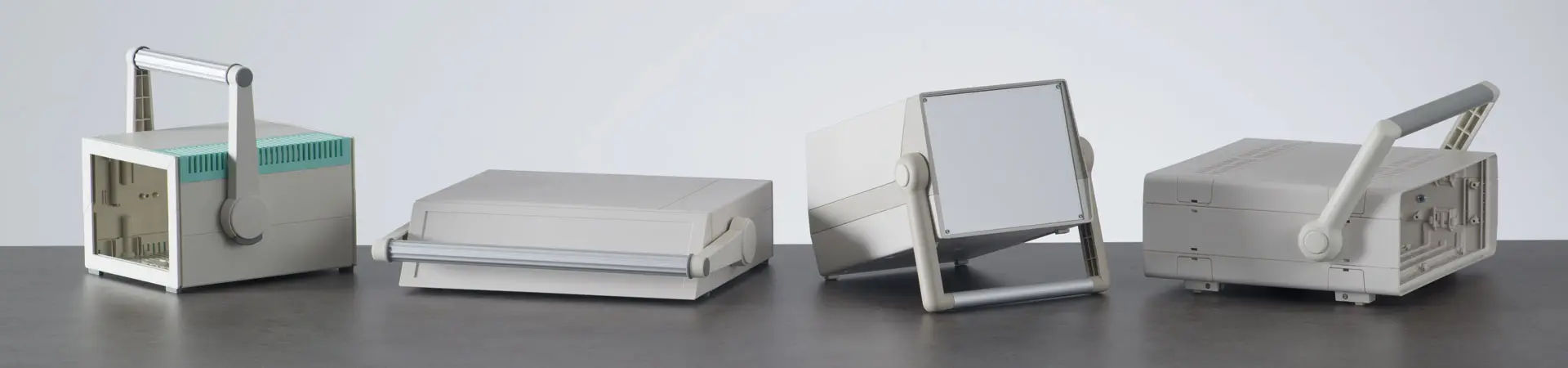

Handle bar, bail arm

Handle bar, bail arm

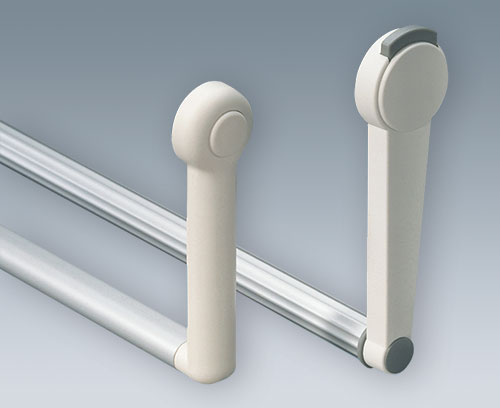

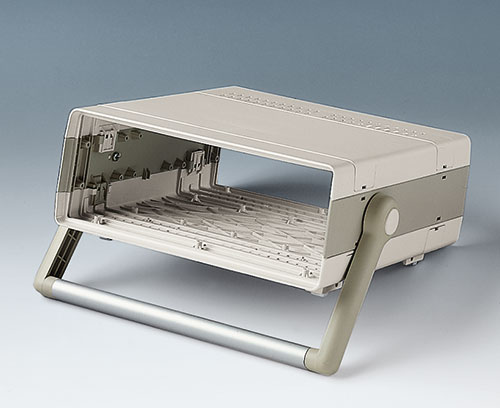

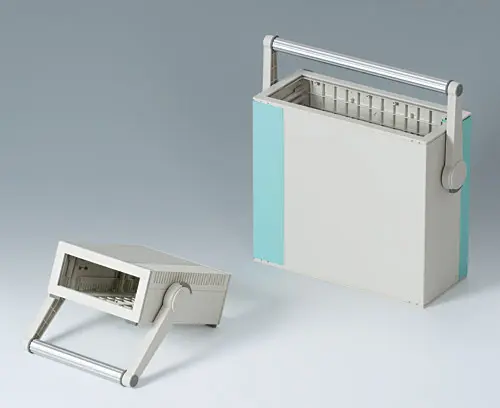

Tilt and swivel carry handle bars made of plastic and diecast zinc. With matching anodised aluminium profile, cut to the correct width for your enclosure, and supplied as a separate component.

  • Browse Full List
  • Catalogue Documents
A9300014 Side arm kit

A9300014

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile (AS050740) extrusions in the required length are available as separate accessory (on demand). The length of the profile has to be 26 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

Close

A9300014

Side arm kit Zinc
off-white RAL 9002

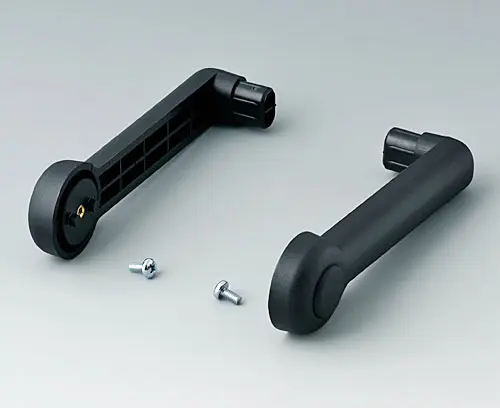

A9300015 Side arm kit

A9300015

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

Close

A9300015

Side arm kit PA 6 (UL 94 HB)
black RAL 9005

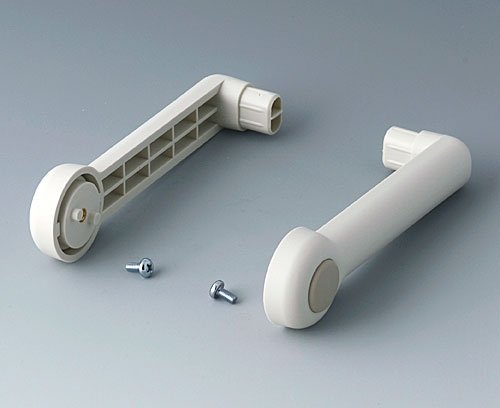

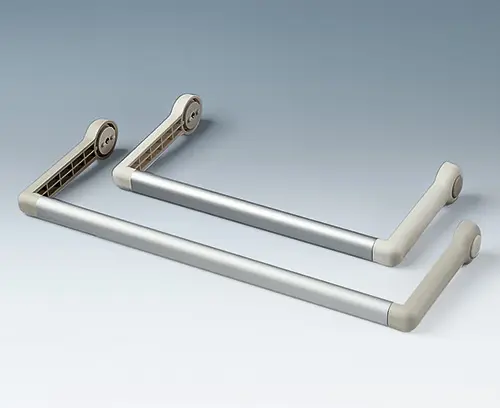

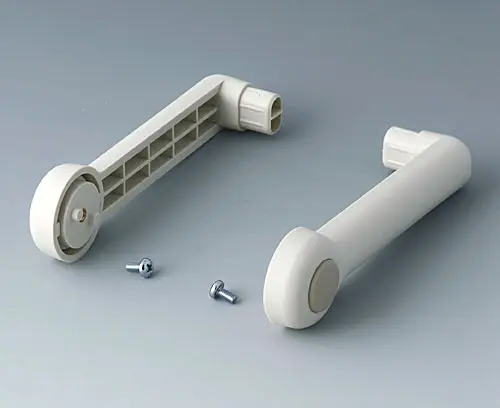

A9300016 Side arm kit

A9300016

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

Close

A9300016

Side arm kit PA 6
off-white RAL 9002

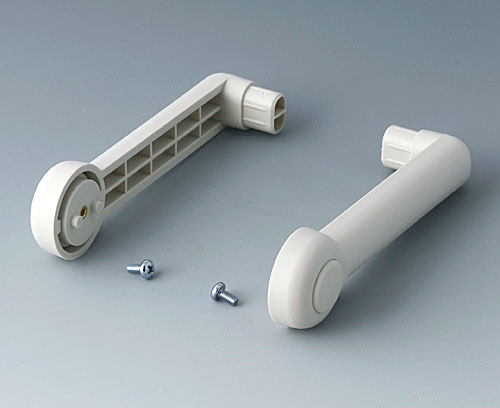

A9300017 Side arm kit

A9300017

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

Close

A9300017

Side arm kit PA 6
off-white RAL 9002

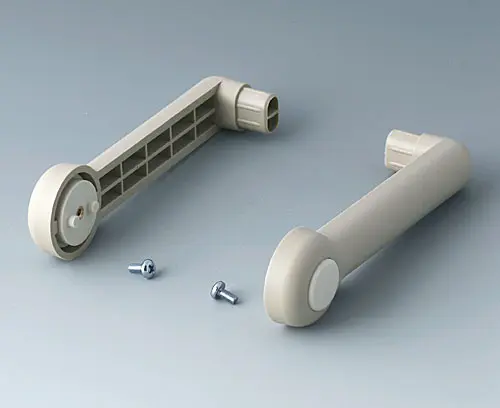

A9300018 Side arm kit

A9300018

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

Close

A9300018

Side arm kit PA 6
pebble grey RAL 7032

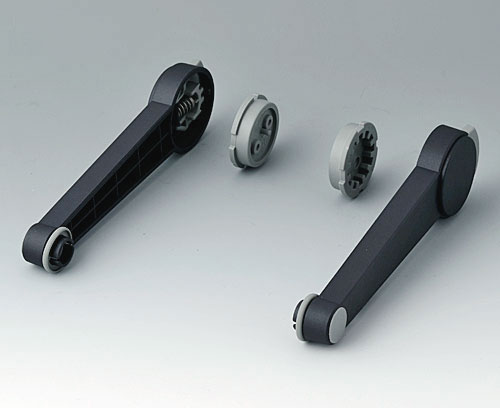

A9300522 Side arm kit

A9300522

Side arm kit The handle can be fixed from the outside as well as from the inside and is detachable at 135° positioning. Ratchet with 30° indexing. Al profile (AS053695) in requested length as separate accessory (on demand). The length of the profile has to be 3 mm longer than the width of the case.

Supply 2 side arms, fixing material

Close

A9300522

Side arm kit PA 6 (UL 94 HB)
black RAL 9005

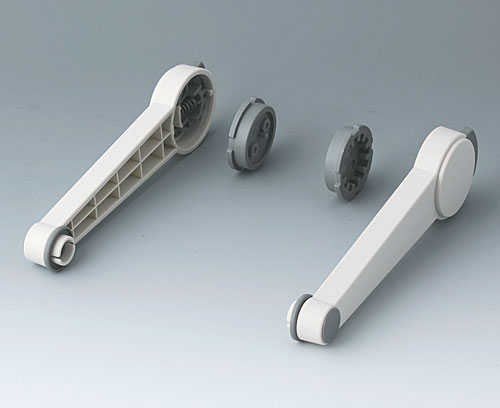

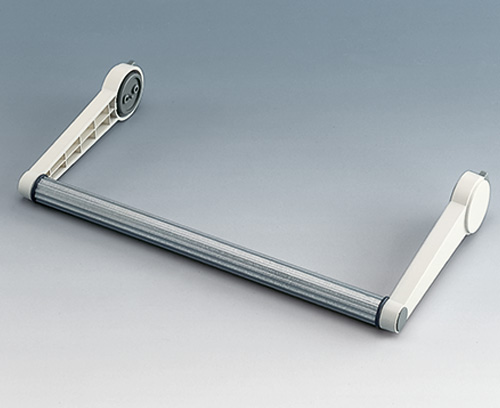

A9300722 Side arm kit

A9300722

Side arm kit The handle can be fixed from the outside as well as from the inside and is detachable at 135° positioning. Ratchet with 30° indexing. Al profile (AS053695) in requested length as separate accessory (on demand). The length of the profile has to be 3 mm longer than the width of the case.

Supply 2 side arms, fixing material

Close

A9300722

Side arm kit PA 6
off-white RAL 9002

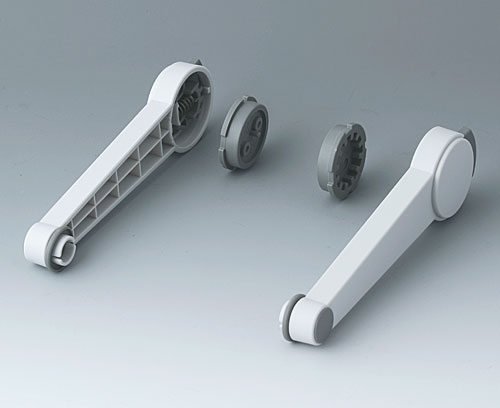

A9300822 Side arm kit

A9300822

Side arm kit The handle can be fixed from the outside as well as from the inside and is detachable at 135° positioning. Ratchet with 30° indexing. Al profile (AS053695) in requested length as separate accessory (on demand). The length of the profile has to be 3 mm longer than the width of the case.

Supply 2 side arms, fixing material

Close

A9300822

Side arm kit PA 6
light grey RAL 7035
