FLAT-PACK CASES

Flat-Pack Case

Multi-purpose plastic enclosures

Our FLAT-PACK CASES offer simple and low-priced enclosures for your electronics.

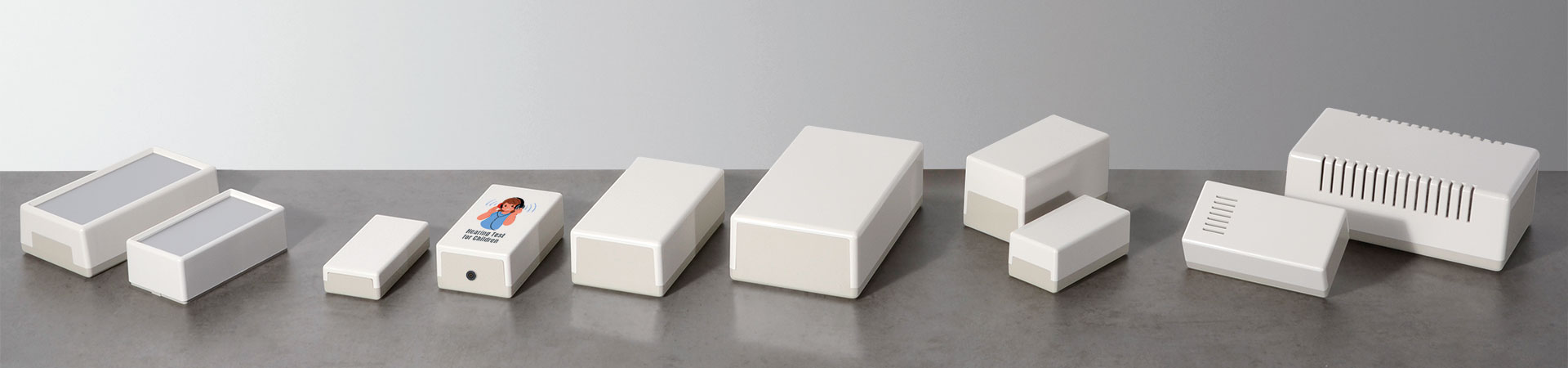

  • large range of sizes and versions for table-top and wall mounting
  • robust construction with tongue & groove design

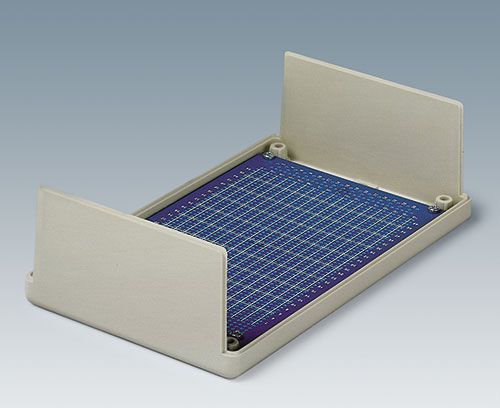

  • the bottom parts are open at the sides and are thus particularly useful for all installation and service work

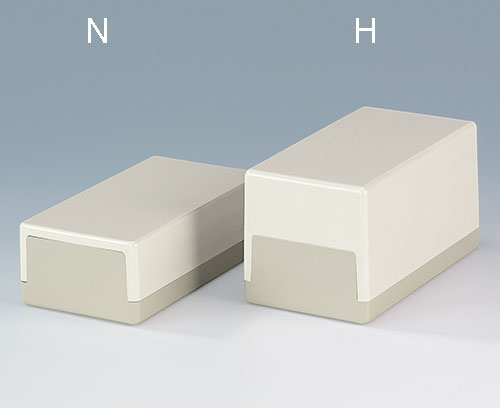

  • with low (N) and high (H) top part

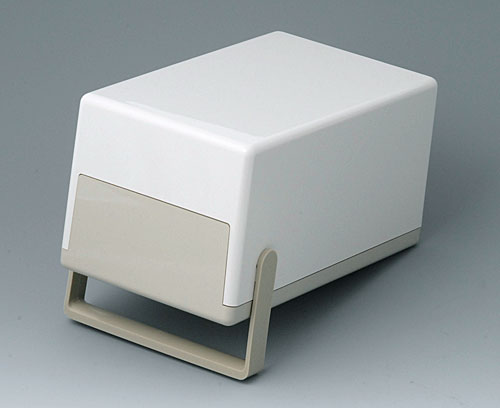

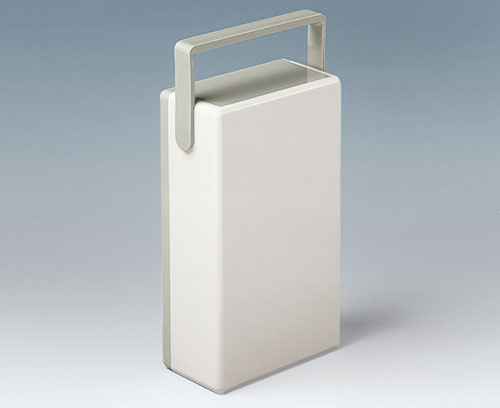

  • versions with handle bar for ergonomic operation or easy carrying
  • with ventilation slots for components dissipating high heat (189 L)
  • with slots on the top for miniature appliances with sound signal (120 S)

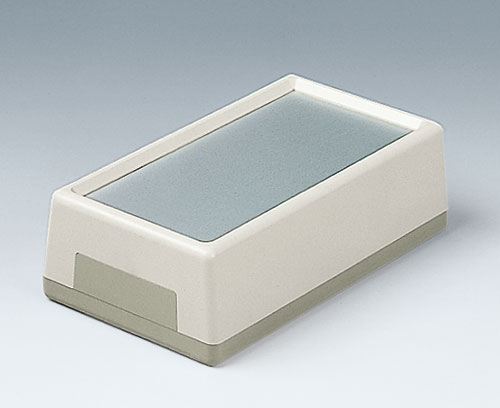

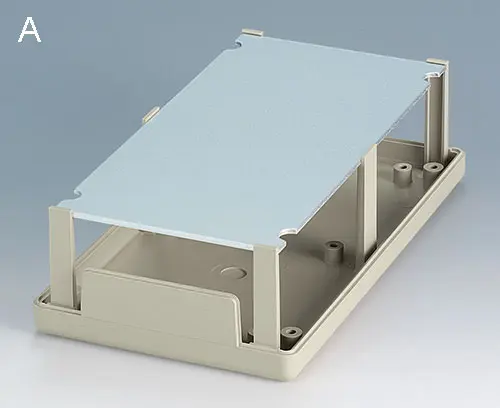

  • type A models with aluminum front panels; operating elements are protected by a raised edge on the case
  • protection class IP 40 (version without slots)
  • internal screw pillars for PCBs etc.

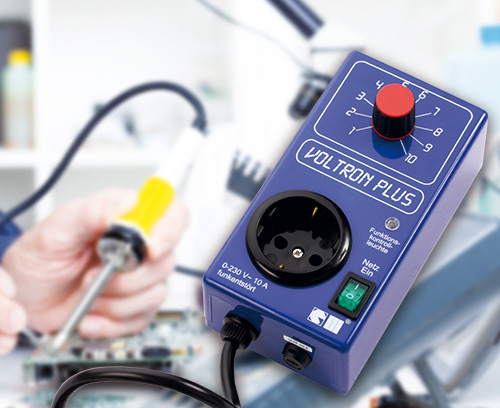

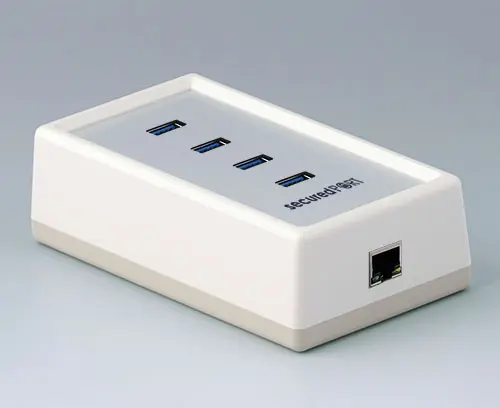

  • Application Examples

Application fields

Universal enclosures for electronic and electrotechnical devices, e.g.
  • measuring and control instruments
  • medical
  • wellness and laboratory equipment
  • and computer peripherals etc.
  • Select Versions
  • Accessories
  • Catalogue Documents
  • View Customising Options

Select which version/size you want and click "select".

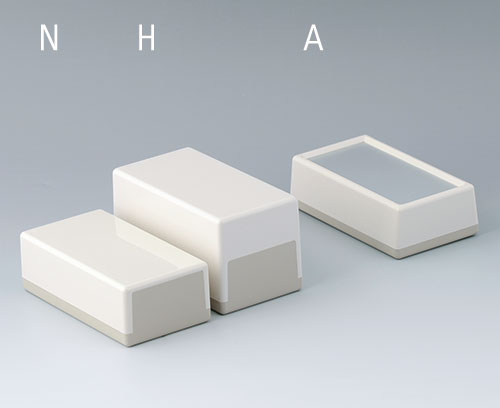

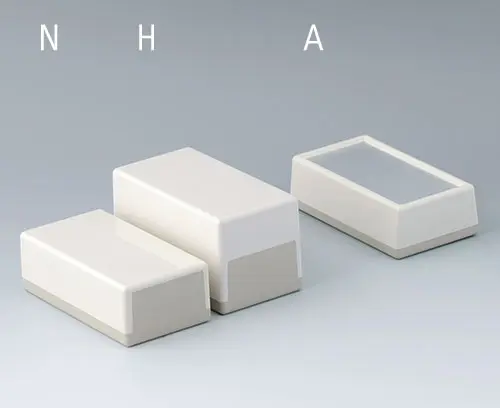

N / H (closed top part)

FLAT-PACK CASE N / H (closed top part)

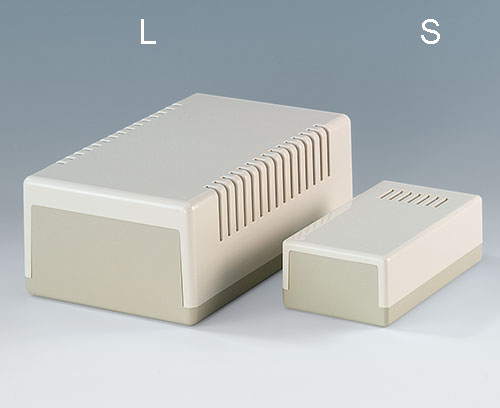

S / L (sound / ventilation slots)

FLAT-PACK CASE S / L (sound / ventilation slots)

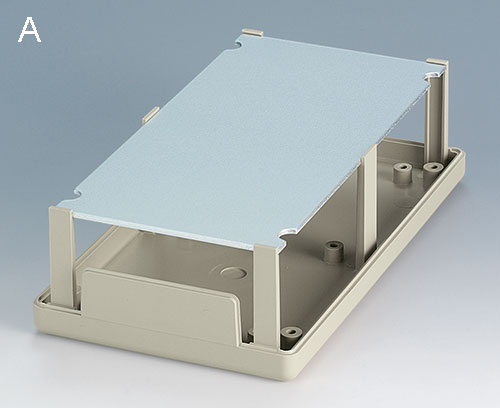

A (separate front panel)

FLAT-PACK CASE A (separate front panel)

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 3 x 8 mm (PZ1)

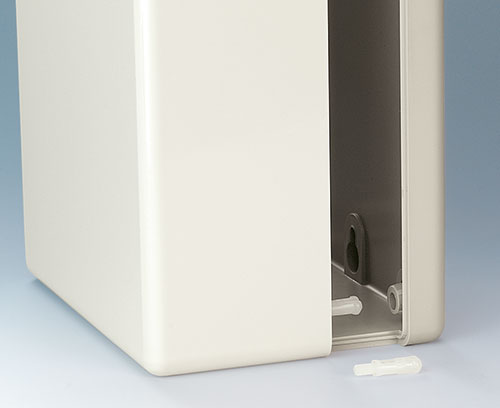

A9100008 Snap-lock

A9100008

Snap-lock Replaces the standard screw fixing of the case. Suitable for FLAT-PACK CASES A9040065-A9043265.

Supply 1 snap lock

Close

A9100008

Snap-lock PA 6 (UL 94 HB)
natural-coloured

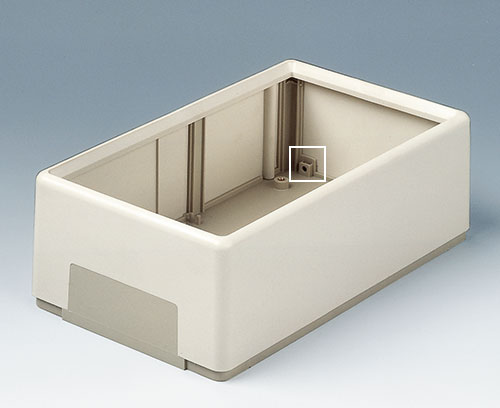

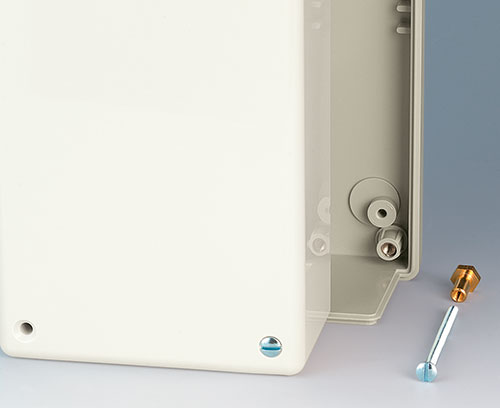

A9120000 Assembly kit for wall mounting

A9120000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9011... and A9020... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Close

A9120000

Assembly kit for wall mounting
A9130000 Assembly kit for wall mounting

A9130000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9030... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Close

A9130000

Assembly kit for wall mounting
A9132000 Assembly kit for wall mounting

A9132000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9032... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Close

A9132000

Assembly kit for wall mounting
A9140000 Assembly kit for wall mounting

A9140000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9040... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Close

A9140000

Assembly kit for wall mounting
A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Close

A9172107

Belt/Pocket clip ABS (UL 94 HB)
off-white RAL 9002
62x30mm
A9195201 Front panel

A9195201

Front panel Front panel for FLAT-PACK CASE A9520165.

Supply 1 front panel

Close

A9195201

Front panel Aluminium
matt anodised
113x58x1mm
A9195301 Front panel

A9195301

Front panel Front panel for FLAT-PACK CASE A9530165.

Supply 1 front panel

Close

A9195301

Front panel Aluminium
matt anodised
141.8x71.6x1.5mm

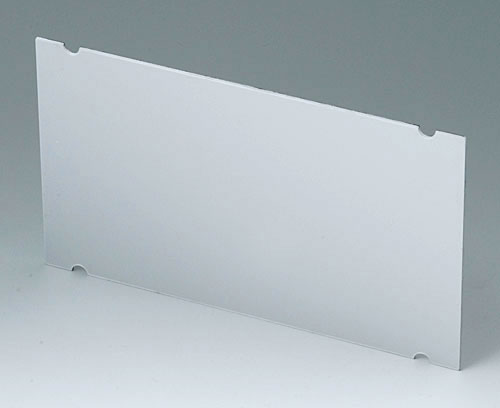

A9195401 Front panel

A9195401

Front panel Front panel for FLAT-PACK CASE A9540165.

Supply 1 front panel

Close

A9195401

Front panel Aluminium
matt anodised
201x116x1.5mm
A9207150 Rubber feet 6.5 x 2 mm

A9207150

Rubber feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Rubber feet 6.5 x 2 mm transparent
A9210290 Rubber feet 9.5 x 3.8 mm

A9210290

Rubber feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9210290

Rubber feet 9.5 x 3.8 mm transparent
A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250807

Tilt foot bar ABS (UL 94 HB)
off-white RAL 9002
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250817

Tilt foot bar ABS (UL 94 HB)
off-white RAL 9002
B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Close

B1350048

Wall suspension elements ABS (UL 94 HB)
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Close

B1360048

Wall suspension elements ABS (UL 94 HB)
pebble grey RAL 7032

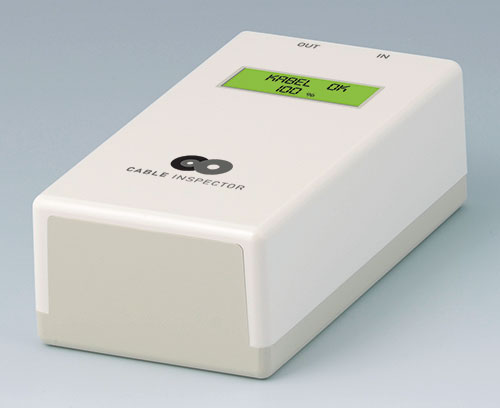

Customising options for Flat-Pack Case

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
