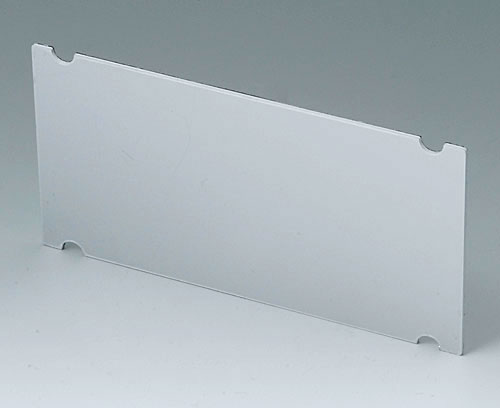

A9195301 Front panel

A9195301

Front panel

Front panel for FLAT-PACK CASE A9530165.

Supply

1 front panel

  • To be used for
  • View Customising Options
A9530165 FLAT-PACK CASE 150 A

A9530165

FLAT-PACK CASE 150 A Two-piece case. The front panel, see accessory A9195301, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Close

A9530165

FLAT-PACK CASE 150 A ABS (UL 94 HB)
off-white RAL 9002
150x85x45mm
IP 40

Customising options for A9195301

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
matt anodised
Length
141.8 mm
Width
71.6 mm
Thickness
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
40 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
