SOLID-BOX - Elegant enclosure for industrial applications

SOLID-BOX - Elegant enclosure for industrial applications

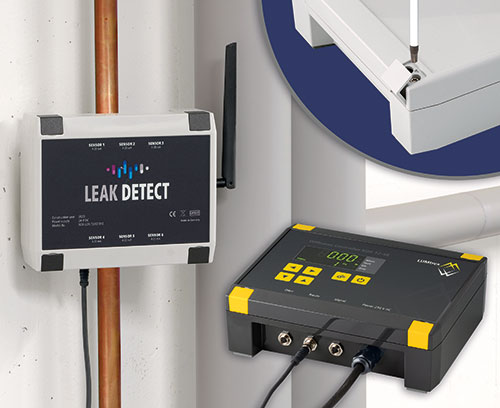

Robust, waterproof and stylish at the same time! The new SOLID-BOX enclosure range by OKW Gehäusesysteme meets all the requirements for modern electronics packaging in industrial environments or in protected outdoor areas. Flush-fitting, snap-on trims creatively conceal the screw attachments and, together with the highly polished enclosure surface, guarantee an elegant appearance.

The SOLID-BOX, the new two-part robust industrial enclosure, is available from stock in the two standard colours anthracite grey (RAL 7016) and light grey (RAL 7035). Three different versions with 135 x 115 x 50 mm, 180 x 145 x 60 mm as well as 225 x 175 x 70 mm (L x W x H) allow the assembly of visually uniform enclosure series. A recessed panel for integrating membrane keyboards is located on the top surface. The enclosure range is made of high-quality, flame-retardant V0 material (PC+ABS-FR) with an improved heat distortion temperature (Vicat/B 120 = 110 °C). To protect the electronics from moisture, dust and dirt, the interior is sealed to IP66/IP67. The sturdy enclosure design also allows increased resistance to impact and shock stress according to IK08.

The upper and lower parts are assembled rationally using rust-proof and captured Torx screws outside the sealed interior. The enclosure screw connections, as well as the channels for direct wall mounting, are then innovatively concealed by the supplied design trims (surface slightly structured). Each enclosure bottom part has 2 recessed surfaces for installing and protecting interfaces and cable connections. To match the high-quality appearance, black cable glands and bushings in various designs (M12-M20, Quick-Fix assembly, easy-to-pierce membrane etc.) and a cable gland with integrated pressure compensation are available as accessories.

As a wall-mounted and desktop enclosure, the new SOLID-BOX is ideal for robust electrical and electronic applications. Typical applications are, for example, heating and air conditioning, plant engineering and construction, diverse areas of the IIoT and the smart factory as well as safety engineering etc. For reliable desktop positioning, a set of suitable enclosure feet is available. To prevent the top part from falling during initial assembly or in the event of subsequent servicing, the enclosure range is supplemented by a cover retention device. If you have to open the enclosure several times, you can also use the internal hinge set (both are included in the range of accessories). Fastening pillars inside the enclosure allow the installation of PCBs, DIN rails and mounting plates. The larger versions also include pre-moulded mounts for VESA standard holders (version 145 for VESA 75x75 mm, version 175 for VESA 100x100 mm). Like all the services listed below, the holes required for this can be drilled in our own in-house Service Center: EMC aluminium coating, printing, mechanical processing, laser marking, décor foils/labels/stickers and assembly work.

Link website SOLID-BOX
