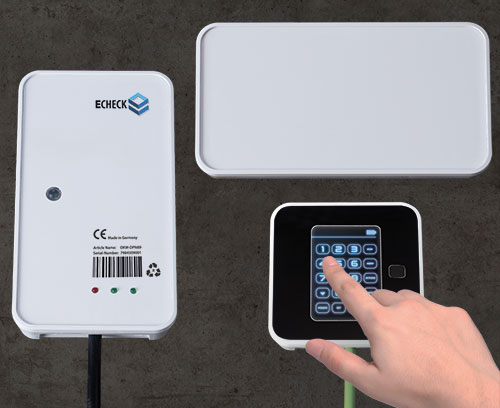

SMART-PANEL - Elegant wall-mounted enclosure for modern control consoles

AltText

OKW Gehäusesysteme presents the new SMART-PANEL range of wall-mounted enclosures. The elegant square or rectangular design fits seamlessly into modern residential/commercial and industrial environments. The enclosures are ideal for the convenient control and monitoring of the entire building technology.

Thanks to their attractive design, SMART-PANELS adapt themselves optimally to their surroundings. Wired control/operating centres or radio-connected devices in the smart home, applications in the IIoT, access controls, monitoring devices, data acquisition systems, medical technology and much more are conceivable. The SMART-PANEL is available from stock in 2 sizes (height x width):

  • Square shape with 84 x 84 mm. This version is prepared for concealed installation on standard flush-mounted/cavity wall boxes (Germany, Belgium, Switzerland, Austria with a max. installation opening of 61 mm).
  • Rectangular shape with 155 x 84 mm. This version is prepared for concealed installation on simple flush-mounted boxes (Germany, Belgium, Switzerland, Austria up to a max. installation opening of 61 mm), double flush-mounted boxes as well as larger installation boxes (e.g. in Italy, Great Britain and USA) up to a max. height of 145 mm and width of 74 mm.

Both versions are manufactured from high-quality ASA+PC-FR (UL 94 V-0) in the colour traffic white (RAL 9016). The bottom part of the enclosure is highly polished, and the top part has a fine surface structure with a recessed control area for membrane keyboards, display/operating elements and touch displays. Assembly is effected by means of a snap-in function without screws. The enclosure ranges have an IP 40 protection class, sufficient for indoor applications. The range of accessories includes an opening tool for opening the enclosures, hardboard plates to protect the electronic components as well as a glass pane, e.g. for display applications. The SMART-PANEL has a flat, recessed surface for USB or Mini-USB connectors.

A variety of modifications can be implemented on request according to individual customer requirements. These include cutouts for operating/display elements and interfaces, printing, labelling, EMC aluminium vapour plating, special colours/materials, decor foils and assembly work.

Link website SMART-PANEL
