B2904037 Holder L

B2904037

Holder L

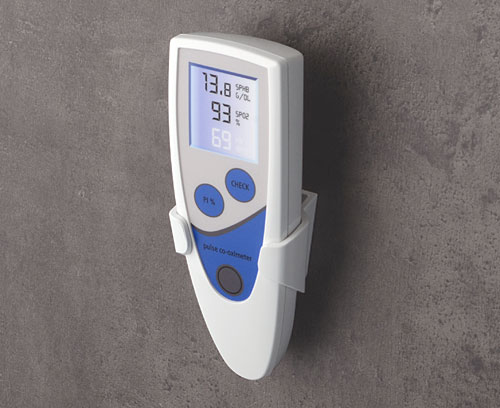

Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply

1 holder

  • Components/Accessories

System components to complete

B2804017 STYLE-CASE L

B2804017

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2804017

STYLE-CASE L ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40

Accessory

B2904031 Adhesive foil

B2904031

Adhesive foil For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

B2904031

Adhesive foil
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
traffic white RAL 9016
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
18 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
