SMART-CONTROL S, Vers. I

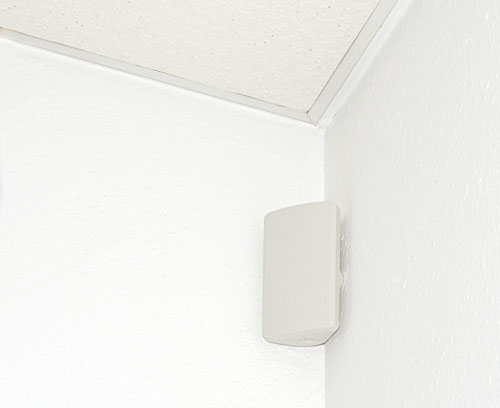

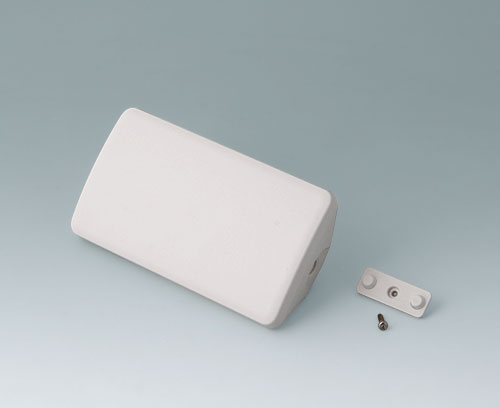

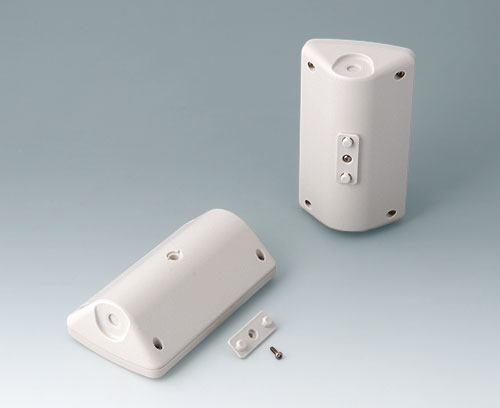

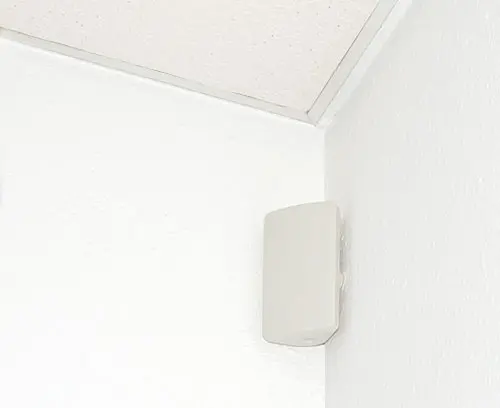

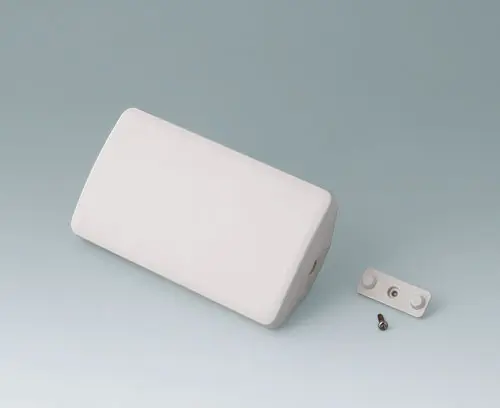

Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.
VersionCase-top without recessed operating area
SupplyTop and bottom parts, assembly kit incl. universal adapter
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B4608107
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "station"
B4705207

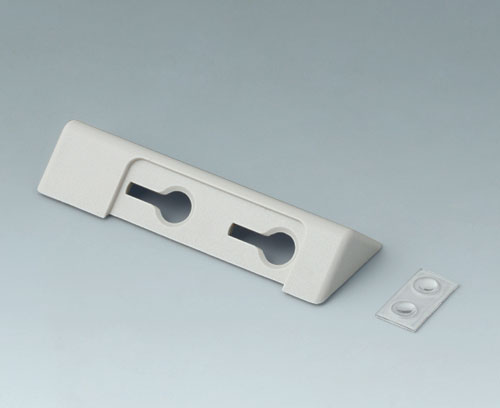

Desktop stand set
For reliable positioning on a desktop, giving an ergonomic reading angle of 45° when the enclosure is set up horizontally. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).
Supply 1 desktop stand set incl. 2 self-adhesive rubber feet
B4705207
Desktop stand setproduct added to your basket
Accessory "protection"
B4708920

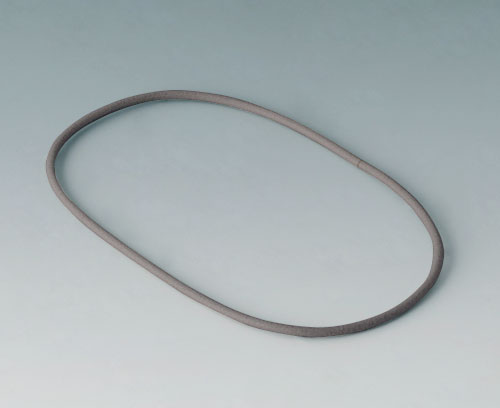

Seal S
Application: for increasing the protection class, of SMART-CONTROL S. Bottom part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4708920
Seal Sproduct added to your basket
Accessory "wall/holder"
B4705907

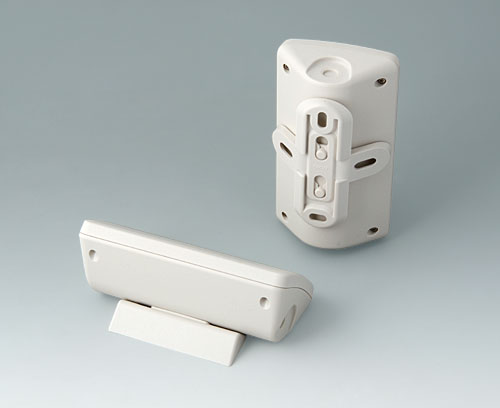

Wall suspension element
This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).
Supply 1 wall suspension element
B4705907
Wall suspension elementproduct added to your basket
Accessory "screws"
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)product added to your basket
Customising options for B4608107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Protection class
Necessary accessories: sealing,
Colour
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
142 mm
Width
81 mm
Height
46 mm
PCB length, base
120 mm
PCB width, base
58 mm
PCB length, top
128 mm
PCB width, top
68 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 382 KB
- AutoCAD DWG-File 573 KB
- AutoCAD DXF-File 2,074 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 752 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00025844.x_t 7,992 KB
- 00025844.STEP 13,835 KB
- 00025844.SAT 19,259 KB
Weight/1 part
107 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B4608107 and don't forget to request a quotation!
