Accessories for enclosures
A8170500
Lid 70 x 50
Suitable for case A8070200 and A8070350.
Supply1 lid
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A8170500
Please select the product details you would like to include in the PDF.
Add to my basket

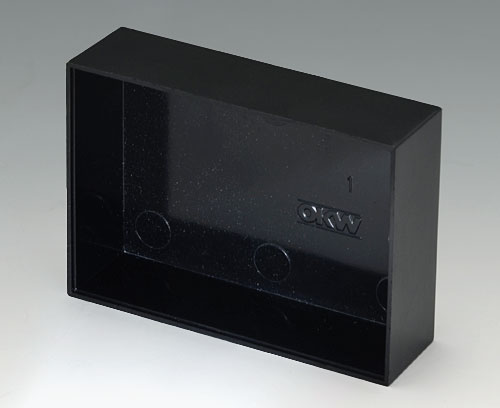

A8070200
POTTING BOXES, Vers. I
Special case for potting electronic assemblies. Especially resistant to deformation, extreme temperatures, not resistant to fracture. Production-limited surface quality.
Supply 1 case
A8070200
POTTING BOXES, Vers. Iproduct added to your basket
black RAL 9005
70x50.4x20mm

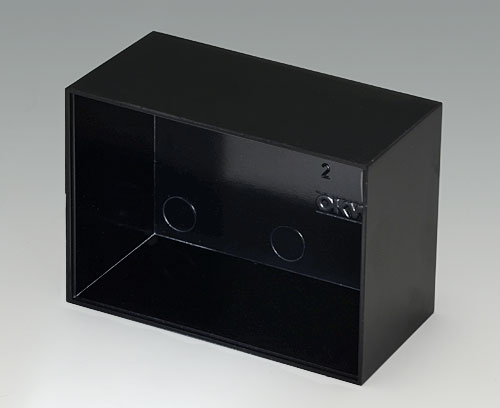

A8070350
POTTING BOXES, Vers. I
Special case for potting electronic assemblies. Especially resistant to deformation, extreme temperatures, not resistant to fracture. Production-limited surface quality.
Supply 1 case
A8070350
POTTING BOXES, Vers. Iproduct added to your basket
black RAL 9005
70.6x50.4x35mm
Customising options for A8170500
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 159 KB
- AutoCAD DWG-File 288 KB
- AutoCAD DXF-File 855 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 37 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00007353.x_t 103 KB
- 00007353.step 267 KB
- 00007353.sat 205 KB
Weight/1 part
10 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Taiwan
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A8170500 and don't forget to request a quotation!
