DESK CASES

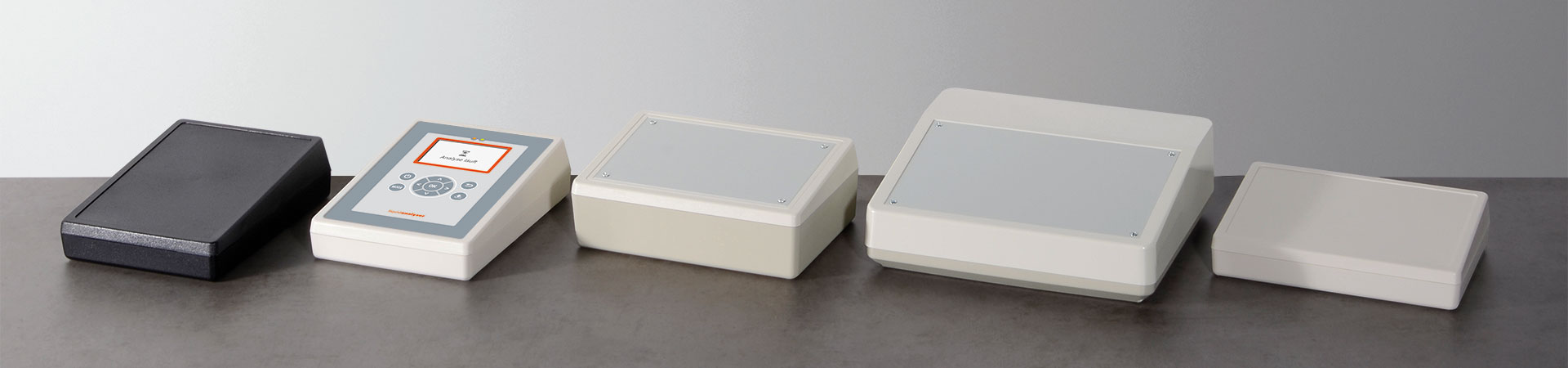

Desk Cases

Practical sloping front desktop enclosures

These plastic enclosures are suitable for indoor applications in many different fields of electronics. Choose a case that will fully meet your requirements in terms of size and inclination of the control panel.

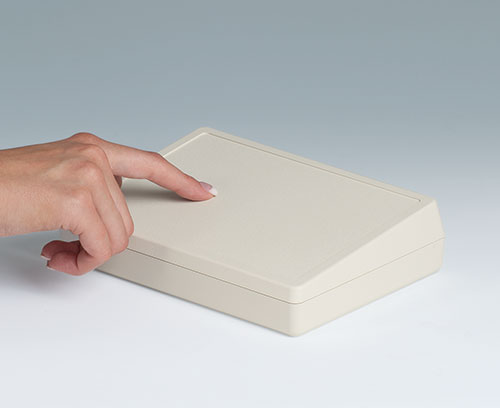

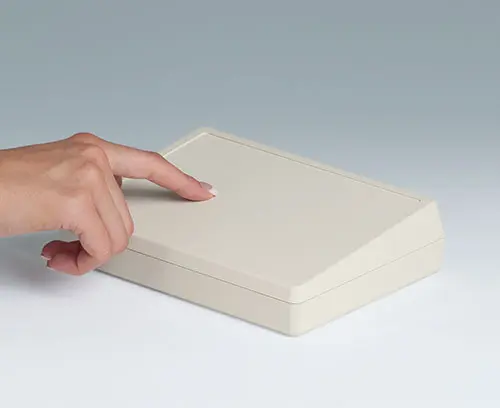

  • desk cases with inclined operating area

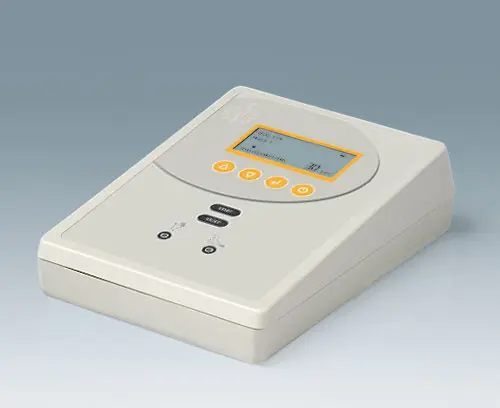

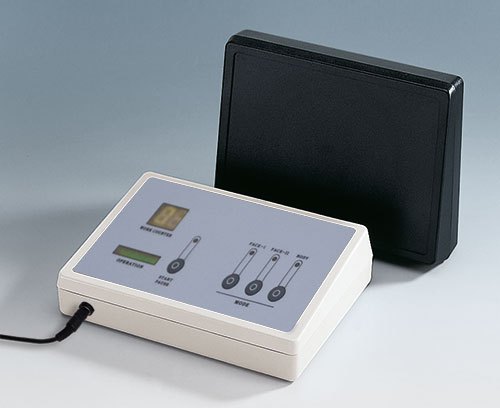

  • suitable for numeric keypads and membrane keyboards
  • useful range of five different models

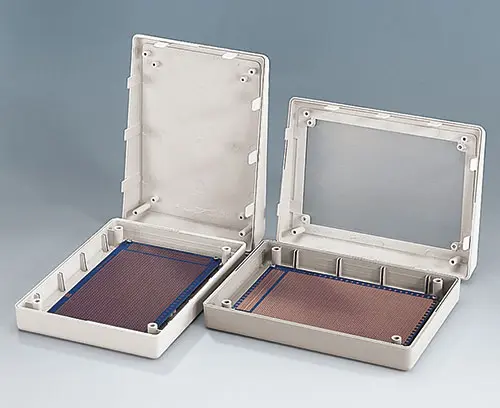

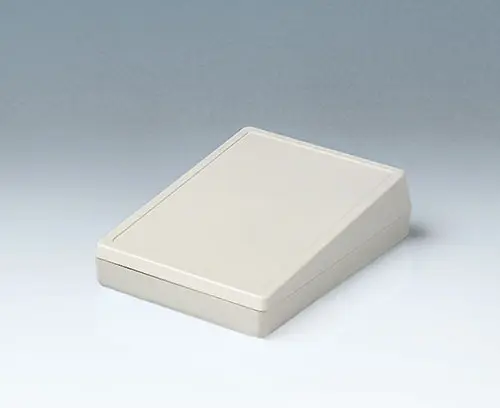

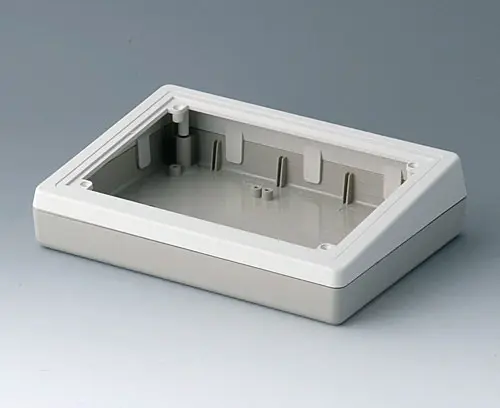

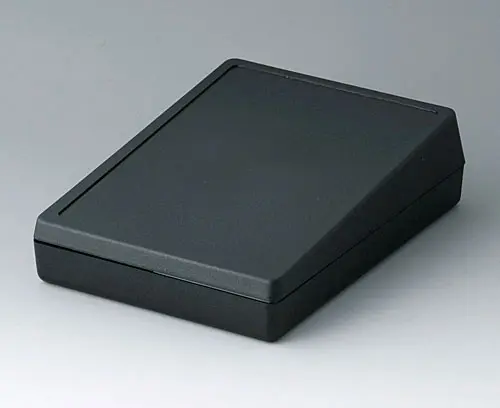

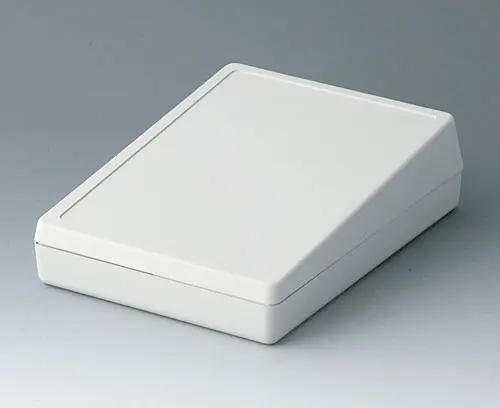

  • prepared for the assembly of eurocards 100 x 160 mm (types 138/190/190F/190H)
  • front panel versions are available for the installation of complete prefabricated electronic assemblies

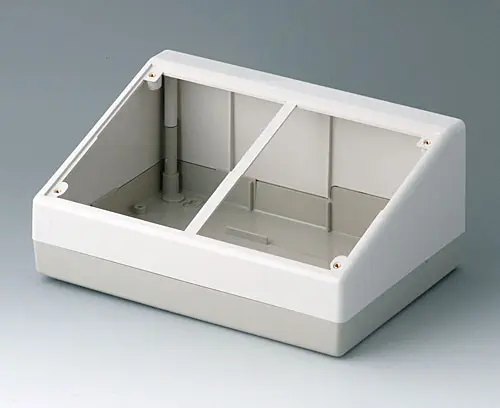

  • connector mounting panel (types 220 & Combi F/H)

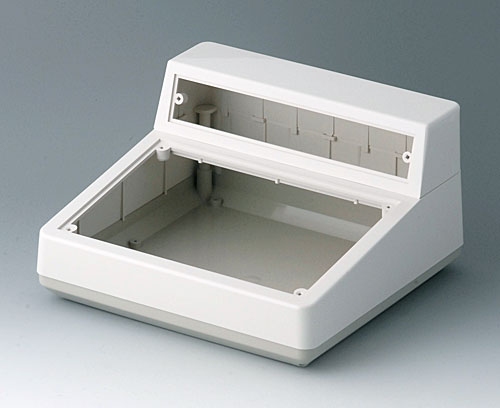

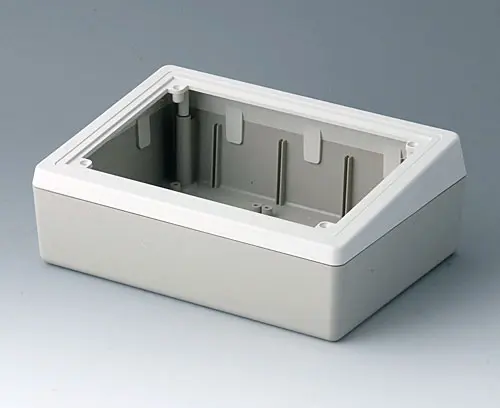

  • version with attachment for digital readouts, measuring equipment, encoders etc. (Combi Desk Case H)
  • protection class IP 40
  • wall suspension element as accessory
  • internal screw pillars for PCBs etc.

Application fields

  • Systems for data collection on the job and machines
  • Communications equipment
  • Access and security controls
  • Data systems engineering
  • Medical, wellness and laboratory technologies
  • Industrial control and point-of-sale devices
  • Select Versions
  • Accessories
  • Catalogue Documents
  • View Customising Options

Select which version/size you want and click "select".



Closed top panel

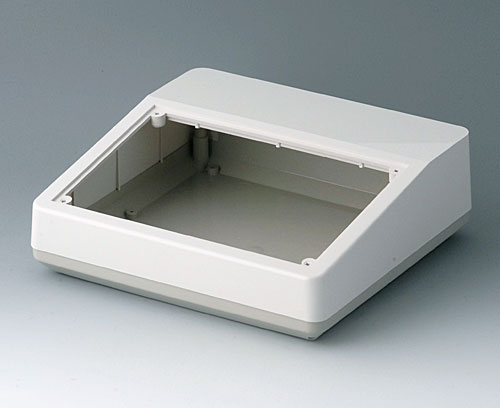

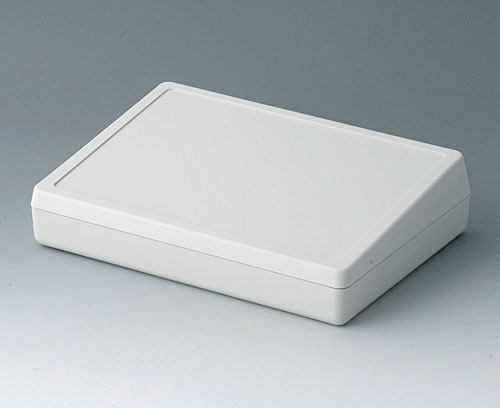

DESK CASE with closed top panel

For fitting an aluminium panel

DESK CASE for fitting an aluminium panel

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)

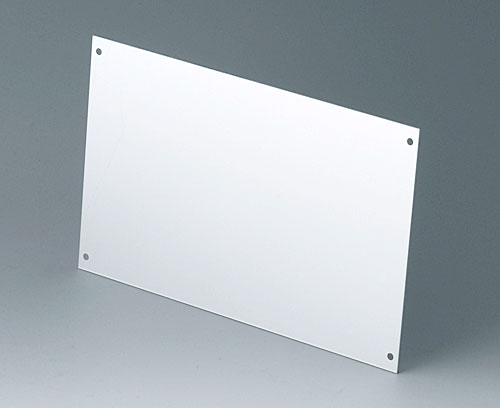

A9180001 Front panel

A9180001

Front panel Front panel for DESK CASE 220.

Supply 1 front panel (screws supplied with case)

Close

A9180001

Front panel Aluminium
matt anodised
205.5x129.4x1.5mm

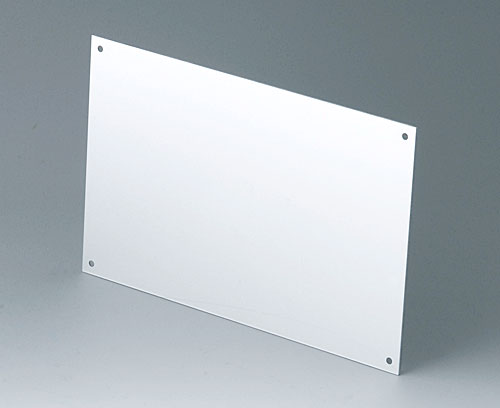

A9184001 Front panel

A9184001

Front panel Front panel for COMBI DESK CASE F/H. Front panel for attachment for COMBI DESK CASE H separate accessories (A9185001).

Supply 1 front panel (screws supplied with case)

Close

A9184001

Front panel Aluminium
matt anodised
200x130x1.5mm

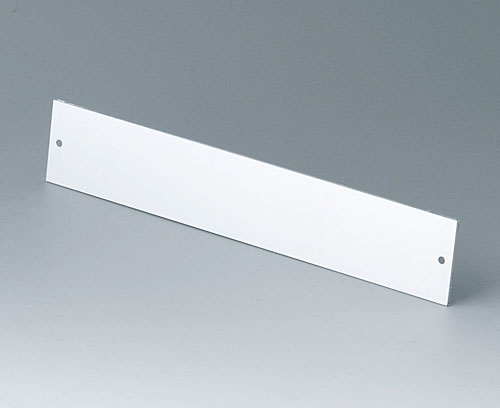

A9185001 Front panel

A9185001

Front panel Front panel for attachment for COMBI DESK CASE H.

Supply 1 front panel (screws supplied with case)

Close

A9185001

Front panel Aluminium
matt anodised
200x35x1.5mm

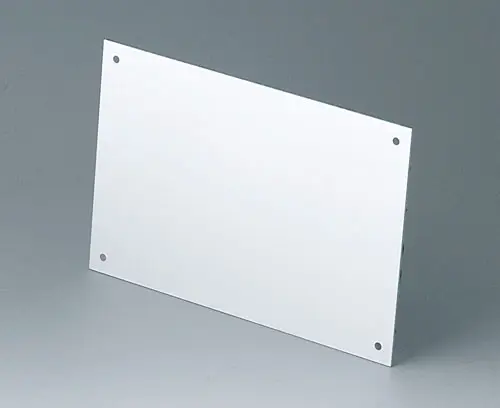

A9186001 Front panel

A9186001

Front panel Front panel for DESK CASE 190 F and H.

Supply 1 front panel (screws supplied with case)

Close

A9186001

Front panel Aluminium
matt anodised
161.5x106x1.5mm

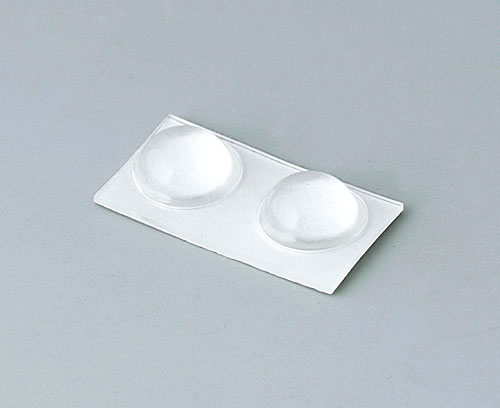

A9210290 Rubber feet 9.5 x 3.8 mm

A9210290

Rubber feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9210290

Rubber feet 9.5 x 3.8 mm transparent

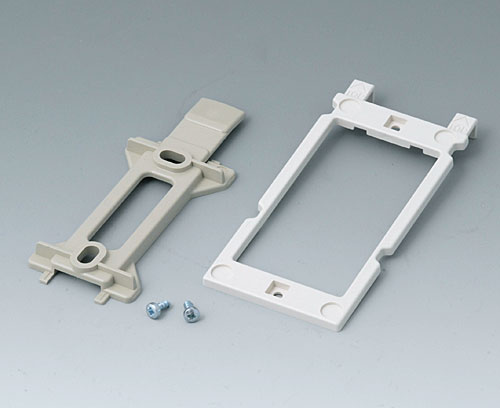

B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Close

B1350048

Wall suspension elements ABS (UL 94 HB)
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Close

B1360048

Wall suspension elements ABS (UL 94 HB)
pebble grey RAL 7032

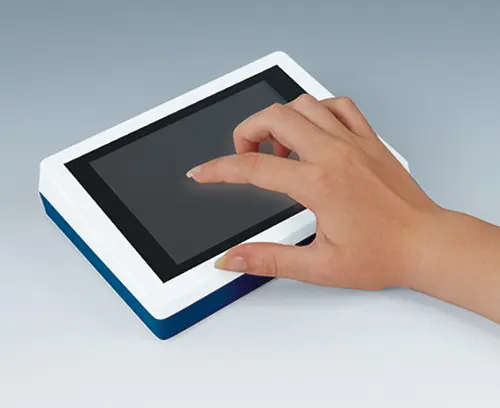

Customising options for Desk Cases

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
