B1300017 Fastening element for DIN-Rails

B1300017

Fastening element for DIN-Rails

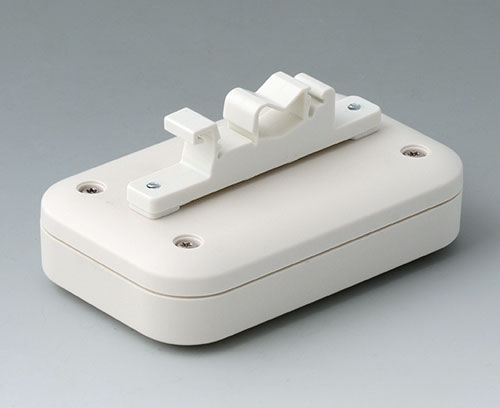

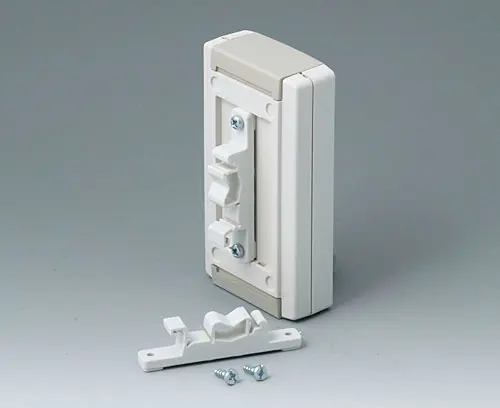

Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply

1 piece incl, assembly kit

  • To be used for
  • View Customising Options
B1050365 TOPTEC 123 H, Vers. I

B1050365

TOPTEC 123 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version without ventilations slots.

Supply 1 case-top and base, 2 end panels

Close

B1050365

TOPTEC 123 H, Vers. I ABS (UL 94 HB)
off-white RAL 9002
123x68x45mm
IP 40
B1050465 TOPTEC 123 H, Vers. II

B1050465

TOPTEC 123 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1050465

TOPTEC 123 H, Vers. II ABS (UL 94 HB)
off-white RAL 9002
123x68x45mm
IP 40
B1055365 TOPTEC 123 F, Vers. I

B1055365

TOPTEC 123 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1055365

TOPTEC 123 F, Vers. I ABS (UL 94 HB)
off-white RAL 9002
123x68x30mm
IP 40
B1055465 TOPTEC 123 F, Vers. II

B1055465

TOPTEC 123 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1055465

TOPTEC 123 F, Vers. II ABS (UL 94 HB)
off-white RAL 9002
123x68x30mm
IP 40
B1060365 TOPTEC 154 H, Vers. I

B1060365

TOPTEC 154 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1060365

TOPTEC 154 H, Vers. I ABS (UL 94 HB)
off-white RAL 9002
154x84x56mm
IP 40
B1060465 TOPTEC 154 H, Vers. II

B1060465

TOPTEC 154 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1060465

TOPTEC 154 H, Vers. II ABS (UL 94 HB)
off-white RAL 9002
154x84x56mm
IP 40
B1065365 TOPTEC 154 F, Vers. I

B1065365

TOPTEC 154 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1065365

TOPTEC 154 F, Vers. I ABS (UL 94 HB)
off-white RAL 9002
154x84x38mm
IP 40
B1065465 TOPTEC 154 F, Vers. II

B1065465

TOPTEC 154 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1065465

TOPTEC 154 F, Vers. II ABS (UL 94 HB)
off-white RAL 9002
154x84x38mm
IP 40
B1070365 TOPTEC 194 H, Vers. I

B1070365

TOPTEC 194 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1070365

TOPTEC 194 H, Vers. I ABS (UL 94 HB)
off-white RAL 9002
194x115x68mm
IP 40
B1070465 TOPTEC 194 H, Vers. II

B1070465

TOPTEC 194 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1070465

TOPTEC 194 H, Vers. II ABS (UL 94 HB)
off-white RAL 9002
194x115x68mm
IP 40
B1075365 TOPTEC 194 F, Vers. I

B1075365

TOPTEC 194 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1075365

TOPTEC 194 F, Vers. I ABS (UL 94 HB)
off-white RAL 9002
194x115x46mm
IP 40
B1075465 TOPTEC 194 F, Vers. II

B1075465

TOPTEC 194 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1075465

TOPTEC 194 F, Vers. II ABS (UL 94 HB)
off-white RAL 9002
194x115x46mm
IP 40

Customising options for B1300017

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Material
Colour
off-white RAL 9002
Standards
RoHS compliant
DIN EN 60715 G32
DIN EN 60715 TH35
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
6 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
