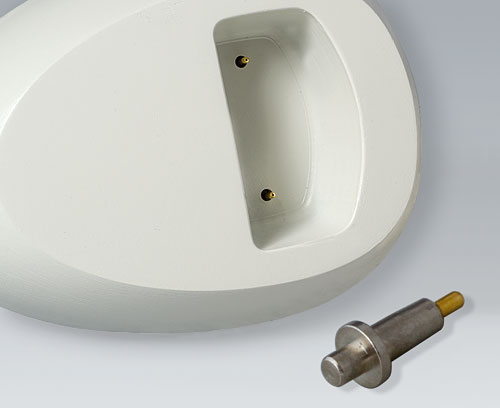

A9193032 Spring contact

A9193032

Spring contact

Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.

Supply

1 spring contact

  • To be used for
A9066107 SMART-CASE M, Vers. I

A9066107

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Close

A9066107

SMART-CASE M, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066109 SMART-CASE M, Vers. I

A9066109

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Close

A9066109

SMART-CASE M, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066117 SMART-CASE M, Vers. II

A9066117

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066117

SMART-CASE M, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066119 SMART-CASE M, Vers. II

A9066119

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066119

SMART-CASE M, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066209 SMART CASE M, Vers. I

A9066209

SMART CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Close

A9066209

SMART CASE M, Vers. I
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066219 SMART-CASE M, Vers. II

A9066219

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066219

SMART-CASE M, Vers. II
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066317 SMART-CASE M, Vers. VI

A9066317

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066317

SMART-CASE M, Vers. VI
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066319 SMART-CASE M, Vers. VI

A9066319

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066319

SMART-CASE M, Vers. VI
product added to your basket
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066419 SMART-CASE M, Vers. VI

A9066419

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066419

SMART-CASE M, Vers. VI
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9067107 SMART-CASE L, Vers. I

A9067107

SMART-CASE L, Vers. I Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA)or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067107

SMART-CASE L, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
140x62.7x30.5mm
IP 40
A9067109 SMART-CASE L, Vers. I

A9067109

SMART-CASE L, Vers. I Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067109

SMART-CASE L, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
140x62.7x30.5mm
IP 40
A9067117 SMART-CASE L, Vers. II

A9067117

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9067117

SMART-CASE L, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
140x62.7x30.5mm
IP 65 opt., IP 40
A9067119 SMART-CASE L, Vers. II

A9067119

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9067119

SMART-CASE L, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
140x62.7x30.5mm
IP 65 opt., IP 40
A9067209 SMART-CASE L, Vers. I

A9067209

SMART-CASE L, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067209

SMART-CASE L, Vers. I
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
140x62.7x30.5mm
IP 40
A9067219 SMART-CASE L, Vers. II

A9067219

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9067219

SMART-CASE L, Vers. II
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
140x62.7x30.5mm
IP 65 opt., IP 40
A9068107 SMART-CASE XL, Vers. I

A9068107

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9068107

SMART-CASE XL, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
168x74.4x35.4mm
IP 40
A9068109 SMART-CASE XL, Vers. I

A9068109

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9068109

SMART-CASE XL, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
168x74.4x35.4mm
IP 40
A9068117 SMART-CASE XL, Vers. II

A9068117

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9068117

SMART-CASE XL, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
168x74.4x35.4mm
IP 65 opt., IP 40
A9068119 SMART-CASE XL, Vers. II

A9068119

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9068119

SMART-CASE XL, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
168x74.4x35.4mm
IP 65 opt., IP 40
A9068209 SMART-CASE XL, Vers. I

A9068209

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9068209

SMART-CASE XL, Vers. I
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
168x74.4x35.4mm
IP 40
A9068219 SMART-CASE XL, Vers. II

A9068219

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9068219

SMART-CASE XL, Vers. II
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
168x74.4x35.4mm
IP 65 opt., IP 40
A9166037 Station M

A9166037

Station M Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Close

A9166037

Station M
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

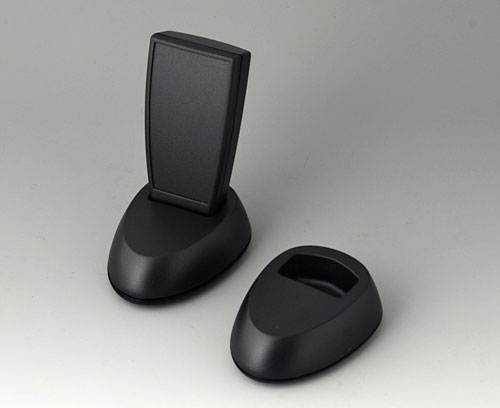

A9166039 Station M

A9166039

Station M Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Close

A9166039

Station M
product added to your basket
ABS (UL 94 HB)
black RAL 9005

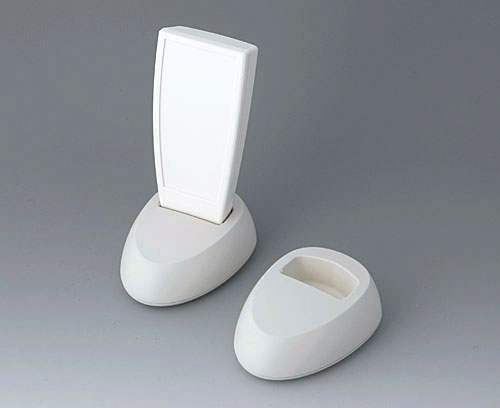

A9167037 Station L

A9167037

Station L Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Close

A9167037

Station L
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9167039 Station L

A9167039

Station L Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Close

A9167039

Station L
product added to your basket
ABS (UL 94 HB)
black RAL 9005
A9168037 Station XL

A9168037

Station XL Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Close

A9168037

Station XL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

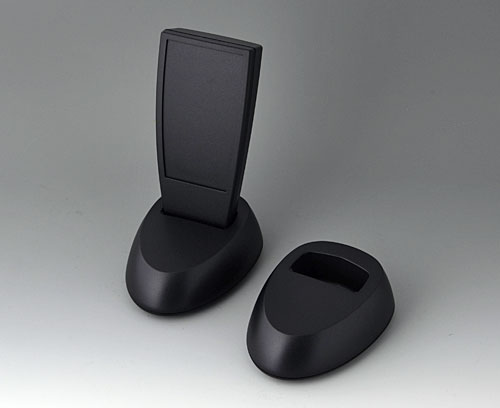

A9168039 Station XL

A9168039

Station XL Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Close

A9168039

Station XL
product added to your basket
ABS (UL 94 HB)
black RAL 9005
A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Close

A9193030

Contact pin
product added to your basket
gold-plated
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Poles
1
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
Italy
