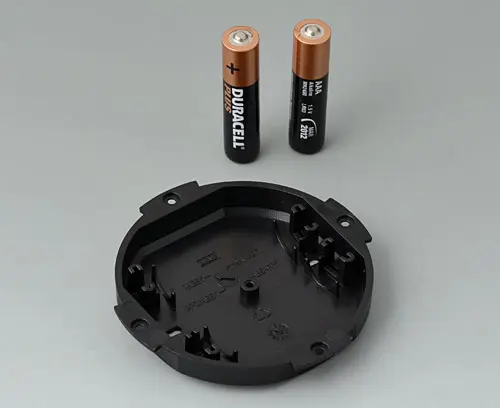

B5111109 Battery compartment, 2 x AAA

B5111109

Battery compartment, 2 x AAA

Application: For 2 x 1.5 V micro cells (AAA).

Supply

1 battery compartment, assembly kit

  • Components/Accessories

System components to complete

B5010009 Bottom and top part R110F

B5010009

Bottom and top part R110F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 F, assembly kit

Close

B5010009

Bottom and top part R110F ABS (UL 94 HB)
black RAL 9005
⌀110x30mm
B5010109 Bottom and top part R110 H

B5010109

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 H, assembly kit

Close

B5010109

Bottom and top part R110 H ABS (UL 94 HB)
black RAL 9005
⌀110x38mm
B5010209 Bottom and top part R110 F

B5010209

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 F, assembly kit

Close

B5010209

Bottom and top part R110 F ABS (UL 94 HB)
black RAL 9005
⌀110x38mm
B5010309 Bottom and top part R110 H

B5010309

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 H, assembly kit

Close

B5010309

Bottom and top part R110 H ABS (UL 94 HB)
black RAL 9005
⌀110x41mm
B5011219 Base 30°

B5011219

Base 30° Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).

Supply 1 base 30°

Close

B5011219

Base 30° ABS (UL 94 HB)
black RAL 9005
B5011319 Base 55°

B5011319

Base 55° Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).

Supply 1 base 55°

Close

B5011319

Base 55° ABS (UL 94 HB)
black RAL 9005
B5011859 Battery compartment lid

B5011859

Battery compartment lid Assembly unit: suitable for all bottom parts when using battery compartment 2 x AAA (acc.), screw-down.

Supply 1 battery compartment lid, assembly kit

Close

B5011859

Battery compartment lid ABS (UL 94 HB)
black RAL 9005
B5012209 Bottom and top part S110 F

B5012209

Bottom and top part S110 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.

Version Bottom part "inclinded"

Supply 1 top and bottom part S110 F, assembly kit

Close

B5012209

Bottom and top part S110 F ABS (UL 94 HB)
black RAL 9005
110x110x38mm
B5015009 Bottom and top part O160 F

B5015009

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 F, assembly kit

Close

B5015009

Bottom and top part O160 F ABS (UL 94 HB)
black RAL 9005
160x110x30mm
B5015109 Bottom and top part O160 H

B5015109

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 H, assembly kit

Close

B5015109

Bottom and top part O160 H ABS (UL 94 HB)
black RAL 9005
160x110x38mm
B5015209 Bottom and top part O160 F

B5015209

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 F, assembly kit

Close

B5015209

Bottom and top part O160 F ABS (UL 94 HB)
black RAL 9005
160x110x38mm
B5015309 Bottom and top part O160 H

B5015309

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 H, assembly kit

Close

B5015309

Bottom and top part O160 H ABS (UL 94 HB)
black RAL 9005
160x110x41mm

Accessory "battery"

A9166001 Set of battery clips, 2 x AAA

A9166001

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 4 single contacts

Close

A9166001

Set of battery clips, 2 x AAA Steel
tin-plated
A9166002 Battery contact, 2 x AAA

A9166002

Battery contact, 2 x AAA In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.

Supply 1 battery contact

Close

A9166002

Battery contact, 2 x AAA Steel
tin-plated
A9166003 Battery holder, 2 x AAA

A9166003

Battery holder, 2 x AAA The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.

Supply 1 battery holder, 1 self-tapping screw

Close

A9166003

Battery holder, 2 x AAA PA 6 (UL 94 HB)
black RAL 9005
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Miscellaneous information

Weight/1 part
10 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
