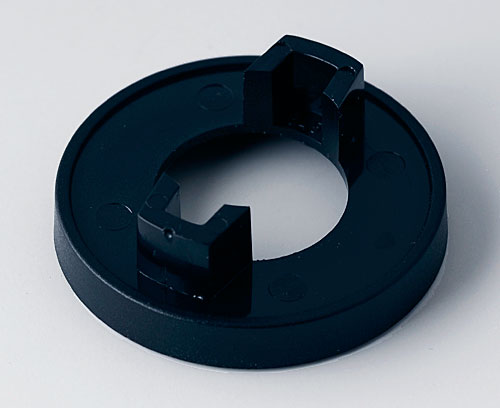

A5131000 Nut cover 31, without line

A5131000

Nut cover 31, without line

Suitable for spindle-shaped knob 31. Nut cover simply to pin up.

Supply

1 nut cover

  • To be used for
A2431060 SPINDLE-SHAPED KNOB 31, with line

A2431060

SPINDLE-SHAPED KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 spindle-shaped knob

Close

A2431060

SPINDLE-SHAPED KNOB 31, with line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
31x16mm
Bore hole 6mm
A2431068 SPINDLE-SHAPED KNOB 31, with line

A2431068

SPINDLE-SHAPED KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 spindle-shaped knob

Close

A2431068

SPINDLE-SHAPED KNOB 31, with line
product added to your basket
ABS (UL 94 HB)
dusty grey RAL 7037
31x16mm
Bore hole 6mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1.6 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
