Protec
Control al cuadrado

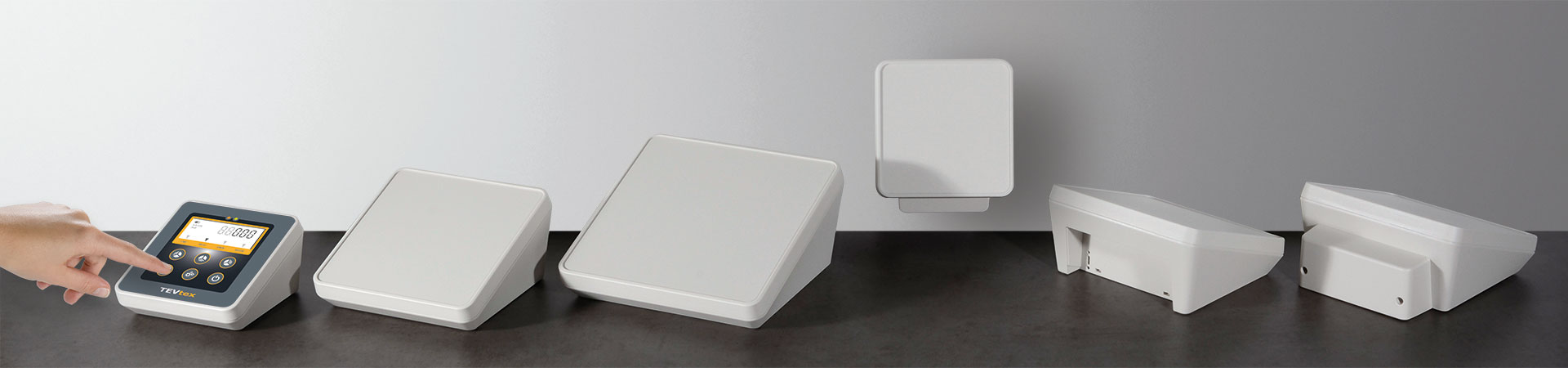

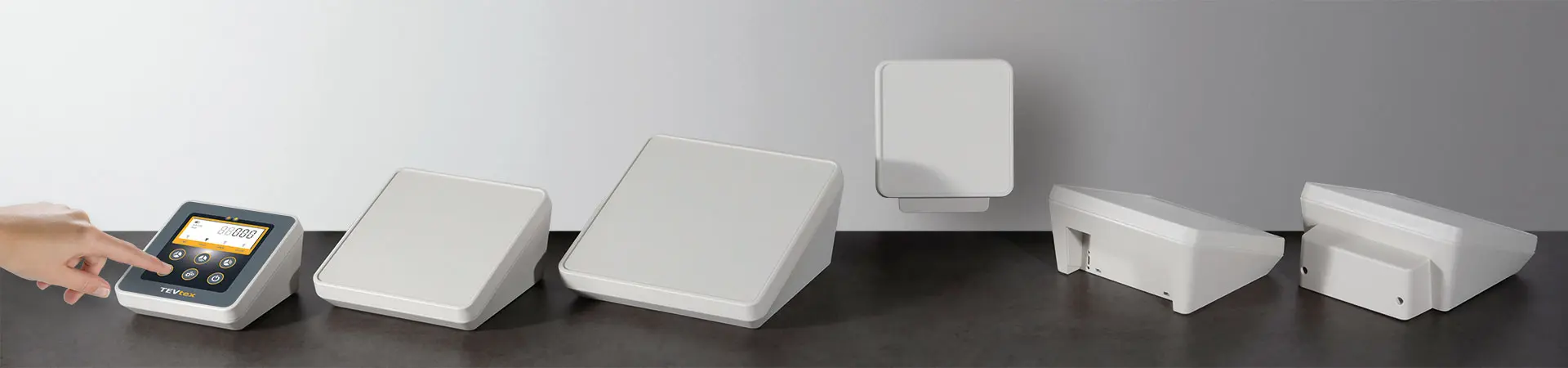

PROTEC se caracteriza por su forma básica cuadrada con un contorno suave. Debido a ello, es un concepto perfecto como caja de pared y sobremesa para aplicaciones electrónicas modernas en interiores y exteriores.

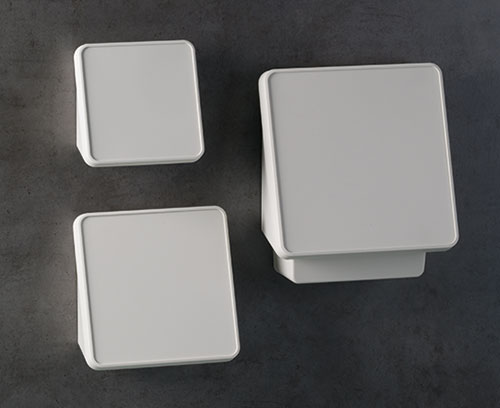

- Tres tamaños, 140 / 180 / 220, cada uno en las siguientes versiones:

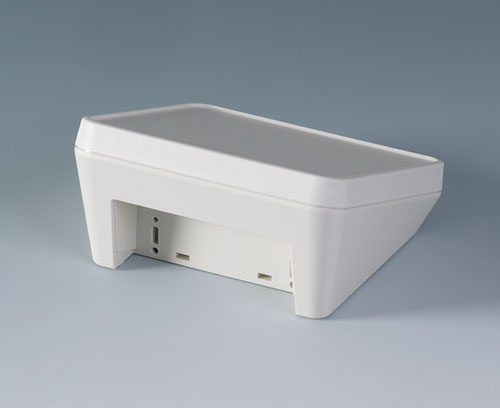

Modelo I

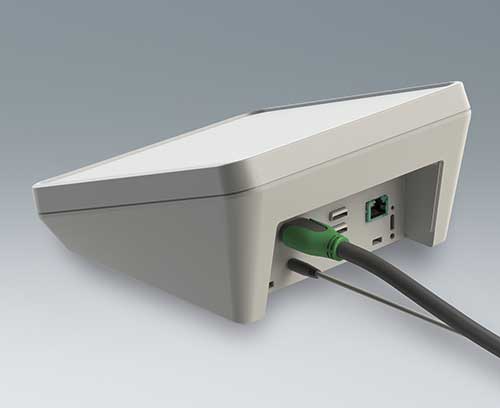

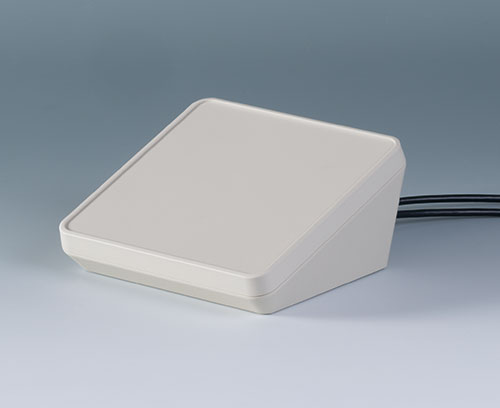

Dispone de una zona hundida para incorporar y proteger interfaces o cables de alimentación.
Modelo II

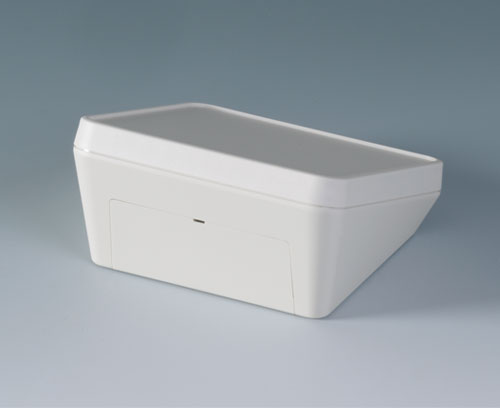

En el volumen de entrega se incluye, además de las partes superior e inferior, una tapa adicional para cubrir al ras la zona de interfaces.

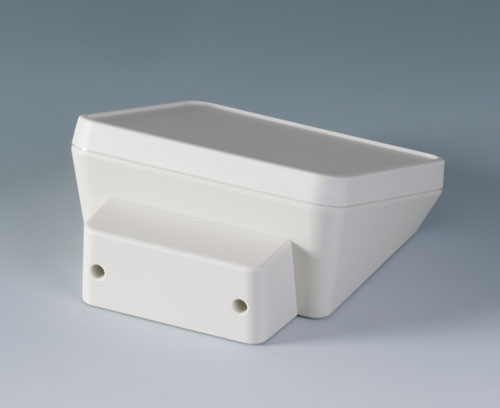

Modelo III

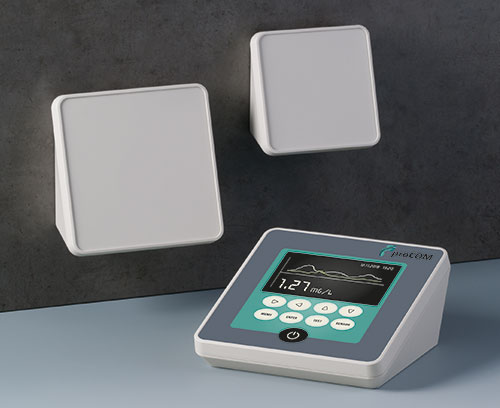

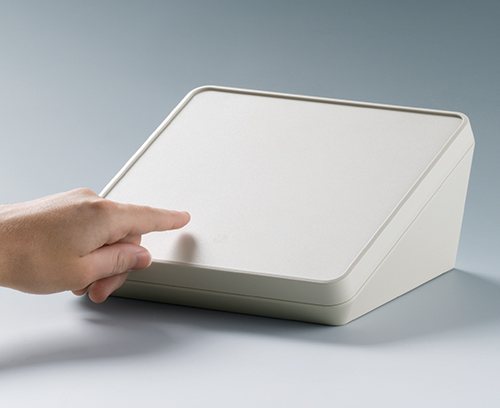

Proporciona espacio adicional para incorporar elementos gracias a su elevada tapa. - Panel operativo con una inclinación ergonómica de 20°.

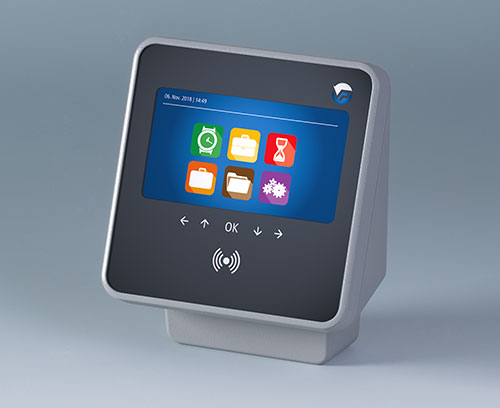

- Panel de control rebajado para proteger el teclado de membrana.

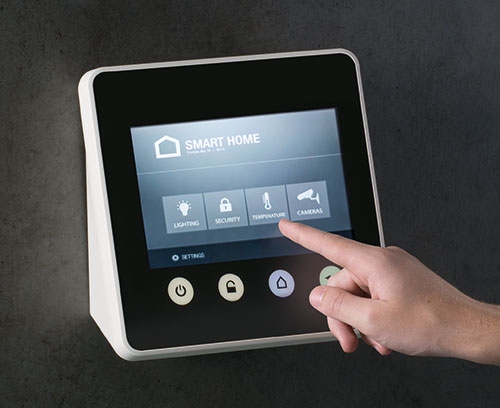

- Amplio espacio para pantallas gráficas/táctiles (PROTEC 140: 5,7"/14,5 cm, PROTEC 180: 7"/17,8 cm, PROTEC 220: 8,4"/21,3 cm).
- Atornilladuras completamente fuera de la zona visible.
- Material V0 de alta calidad en blanco grisáceo (RAL 9002) y categoría de protección opcional IP 65 (junta como accesorio) para ámbitos de aplicación difíciles.

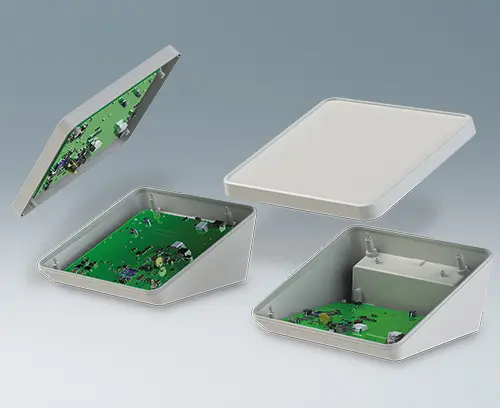

- Espacio estanco para sistemas electrónicos con tres niveles de placas de circuitos; amplio espacio para incorporar elementos.

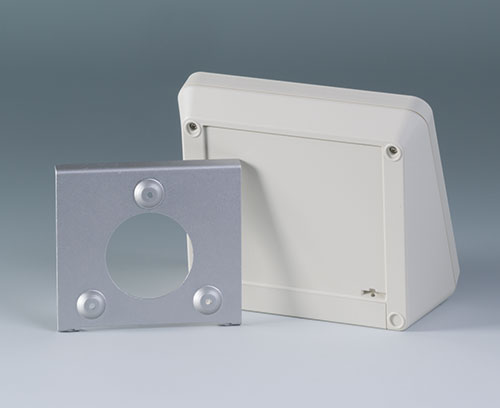

- Montaje en pared oculta y al ras con protección contra desmontaje (soporte de pared en el programa de accesorios).
- Tornillos de acero inoxidable con par seguro Torx.
- Los tacos de goma dan a los dispositivos de sobremesa un apoyo estable.
Learn more!
Read our blog posts on protec View blog posts >>
Application Fields

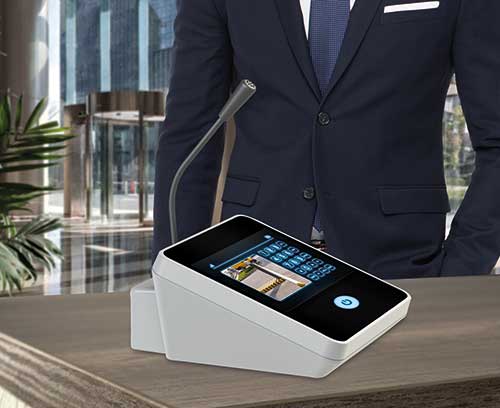

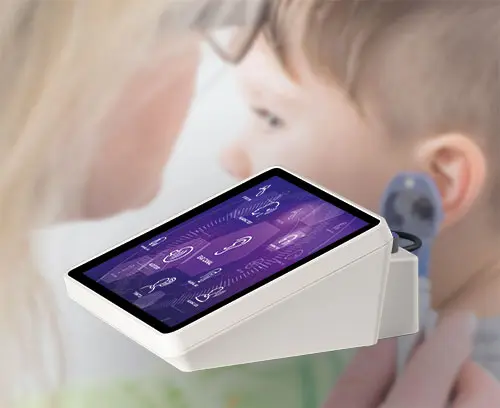

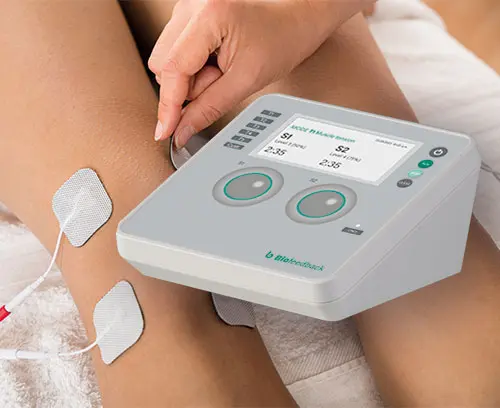

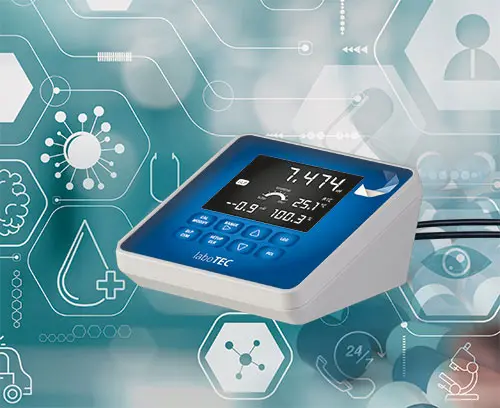

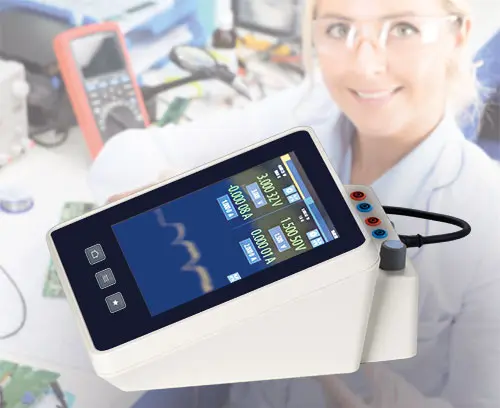

Instalaciones de vigilancia, controles de acceso, sistemas de recopilación de datos, tecnologías para edificios, centros de control, internet de las cosas / Internet industrial de las cosas, fábricas inteligentes, industria 4.0, periféricos informáticos, tecnologías de medición y regulación, tecnologías médicas, salud, ecc.
B4414107

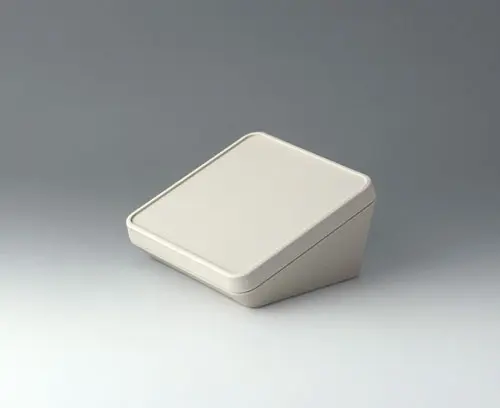

PROTEC 140, Vers. I
Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet
B4414107
PROTEC 140, Vers. IProducto añadido a su lista
off-white RAL 9002
140x140x76mm
B4414207

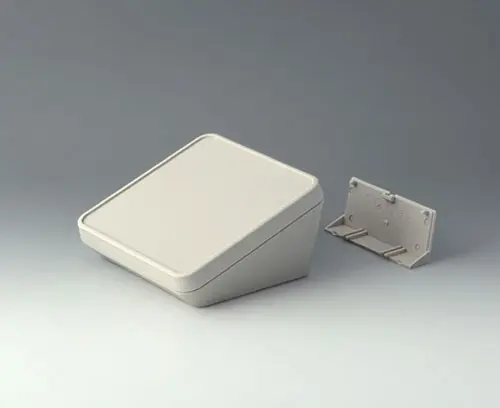

PROTEC 140, Vers. II
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet
B4414207
PROTEC 140, Vers. IIProducto añadido a su lista
off-white RAL 9002
140x140x76mm
B4414307

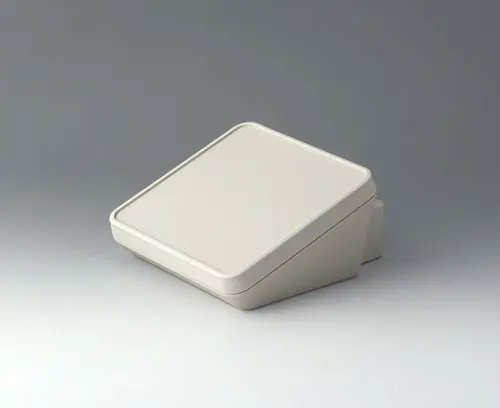

PROTEC 140, Vers. III
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet
B4414307
PROTEC 140, Vers. IIIProducto añadido a su lista
off-white RAL 9002
140x160x76mm

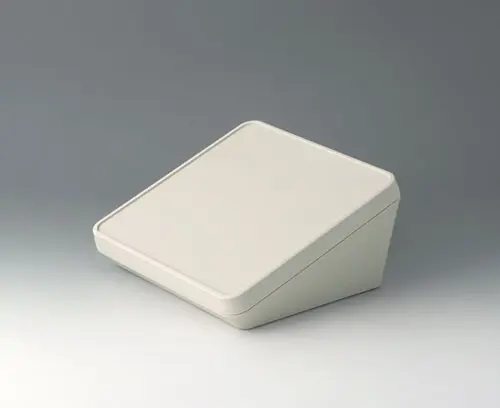

B4418107
PROTEC 180, Vers. I
Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet
B4418107
PROTEC 180, Vers. IProducto añadido a su lista
off-white RAL 9002
180x180x92mm
B4418207

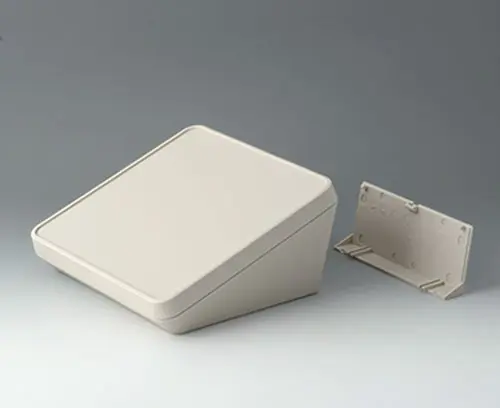

PROTEC 180, Vers. II
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet
B4418207
PROTEC 180, Vers. IIProducto añadido a su lista
off-white RAL 9002
180x180x92mm
B4418307
PROTEC 180, Vers. III
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet
B4418307
PROTEC 180, Vers. IIIProducto añadido a su lista
off-white RAL 9002
180x201x92mm
B4422107

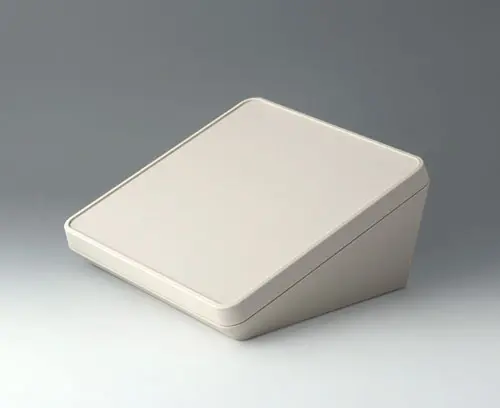

PROTEC 220, Vers. I
Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet
B4422107
PROTEC 220, Vers. IProducto añadido a su lista
off-white RAL 9002
220x220x108mm
B4422207

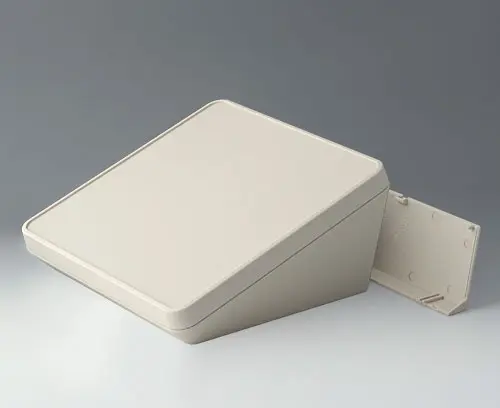

PROTEC 220, Vers. II
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet
B4422207
PROTEC 220, Vers. IIProducto añadido a su lista
off-white RAL 9002
220x220x108mm
B4422307

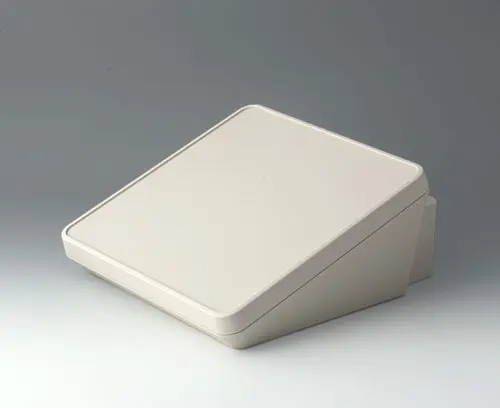

PROTEC 220, Vers. III
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet
B4422307
PROTEC 220, Vers. IIIProducto añadido a su lista
off-white RAL 9002
220x243x108mm
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Producto añadido a su lista
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Producto añadido a su lista
B4514030

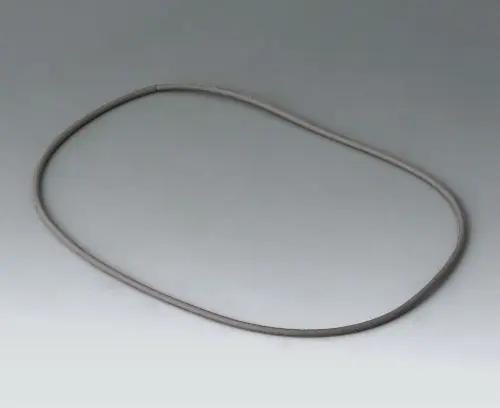

Sealing 140
Application: for increasing the protection class, of PROTEC 140. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4514030
Sealing 140Producto añadido a su lista
B4514101

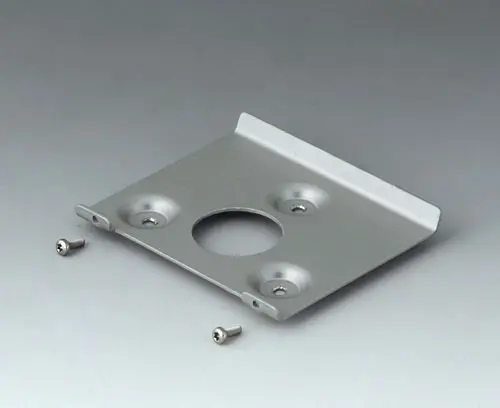

Wall suspension element 140
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4514101
Wall suspension element 140Producto añadido a su lista
B4518030
Sealing 180
Application: for increasing the protection class, of PROTEC 180. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4518030
Sealing 180Producto añadido a su lista
B4518101

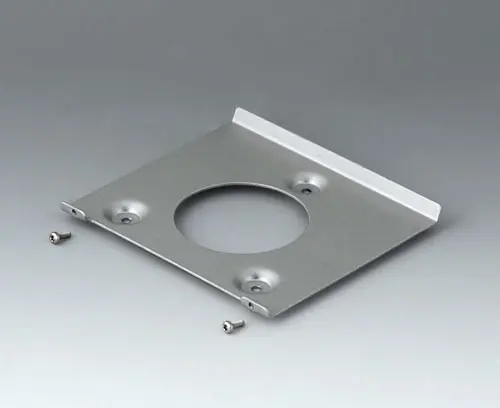

Wall suspension element 180
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4518101
Wall suspension element 180Producto añadido a su lista
B4522030
Sealing 220
Application: for increasing the protection class, of PROTEC 220. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4522030
Sealing 220Producto añadido a su lista
B4522101

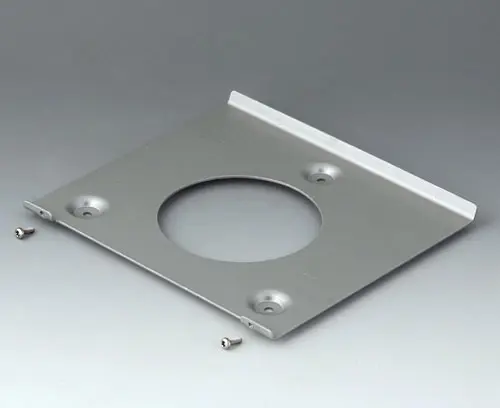

Wall suspension element 220
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4522101
Wall suspension element 220Producto añadido a su lista
Opciones de productos para Protec
¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
