B4522101 Wall suspension element 220

B4522101

Wall suspension element 220

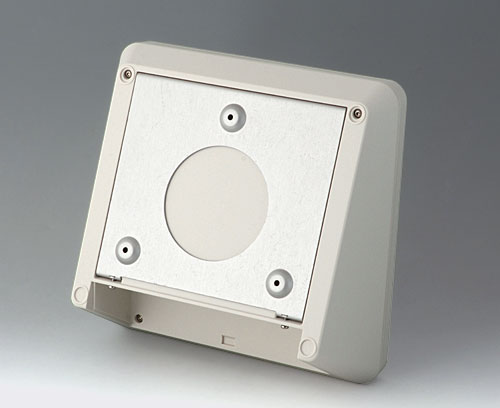

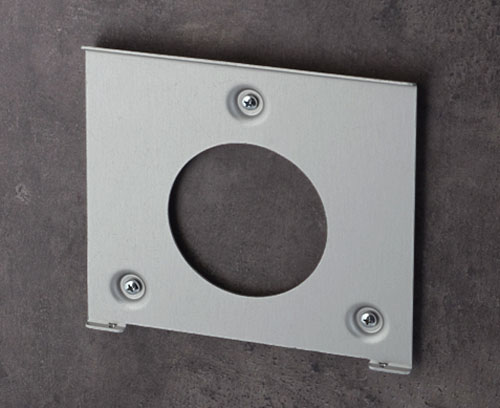

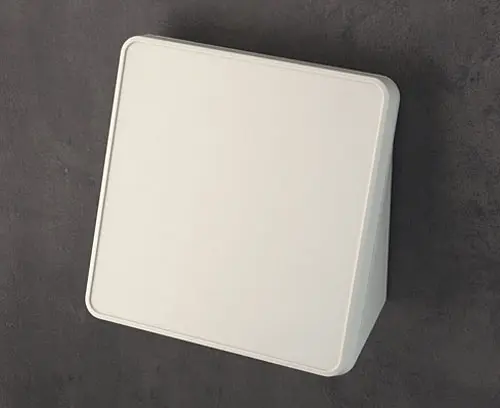

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply

1 wall suspension element and 2 screws

  • Utilizado para
B4422107 PROTEC 220, Vers. I

B4422107

PROTEC 220, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Cerrar

B4422107

PROTEC 220, Vers. I
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
220x220x108mm
IP 65 opt.
B4422207 PROTEC 220, Vers. II

B4422207

PROTEC 220, Vers. II Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Cerrar

B4422207

PROTEC 220, Vers. II
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
220x220x108mm
IP 65 opt.
B4422307 PROTEC 220, Vers. III

B4422307

PROTEC 220, Vers. III Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Cerrar

B4422307

PROTEC 220, Vers. III
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
220x243x108mm
IP 65 opt.
  • Datos técnicos
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
86 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
