B4422307
PROTEC 220, Vers. III

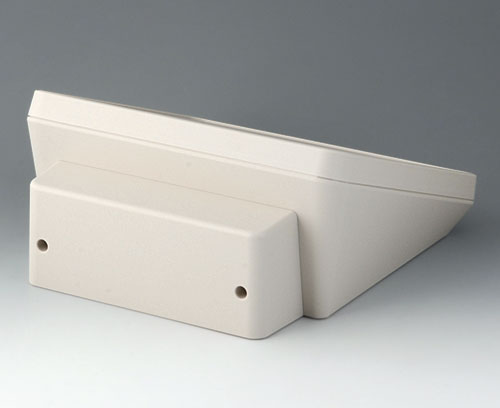

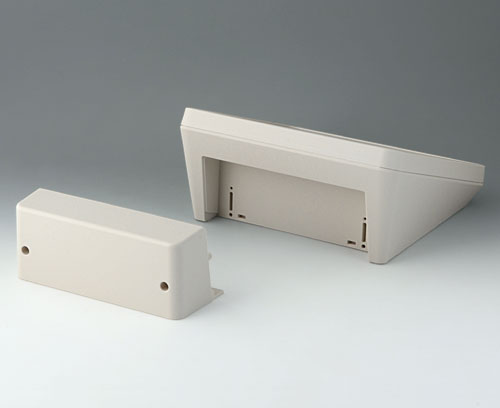

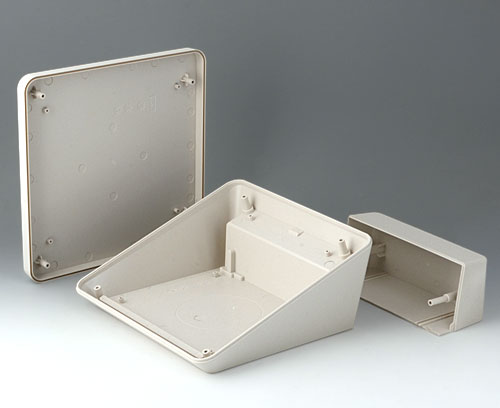

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
SupplyTop and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet
Cree su ficha de datos en PDF para B4422307
Seleccione la información del producto para su ficha de datos.
Accessory "protection"
B4522030
Application: for increasing the protection class, of PROTEC 220. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4522030
Sealing 220Accessory "wall/holder"
B4522101
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4522101
Wall suspension element 220Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 314 KB
- AutoCAD DWG-File 1.038 KB
- AutoCAD DXF-File 3.670 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 726 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00025154.x_t 6.123 KB
- 00025154.STEP 15.362 KB
- 00025154.SAT 14.957 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B4422307 y no olvide solicitar presupuesto.
