PROTEC 180, Vers. II

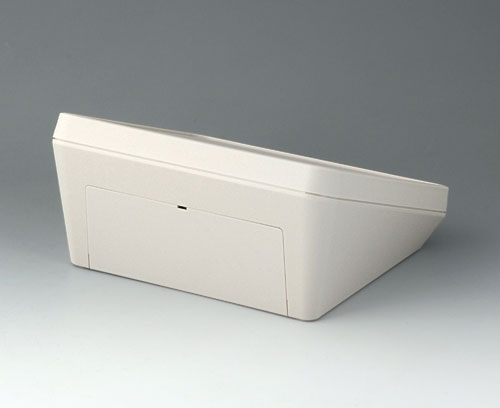

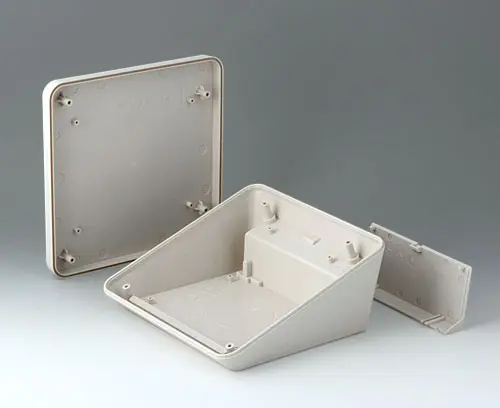

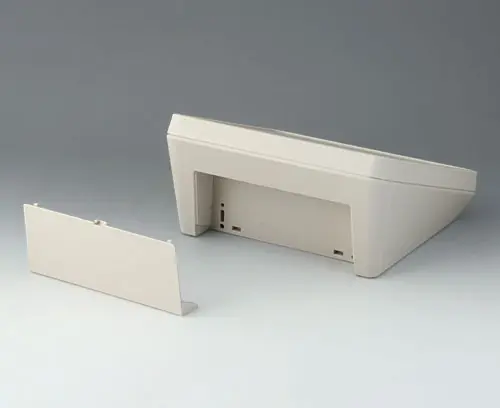

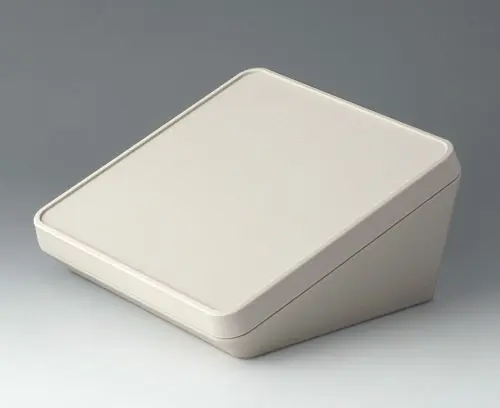

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
SupplyTop and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B4418207
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory "protection"
B4518030
Sealing 180
Application: for increasing the protection class, of PROTEC 180. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4518030
Sealing 180Producto añadido a su lista
Accessory "wall/holder"
B4518101
Wall suspension element 180
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4518101
Wall suspension element 180Producto añadido a su lista
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Producto añadido a su lista
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Producto añadido a su lista
Customising options for B4418207
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Material
Protection class
Necessary accessories: sealing
Color
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Anchura
180 mm
Profundidad
180 mm
Altura
92 mm
PCB length, base
102 mm
PCB width, base
150 mm
PCB length, top
166 mm
PCB width, top
166 mm
Keypad length
169,8 mm
Keypad width
169,8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 300 KB
- AutoCAD DWG-File 1.070 KB
- AutoCAD DXF-File 3.768 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 735 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00025087.x_t 5.878 KB
- 00025087.STEP 15.171 KB
- 00025087.SAT 14.192 KB
Weight/1 part
350 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B4418207 y no olvide solicitar presupuesto.
