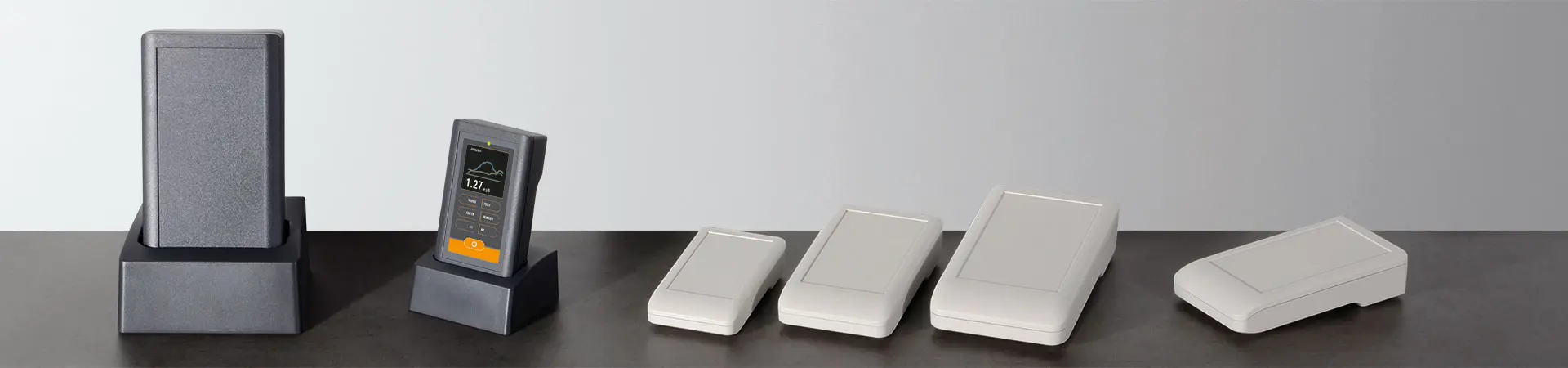

Datec-Compact

Caja de mano compacta

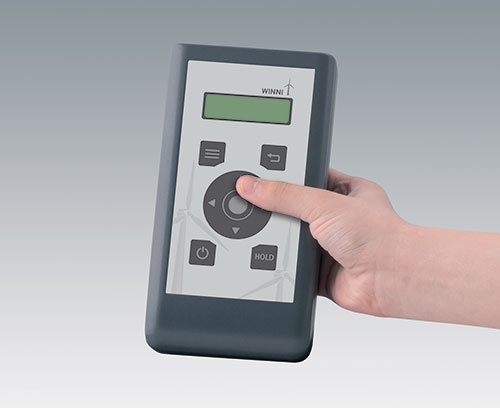

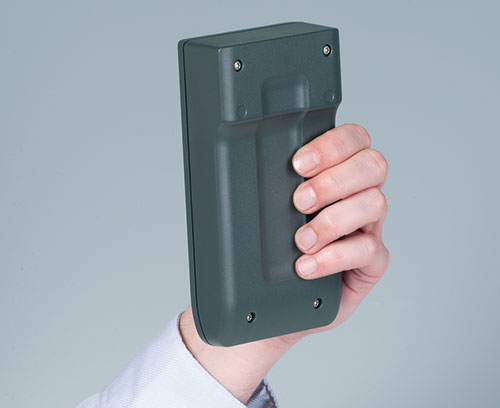

La nueva serie de cajas de mano DATEC-COMPACT tienen una forma especialmente compacta y robusta, ideal para su uso en dispositivos móviles.

  • Material robusto y de gran calidad ASA+PC-FR para uso en exteriores.

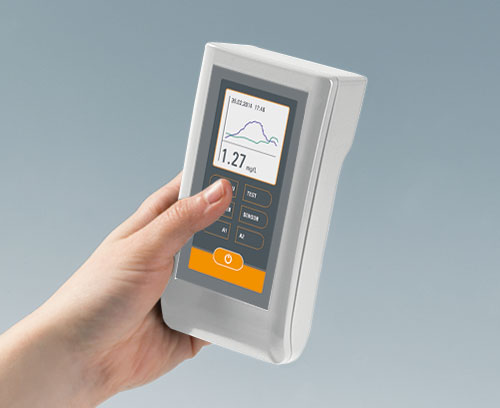

  • Alta protección IP 65 con sellado para ambientes hostiles
    o protección IP 41 sin sellado como caja de bajo coste para instrumentos de medida.

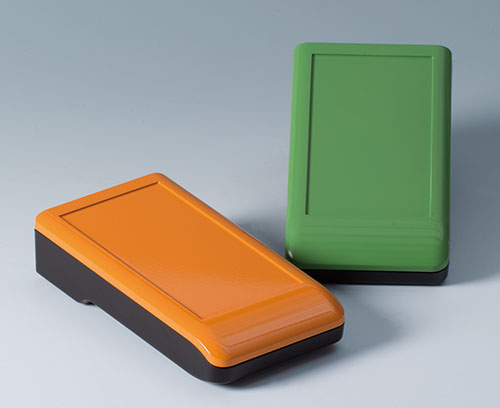

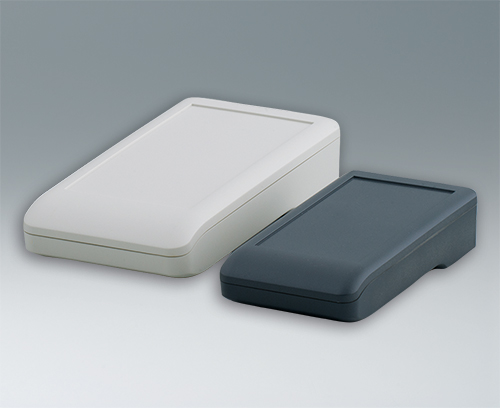

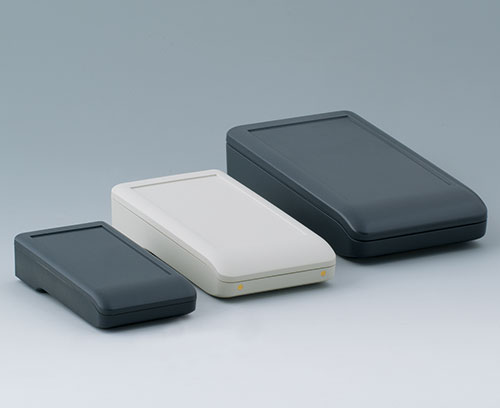

  • 3 tamaños en 2 colores

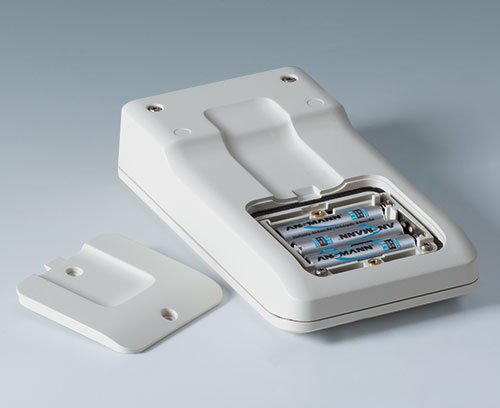

  • Con/sin compartimiento para pilas AAA ó AA;
    tres pilas garantizan una alimentación segura de 3 V.

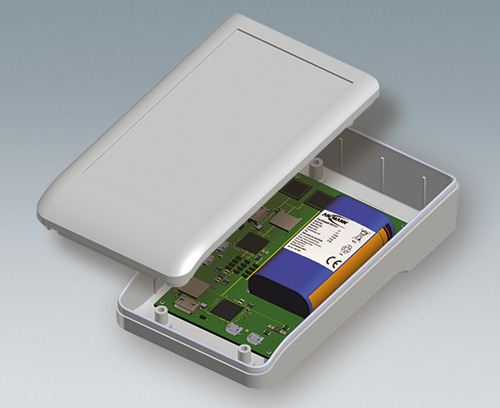

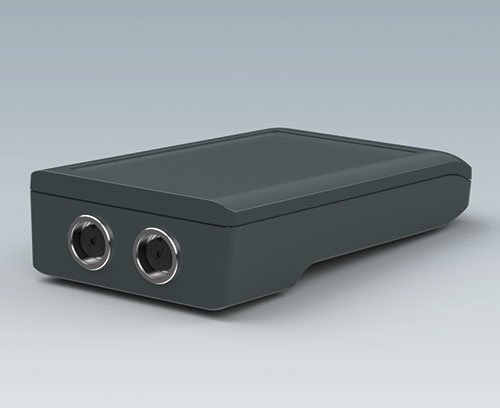

  • Pueden instalarse conectores USB y de tarjeta SD dentro del espacio sellado (modelos con compartimiento para baterías).

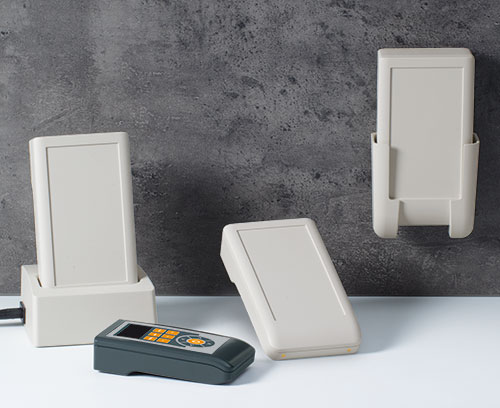

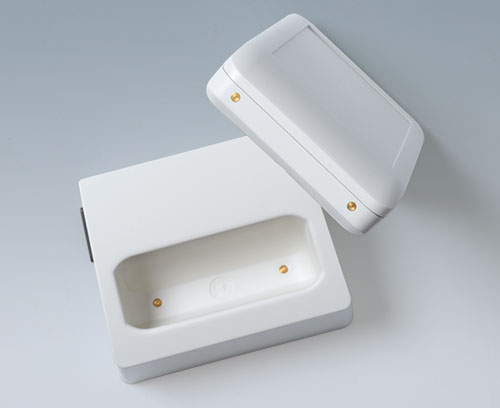

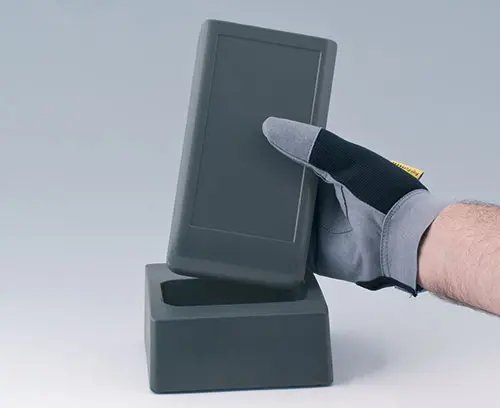

  • Base para transmisión de datos y recarga disponible como accesorio.
  • Unión atornillada con tornillos de acero inoxidable y Torx.
  • Otros accesorios: juego de contacto para pilas y contactos con baño dorado
  • Video

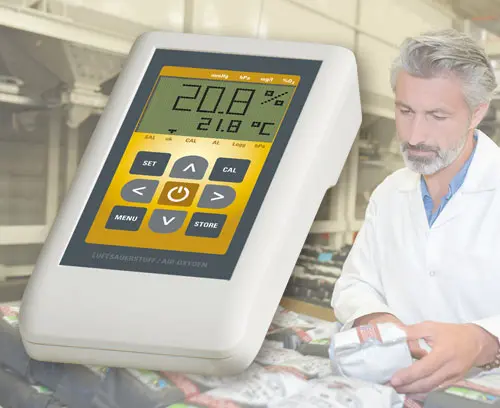

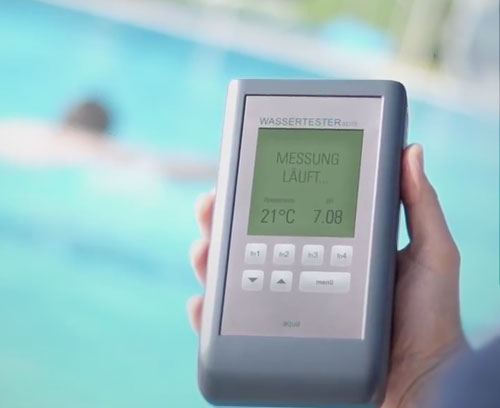

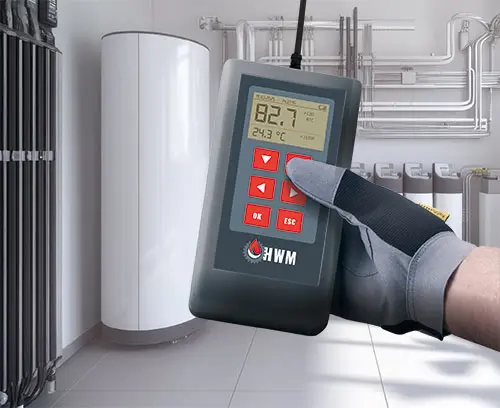

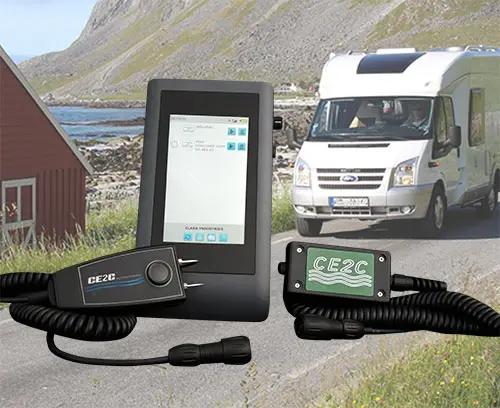

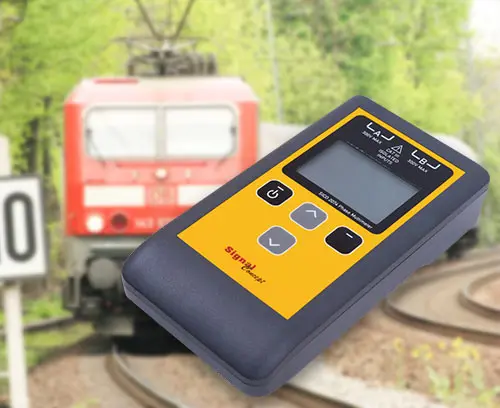

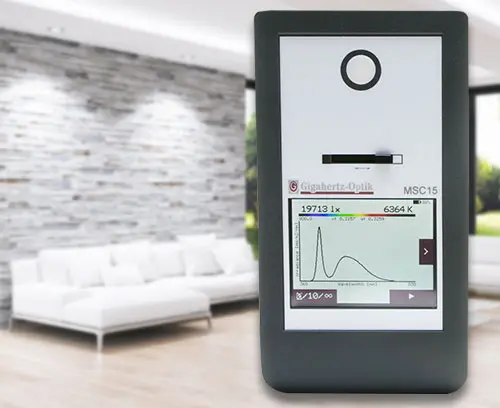

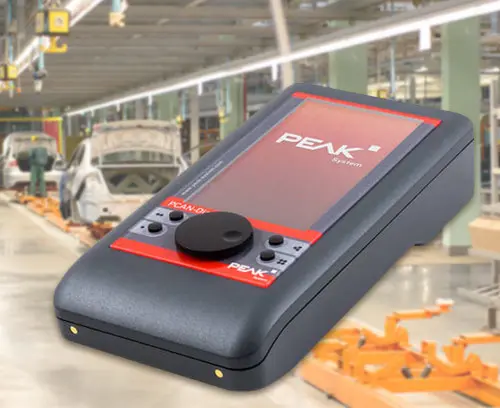

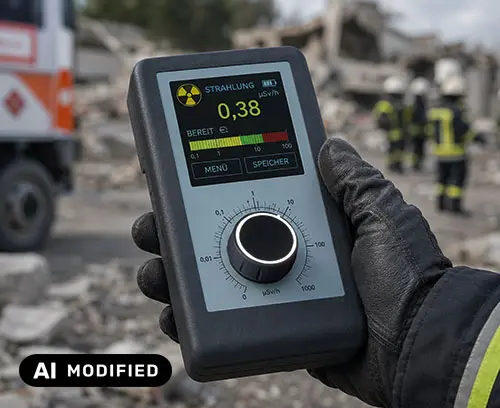

  • Ejemplos de aplicación

Application fields

  • Recopilación móvil de datos
  • Tecnologías de medición y regulación
  • Tecnologías de control
  • Tecnologías de medicina y laboratorio
  • Tecnologías medioambientales
  • Exteriores
  • Smart Factory
  • Industry 4.0
  • Versiones
  • Accesorios
  • Modificaciones específicas del cliente

Seleccione la versión, el tamaño o los tamaños que desee o haga clic en el botón “Seleccionar todos los productos” al final de la lista de productos.

AltText

A0305031

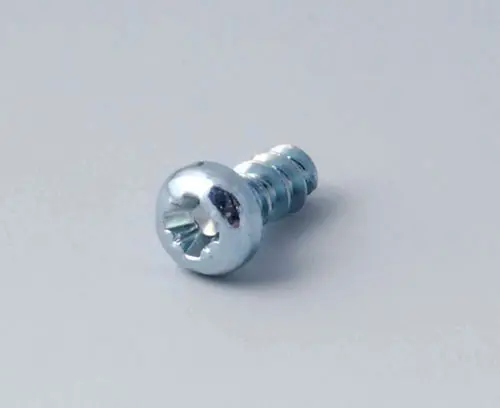

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Producto añadido a su lista
AltText

A0325060

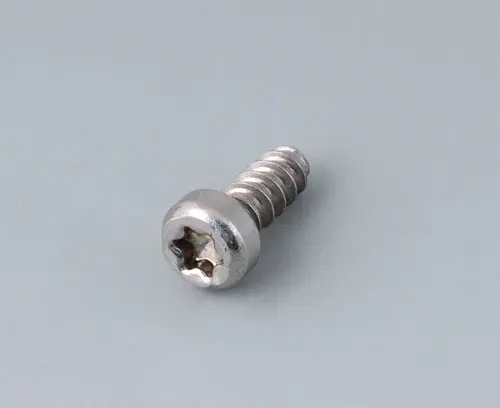

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Producto añadido a su lista
Stainless steel
AltText

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Cerrar

A0399T08

Torx T8 screwdriver
Producto añadido a su lista
AltText

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Cerrar

A0399T10

Torx T10 screwdriver
Producto añadido a su lista
AltText

A9105507

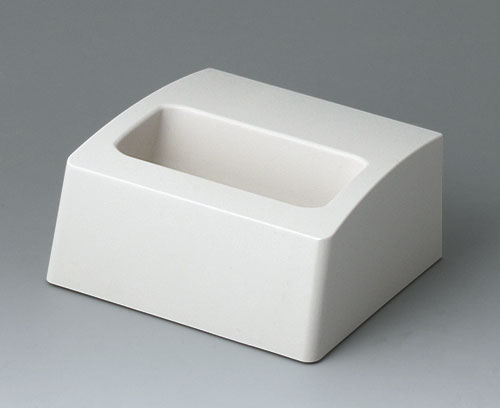

Station S Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Cerrar

A9105507

Station S
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

A9105508

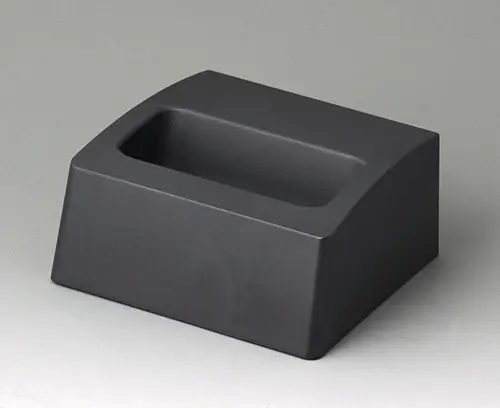

Station S Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Cerrar

A9105508

Station S
Producto añadido a su lista
ASA+PC (UL 94 V-0)
lava
AltText

A9105627

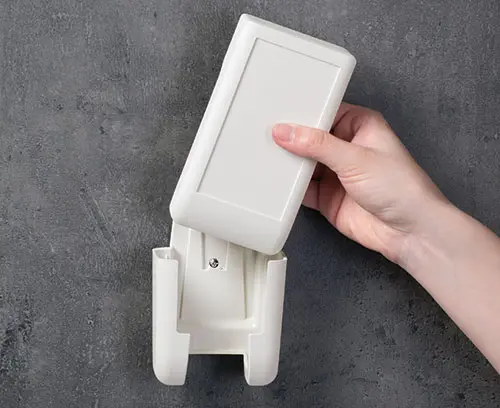

Holder S Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Cerrar

A9105627

Holder S
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

A9105628

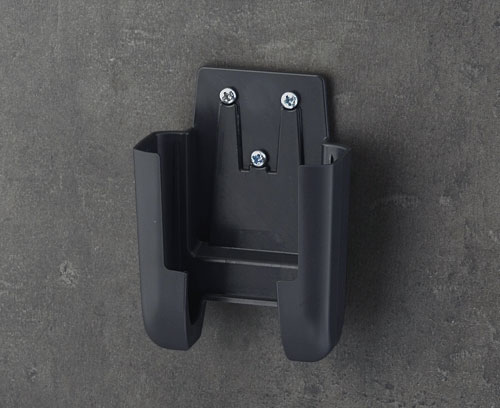

Holder S Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Cerrar

A9105628

Holder S
Producto añadido a su lista
ASA+PC (UL 94 V-0)
lava
AltText

A9106507

Station M Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Cerrar

A9106507

Station M
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

A9106508

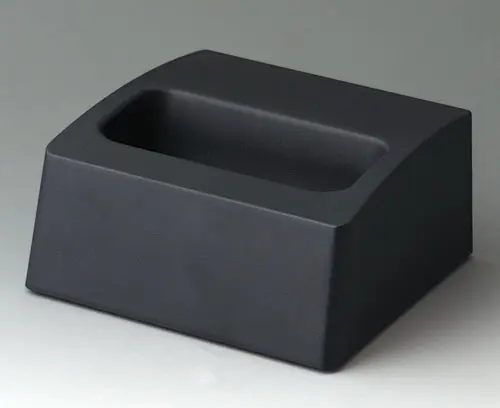

Station M Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Cerrar

A9106508

Station M
Producto añadido a su lista
ASA+PC (UL 94 V-0)
lava
AltText

A9106627

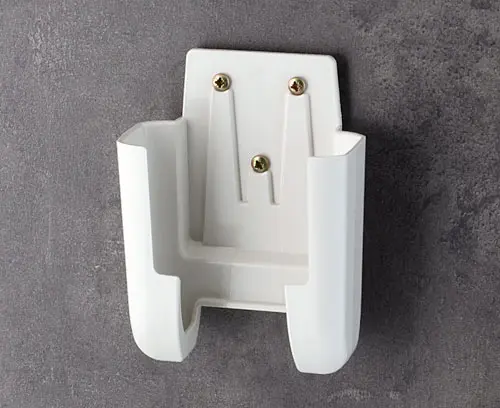

Holder M Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Cerrar

A9106627

Holder M
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

A9106628

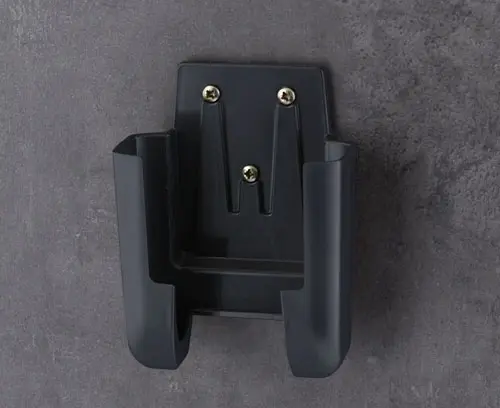

Holder M Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Cerrar

A9106628

Holder M
Producto añadido a su lista
ASA+PC (UL 94 V-0)
lava
AltText

A9107507

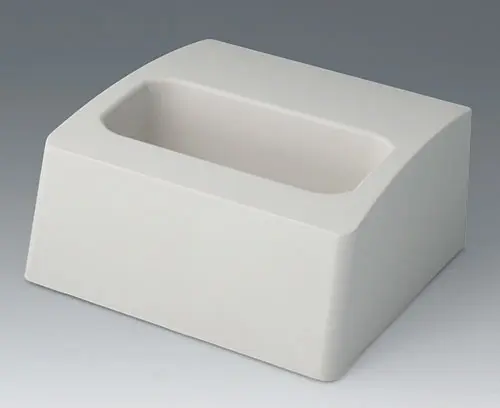

Station L Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data.
Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Cerrar

A9107507

Station L
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

A9107508

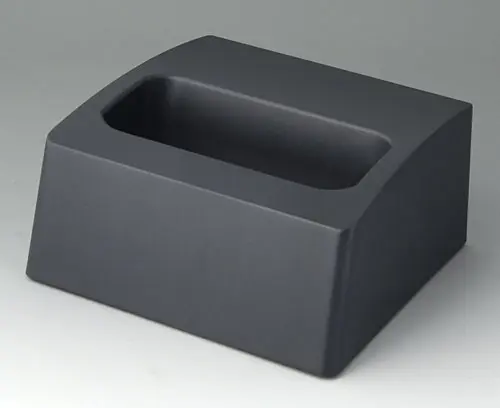

Station L Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Cerrar

A9107508

Station L
Producto añadido a su lista
ASA+PC (UL 94 V-0)
lava
AltText

A9107627

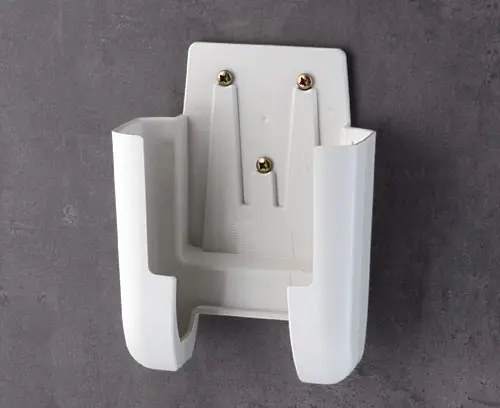

Holder L Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Cerrar

A9107627

Holder L
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

A9107628

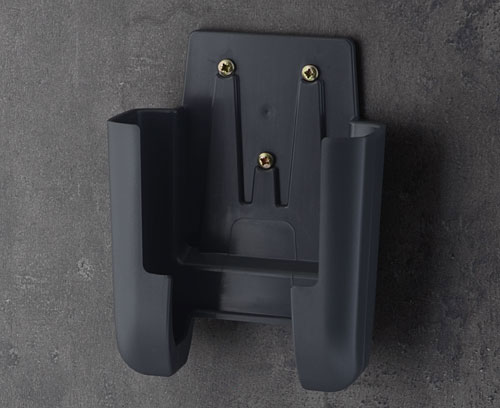

Holder L Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Cerrar

A9107628

Holder L
Producto añadido a su lista
ASA+PC (UL 94 V-0)
lava
AltText

A9190023

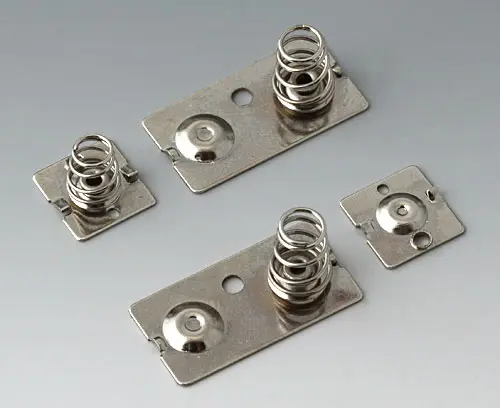

Set of battery clips, 3 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 2 double contacts right, 1 single contact positive, 1 single contact negative

Cerrar

A9190023

Set of battery clips, 3 x AA
Producto añadido a su lista
Steel
nickel-plated
AltText

A9190024

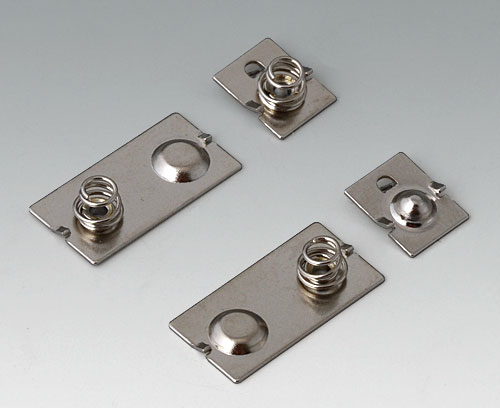

Set of battery clips, 3 x AAA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 1 double contacts left, 1 single contact positive, 1 single contact negative

Cerrar

A9190024

Set of battery clips, 3 x AAA
Producto añadido a su lista
Steel
nickel-plated
AltText

A9193030

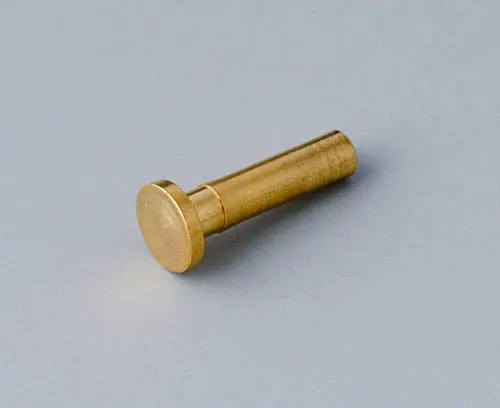

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Cerrar

A9193030

Contact pin
Producto añadido a su lista
gold-plated
AltText

A9193031

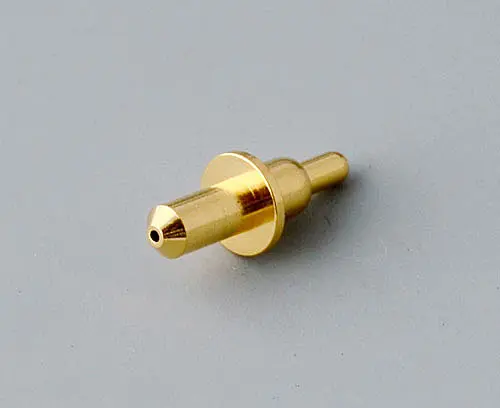

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 15 A. 1.5 mm stroke, 1,7 N. Extremely low contact resistance.

Supply 1 spring contact

Cerrar

A9193031

Spring contact
Producto añadido a su lista
gold-plated
AltText

A9207150

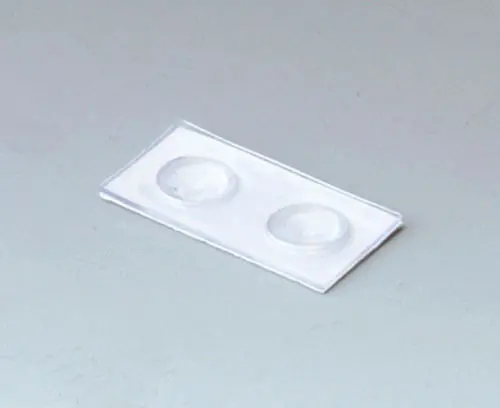

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Cerrar

A9207150

Anti-slide feet 6.5 x 2 mm
Producto añadido a su lista
transparent

Opciones de productos para Datec-Compact

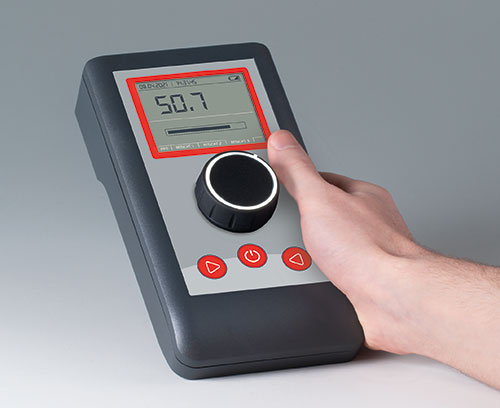

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
