Accesorios para cajas
A9106508
Station M

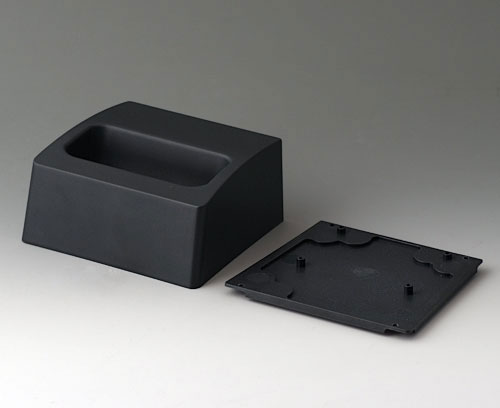

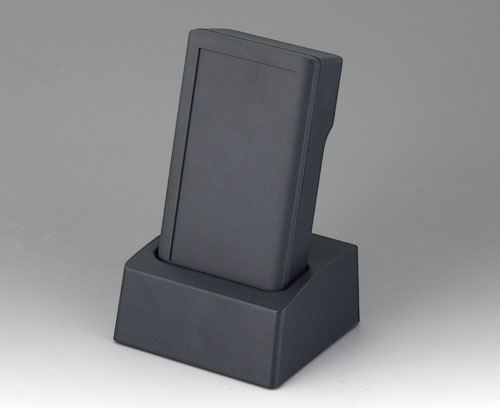

Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
SupplyStation with bottom panel, rubber feet, assembly kit
Cree su ficha de datos en PDF para A9106508
Seleccione la información del producto para su ficha de datos.
System components to complete
A9006108
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9006108
DATEC-COMPACT Mlava
172x92x39mm
A9006118
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9006118
DATEC-COMPACT Mlava
172x92x39mm
A9006208
Version With battery compartment 3 x AA
Supply Top and bottom part, battery compartment lid, assembly kit
A9006208
DATEC-COMPACT Mlava
172x92x39mm
A9006218
Version With battery compartment 3 x AA
Supply Top and bottom part, battery compartment lid, assembly kit
A9006218
DATEC-COMPACT Mlava
172x92x39mm
Accessory "station"
A9193031
Supply 1 spring contact
A9193031
Spring contactAccessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 221 KB
- AutoCAD DWG-File 353 KB
- AutoCAD DXF-File 1.129 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 1.345 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00016589.x_t 1.727 KB
- 00016589.step 4.006 KB
- 00016589.sat 5.831 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9106508 y no olvide solicitar presupuesto.
