A9105627 Holder S
Scroll

A9105627

Holder S

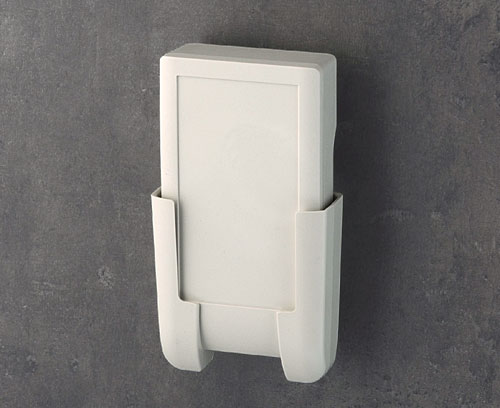

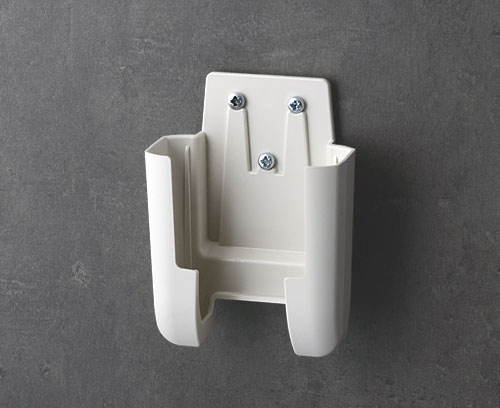

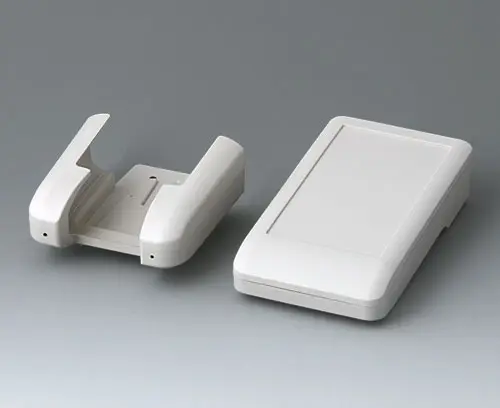

Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply

1 holder

Plano 2D en PDF
Vista en 3D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para A9105627

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Utilizado para
  • Modificaciones específicas del cliente

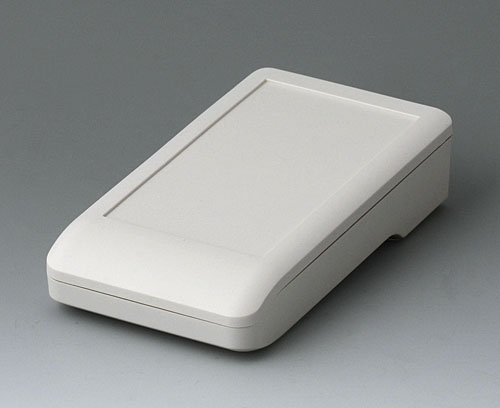

A9005107 DATEC-COMPACT S

A9005107

DATEC-COMPACT S 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Cerrar

A9005107

DATEC-COMPACT S
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
136x74x32mm
IP 65
A9005117 DATEC-COMPACT S

A9005117

DATEC-COMPACT S 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Cerrar

A9005117

DATEC-COMPACT S
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
136x74x32mm
IP 41
A9005207 DATEC-COMPACT S

A9005207

DATEC-COMPACT S 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AAA

Supply Top and bottom part, battery compartment lid, assembly kit

Cerrar

A9005207

DATEC-COMPACT S
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
136x74x32mm
IP 65

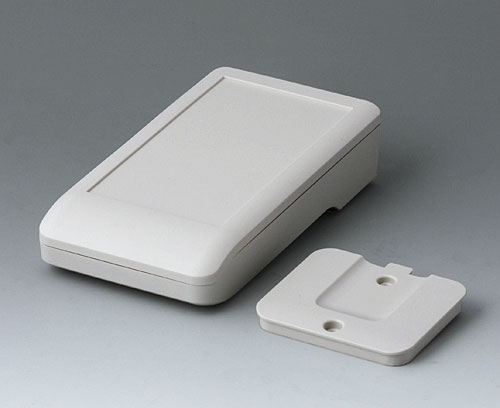

A9005217 DATEC-COMPACT S

A9005217

DATEC-COMPACT S 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AAA

Supply Top and bottom part, battery compartment lid, assembly kit

Cerrar

A9005217

DATEC-COMPACT S
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
136x74x32mm
IP 41

Customising options for A9105627

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
42 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
