SMART-CASE
Scroll

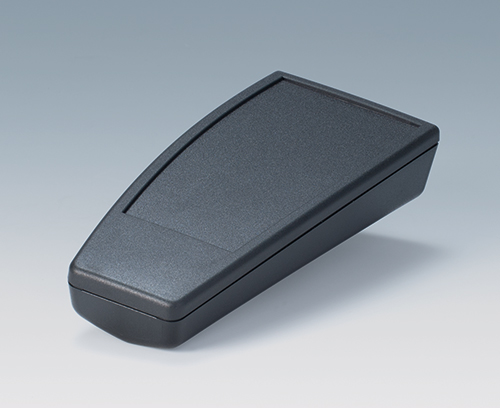

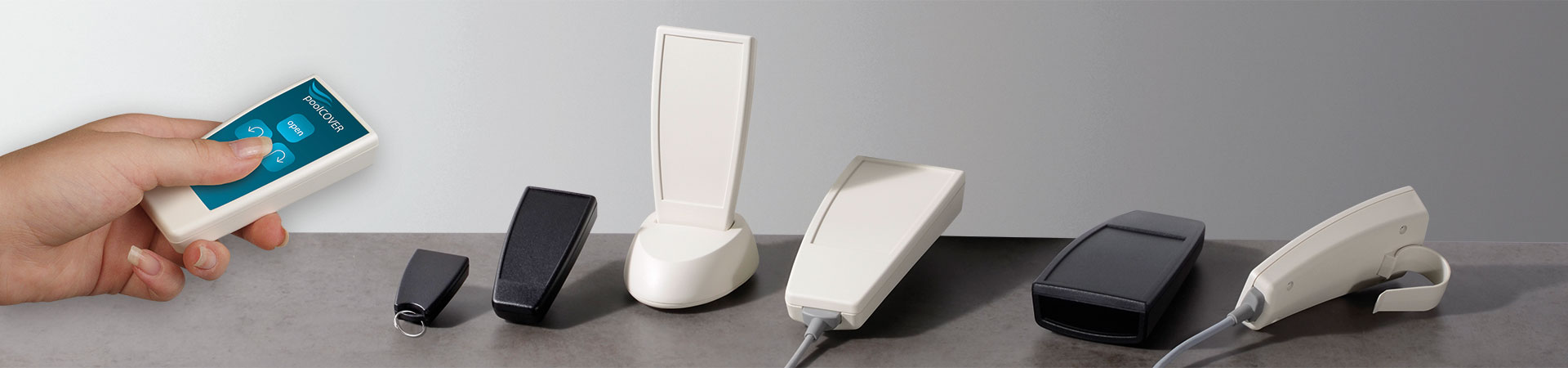

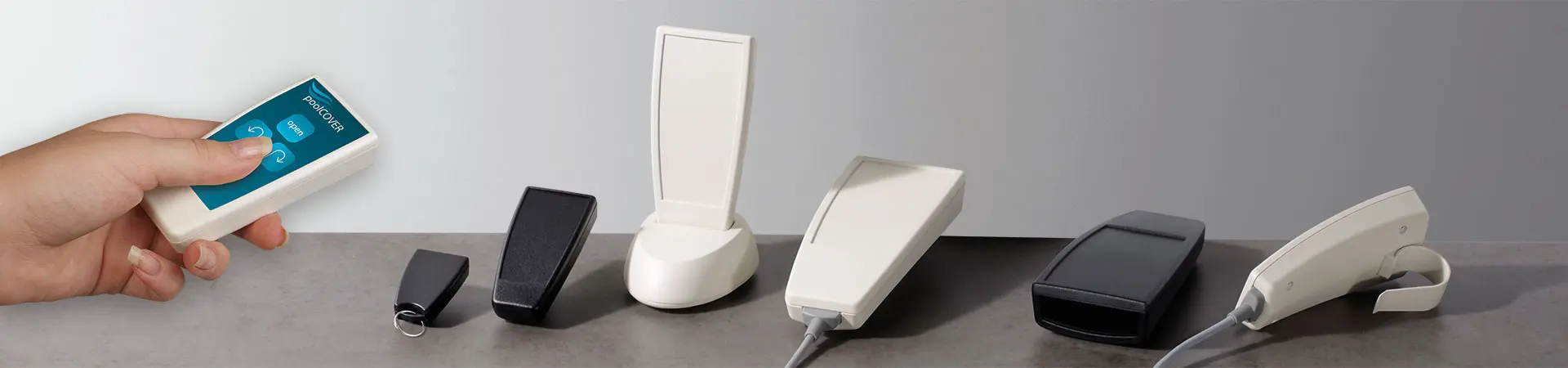

Smart-Case

Caixas Portáteis com Curvas – excelente para condicionar

A proposta de dar mais expressão aos requisitos ergonômicos foi o ponto de partida para o desenvolvimento das caixas SMART-CASE.

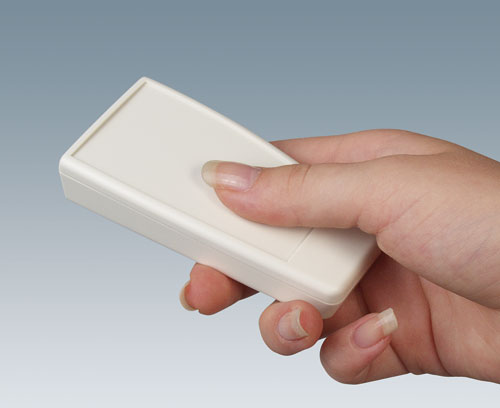

  • design ergonômico para conforto máximo do usuário

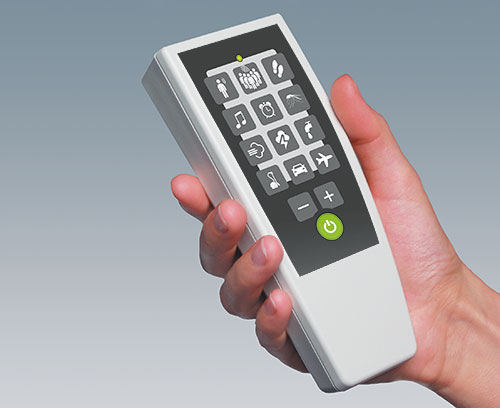

  • ideal para dispositivos de controle remoto conectado via cabo ou alimentados por baterias:  AAA, AA, 9 V ou células redondas 12 V

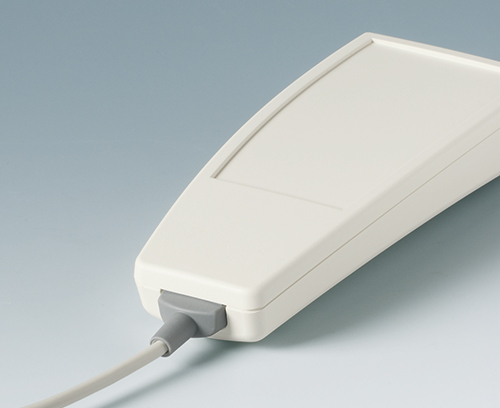

  • versões com prensa-cabos pré-montados (tamanhos M, L e XL)

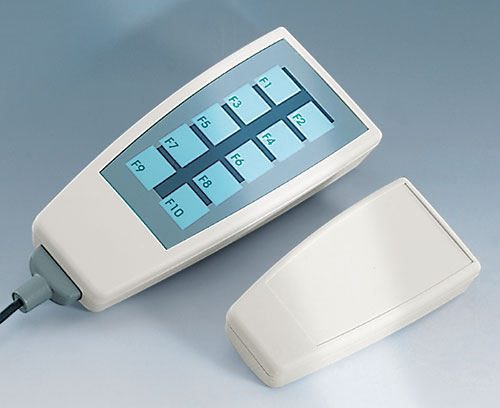

  • área de operação recessada para proteção do teclado de membrana ou etiqueta

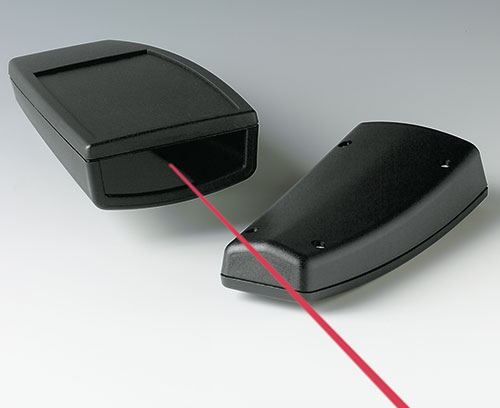

  • ABS (UL 94 HB); SMART-CASES também disponíveis em luz permeável infravermelha plexiglas PMMA

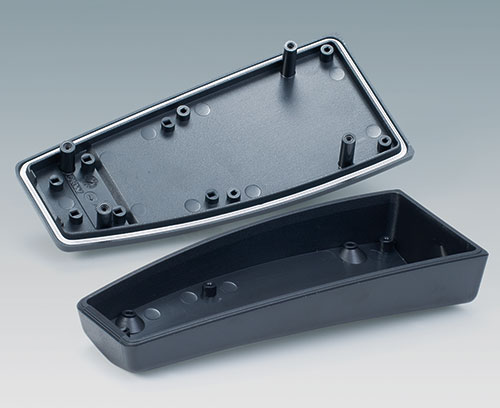

  • classe de proteção até IP 65: tamanhos L e XL com kit de vedação opcional e sem compartimento de bateria
  • clipe adequado e apoio seguro para utilização de acessórios

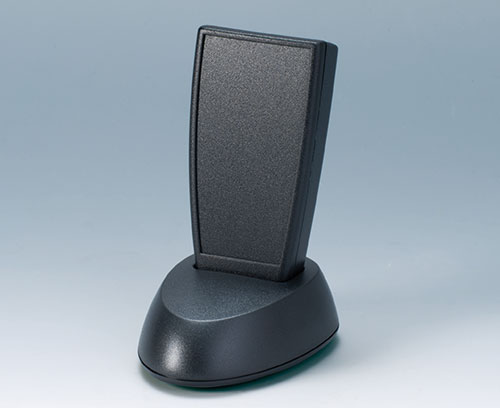

  • tamanhos M, L & XL para aplicações de mesa de trabalho
  • pilares de fixação internos e suportes de fixação para PCB e componentes

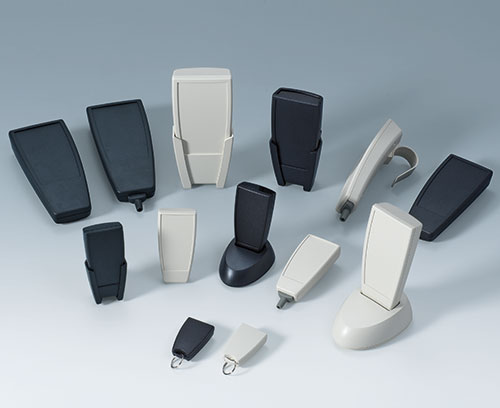

  • 4 tamanhos de gabinete
Generate PDF
  • Exemplos de Aplicação

Application fields

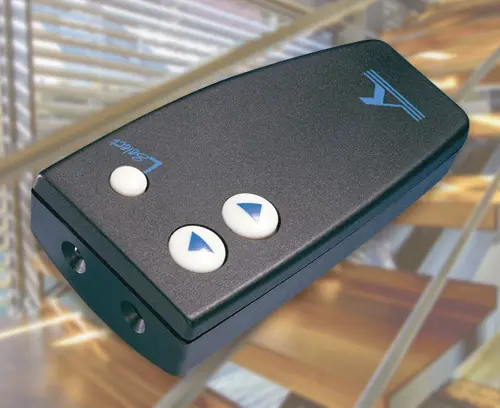

  • Muitos tipos diferentes de sistemas de controle remoto
  • Soluções USB móveis
  • Feito especialmente para as áreas médicas e bem estar, bem como residencial e indústria
  • Selecione Versões
  • Acessórios
  • Customizadas

Selecione versão/tamanho que você necessita e clique em “selecionar”.

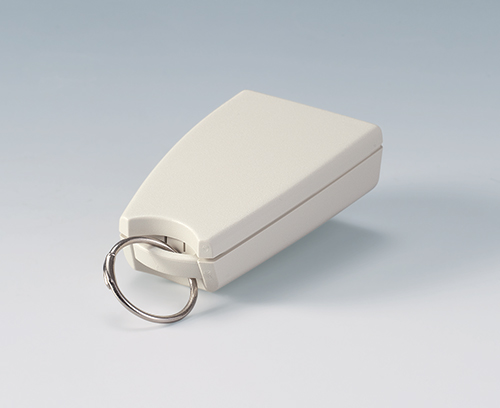

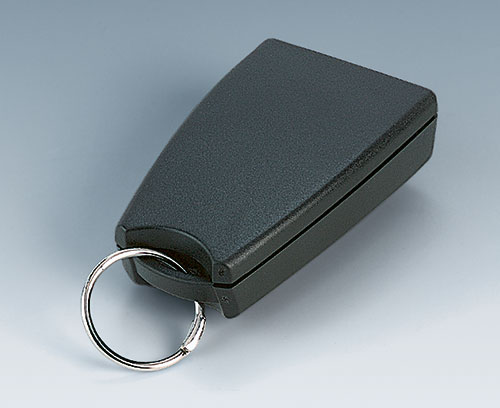

Com argola para porta-chaves, etc.

SMART-CASE com argola para porta-chaves, etc.

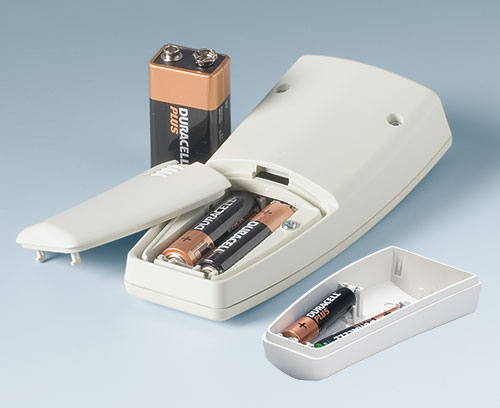

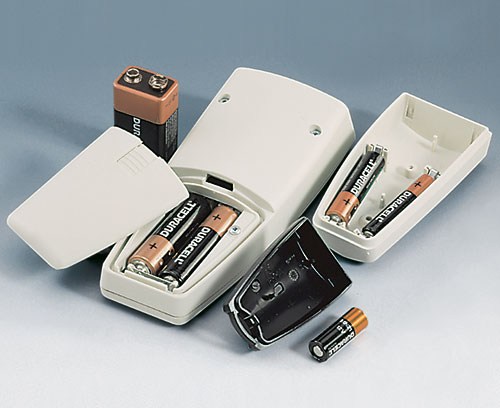

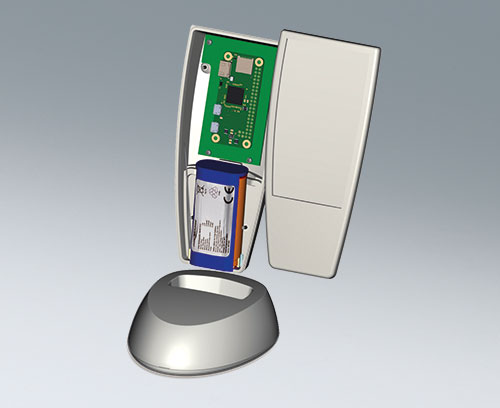

Com compartimento para pilha

SMART-CASE com compartimento para pilha

Sem compartimento para pilha, com prensa cabo

SMART-CASE sem compartimento para pilha, com prensa cabo

Sem compartimento para pilha, sem prensa cabo

SMART-CASE sem compartimento para pilha, sem prensa cabo

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Fechar

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Produto adicionado a sua lista
A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Fechar

A9100001

Ring eyelet
Produto adicionado a sua lista
PA 6
volcano
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Fechar

A9100002

Ring eyelet
Produto adicionado a sua lista
PA 6
volcano
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Fechar

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produto adicionado a sua lista
A9164001 Key ring

A9164001

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

Fechar

A9164001

Key ring
Produto adicionado a sua lista
Steel
nickel-plated
20,5mm
A9166001 Set of battery clips, 2 x AAA

A9166001

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 4 single contacts

Fechar

A9166001

Set of battery clips, 2 x AAA
Produto adicionado a sua lista
Steel
tin-plated
A9166002 Battery contact, 2 x AAA

A9166002

Battery contact, 2 x AAA In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.

Supply 1 battery contact

Fechar

A9166002

Battery contact, 2 x AAA
Produto adicionado a sua lista
Steel
tin-plated
A9166003 Battery holder, 2 x AAA

A9166003

Battery holder, 2 x AAA The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.

Supply 1 battery holder, 1 self-tapping screw

Fechar

A9166003

Battery holder, 2 x AAA
Produto adicionado a sua lista
PA 6 (UL 94 HB)
black RAL 9005

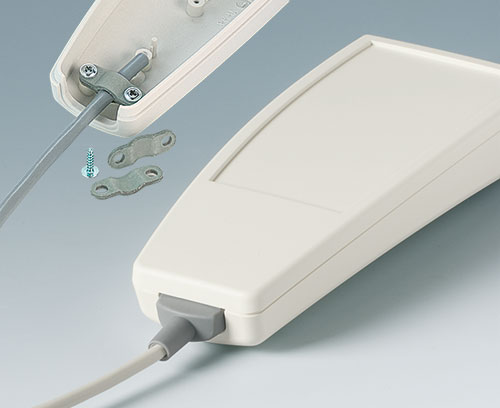

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Fechar

A9166004

Set of pull-relief
Produto adicionado a sua lista
PA 6
volcano
A9166005 Adhesive foil

A9166005

Adhesive foil For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Fechar

A9166005

Adhesive foil
Produto adicionado a sua lista
A9166037 Station M

A9166037

Station M Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Fechar

A9166037

Station M
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9166039 Station M

A9166039

Station M Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Fechar

A9166039

Station M
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005

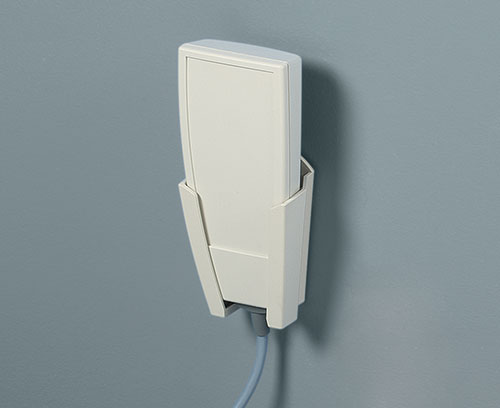

A9166307 Holder M

A9166307

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Fechar

A9166307

Holder M
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9166309 Holder M

A9166309

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Fechar

A9166309

Holder M
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
A9166327 Holder M, with adapter

A9166327

Holder M, with adapter Special holder with adapter for SMART-CASE M for fixing at 4-claws-system-holders (separate articles A9220029, A9220039, A9220049, A9220059). Holder screw-fixed with adapter.

Supply 1 holder, 1 adapter, assembly kit

Fechar

A9166327

Holder M, with adapter
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9166329 Holder M, with adapter

A9166329

Holder M, with adapter Special holder with adapter for SMART-CASE M for fixing at 4-claws-system-holders (separate articles A9220029, A9220039, A9220049, A9220059). Holder screw-fixed with adapter.

Supply 1 holder, 1 adapter, assembly kit

Fechar

A9166329

Holder M, with adapter
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
A9167002 Sealing L

A9167002

Sealing L Application: for a higher protection class. For versions II - V.

Supply 1 Sealing kit

Fechar

A9167002

Sealing L
Produto adicionado a sua lista
A9167005 Adhesive foil

A9167005

Adhesive foil For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Fechar

A9167005

Adhesive foil
Produto adicionado a sua lista
A9167017 Belt/pocket clip

A9167017

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Fechar

A9167017

Belt/pocket clip
Produto adicionado a sua lista
PA 6 (UL 94 HB)
off-white RAL 9002
A9167019 Belt/pocket clip

A9167019

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Fechar

A9167019

Belt/pocket clip
Produto adicionado a sua lista
PA 6 (UL 94 HB)
black RAL 9005

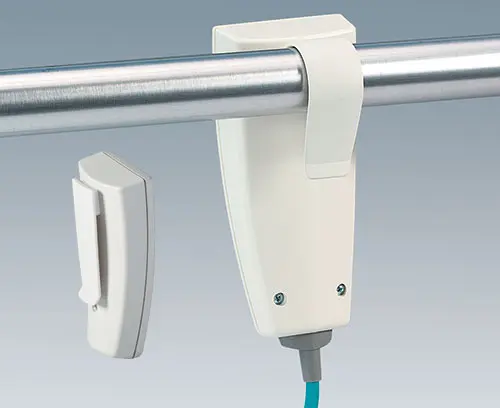

A9167027 Holding clamp

A9167027

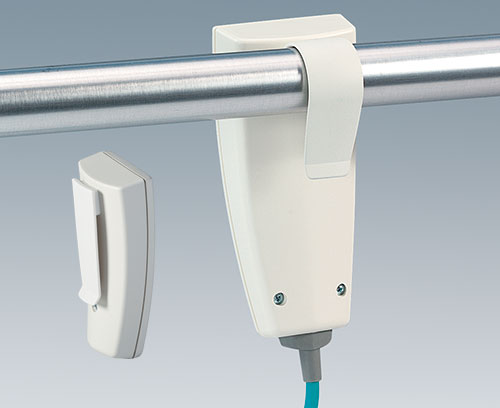

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Fechar

A9167027

Holding clamp
Produto adicionado a sua lista
PA 6 (UL 94 HB)
off-white RAL 9002
A9167029 Holding clamp

A9167029

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Fechar

A9167029

Holding clamp
Produto adicionado a sua lista
PA 6 (UL 94 HB)
black RAL 9005
A9167037 Station L

A9167037

Station L Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Fechar

A9167037

Station L
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9167039 Station L

A9167039

Station L Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Fechar

A9167039

Station L
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
A9167307 Holder L

A9167307

Holder L Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.

Supply 1 holder

Fechar

A9167307

Holder L
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9167309 Holder L

A9167309

Holder L Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.

Supply 1 holder

Fechar

A9167309

Holder L
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
A9167327 Holder L, with adapter

A9167327

Holder L, with adapter Special holder with adapter for SMART-CASE L for fixing at 4-claws-system-holders (separate articles A9220029, A9220039, A9220049, A9220059). Holder screw-fixed with adapter.

Supply 1 holder, 1 adapter, assembly kit

Fechar

A9167327

Holder L, with adapter
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9167329 Holder L, with adapter

A9167329

Holder L, with adapter Special holder with adapter for SMART-CASE L for fixing at 4-claws-system-holders (separate articles A9220029, A9220039, A9220049, A9220059). Holder screw-fixed with adapter.

Supply 1 holder, 1 adapter, assembly kit

Fechar

A9167329

Holder L, with adapter
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
A9168002 Sealing XL

A9168002

Sealing XL Application: For a higher protection class. For the versions II - V.

Supply 1 sealing

Fechar

A9168002

Sealing XL
Produto adicionado a sua lista
A9168005 Adhesive foil

A9168005

Adhesive foil For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Fechar

A9168005

Adhesive foil
Produto adicionado a sua lista
A9168037 Station XL

A9168037

Station XL Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Fechar

A9168037

Station XL
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9168039 Station XL

A9168039

Station XL Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Fechar

A9168039

Station XL
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
A9168307 Holder XL

A9168307

Holder XL Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.

Supply 1 holder

Fechar

A9168307

Holder XL
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9168309 Holder XL

A9168309

Holder XL Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.

Supply 1 holder

Fechar

A9168309

Holder XL
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
A9168327 Holder XL, with adapter

A9168327

Holder XL, with adapter Special holder with adapter for SMART-CASE XL for fixing at 4-claws-system-holders (separate articles A9220029, A9220039, A9220049, A9220059). Holder screw-fixed with adapter.

Supply 1 holder, 1 adapter, assembly kit

Fechar

A9168327

Holder XL, with adapter
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9168329 Holder XL, with adapter

A9168329

Holder XL, with adapter Special holder with adapter for SMART-CASE XL for fixing at 4-claws-system-holders (separate articles A9220029, A9220039, A9220049, A9220059). Holder screw-fixed with adapter.

Supply 1 holder, 1 adapter, assembly kit

Fechar

A9168329

Holder XL, with adapter
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Fechar

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
Produto adicionado a sua lista
Steel
tin-plated
A9190003 Set of battery clips, 2xN/2xAA/2xAAA

A9190003

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Fechar

A9190003

Set of battery clips, 2xN/2xAA/2xAAA
Produto adicionado a sua lista
Steel
nickel-plated

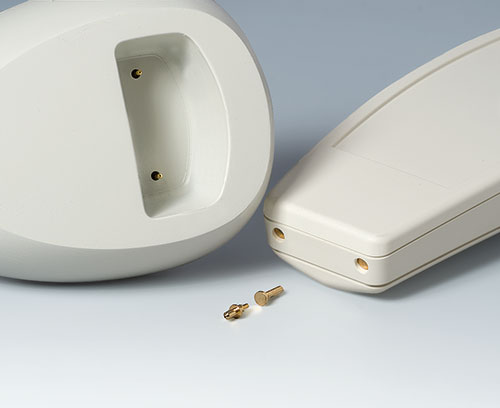

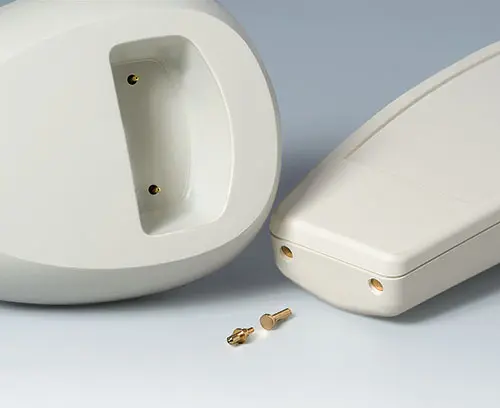

A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Fechar

A9193030

Contact pin
Produto adicionado a sua lista
gold-plated
A9193032 Spring contact

A9193032

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.

Supply 1 spring contact

Fechar

A9193032

Spring contact
Produto adicionado a sua lista
A9220029 Holding device, ball joint

A9220029

Holding device, ball joint For self-adhesive mounting or screw mounting. The base can be moved horizontally backwards and forwards by 45° and can be rotated around its own axis. The optimum setting can be fixed with the integrated locking screw. Adapter for holding device (4-claws system) required as a separate article for securing the device.

Supply 1 holding device, mounting material

Fechar

A9220029

Holding device, ball joint
Produto adicionado a sua lista
ABS (UL 94 HB)
black
30x54x75mm
A9220039 Holding device, bicycle

A9220039

Holding device, bicycle For screw mounting on the bar with ø 20 to 25 mm. With two rubber shims for correct mounting on the bar or handlebars. Adapter for holding device (4-claws system) required as a separate article for securing the device.

Supply 1 holding device, 2 rubber shims, 1 allen key

Fechar

A9220039

Holding device, bicycle
Produto adicionado a sua lista
PC
black
38x57x42mm
A9220049 Holding device, flexible swan neck with suction pad

A9220049

Holding device, flexible swan neck with suction pad The device can be rotated by 360° and can be adjusted horizontally and vertically with an inclination angle of 40° in the viewing angle. With especially sturdy 8 mm aluminium wire – guarantees significantly reduced vibration characteristics and allows higher weight-carrying capacity. The diameter of the suction disk is 70 mm. Adapter for holding device (4-claws system) required as a separate article for securing the device.

Supply 1 holding device

Fechar

A9220049

Holding device, flexible swan neck with suction pad
Produto adicionado a sua lista
black
190x70x70mm
A9220059 Holding device, secured with suction pad

A9220059

Holding device, secured with suction pad Grid plate with rear-mounted grid arm and integrated suction disk with 70 mm diameter. Secure mounting on all smooth surfaces. Integrated spring mechanism and novel vacuum return path guarantee that the suction disk is absolutely flat before mounting. The position can be fixed using locking screws. Adapter for holding device (4-claws system) required as a separate article for securing the device.

Supply 1 holding device

Fechar

A9220059

Holding device, secured with suction pad
Produto adicionado a sua lista
black
133x70x70mm
B9100043 Hand strap, woven

B9100043

Hand strap, woven Without quick-action lock.

Supply 1 hand strap

Fechar

B9100043

Hand strap, woven
Produto adicionado a sua lista
black
200mm
B9100063 Carrying strap, textile

B9100063

Carrying strap, textile Without quick-action lock.

Supply 1 carrying strap

Fechar

B9100063

Carrying strap, textile
Produto adicionado a sua lista
black
860mm

Opções para customizadas Smart-Case

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
