Acessórios para Caixas
A9168309
Holder XL
Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.
Supply1 holder
Gerar seu Datasheet em PDF para A9168309
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
System components to complete
A9068109
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9068109
SMART-CASE XL, Vers. Iblack RAL 9005
168x74,4x35,4mm

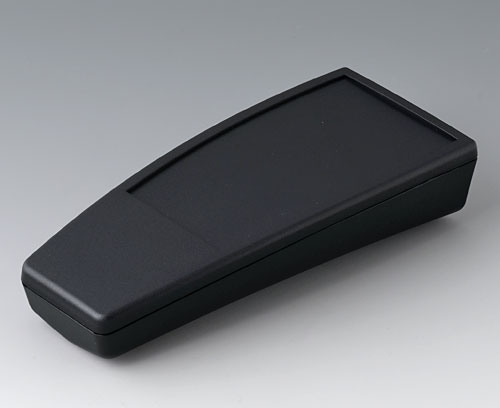

A9068119
Version Without battery compartment
Supply Case-top and base, assembly kit
A9068119
SMART-CASE XL, Vers. IIblack RAL 9005
168x74,4x35,4mm
,

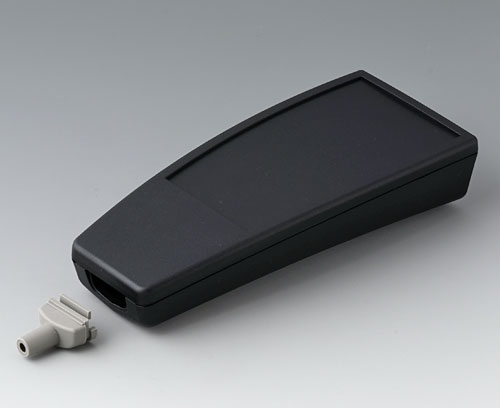

A9068129
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9068129
SMART-CASE XL, Vers. IIIblack RAL 9005
168x74,4x35,4mm
,

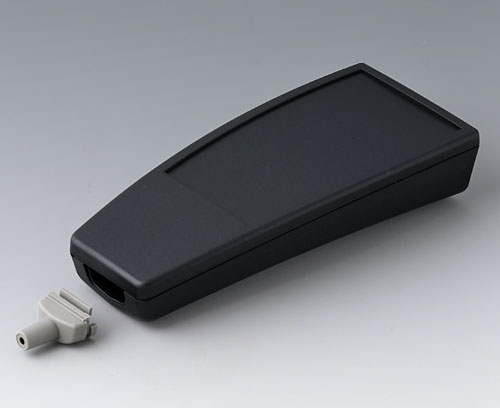

A9068139
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9068139
SMART-CASE XL, Vers. IVblack RAL 9005
168x74,4x35,4mm
,
A9068149
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9068149
SMART-CASE XL, Vers. Vblack RAL 9005
168x74,4x35,4mm
,

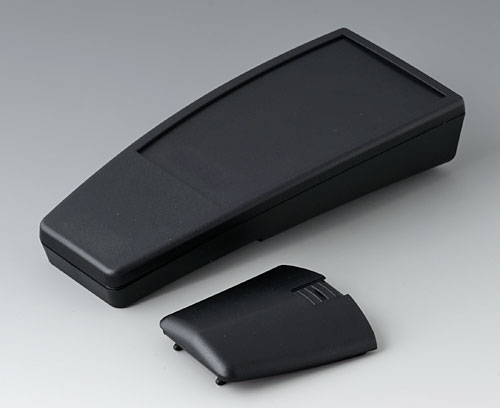

A9068209
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9068209
SMART-CASE XL, Vers. Iblack RAL 9005
168x74,4x35,4mm
A9068219
Version Without battery compartment
Supply Case-top and base, assembly kit
A9068219
SMART-CASE XL, Vers. IIblack RAL 9005
168x74,4x35,4mm
,

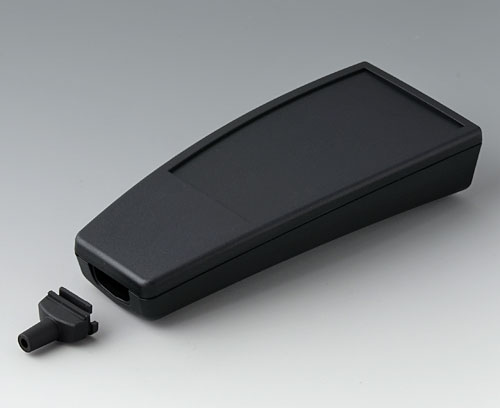

A9068329
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9068329
SMART-CASE XL, Vers. IIIblack RAL 9005
168x74,4x35,4mm
,

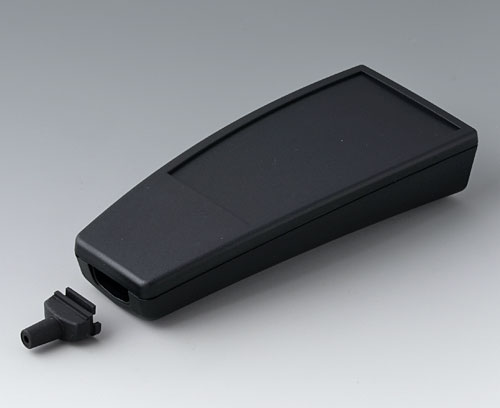

A9068339
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9068339
SMART-CASE XL, Vers. IVblack RAL 9005
168x74,4x35,4mm
,
A9068349
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9068349
SMART-CASE XL, Vers. Vblack RAL 9005
168x74,4x35,4mm
,
Accessory
A9168005
Supply 1 piece
A9168005
Adhesive foil XLDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 193 KB
- AutoCAD DWG-File 385 KB
- AutoCAD DXF-File 888 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 1 945 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012318.x_t 3 798 KB
- 00012318.STEP 8 755 KB
- 00012318.SAT 8 978 KB
(OKW product)
Serviço de customização: Podemos modificar nossos gabinetes para atender às suas necessidades específicas. Os gabinetes serão entregues totalmente finalizados e prontos para uso. Tudo o que você precisa fazer é instalar seu equipamento no interior. Veja as opções de customização para A9168309 e não se esqueça de solicitar uma cotação!
