Acessórios para Caixas
A9167307

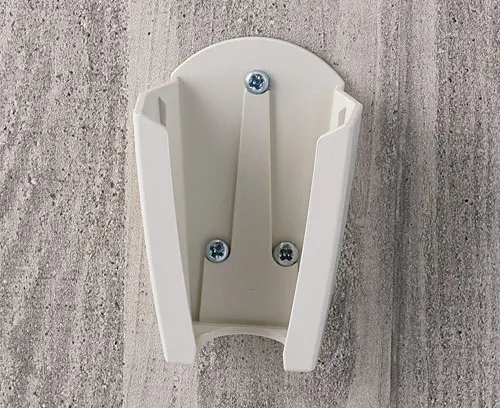

Holder L
Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.
Supply1 holder
Gerar seu Datasheet em PDF para A9167307
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
System components to complete
A9067107
Version With battery compartment for two 1.5 V mignon cells (AA)or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9067107
SMART-CASE L, Vers. Ioff-white RAL 9002
140x62,7x30,5mm

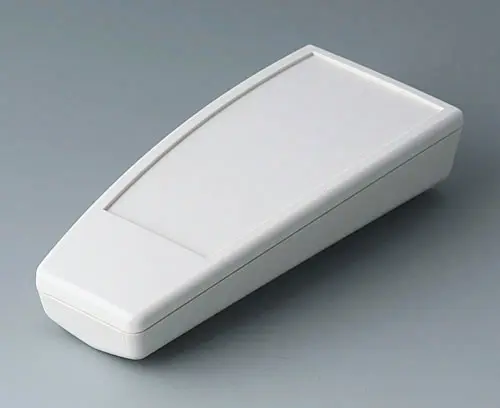

A9067117
Version Without battery compartment
Supply Case-top and base, assembly kit
A9067117
SMART-CASE L, Vers. IIoff-white RAL 9002
140x62,7x30,5mm
,

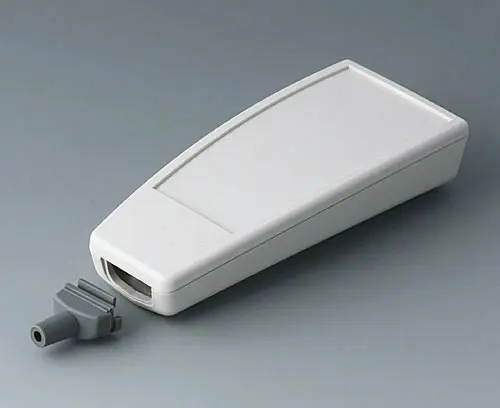

A9067127
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9067127
SMART-CASE L, Vers. IIIoff-white RAL 9002
140x62,7x30,5mm
,

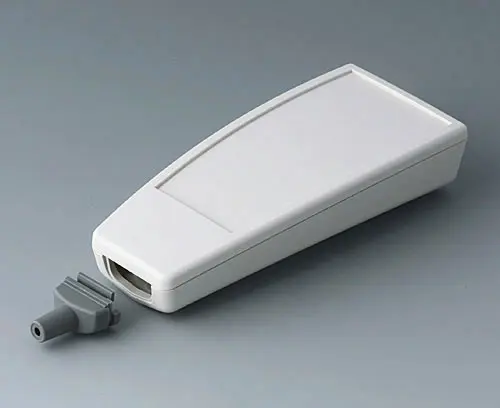

A9067137
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9067137
SMART-CASE L, Vers. IVoff-white RAL 9002
140x62,7x30,5mm
,

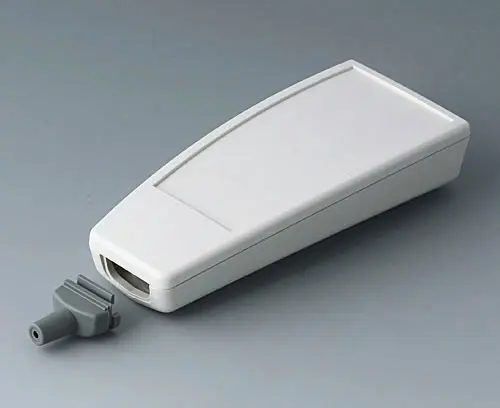

A9067147
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9067147
SMART-CASE L, Vers. Voff-white RAL 9002
140x62,7x30,5mm
,
Accessory
A9167005
Supply 1 piece
A9167005
Adhesive foil LDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 182 KB
- AutoCAD DWG-File 373 KB
- AutoCAD DXF-File 839 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 1 778 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012251.x_t 2 097 KB
- 00012251.STEP 5 838 KB
- 00012251.SAT 6 274 KB
(OKW product)
Serviço de customização: Podemos modificar nossos gabinetes para atender às suas necessidades específicas. Os gabinetes serão entregues totalmente finalizados e prontos para uso. Tudo o que você precisa fazer é instalar seu equipamento no interior. Veja as opções de customização para A9167307 e não se esqueça de solicitar uma cotação!
