Acessórios para Caixas
A9166309

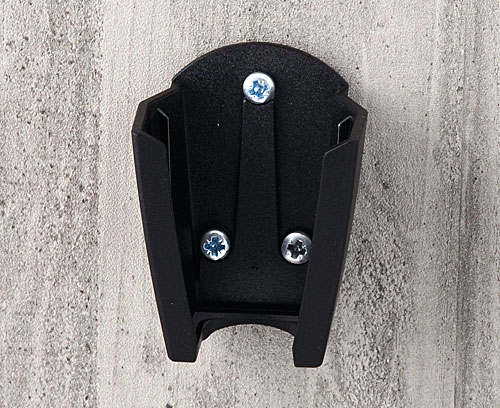

Holder M
Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.
Supply1 holder
Gerar seu Datasheet em PDF para A9166309
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
System components to complete

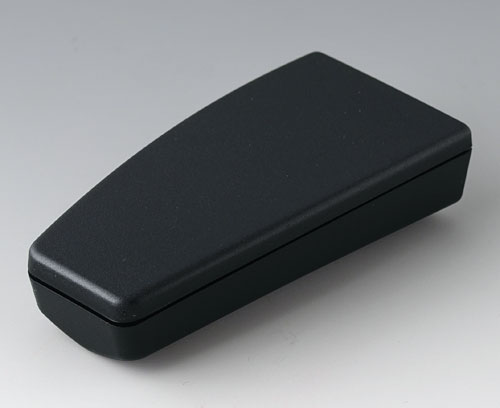

A9066109
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066109
SMART-CASE M, Vers. Iblack RAL 9005
96x47x24mm
A9066119
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066119
SMART-CASE M, Vers. IIblack RAL 9005
96x47x24mm

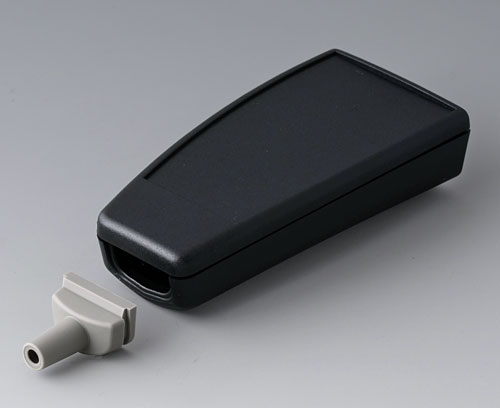

A9066129
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066129
SMART-CASE M, Vers. IIIblack RAL 9005
96x47x24mm

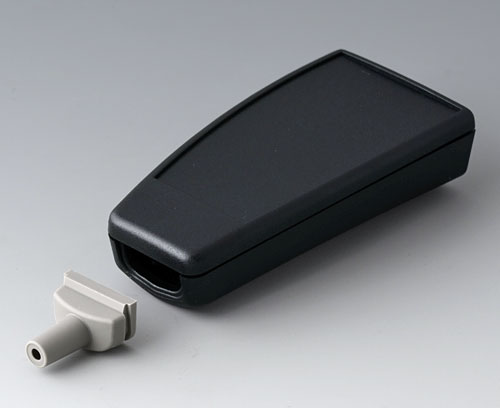

A9066139
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066139
SMART-CASE M, Vers. IVblack RAL 9005
96x47x24mm
A9066149
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066149
SMART-CASE M, Vers. Vblack RAL 9005
96x47x24mm

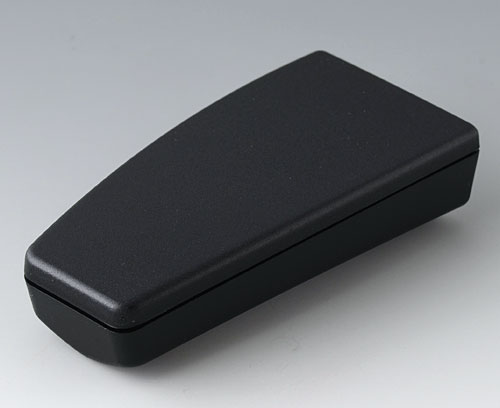

A9066209
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066209
SMART CASE M, Vers. Iblack RAL 9005
96x47x24mm

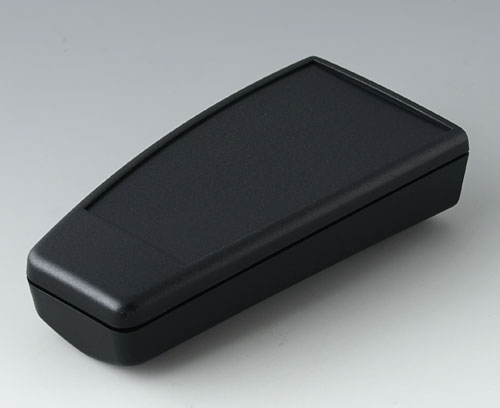

A9066219
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066219
SMART-CASE M, Vers. IIblack RAL 9005
96x47x24mm

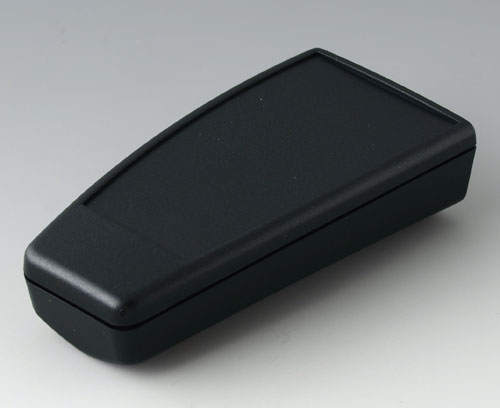

A9066319
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066319
SMART-CASE M, Vers. VIblack RAL 9005
96x47x24mm

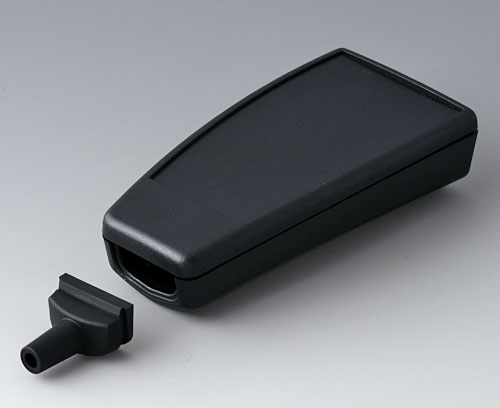

A9066329
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066329
SMART-CASE M, Vers. IIIblack RAL 9005
96x47x24mm
A9066339
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066339
SMART-CASE M, Vers. IVblack RAL 9005
96x47x24mm
A9066349
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066349
SMART-CASE M, Vers. Vblack RAL 9005
96x47x24mm
A9066419
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066419
SMART-CASE M, Vers. VIblack RAL 9005
96x47x24mm
Accessory
A9166005
Supply 1 piece
A9166005
Adhesive foil MDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 165 KB
- AutoCAD DWG-File 330 KB
- AutoCAD DXF-File 685 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 1 046 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012267.x_t 2 412 KB
- 00012267.STEP 5 191 KB
- 00012267.SAT 4 875 KB
