AltText

A9166005

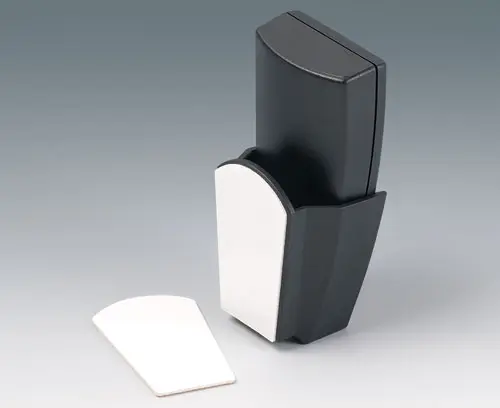

Adhesive foil M

For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply

1 piece

  • Usado para
AltText

A9066107

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Fechar

A9066107

SMART-CASE M, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
AltText

A9066109

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Fechar

A9066109

SMART-CASE M, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
AltText

A9066117

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Fechar

A9066117

SMART-CASE M, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
AltText

A9066119

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Fechar

A9066119

SMART-CASE M, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
AltText

A9066127

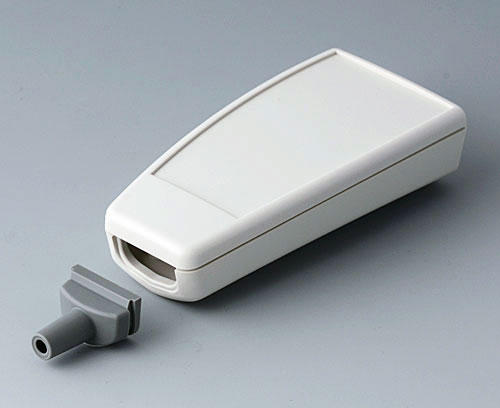

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Fechar

A9066127

SMART-CASE M, Vers. III
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
AltText

A9066129

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Fechar

A9066129

SMART-CASE M, Vers. III
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
AltText

A9066137

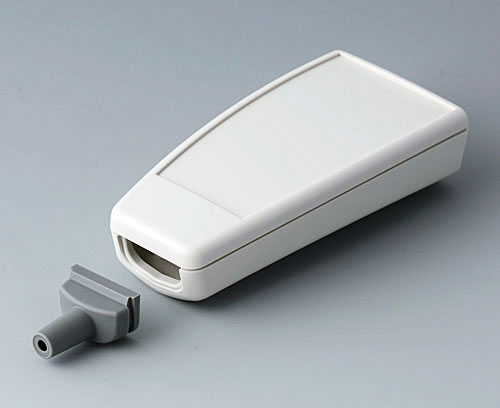

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Fechar

A9066137

SMART-CASE M, Vers. IV
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
AltText

A9066139

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Fechar

A9066139

SMART-CASE M, Vers. IV
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
AltText

A9066147

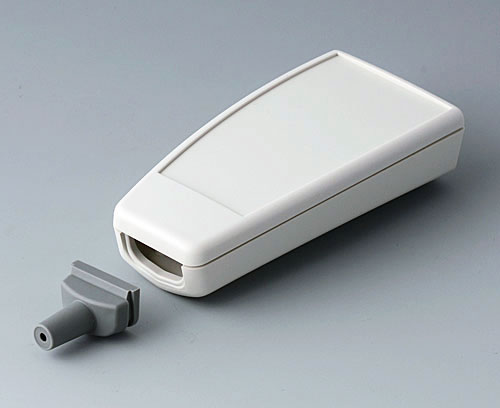

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Fechar

A9066147

SMART-CASE M, Vers. V
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
AltText

A9066149

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Fechar

A9066149

SMART-CASE M, Vers. V
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
AltText

A9066209

SMART CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Fechar

A9066209

SMART CASE M, Vers. I
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
AltText

A9066219

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Fechar

A9066219

SMART-CASE M, Vers. II
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
AltText

A9066317

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Fechar

A9066317

SMART-CASE M, Vers. VI
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
AltText

A9066319

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Fechar

A9066319

SMART-CASE M, Vers. VI
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
AltText

A9066329

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Fechar

A9066329

SMART-CASE M, Vers. III
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
AltText

A9066339

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Fechar

A9066339

SMART-CASE M, Vers. IV
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
AltText

A9066349

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Fechar

A9066349

SMART-CASE M, Vers. V
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
AltText

A9066419

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Fechar

A9066419

SMART-CASE M, Vers. VI
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
AltText

A9166307

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Fechar

A9166307

Holder M
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
AltText

A9166309

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Fechar

A9166309

Holder M
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Other material - general information

Weight/1 part
1 g
Customs tariff number
(OKW product)
39199080
Country of manufacture
Alemanha
