B5403107

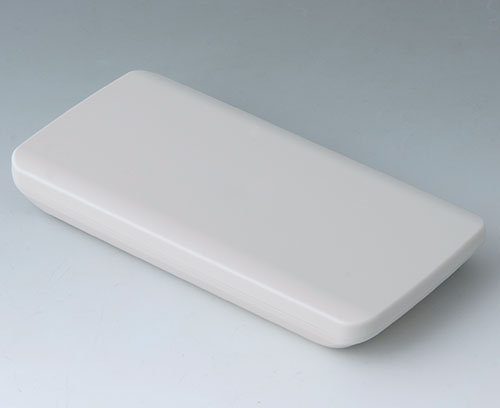

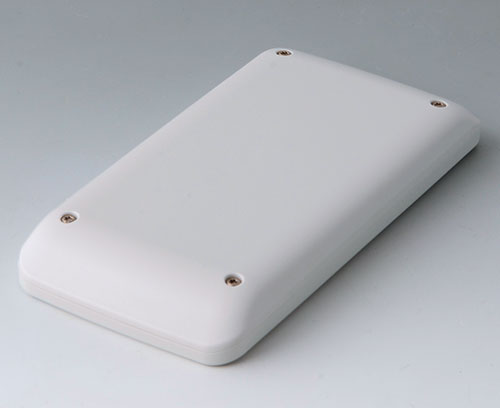

SLIM-CASE M, Vers. I
2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.
VersionFlat operating panel
SupplyTop and bottom part, assembly kit
Cree su ficha de datos en PDF para B5403107
Seleccione la información del producto para su ficha de datos.
Accessory "protection"
B5503039
Supply 1 seal
B5503039
Seal Mblack
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 324 KB
- AutoCAD DWG-File 624 KB
- AutoCAD DXF-File 2.379 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 426 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00026929.x_t 3.792 KB
- 00026929.step 8.473 KB
- 00026929.sat 14.357 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B5403107 y no olvide solicitar presupuesto.
