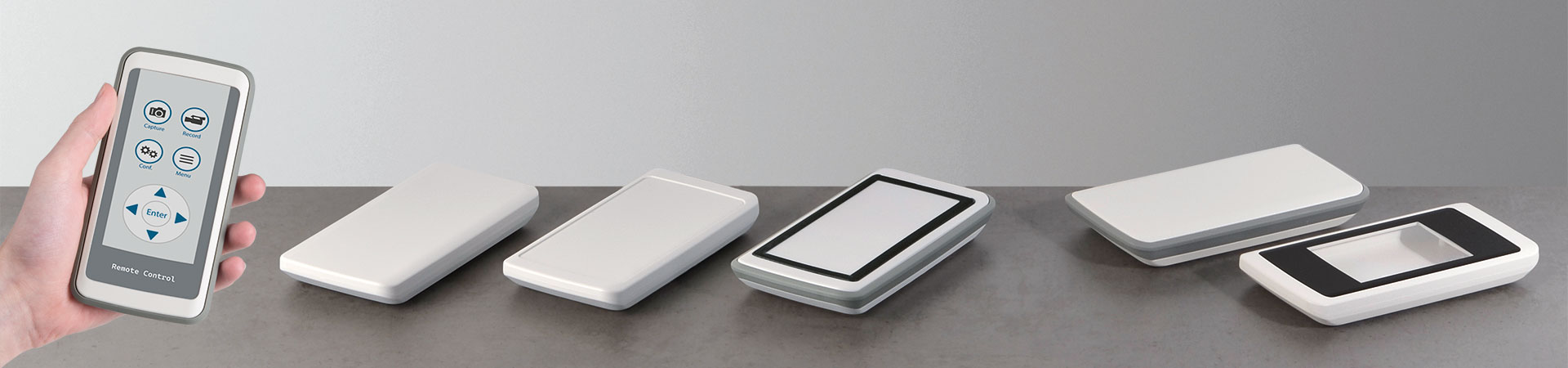

Slim-Case

Cajas de mano de diseño estilizado

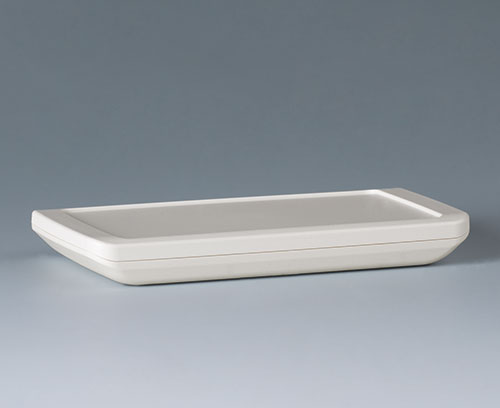

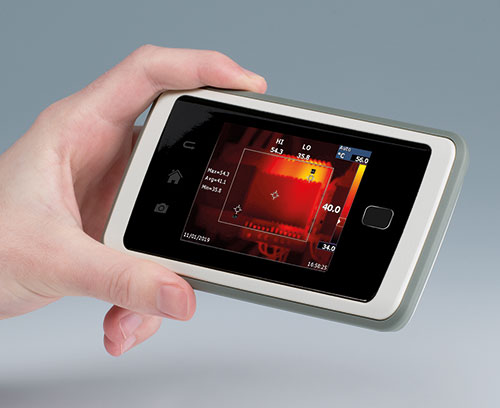

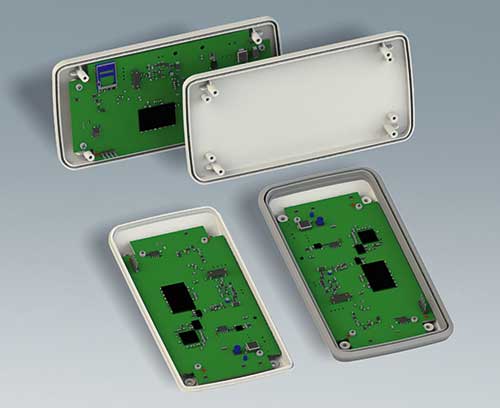

SLIM-CASE muestra lo que es posible actualmente en las cajas móviles en cuanto a apariencia y funcionalidad. El diseño prácticamente sin marco permite incorporar componentes y módulos electrónicos planos y visores y pantallas táctiles grandes de hasta 4'' (10 cm) en dispositivos compactos. A pesar de sus prácticas dimensiones reducidas, esta innovadora serie de cajas ofrece mucho volumen para instalaciones universales y estándares de transmisión modernos.

  • Con los bordes redondeados y el diseño compacto, estas cajas tienen una apariencia muy elegante. Además, se adaptan cómodamente a la mano y permiten funciones que se benefician de este diseño.

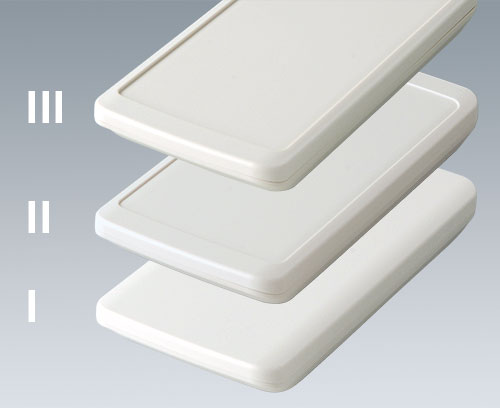

  • Los tres frontales diferentes garantizan flexibilidad para la configuración de la instalación y su concepto operativo:
    Superficie operativa plana
    Para personalizar el diseño y organizar elementos de mando y visualización de todo tipo.
    1 mm rebajado
    Ideal para aplicaciones con láminas decorativas.
    1,6 mm rebajado

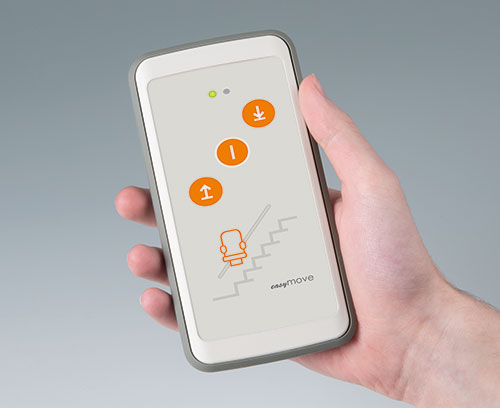

    Para el uso de un panel frontal perfilado y transparente o un teclado de membrana.

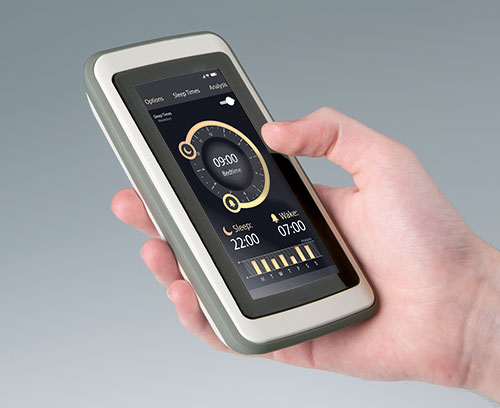

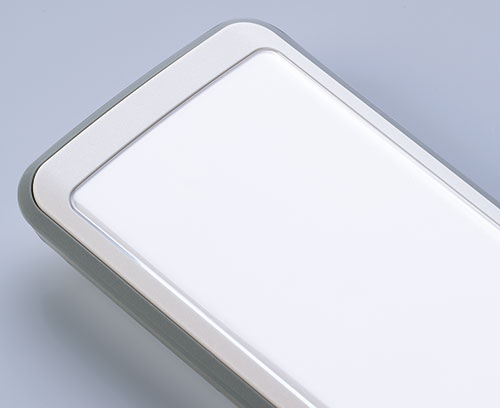

  • El panel frontal perfilado (accesorio) protege los visores situados debajo. Gracias al suavizado de los lados longitudinales encaja en la mano como un guante. Fijación con lámina adhesiva (accessorio). Si se desea se pueden imprimir por detrás, a medida del espacio visible del visor y para cubrir la superficie de adherencia.
  • Se pueden cargar por inducción con la correspondiente bobina colocándolos cerca de un cargador Qi o mediante alimentación interna a través de una batería plana en la placa de circuito.

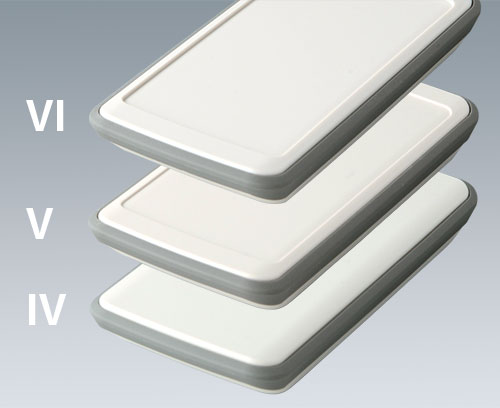

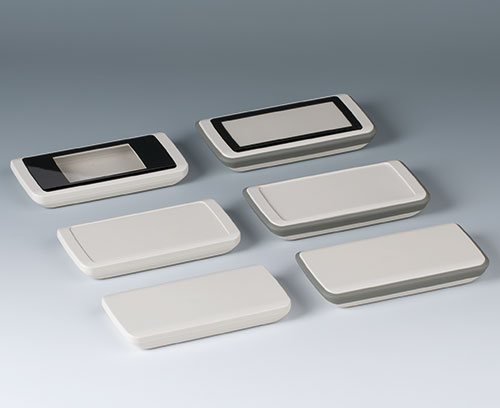

  • Con o sin anillo intermedio de TPE

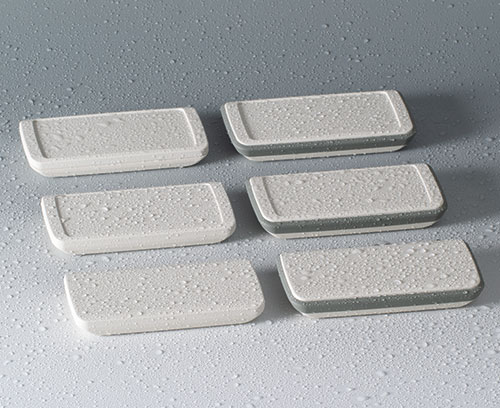

  • Categoría de protección IP 54: SLIM-CASE IV-VI con anillo intermedio de TPE;
    categoría de protección IP 65: SLIM-CASE I-III con junta opcional

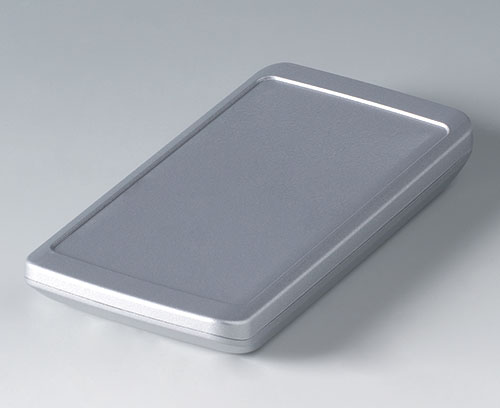

  • El anillo intermedio de TPE aumenta el volumen de instalación y sirve como anillo retén para la categoría de protección IP 54 y como protección antigolpes. Si se desea, TPE en colores especiales.
  • Componentes de las cajas de ASA+PC-FR (UL 94 V-0), blanco grisáceo (RAL 9002)
  • Tornillos de acero inoxidable y par Torx (T8)

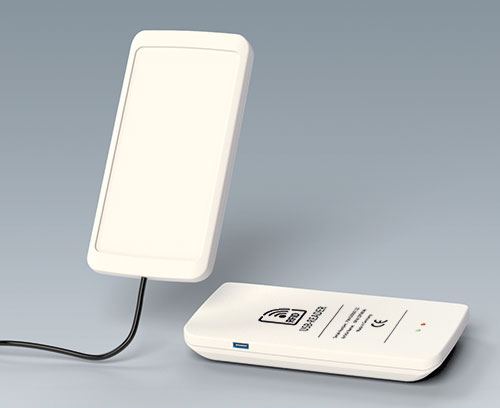

  • Es posible solicitar mecanizados personalizados, como recortes para elementos de mando y visualización, interfaces, inscripciones, metalizado de aluminio con compatibilidad electromagnética, etc
  • Video

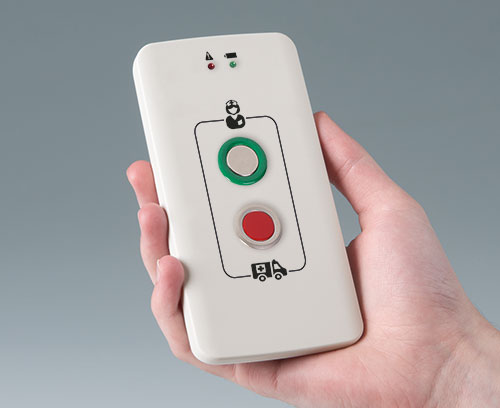

  • Ejemplos de aplicación

Application fields

Ideal para aplicaciones electrónicas móviles en interiores y exteriores.

  • Tecnologías de medición y regulación
  • Comunicación inalámbrica
  • Internet de las cosas / Internet industrial de las cosas
  • Tecnologías de laboratorio y medicina
  • Salud
  • Oficina
  • Tecnologías de seguridad
  • Tecnologías medioambientales
  • Selección de todos los artículos
  • Accesorios
  • Modificaciones específicas del cliente
AltText

B5403107

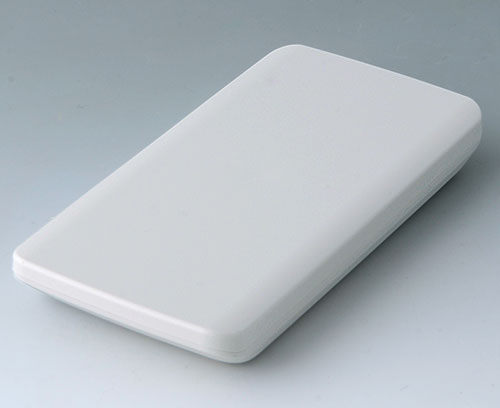

SLIM-CASE M, Vers. I 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Flat operating panel

Supply Top and bottom part, assembly kit

Cerrar

B5403107

SLIM-CASE M, Vers. I
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
AltText

B5403117

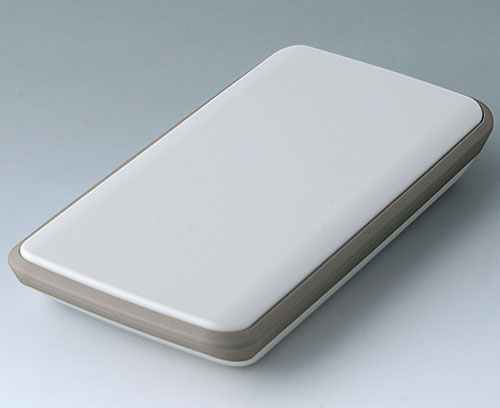

SLIM-CASE M, Vers. IV 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and flat operating panel

Supply Top and bottom part, TPE intermediate ring, assembly kit

Cerrar

B5403117

SLIM-CASE M, Vers. IV
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
AltText

B5403207

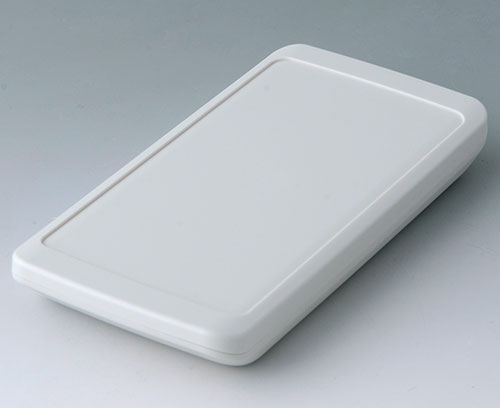

SLIM-CASE M, Vers. II 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for applications with decorative product labels. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Operating panel recessed 1 mm

Supply Top and bottom part, assembly kit

Cerrar

B5403207

SLIM-CASE M, Vers. II
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
AltText

B5403217

SLIM-CASE M, Vers. V 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for applications with decorative product label. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and operating panel recessed 1 mm

Supply Top and bottom part, TPE intermediate ring, assembly kit

Cerrar

B5403217

SLIM-CASE M, Vers. V
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
AltText

B5403307

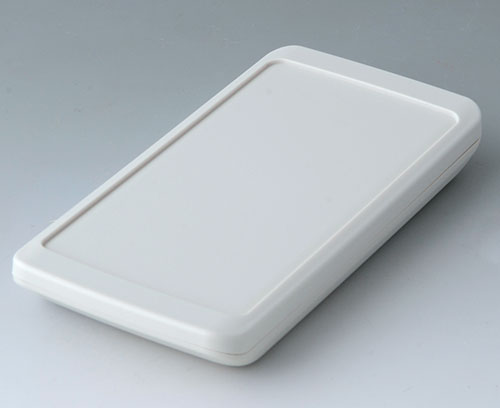

SLIM-CASE M, Vers. III 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Operating panel recessed 1.6 mm

Supply Top and bottom part, assembly kit

Cerrar

B5403307

SLIM-CASE M, Vers. III
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
AltText

B5403317

SLIM-CASE M, Vers. VI 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and operating panel recessed 1.6 mm

Supply Top and bottom part, TPE intermediate ring, assembly kit

Cerrar

B5403317

SLIM-CASE M, Vers. VI
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
AltText

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Producto añadido a su lista
AltText

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Producto añadido a su lista
Stainless steel
AltText

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Cerrar

A0399T08

Torx T8 screwdriver
Producto añadido a su lista
AltText

B5503039

Seal M To increase the protection class of SLIM-CASE M enclosures without TPE intermediate ring (versions I-III).

Supply 1 seal

Cerrar

B5503039

Seal M
Producto añadido a su lista
Silicone
black
AltText

B5503201

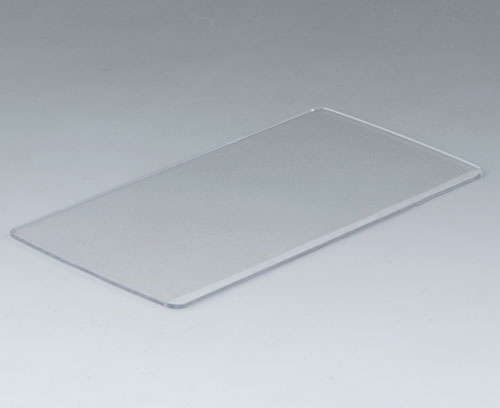

Front screen M The contoured transparent front screen (accessory) protects the displays underneath. It is rounded on the long edges to follow the ergonomic shape of the case. Suitable for SLIM-CASE M with operating panel recessed 1.6 mm (versions III and VI). Mounted with a double-sided adhesive film (accessories).
On request, supplied individually printed from behind to match your visible display as well as masking the adhesive film.

Supply 1 front screenm

Cerrar

B5503201

Front screen M
Producto añadido a su lista
PC
transparent
125,3x63,5x1,3mm
AltText

B5503300

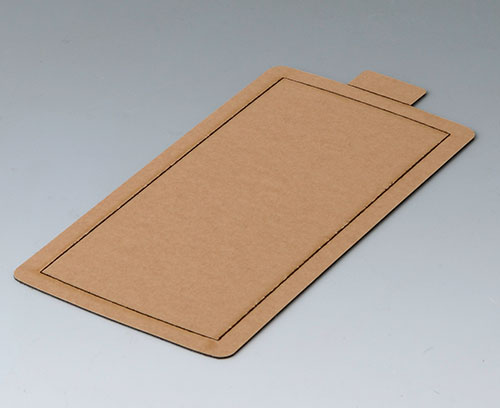

Adhesive foil M For secure mounting of the front screen on the top part.

Supply 1 adhesive foil

Cerrar

B5503300

Adhesive foil M
Producto añadido a su lista

Opciones de productos para Slim-Case
