Style-Case

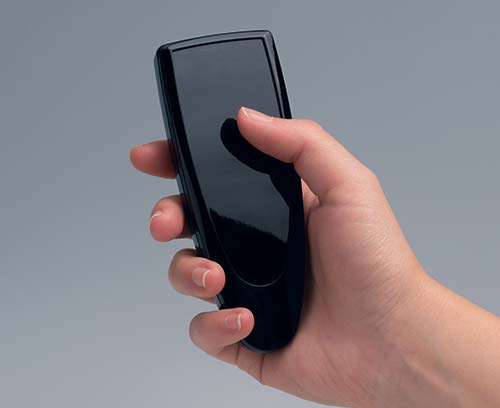

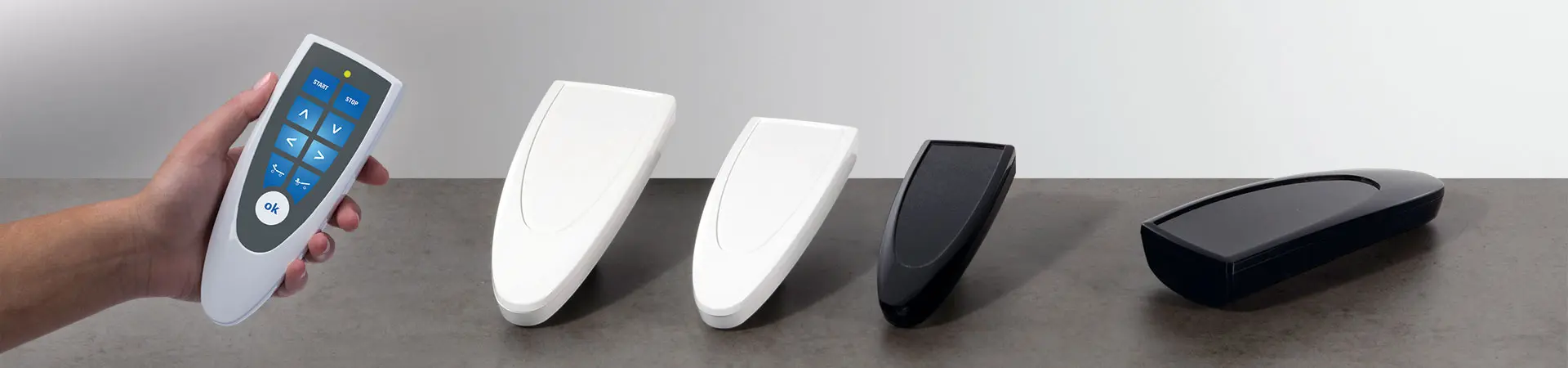

Caja manual ergonómica de brillo resplandeciente

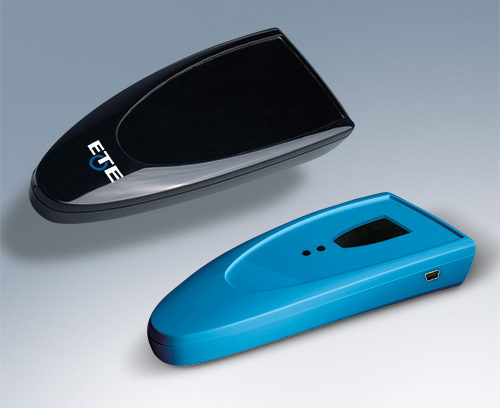

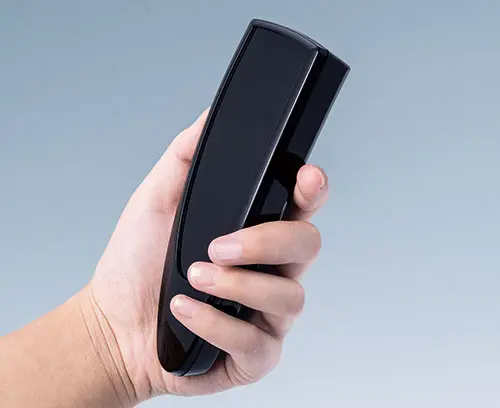

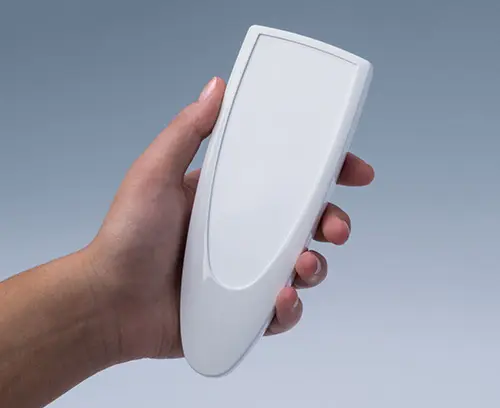

OKW presenta STYLE-CASE, una caja con superficie pulida de acabado brillante, creando así un nuevo hito de diseño entre los dispositivos de control manual. Estas elegantes cajas caben comodamente en la mano y son sencillas y fiables en su manejo. Su superficie altamente pulida y brillante, aporta una experiancia agradable de alta calidad y modernidad.

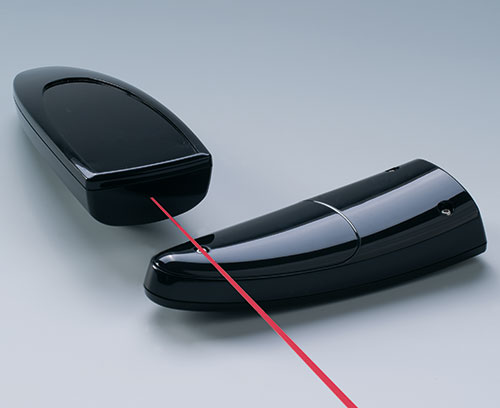

  • ASA de calidad con elevada protección contra los rayos ultravioleta o PMMA permeable a los infrarrojos (Plexiglás).
  • Superficie brillante fácil de limpiar.
  • Tornillos de acero inoxidable y par Torx.

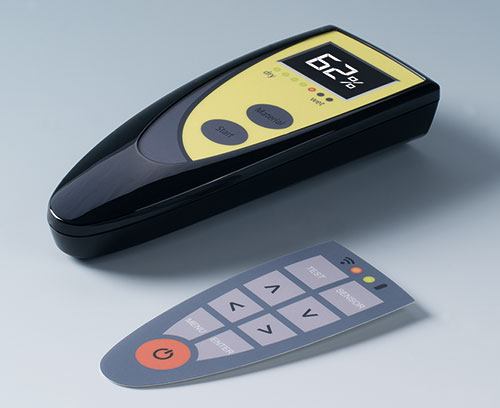

  • Superficie de uso rebajada para proteger los teclados de membrana o láminas decorativas.

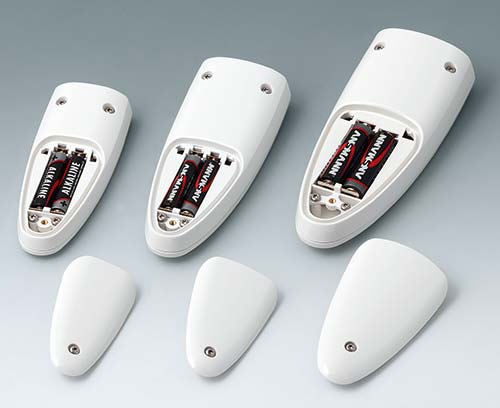

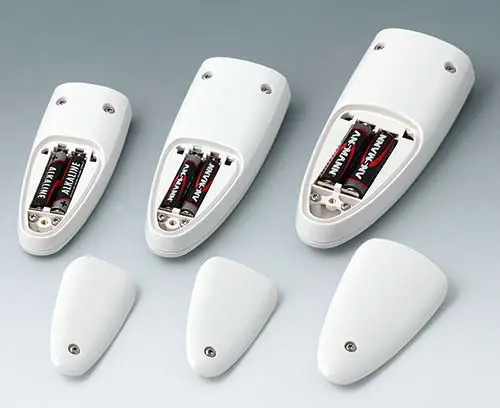

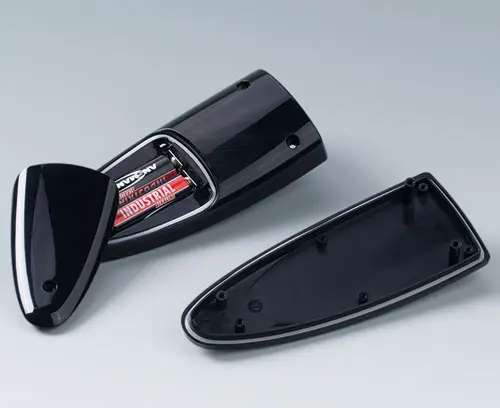

  • Compartimentos para pilas S/M: 2 x AAA, L: 2 x AA, juego de muelles de contacto como accesorio.

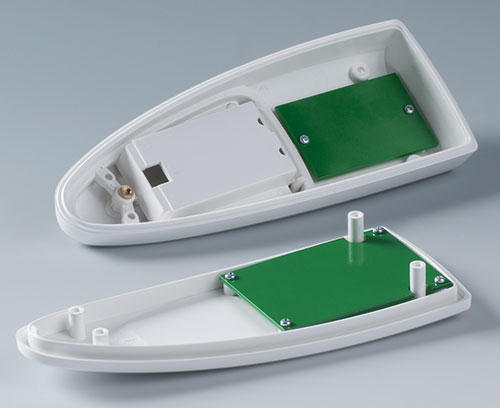

  • Cabezales de fijación para PCBs y piezas de montaje, tornillos autorroscantes para fijar las placas de circuito impreso como accesorio.
  • Video

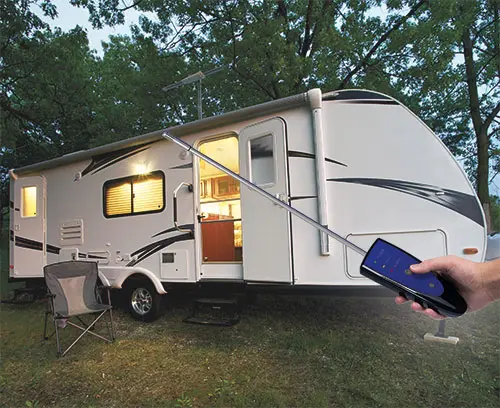

  • Ejemplos de aplicación

Application fields

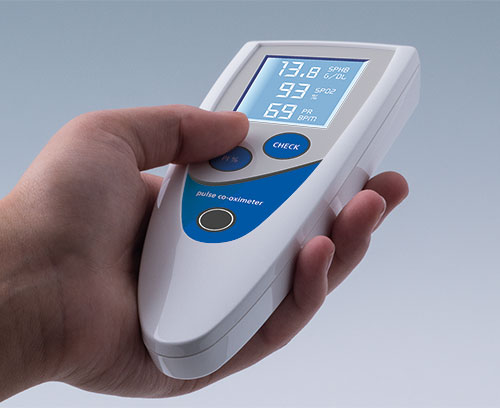

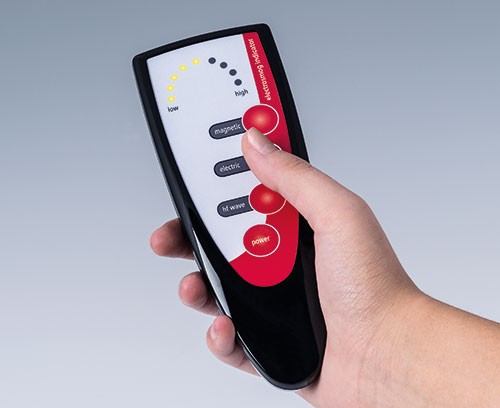

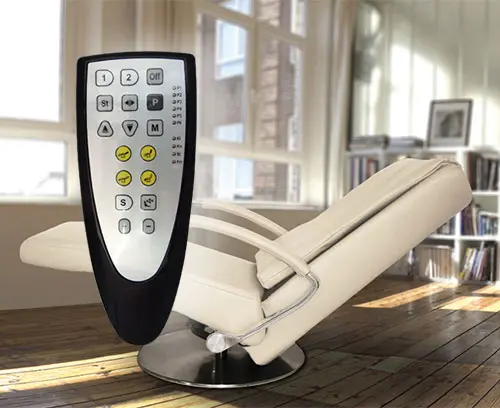

  • Están pensadas para mandos a distancia de diseño de cualquier tipo
  • Se usan especialmente en los ámbitos social y sanitario, así como en los hogares y la industria
  • Selección de todos los artículos
  • Accesorios
  • Modificaciones específicas del cliente
AltText

B2802016

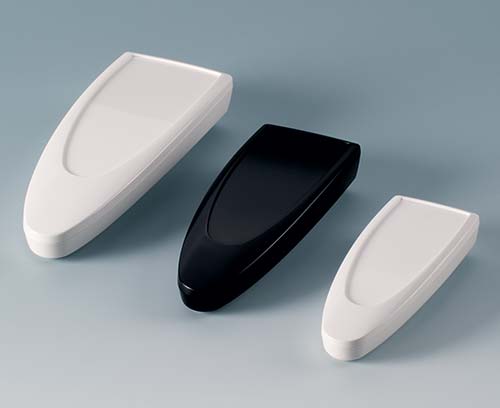

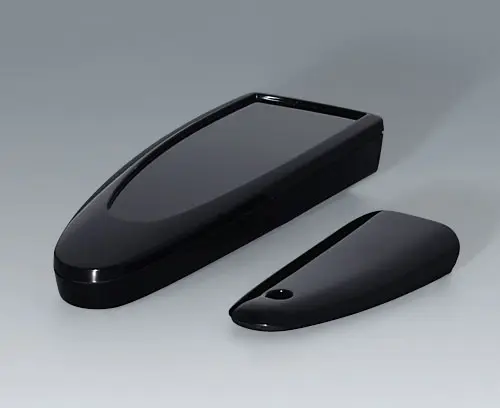

STYLE-CASE S Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Cerrar

B2802016

STYLE-CASE S
Producto añadido a su lista
PMMA (IR) (UL 94 HB)
black RAL 9005
123x48x24mm
IP 40
AltText

B2802017

STYLE-CASE S Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Cerrar

B2802017

STYLE-CASE S
Producto añadido a su lista
ASA (UL 94 HB)
traffic white RAL 9016
123x48x24mm
IP 40
AltText

B2803016

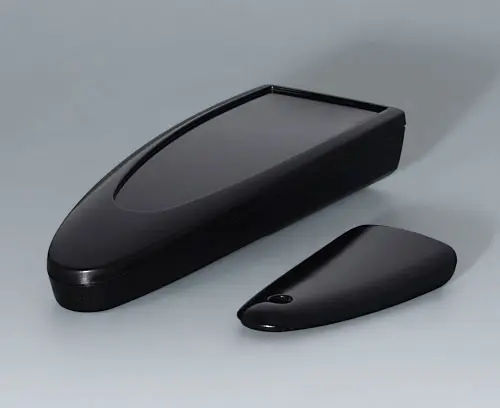

STYLE-CASE M Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Cerrar

B2803016

STYLE-CASE M
Producto añadido a su lista
PMMA (IR) (UL 94 HB)
black RAL 9005
147x56x27mm
IP 65 opt., IP 40
AltText

B2803017

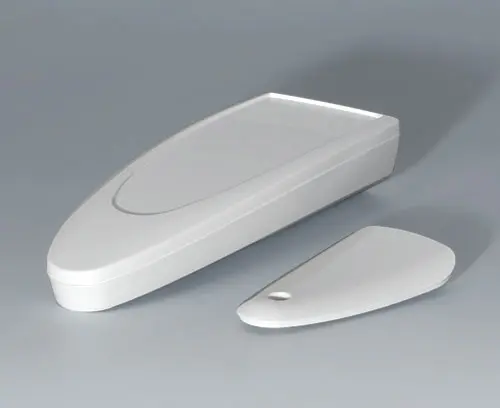

STYLE-CASE M Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Cerrar

B2803017

STYLE-CASE M
Producto añadido a su lista
ASA (UL 94 HB)
traffic white RAL 9016
147x56x27mm
IP 65 opt., IP 40
AltText

B2804016

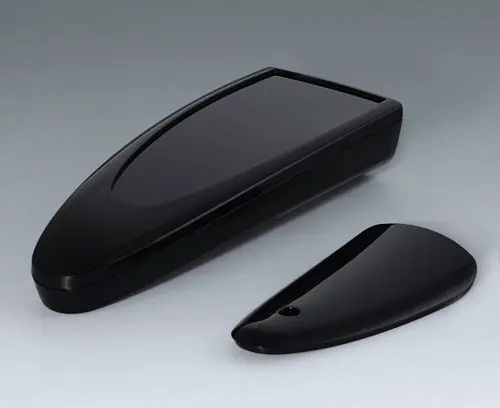

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Cerrar

B2804016

STYLE-CASE L
Producto añadido a su lista
PMMA (IR) (UL 94 HB)
black RAL 9005
166x64x31mm
IP 65 opt., IP 40
AltText

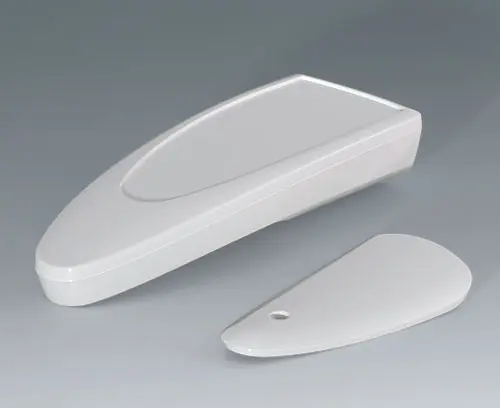

B2804017

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Cerrar

B2804017

STYLE-CASE L
Producto añadido a su lista
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40
AltText

B2804027

STYLE-CASE L Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.

Supply Top and bottom part, assembly kit

Cerrar

B2804027

STYLE-CASE L
Producto añadido a su lista
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40
AltText

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Producto añadido a su lista
AltText

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Cerrar

A0399T10

Torx T10 screwdriver
Producto añadido a su lista
AltText

A9190020

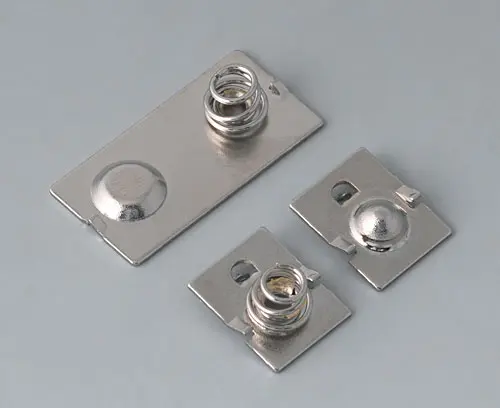

Set of battery clips For contacting 2 AAA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

Cerrar

A9190020

Set of battery clips
Producto añadido a su lista
Steel
nickel-plated
AltText

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Cerrar

A9199005

Strain relief
Producto añadido a su lista
PA 6
volcano
AltText

B2902031

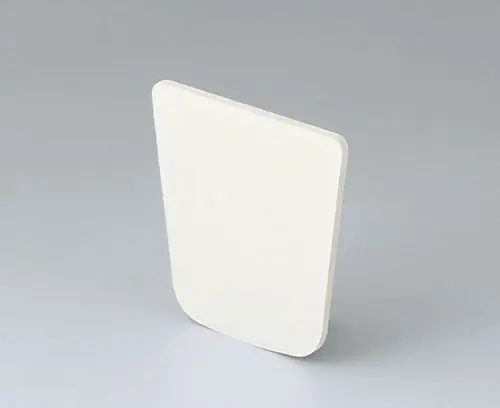

Adhesive foil S For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Cerrar

B2902031

Adhesive foil S
Producto añadido a su lista
AltText

B2902037

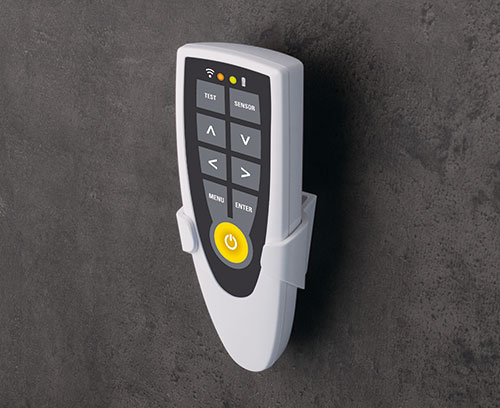

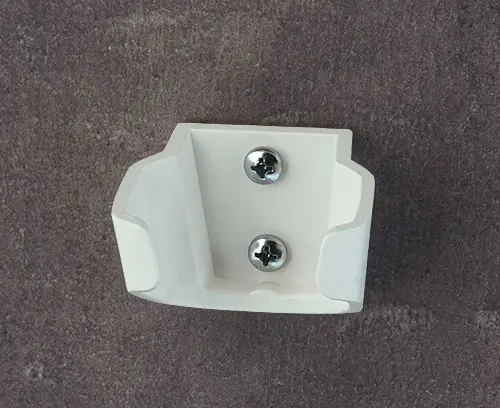

Holder S Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.

Supply 1 holder

Cerrar

B2902037

Holder S
Producto añadido a su lista
ASA (UL 94 HB)
traffic white RAL 9016
AltText

B2902039

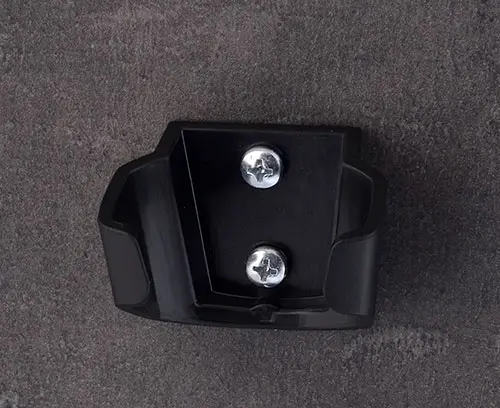

Holder S Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.

Supply 1 holder

Cerrar

B2902039

Holder S
Producto añadido a su lista
ASA (UL 94 HB)
black RAL 9005
AltText

B2902111

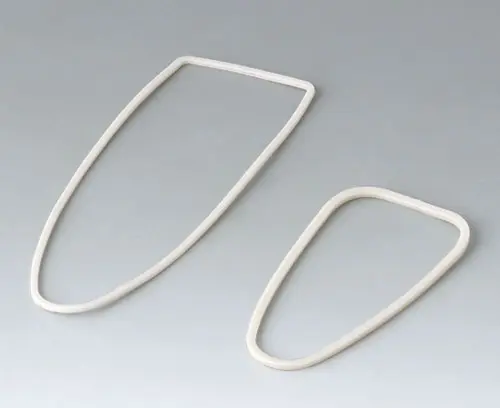

Sealing kit S Application: for increasing the protection class, of STYLE-CASE S.

Supply 2 sealings kit (enclosure, battery compartment)

Cerrar

B2902111

Sealing kit S
Producto añadido a su lista
TPV 50A
AltText

B2903031

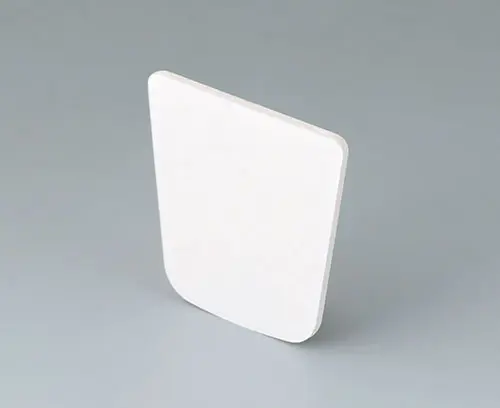

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Cerrar

B2903031

Adhesive foil M
Producto añadido a su lista
AltText

B2903037

Holder M Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply 1 holder

Cerrar

B2903037

Holder M
Producto añadido a su lista
ASA (UL 94 HB)
traffic white RAL 9016
AltText

B2903039

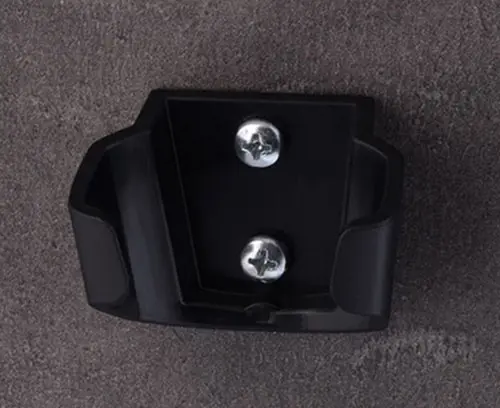

Holder M Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply 1 holder

Cerrar

B2903039

Holder M
Producto añadido a su lista
ASA (UL 94 HB)
black RAL 9005
AltText

B2903111

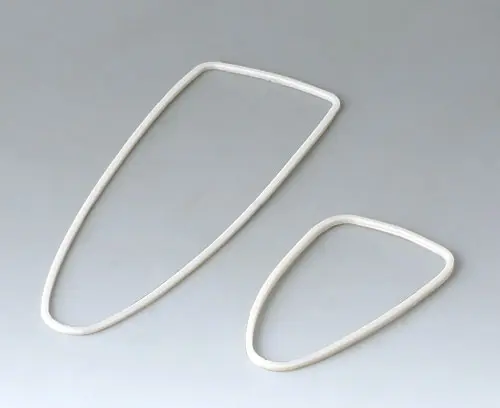

Sealing kit M

Application: for increasing the protection class, of STYLE-CASE M.

Supply 2 sealings kit (enclosure, battery compartment)

Cerrar

B2903111

Sealing kit M
Producto añadido a su lista
TPV 50A
AltText

B2904011

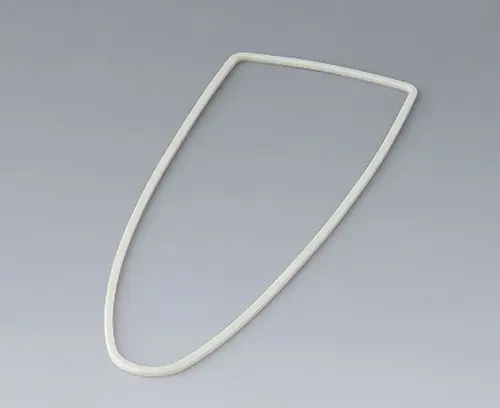

Sealing L Application: for increasing the protection class, of STYLE-CASE L.

Supply 1 sealing

Cerrar

B2904011

Sealing L
Producto añadido a su lista
TPV 50A
AltText

B2904031

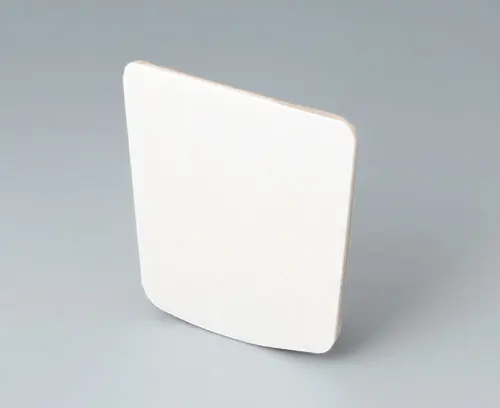

Adhesive foil L For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Cerrar

B2904031

Adhesive foil L
Producto añadido a su lista
AltText

B2904037

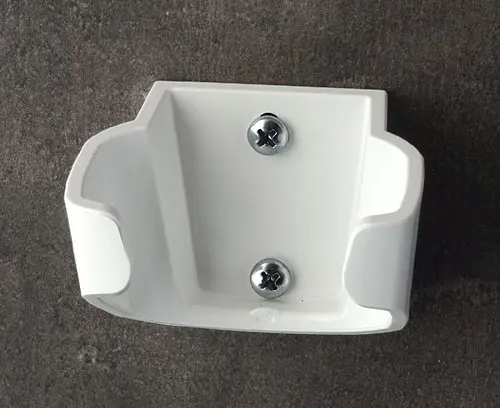

Holder L Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply 1 holder

Cerrar

B2904037

Holder L
Producto añadido a su lista
ASA (UL 94 HB)
traffic white RAL 9016
AltText

B2904039

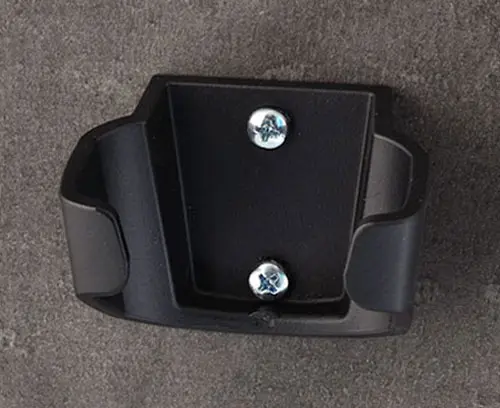

Holder L Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply 1 holder

Cerrar

B2904039

Holder L
Producto añadido a su lista
ASA (UL 94 HB)
black RAL 9005
AltText

B2904111

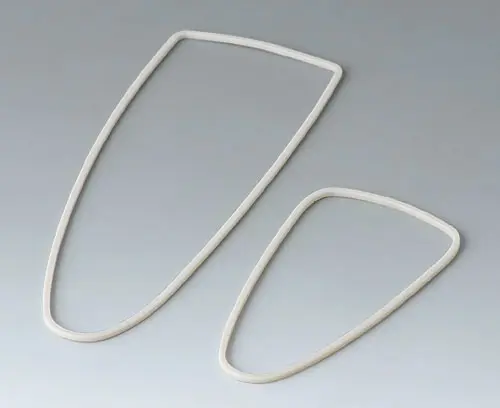

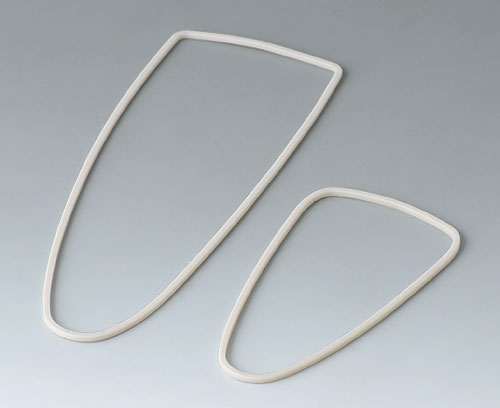

Sealing kit L Application: for increasing the protection class, of STYLE-CASE L.

Supply 2 sealings kit (enclosure, battery compartment)

Cerrar

B2904111

Sealing kit L
Producto añadido a su lista
TPV 50A
AltText

B2904210

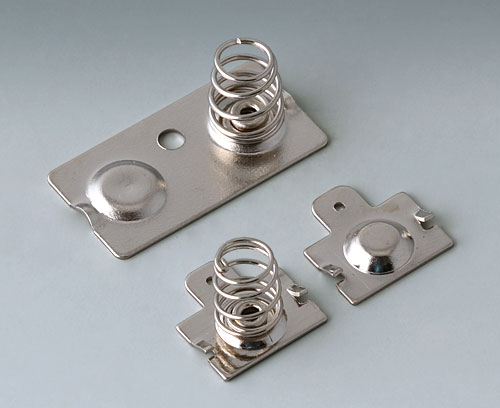

Set of battery clips For contacting 2 AA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

Cerrar

B2904210

Set of battery clips
Producto añadido a su lista
Steel
nickel-plated
AltText

C2353849

Flexible cable grommet Ø 5,3

Flexible cable grommet to protect the cable connection, for universal use.

Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.

Supply 1 flexible cable grommet

Cerrar

C2353849

Flexible cable grommet Ø 5,3
Producto añadido a su lista
black

Opciones de productos para Style-Case

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
