B2802017
STYLE-CASE S
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.

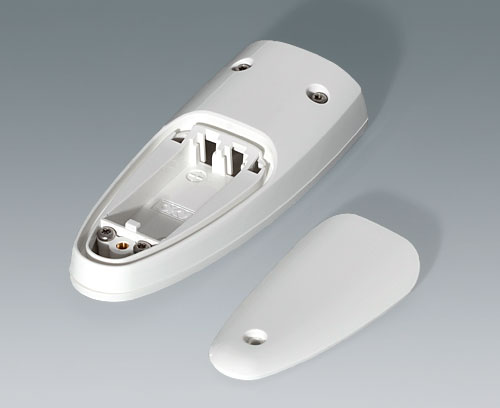

Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Top and bottom part, battery compartment lid, assembly kit
Cree su ficha de datos en PDF para B2802017
Seleccione la información del producto para su ficha de datos.
Accessory "battery"
A9190020
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
A9190020
Set of battery clipsnickel-plated
Accessory "protection"
B2902111
Supply 2 sealings kit (enclosure, battery compartment)
B2902111
Sealing kit SAccessory "wall/holder"
B2902031
Supply 1 piece
B2902031
Adhesive foil S
B2902037
Supply 1 holder
B2902037
Holder Straffic white RAL 9016
Accessory "screws"
A0304031
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 425 KB
- AutoCAD DWG-File 529 KB
- AutoCAD DXF-File 2.001 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 697 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00022624.x_t 3.123 KB
- 00022624.step 8.240 KB
- 00022624.sat 9.945 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B2802017 y no olvide solicitar presupuesto.
