Accesorios para cajas
B5503201

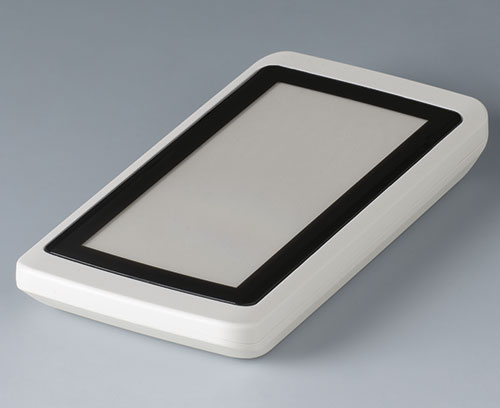

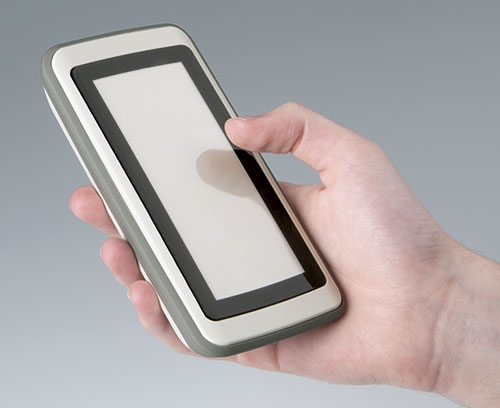

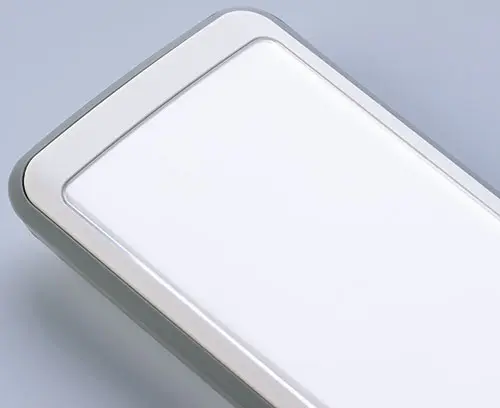

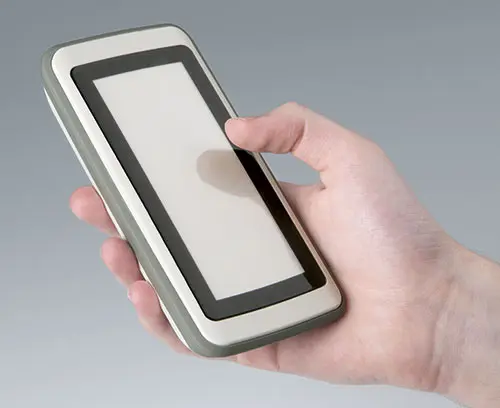

Front screen M
The contoured transparent front screen (accessory) protects the displays underneath. It is rounded on the long edges to follow the ergonomic shape of the case. Suitable for SLIM-CASE M with operating panel recessed 1.6 mm (versions III and VI). Mounted with a double-sided adhesive film (accessories).
On request, supplied individually printed from behind to match your visible display as well as masking the adhesive film.
1 front screenm
Cree su ficha de datos en PDF para B5503201
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
System components to complete

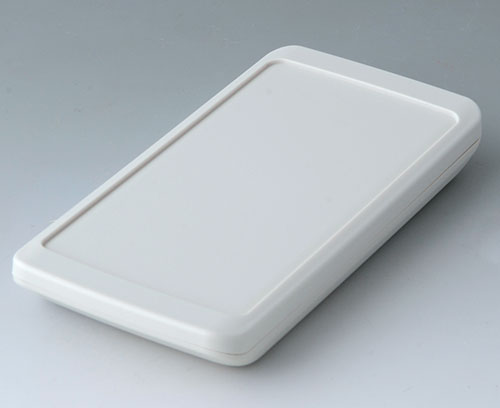

B5403307
SLIM-CASE M, Vers. III
2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.
Version Operating panel recessed 1.6 mm
Supply Top and bottom part, assembly kit
B5403307
SLIM-CASE M, Vers. IIIProducto añadido a su lista
off-white RAL 9002
148x74x19mm
,
B5403317
SLIM-CASE M, Vers. VI
3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts.
Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.
Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.
Version With TPE intermediate ring and operating panel recessed 1.6 mm
Supply Top and bottom part, TPE intermediate ring, assembly kit
B5403317
SLIM-CASE M, Vers. VIProducto añadido a su lista
off-white RAL 9002
148x74x22mm
Accessory "protection"
B5503300
Adhesive foil M
For secure mounting of the front screen on the top part.
Supply 1 adhesive foil
B5503300
Adhesive foil MProducto añadido a su lista
Longitud
125,3 mm
Anchura
63,5 mm
Grosor
1,3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
10 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
