Net-Box

Cajas de montaje en pared para unidades de control

La nueva NET-BOX con elegante sección superior curva es una moderna y elegante caja para unidades de control montadas en la pared, nodos de red y mucho más.

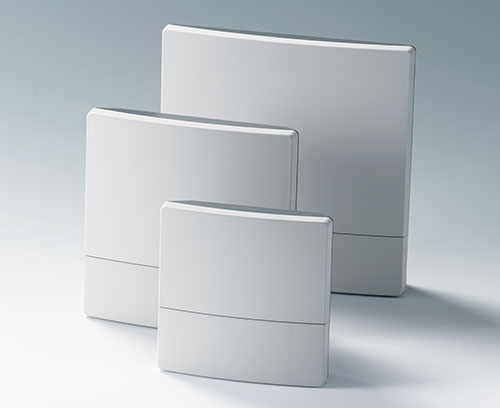

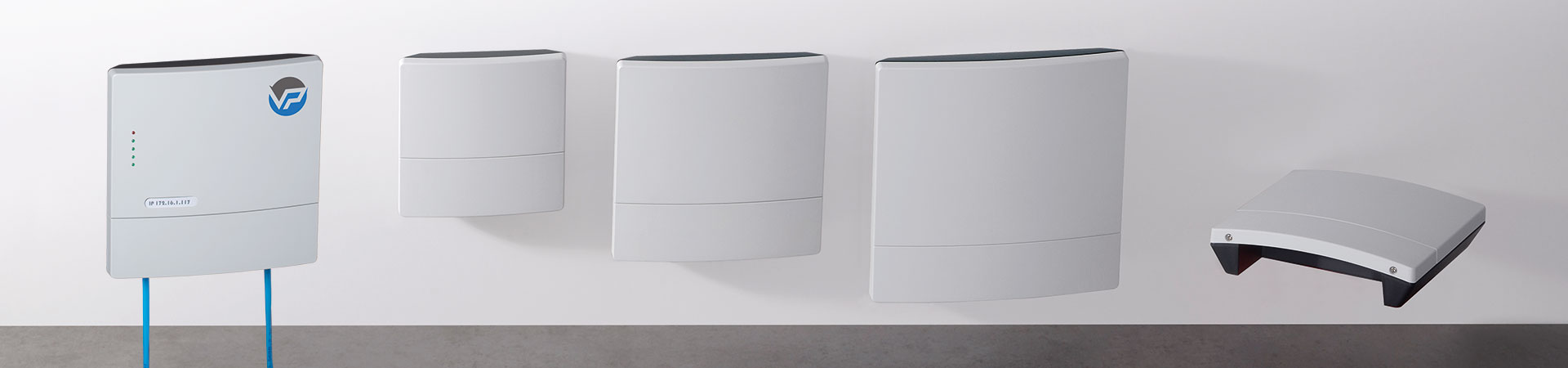

  • Tres tamaños con mucho espacio para sistemas electrónicos e interfaces.

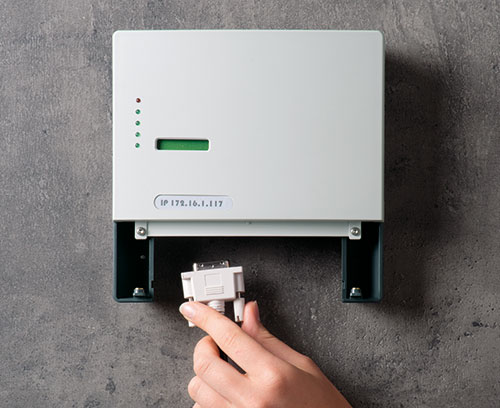

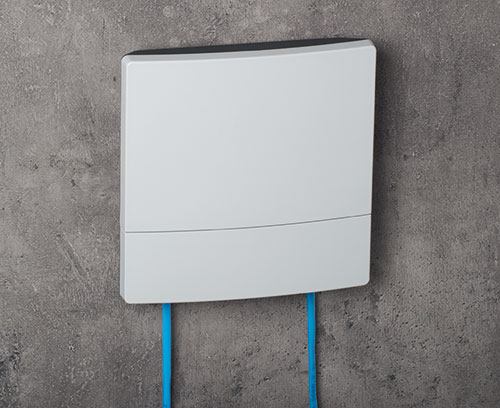

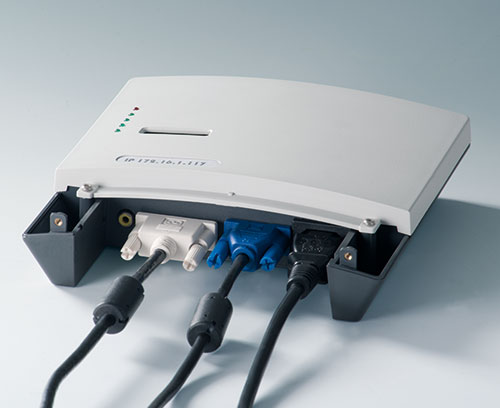

  • Los conectores y cables están ocultos debajo de la tapa frontal.

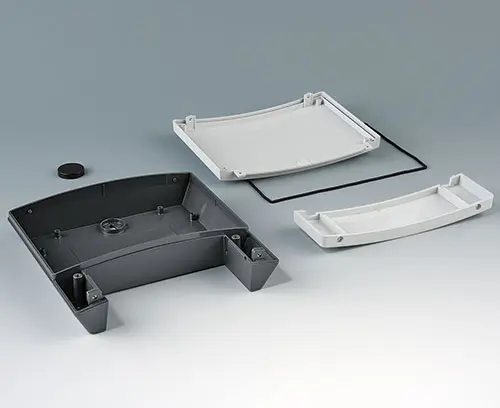

  • Las cajas están fabricadas material ignífugo y pueden sellarse con categoría de protección IP 65.

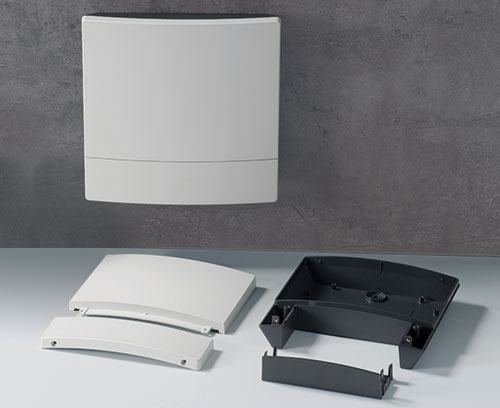

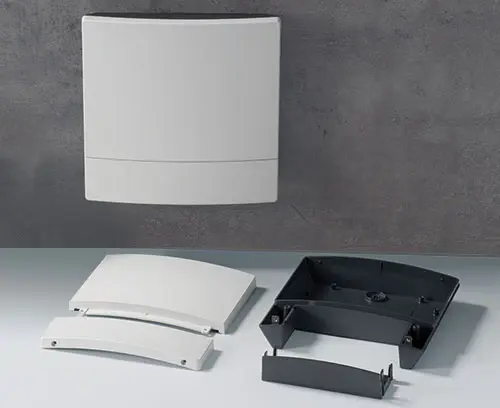

  • Caja simple de tres piezas - parte inferior, cubierta delantera y tapa delantera; no hay tornillos visibles en el frente, sólo dos en la parte inferior de la tapa.

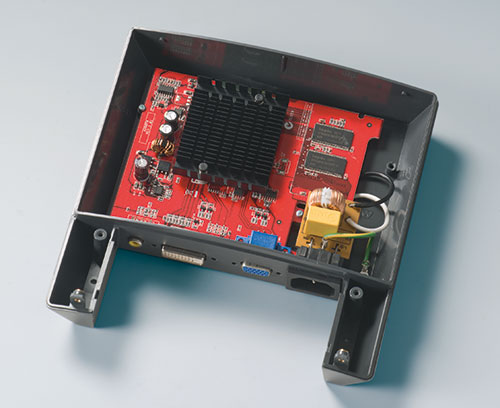

  • Incluyen cabezales de fijación en la parte inferior para el montaje de PCB y ensamblajes.
  • La cobertura opcional cierra la caja por abajo y permite instalar una tercera placa de circuitos impresos o conjuntos opcionales.
  • Sistema de montaje en pared de tres puntos - no es necesario abrir la sección principal de la electrónica, sólo se debe volver a instalar la tapa delantera después de la instalación (modelos II ya provistos de orificios en la parte interior).
  • Tornillos de acero inoxidable con par seguro Torx T10.

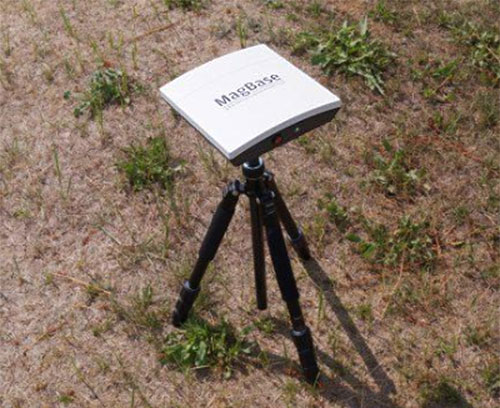

  • Las cajas NET-BOX también puede emplearse como cajas de sobremesa, pies antideslizantes disponibles como accesorio
Crear PDF

Necesitamos su consentimiento para habilitar el servicio de vídeo (Vimeo).

Utilizamos un servicio de terceros para integrar nuestro contenido de vídeo (Vimeo). Este servicio puede recopilar datos sobre sus actividades. Lea nuestra política de privacidad y dé su consentimiento para activar el servicio y poder ver este vídeo.

Application Fields

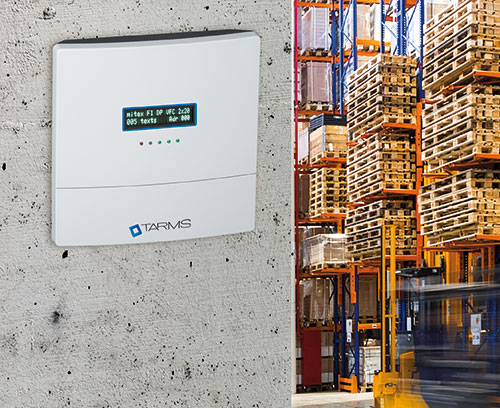

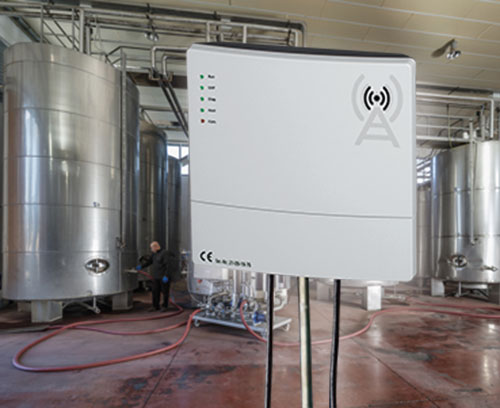

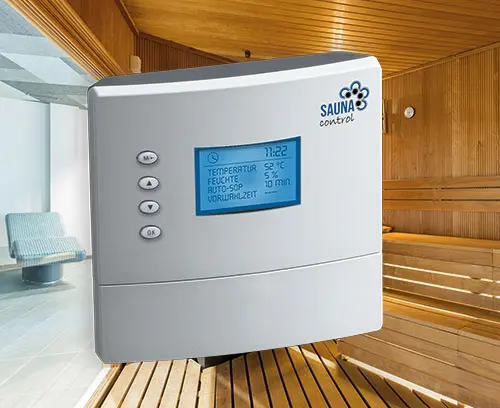

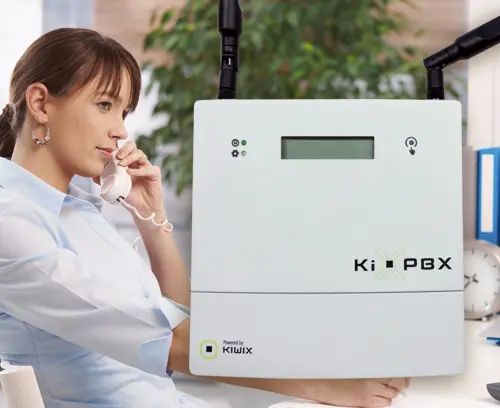

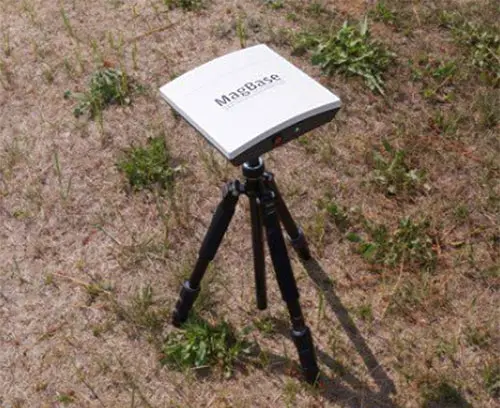

Tecnologías para edificios, centros de control, IoT/IIoT, smart factory, industrie 4.0, instalaciones de vigilancia y controles de acceso, sistemas de recopilación de datos, periféricos informáticos, tecnologías de medición y regulación, tecnología médica, ecc.

B3214101 NET-BOX 140, Vers. I

B3214101

NET-BOX 140, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

B3214101

NET-BOX 140, Vers. I
Producto añadido a su lista

light grey RAL 7035
140x140x46,5mm
,

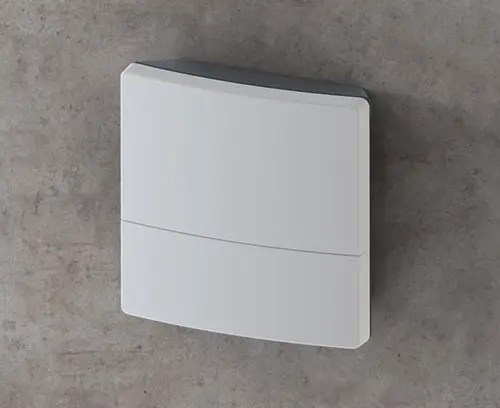

B3214201 NET-BOX 140, Vers. II

B3214201

NET-BOX 140, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

B3214201

NET-BOX 140, Vers. II
Producto añadido a su lista

light grey RAL 7035
140x140x46,5mm
B3218101 NET-BOX 180, Vers. I

B3218101

NET-BOX 180, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

B3218101

NET-BOX 180, Vers. I
Producto añadido a su lista

light grey RAL 7035
180x180x48,5mm
,

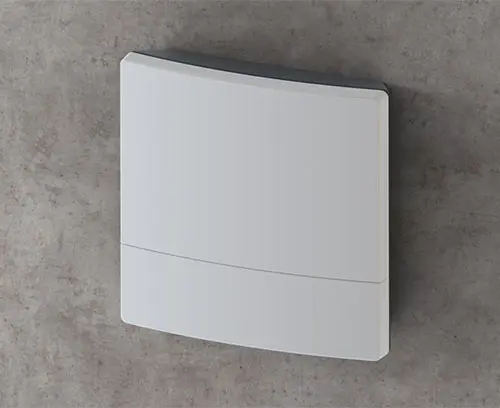

B3218201 NET-BOX 180, Vers. II

B3218201

NET-BOX 180, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

B3218201

NET-BOX 180, Vers. II
Producto añadido a su lista

light grey RAL 7035
180x180x48,5mm

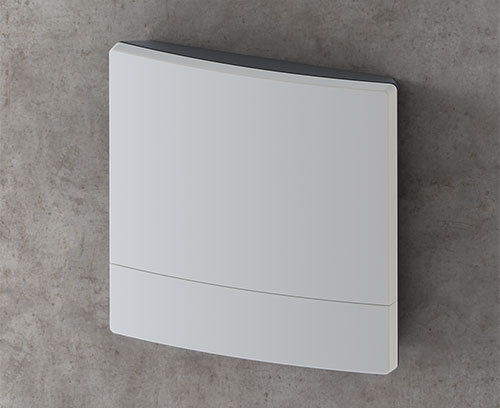

B3222101 NET-BOX 220, Vers. I

B3222101

NET-BOX 220, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

B3222101

NET-BOX 220, Vers. I
Producto añadido a su lista

light grey RAL 7035
220x220x50,5mm
,
B3222201 NET-BOX 220, Vers. II

B3222201

NET-BOX 220, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

B3222201

NET-BOX 220, Vers. II
Producto añadido a su lista

light grey RAL 7035
220x220x50,5mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
Producto añadido a su lista
transparent
A9325018 Pole/mast mounting bracket

A9325018

Pole/mast mounting bracket

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.

Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.

Supply 1 pole/mast mounting bracket

A9325018

Pole/mast mounting bracket
Producto añadido a su lista

anthracite grey RAL 7016
100x100x20mm

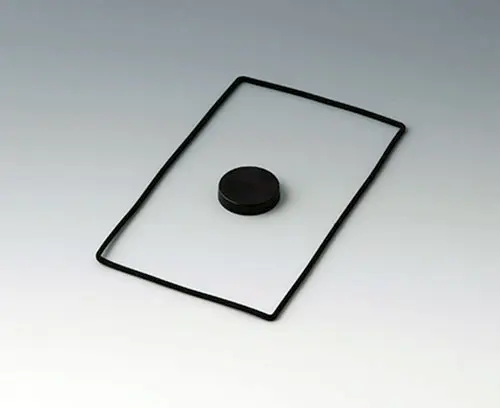

B3314159 Sealing kit 140

B3314159

Sealing kit 140 Application: for increasing the protection class, of NET-BOX140.

Supply 1 sealing kit

B3314159

Sealing kit 140
Producto añadido a su lista

black
B3314918 Infill cover 140

B3314918

Infill cover 140 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

B3314918

Infill cover 140
Producto añadido a su lista

lava

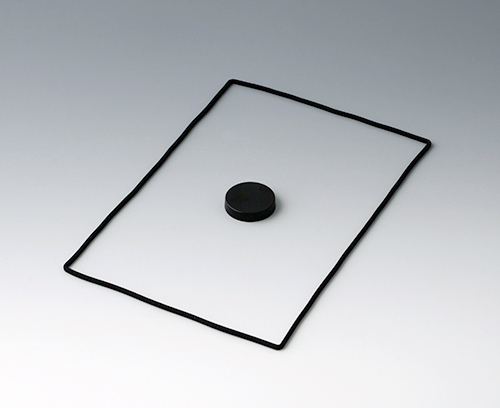

B3318159 Sealing kit 180

B3318159

Sealing kit 180 Application: for increasing the protection class, of NET-BOX 180.

Supply 1 sealing kit

B3318159

Sealing kit 180
Producto añadido a su lista

black

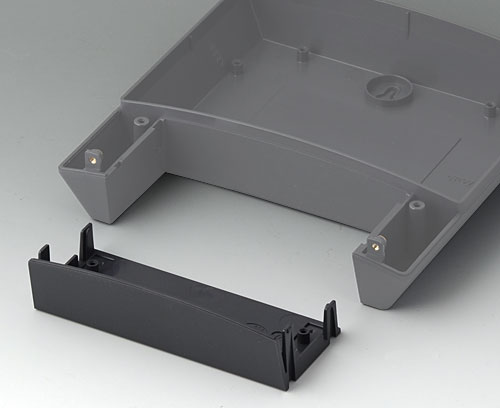

B3318918 Infill cover 180

B3318918

Infill cover 180 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

B3318918

Infill cover 180
Producto añadido a su lista

lava
B3322159 Sealing kit 220

B3322159

Sealing kit 220 Application: for increasing the protection class, of NET-BOX 220.

Supply 1 sealing kit

B3322159

Sealing kit 220
Producto añadido a su lista

black
B3322918 Infill cover 220

B3322918

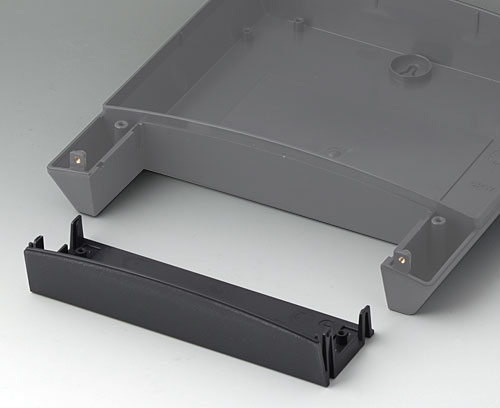

Infill cover 220 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

B3322918

Infill cover 220
Producto añadido a su lista

lava

Opciones de productos para Net-Box

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
