B3222201
NET-BOX 220, Vers. II

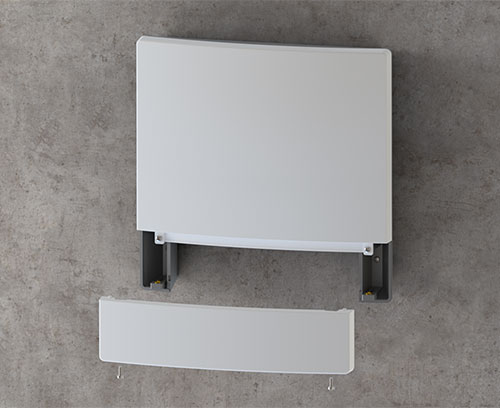

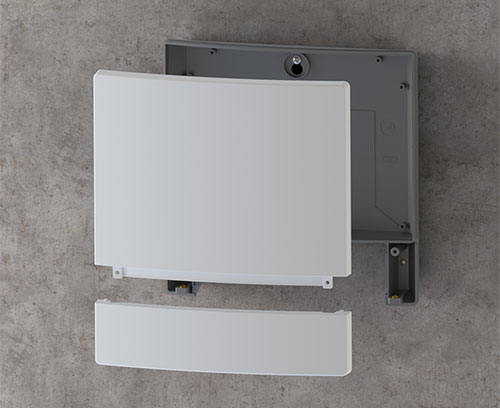

Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

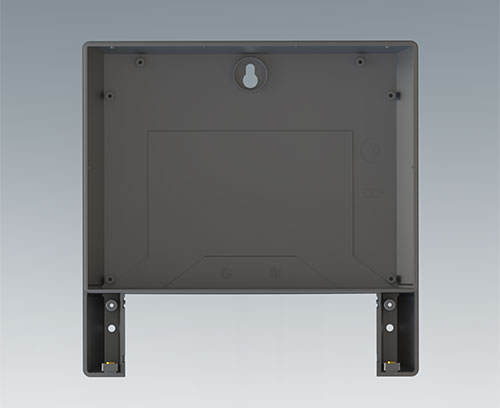

VersionBottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply1 bottom part and 1 top cover, 1 lid and 1 assembly kit
Cree su ficha de datos en PDF para B3222201
Seleccione la información del producto para su ficha de datos.
Accessory "protection"
B3322159
Supply 1 sealing kit
B3322159
Sealing kit 220black
Accessory "screws"
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Accessory
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mm
B3322918
Supply 1 infill cover
B3322918
Infill cover 220lava
Necessary accessories: sealing kit
Bottom part lava
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 340 KB
- AutoCAD DWG-File 1.113 KB
- AutoCAD DXF-File 4.048 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 1.384 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00026046.x_t 5.434 KB
- 00026046.step 13.611 KB
- 00026046.sat 13.518 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B3222201 y no olvide solicitar presupuesto.
