EVOTEC

Evotec

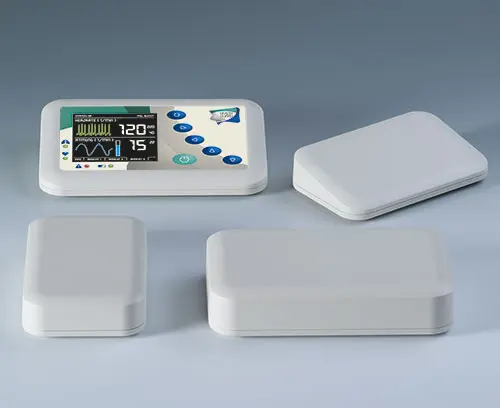

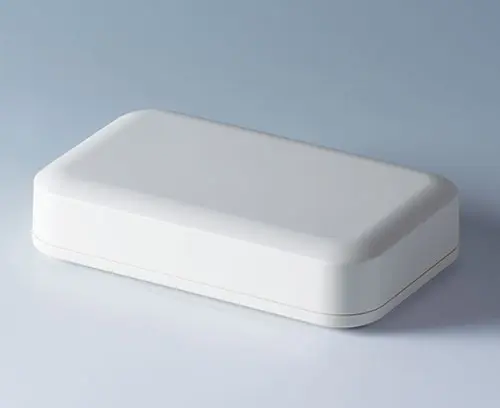

Caja de diseño para sobremesa

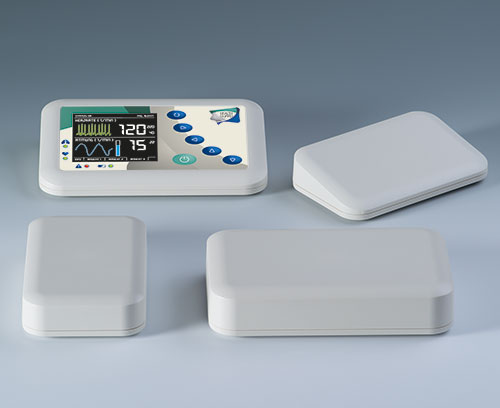

De construcción robusta y diseño elegante, la gama de cajas EVOTEC es ideal para entornos de trabajo difíciles. Los diferentes frontales ofrecen gran libertad creativa.

  • Los contornos suaves proporcionan una apariencia elegante.

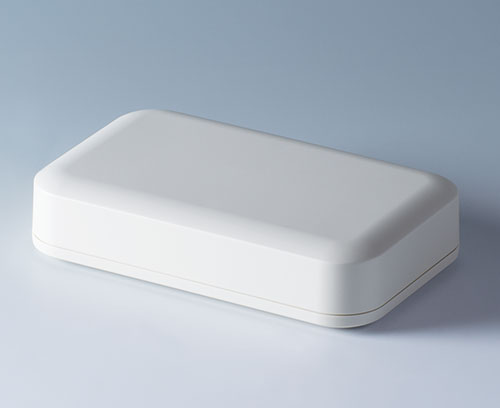

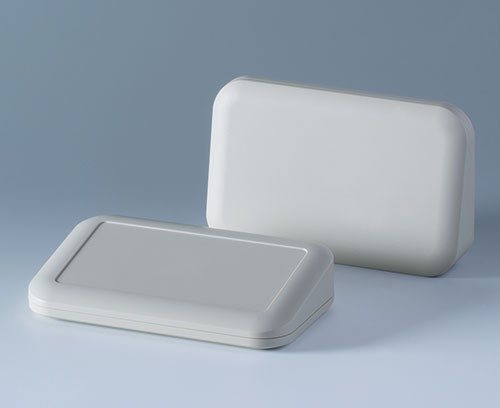

  • Elija entre dos versiones: con la parte superior plana o versión escritorio con el área operativo ergonómicamente inclinado 12°.

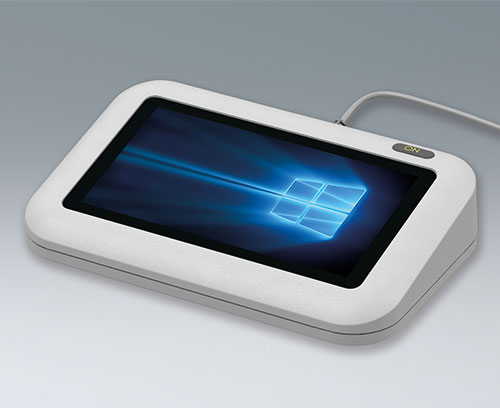

  • Amplia superficie en el panel superior para interruptores, botones y pantallas táctiles.

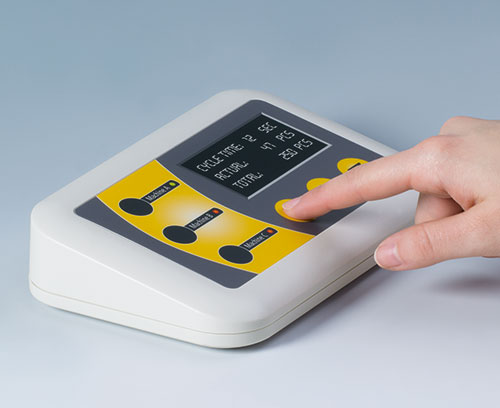

  • Versión en atril con panel superior liso o rebajado para proteger el teclado de membrana o la lámina decorativa.

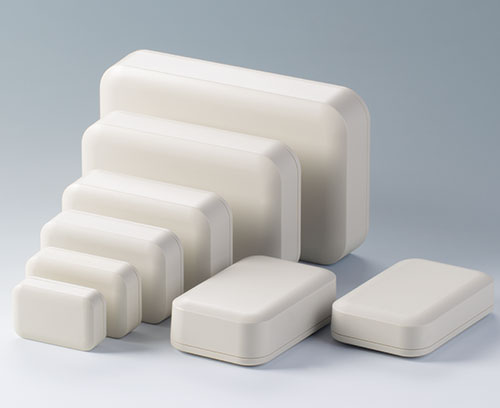

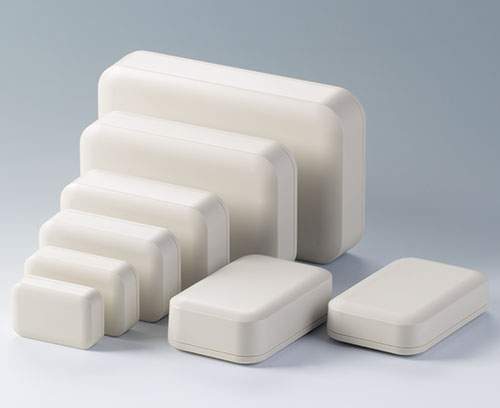

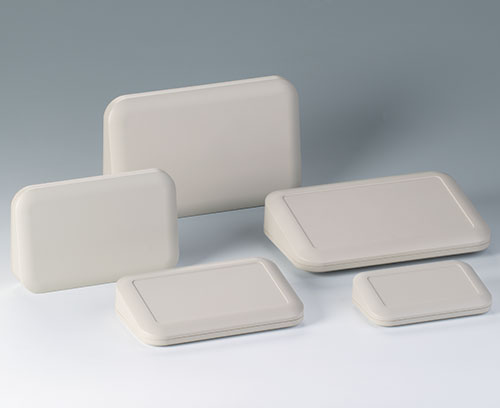

  • Evotec tamaños

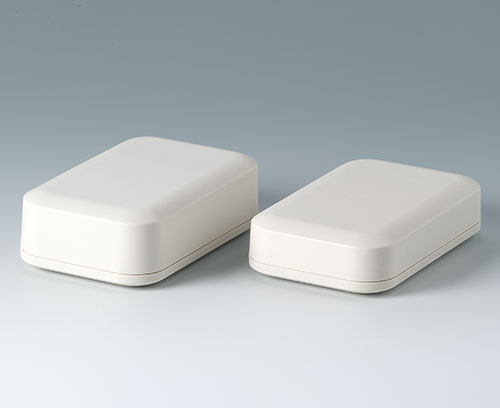

    con la parte superior plana: tamaños 80, 100, 150, 200 y 250

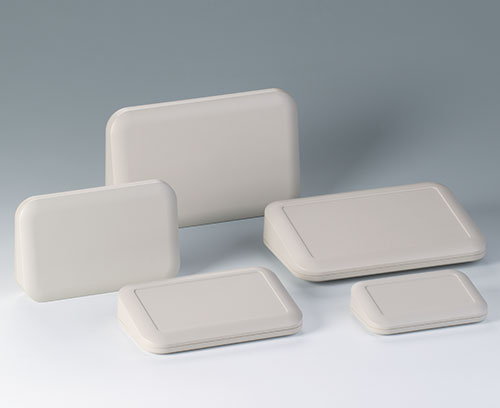

    en forma de atril: tamaños 200 y 250

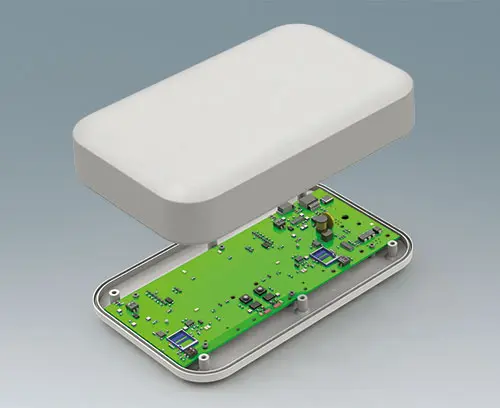

  • Cabezales de fijación en las partes superior e inferior para el montaje de PCBs.
  • Moldeado en plástico ASA+PC-FR de alta calidad con elevada protección contra los rayos ultravioleta en color blanco grisáceo (RAL 9002) como estándar.
  • Diseño resistente con alto grado de estabilidad.

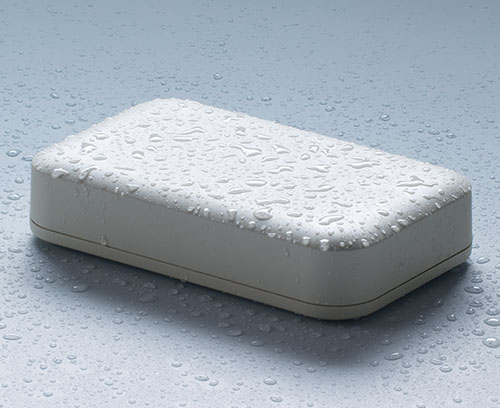

  • Juntas para protección IP 65 como accesorio.
  • Los pies de goma garantizan un apoyo seguro sobre la mesa y superficies lisas.
  • Ensamblaje de la caja con tornillos de acero inoxidable de par Torx.
  • Video

Application fields

  • Tecnologías de medición y control
  • Tecnologías de regulación

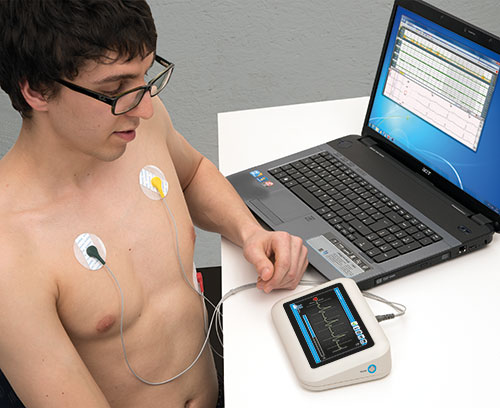

  • Tecnologías de medicina y laboratorio
  • Tecnologías medioambientales
  • Tecnologías de la información

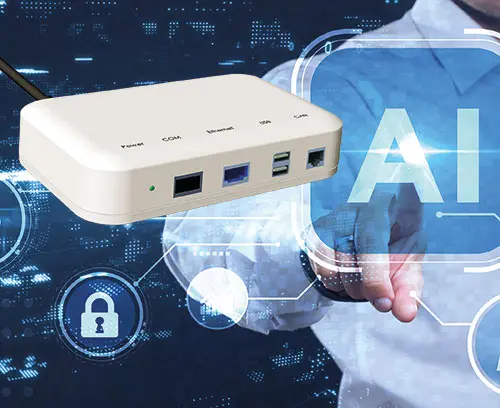

  • IoT/IIoT
  • Selección de todos los artículos
  • Accesorios
  • Modificaciones específicas del cliente
A9401107 EVOTEC 80, Vers. I

A9401107

EVOTEC 80, Vers. I 2-part plastic enclosure with flat top part, height 22. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Cerrar

A9401107

EVOTEC 80, Vers. I
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
80x50x22mm
IP 65 opt., IP 40
A9403107 EVOTEC 80, Vers. I

A9403107

EVOTEC 80, Vers. I 2-part plastic enclosure with flat top part, height 26. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Cerrar

A9403107

EVOTEC 80, Vers. I
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
80x50x26mm
IP 65 opt., IP 40
A9421107 EVOTEC 100, Vers. I

A9421107

EVOTEC 100, Vers. I 2-part plastic enclosure with flat top part, height 26. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Cerrar

A9421107

EVOTEC 100, Vers. I
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
100x62x26mm
IP 65 opt., IP 40
A9423107 EVOTEC 100, Vers. I

A9423107

EVOTEC 100, Vers. I 2-part plastic enclosure with flat top part, height 31. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Cerrar

A9423107

EVOTEC 100, Vers. I
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
100x62x31mm
IP 65 opt., IP 40
A9441107 EVOTEC 150, Vers. I

A9441107

EVOTEC 150, Vers. I 2-part plastic enclosure with flat top part, height 35. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Cerrar

A9441107

EVOTEC 150, Vers. I
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
150x93x35mm
IP 65 opt., IP 40
A9443107 EVOTEC 150, Vers. I

A9443107

EVOTEC 150, Vers. I 2-part plastic enclosure with flat top part, height 45. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Cerrar

A9443107

EVOTEC 150, Vers. I
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
150x93x45mm
IP 65 opt., IP 40
A9461107 EVOTEC 200, Vers. I

A9461107

EVOTEC 200, Vers. I 2-part plastic enclosure with flat top part. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9461107

EVOTEC 200, Vers. I
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
200x124x45mm
IP 65 opt., IP 40
A9465107 EVOTEC 200, Vers. II

A9465107

EVOTEC 200, Vers. II 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop" without recess

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9465107

EVOTEC 200, Vers. II
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
200x124x45mm
IP 65 opt., IP 40
A9466107 EVOTEC 200, Vers. III

A9466107

EVOTEC 200, Vers. III 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop", operating area recessed by 1 mm

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9466107

EVOTEC 200, Vers. III
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
200x124x45mm
IP 65 opt., IP 40
A9481107 EVOTEC 250, Vers. I

A9481107

EVOTEC 250, Vers. I 2-part plastic enclosure with flat top part. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9481107

EVOTEC 250, Vers. I
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
250x155x54mm
IP 65 opt., IP 40
A9485107 EVOTEC 250, Vers. II

A9485107

EVOTEC 250, Vers. II 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop" without recess

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9485107

EVOTEC 250, Vers. II
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
250x155x54mm
IP 65 opt., IP 40
A9486107 EVOTEC 250, Vers. III

A9486107

EVOTEC 250, Vers. III 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop", operating area recessed by 1 mm

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9486107

EVOTEC 250, Vers. III
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
250x155x54mm
IP 65 opt., IP 40
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Cerrar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Producto añadido a su lista
A0325060 Self-tapping screw 3 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastening PCBs, boards and components as well as for assembling case.

Supply 1 self-tapping screw

Cerrar

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Producto añadido a su lista
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Cerrar

A0399T08

Torx T8 screwdriver
Producto añadido a su lista
A9500030 Sealing 80

A9500030

Sealing 80 For increasing the protection class to IP 65. Bottom part with groove accepts the seal.

Supply 1 seal

Cerrar

A9500030

Sealing 80
Producto añadido a su lista
A9502030 Sealing 100

A9502030

Sealing 100 For increasing the protection class to IP 65. Bottom part with groove accepts the seal.

Supply 1 seal

Cerrar

A9502030

Sealing 100
Producto añadido a su lista
A9504030 Sealing 150

A9504030

Sealing 150 For increasing the protection class to IP 65. Bottom part with groove accepts the seal.

Supply 1 seal

Cerrar

A9504030

Sealing 150
Producto añadido a su lista
A9506030 Sealing 200

A9506030

Sealing 200 For increasing the protection class to IP 65. Bottom part with groove accepts the seal.

Supply 1 seal

Cerrar

A9506030

Sealing 200
Producto añadido a su lista

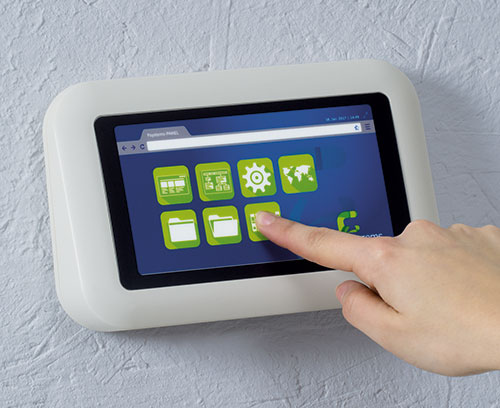

A9506117 Wall suspension element

A9506117

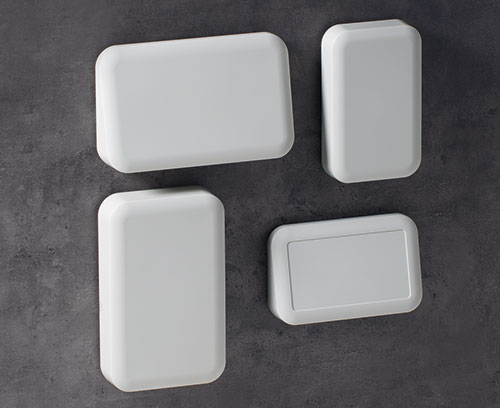

Wall suspension element Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (106 x 75 mm) is attached to the bottom part of the enclosure by 4 screws. 4 boreholes ø 3.5 mm are required. The adapter makes it possible to clip the enclosure quickly and easily into the holder mounted on the wall. Optionally, the parts can be secured with 2 screws, thus offering additional protection against removal.

Supply 1 adapter, 1 holder, 4 Torx stainless steel screws, 2 securing screws

Cerrar

A9506117

Wall suspension element
Producto añadido a su lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
A9508030 Sealing 250

A9508030

Sealing 250 For increasing the protection class to IP 65. Bottom part with groove accepts the seal.

Supply 1 seal

Cerrar

A9508030

Sealing 250
Producto añadido a su lista

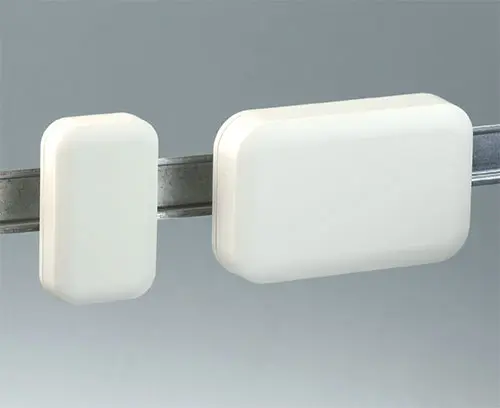

B1300017 Fastening element for DIN-Rails

B1300017

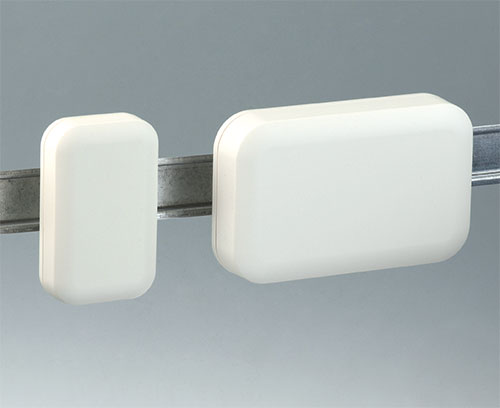

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

Cerrar

B1300017

Fastening element for DIN-Rails
Producto añadido a su lista
PA 6
off-white RAL 9002

Opciones de productos para Evotec

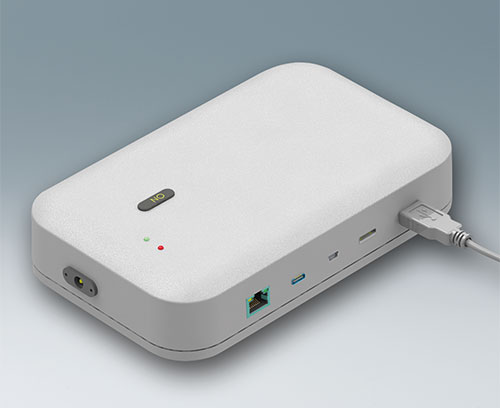

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
