AltText

A9506030

Sealing 200

Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply

1 seal

  • Utilizado para
AltText

A9461107

EVOTEC 200, Vers. I 2-part plastic enclosure with flat top part. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9461107

EVOTEC 200, Vers. I
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
200x124x45mm
IP 65 opt., IP 40
AltText

A9465107

EVOTEC 200, Vers. II 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop" without recess

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9465107

EVOTEC 200, Vers. II
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
200x124x45mm
IP 65 opt., IP 40
AltText

A9466107

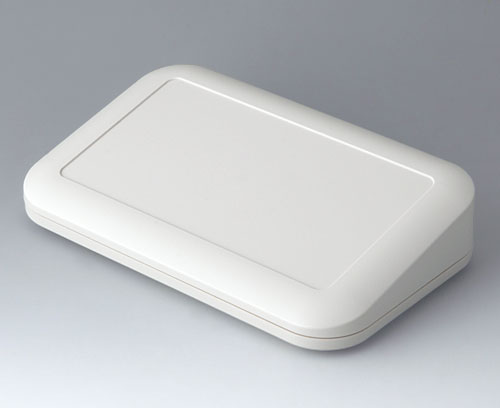

EVOTEC 200, Vers. III 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop", operating area recessed by 1 mm

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9466107

EVOTEC 200, Vers. III
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
200x124x45mm
IP 65 opt., IP 40
  • Datos técnicos
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
40081900
Country of manufacture
Germany
