Connect
Una conexión óptima

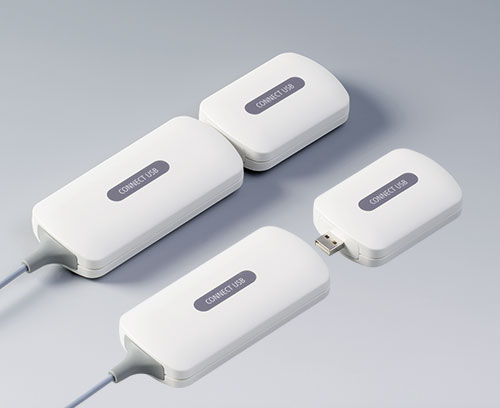

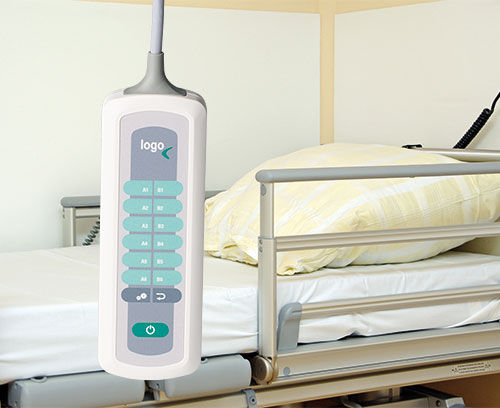

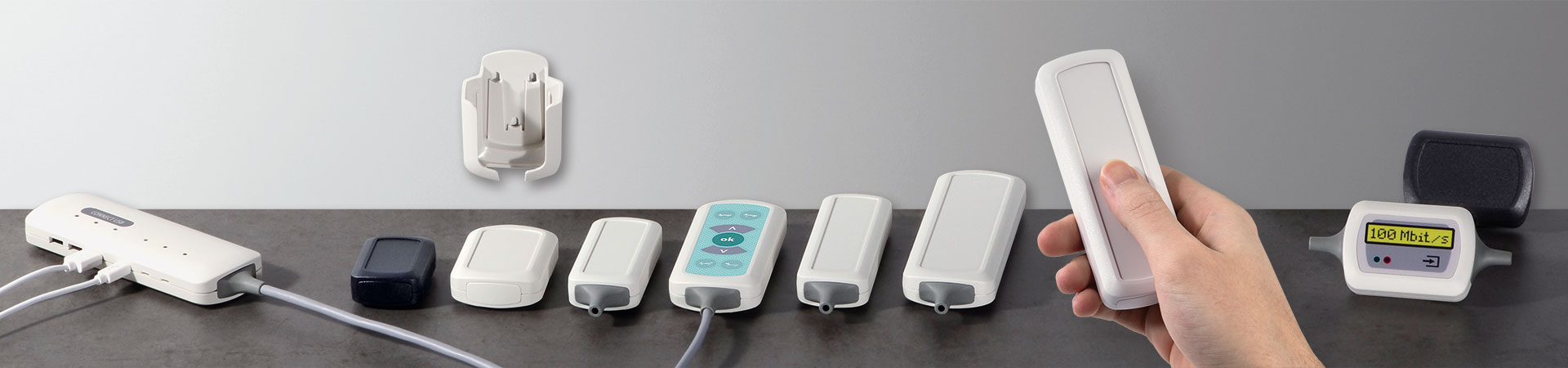

La gama de cajas CONNECT es ideal para aplicaciones con cables y aplicaciones móviles alimentadas por batería.

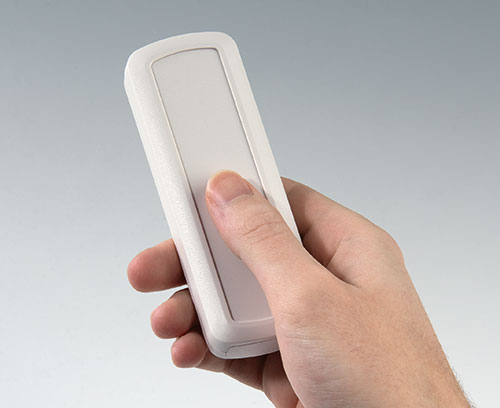

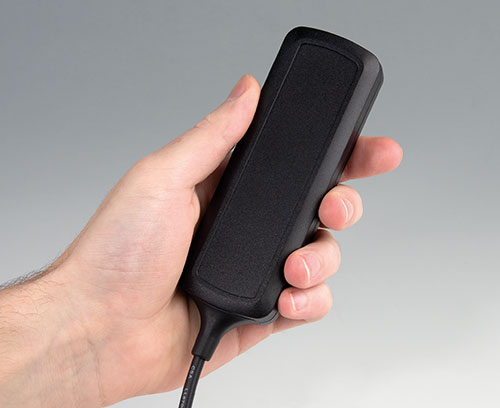

- Novedad: CONNECT S particularmente fácil de agarrar con un ancho de tan solo 42 mm. Es ideal para controles remotos, instrumentos de medición, instrumentos de ensayo, etc., o como caja de interfaz con/sin conexión de cable.
- Caja de dos partes convexas y aplanadas con una superficie rebajada.

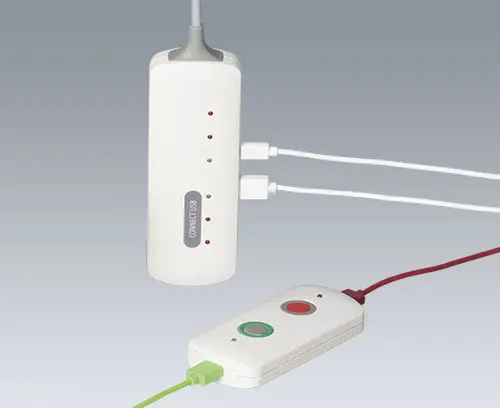

- Ambas partes encajan entre sí sin tornillos, lo que ahorra tiempo en el montaje y, además, se puede elegir la parte frontal del dispositivo.
- Orificios en ambos extremos; para completar la caja se puede encajar partes frontales o/y prensoestopas.

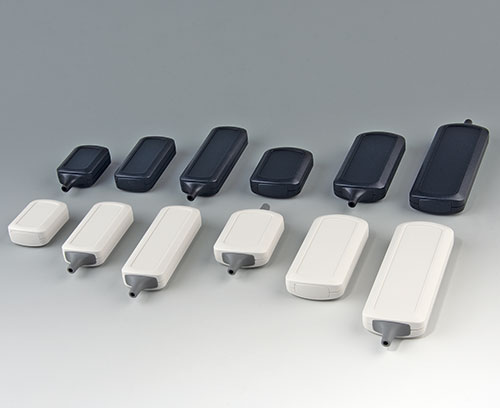

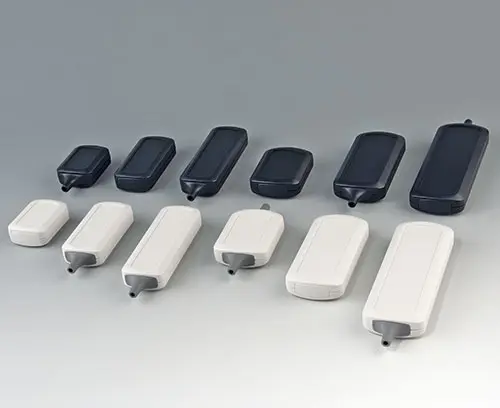

- CONNECT S & M cada una en tres longitudes disponibles para adaptarse exactamente a la aplicación.
- Fabricada en material V-0 resistente a los rayos ultravioleta.
- Categoría de protección IP 40 (con partes frontales).

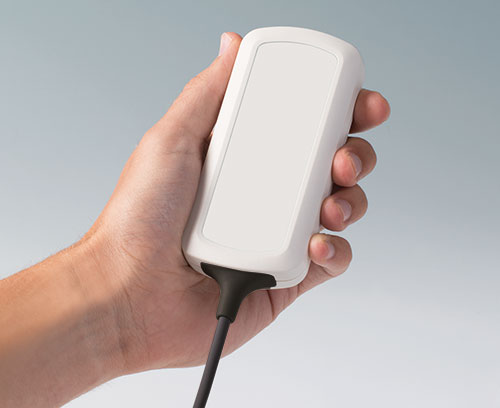

- Antitirones integrado en el juego de prensoestopas.

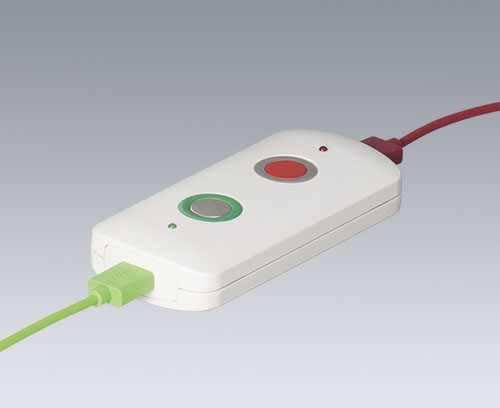

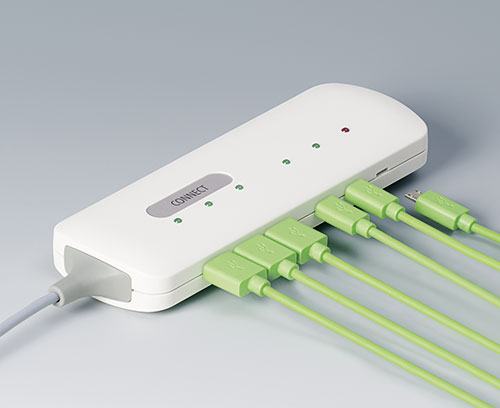

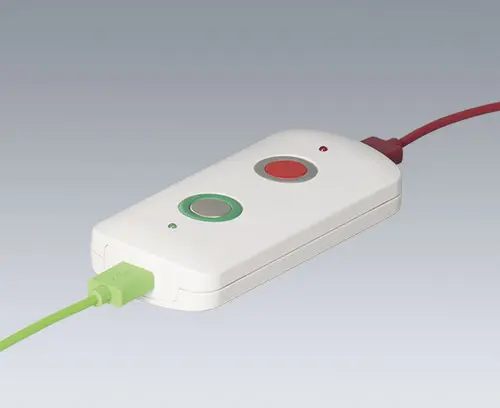

- Espacio suficiente para incorporar diaplays compactos, LEDs y conectores USB y sensores de medición.

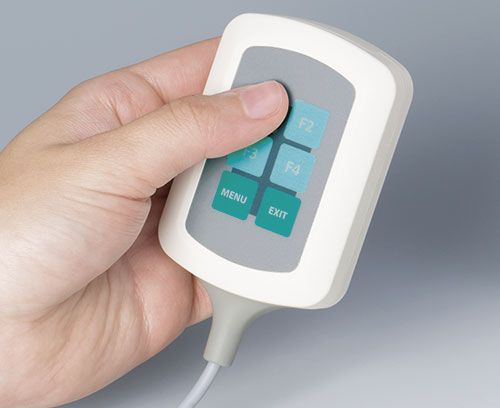

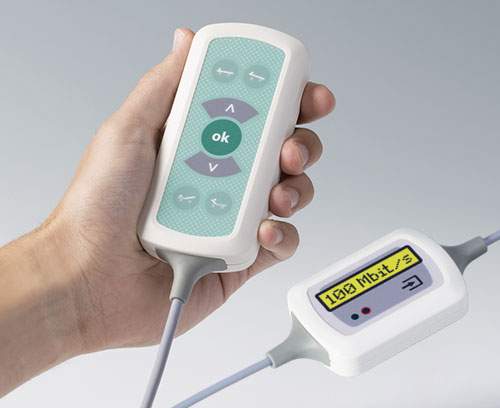

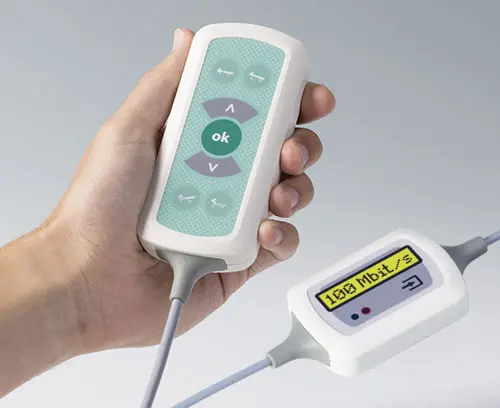

- Superficie rebajada para proteger el teclado de membrana, la lámina decorativa o la etiqueta.

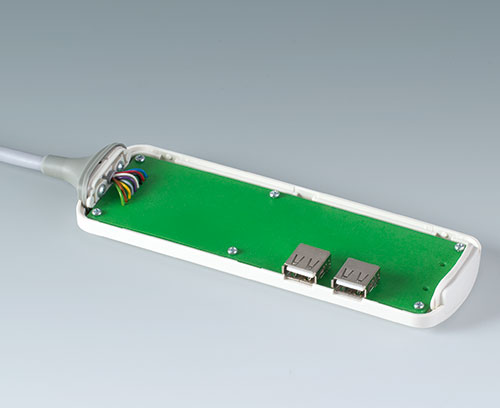

- Cabezales de fijación para placas de circuito impreso y componentes interiores en la mitad aplanada de la caja.

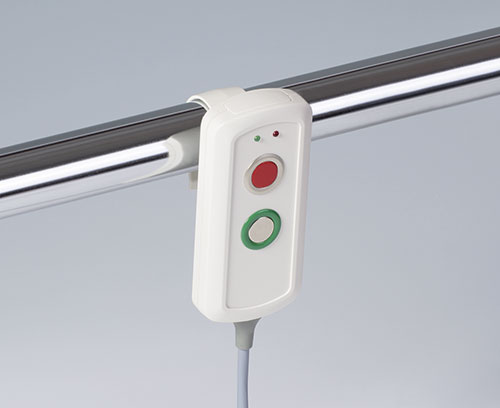

- Abrazaderas de sujeción para tubos de hasta 32 mm de diámetro como accesorio (CONNECT S: 90/120 mm de largo, CONNECT M: 116/156 mm de largo).

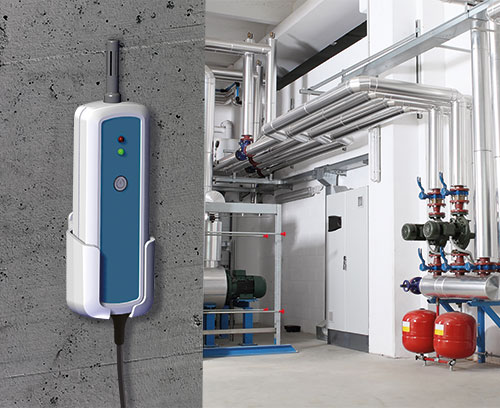

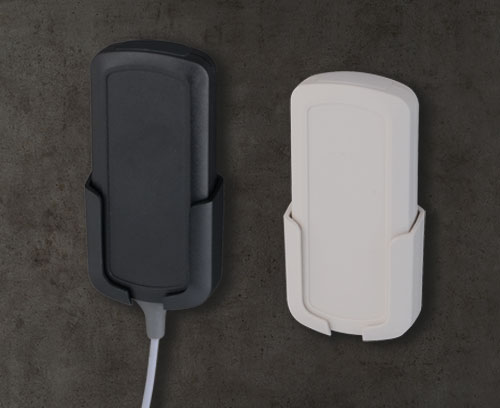

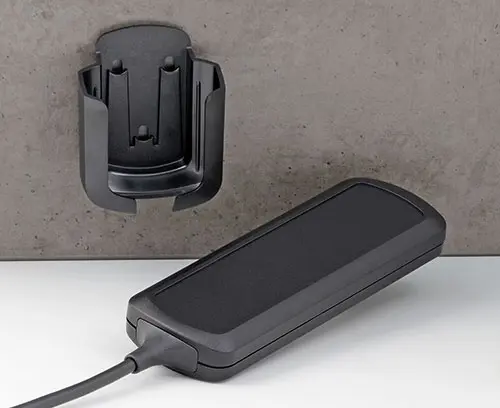

- Soporte para almacenamiento seguro en paredes o similares como accesorio.
Learn more!
Read our blog posts on connect View blog posts >>
Application Fields
Periféricos informáticos, tecnologías de redes, edificios, seguridad y medicina, IoT/ IIoT, aplicaciones terapéuticas, instrumentos de análisis para laboratorio, tecnología de medición, incluidos detectores con sensores de medición, sistemas/instrumentos de ensayo, registradores de datos en tecnología medioambiental, sistemas con sensores, etc.
B2822107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2822107
CONNECT SProducto añadido a su lista
off-white RAL 9002
60x42x22mm
B2822109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2822109
CONNECT SProducto añadido a su lista
black RAL 9005
60x42x22mm
B2823107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823107
CONNECT SProducto añadido a su lista
off-white RAL 9002
90x42x22mm
B2823109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823109
CONNECT SProducto añadido a su lista
black RAL 9005
90x42x22mm
B2824107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824107
CONNECT SProducto añadido a su lista
off-white RAL 9002
120x42x22mm
B2824109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824109
CONNECT SProducto añadido a su lista
black RAL 9005
120x42x22mm
B2832107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2832107
CONNECT MProducto añadido a su lista
off-white RAL 9002
76x54x22mm
B2832109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2832109
CONNECT MProducto añadido a su lista
black RAL 9005
76x54x22mm
B2833107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833107
CONNECT MProducto añadido a su lista
off-white RAL 9002
116x54x22mm
B2833109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833109
CONNECT MProducto añadido a su lista
black RAL 9005
116x54x22mm
B2834107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834107
CONNECT MProducto añadido a su lista
off-white RAL 9002
156x54x22mm
B2834109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834109
CONNECT MProducto añadido a su lista
black RAL 9005
156x54x22mm
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Producto añadido a su lista
A9167027
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167027
Holding clampProducto añadido a su lista
off-white RAL 9002
A9167029
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167029
Holding clampProducto añadido a su lista
black RAL 9005
B2811207
End part
Universal plug-in component.
Supply 1 piece
B2811207
End partProducto añadido a su lista
off-white RAL 9002
B2811209
End part
Universal plug-in component.
Supply 1 piece
B2811209
End partProducto añadido a su lista
black RAL 9005
B2911308
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911308
Cable gland kit, 3.4 - 4.2Producto añadido a su lista
volcano
B2911309
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911309
Cable gland kit, 3.4 - 4.2Producto añadido a su lista
black RAL 9005
B2911318
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911318
Cable gland kit, 4.2 - 5.0Producto añadido a su lista
volcano
B2911319
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911319
Cable gland kit, 4.2 - 5.0Producto añadido a su lista
black RAL 9005
B2911328
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911328
Cable gland kit, 5.0 - 5.9Producto añadido a su lista
volcano
B2911329
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911329
Cable gland kit, 5.0 - 5.9Producto añadido a su lista
black RAL 9005
B2921507
Holder S
Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921507
Holder SProducto añadido a su lista
off-white RAL 9002
B2921509
Holder S
Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921509
Holder SProducto añadido a su lista
black RAL 9005
B2931507
Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931507
Holder MProducto añadido a su lista
off-white RAL 9002
B2931509
Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931509
Holder MProducto añadido a su lista
black RAL 9005
Opciones de productos para Connect
¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
