Accesorios para cajas
B2822107
CONNECT S

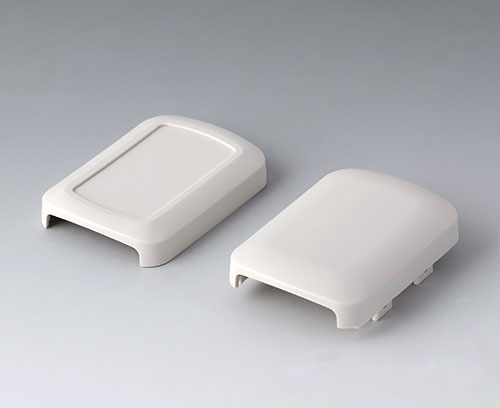

Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply1 shell convex and 1 flattened shell with recessed surface
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B2822107
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory to complete
B2811207
End part
Universal plug-in component.
Supply 1 piece
B2811207
End partProducto añadido a su lista
off-white RAL 9002
B2811209
End part
Universal plug-in component.
Supply 1 piece
B2811209
End partProducto añadido a su lista
black RAL 9005
B2911308
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911308
Cable gland kit, 3.4 - 4.2Producto añadido a su lista
volcano
B2911309
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911309
Cable gland kit, 3.4 - 4.2Producto añadido a su lista
black RAL 9005
B2911318
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911318
Cable gland kit, 4.2 - 5.0Producto añadido a su lista
volcano
B2911319
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911319
Cable gland kit, 4.2 - 5.0Producto añadido a su lista
black RAL 9005
B2911328
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911328
Cable gland kit, 5.0 - 5.9Producto añadido a su lista
volcano
B2911329
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911329
Cable gland kit, 5.0 - 5.9Producto añadido a su lista
black RAL 9005
Accessory "wall/holder"
B2921507
Holder S
Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921507
Holder SProducto añadido a su lista
off-white RAL 9002
Accessory "screws"
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Producto añadido a su lista
Customising options for B2822107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Longitud
60 mm
Anchura
42 mm
Altura
22 mm
PCB length, base
41 mm
PCB width, base
34 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 226 KB
- AutoCAD DWG-File 743 KB
- AutoCAD DXF-File 2.859 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 2.167 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00028771.x_t 5.657 KB
- 00028771.step 18.888 KB
- 00028771.sat 17.585 KB
Weight/1 part
20 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B2822107 y no olvide solicitar presupuesto.
