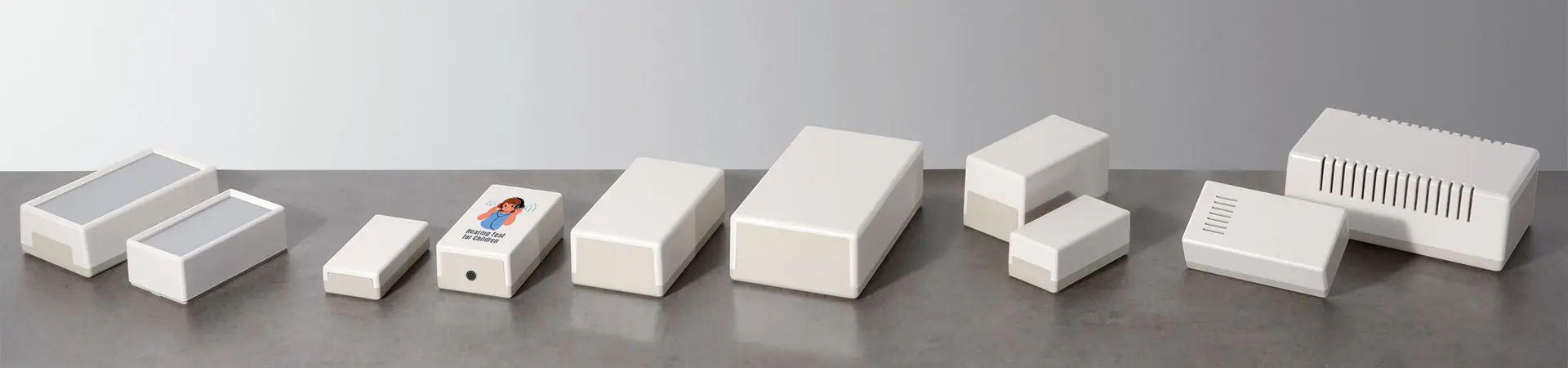

CAJAS PLANAS

Cajas planas

Cajas plásticas útiles

Las CAJAS PLANAS “FLAT-PACK” son una solución simple y económica para sus sistemas electrónicos.

  • Amplia gama de tamaños y versiones para dispositivos de sobremesa o de pared.
  • Construcción robusta con lengüeta con diseño de ranura.
  • Parte inferior abierta por el lateral, especialmente útil para todas las tareas de equipamiento y servicio.

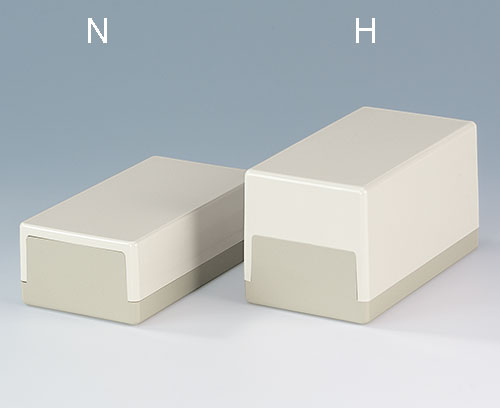

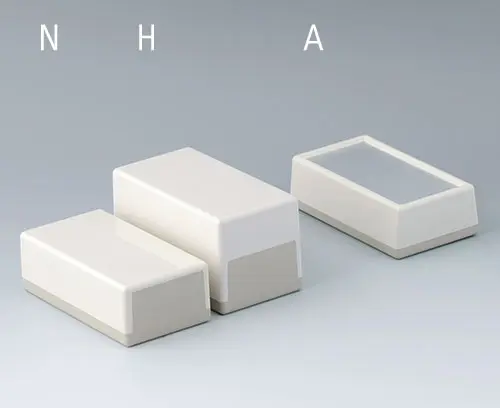

  • Con parte superior fina (N) o gruesa (H)

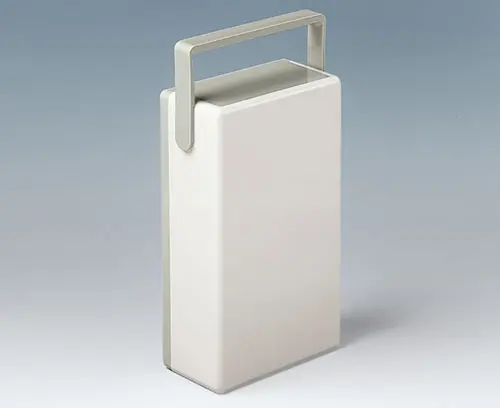

  • Modelos con asa que proporciona una inclinación adecuada para el uso o para un transporte cómodo.
  • Con ranuras de ventilación para componentes con potente generación de calor (189 L)
  • Con ranuras en la parte superior para pequeños dispositivos con señal acústica (120 S)

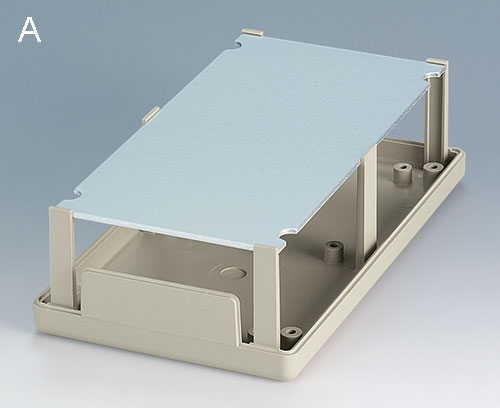

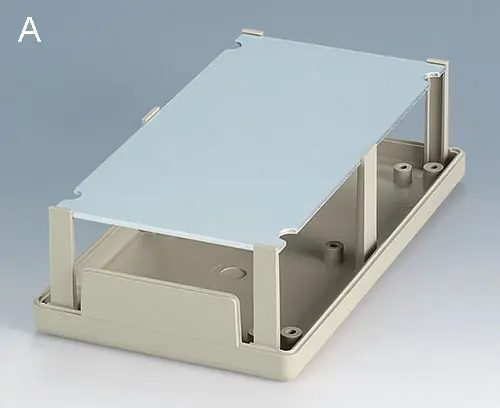

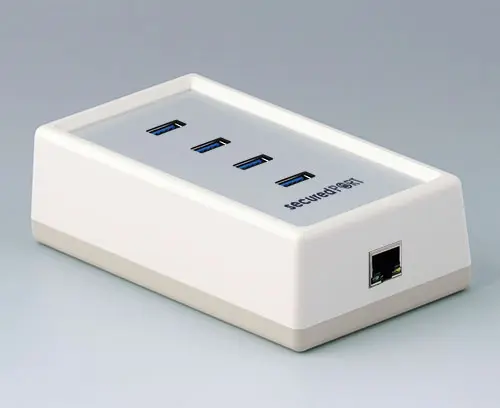

  • Modelos Tipo A con paneles frontales de aluminio; los elementos operativos están protegidos por el borde elevado de la caja.
  • Categoría de protección IP 40 (en la versión sin ranuras)

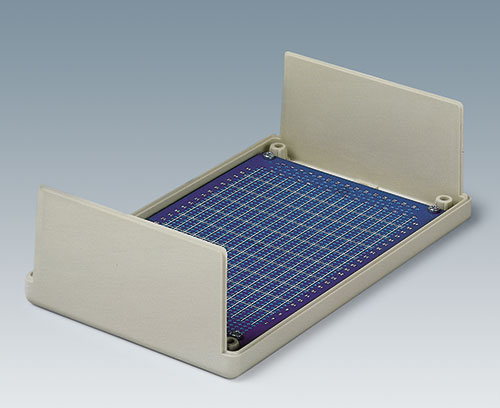

  • Cabezales de fijación para placas de circuito impreso y componentes.

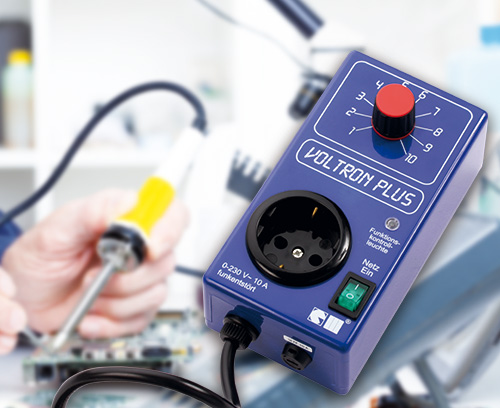

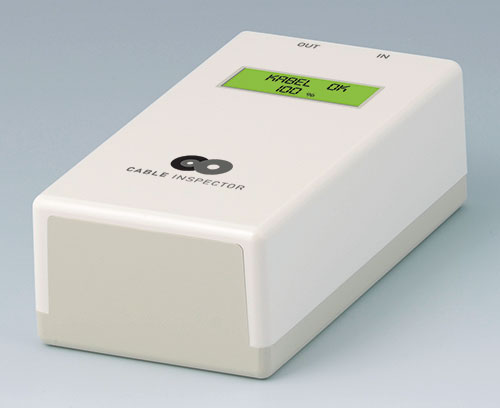

  • Ejemplos de aplicación

Application fields

Carcasa universal para dispositivos electrónicos y electrotécnicos, como, por ejemplo,
  • Instrumentos de vigilancia como dispositivos de control
  • Instalaciones de señalización
  • Sistemas de mando
  • Tecnologías de medicina y laboratorio
  • Periféricos informáticos
  • Automatización
  • Selección de todos los artículos
  • Accesorios
  • Modificaciones específicas del cliente
A9010065 FLAT-PACK CASES 100 N, Vers. I

A9010065

FLAT-PACK CASES 100 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Cerrar

A9010065

FLAT-PACK CASES 100 N, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
100x50x25mm
IP 40
A9011065 FLAT-PACK CASES 100 H, Vers. I

A9011065

FLAT-PACK CASES 100 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Cerrar

A9011065

FLAT-PACK CASES 100 H, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
100x50x40mm
IP 40
A9020065 FLAT-PACK CASES 120 N, Vers. I

A9020065

FLAT-PACK CASES 120 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Cerrar

A9020065

FLAT-PACK CASES 120 N, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm
IP 40
A9020265 FLAT-PACK CASE 120 S

A9020265

FLAT-PACK CASE 120 S Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Cerrar

A9020265

FLAT-PACK CASE 120 S
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm
A9021065 FLAT-PACK CASE 120 H, Vers. I

A9021065

FLAT-PACK CASE 120 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Cerrar

A9021065

FLAT-PACK CASE 120 H, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x65mm
IP 40
A9030065 FLAT-PACK CASES 150 N, Vers. I

A9030065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Cerrar

A9030065

FLAT-PACK CASES 150 N, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
150x80x50mm
IP 40
A9030165 FLAT-PACK CASES 150 N, Vers. II

A9030165

FLAT-PACK CASES 150 N, Vers. II Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Cerrar

A9030165

FLAT-PACK CASES 150 N, Vers. II
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
150x80x50mm
IP 40
A9031065 FLAT-PACK CASE 150 H, Vers. I

A9031065

FLAT-PACK CASE 150 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version without handle bar.

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Cerrar

A9031065

FLAT-PACK CASE 150 H, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
150x80x80mm
IP 40
A9032065 FLAT-PACK CASES 150 N, Vers. I

A9032065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Cerrar

A9032065

FLAT-PACK CASES 150 N, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
150x80x55mm
IP 40
A9040065 FLAT-PACK CASES 189 N, Vers. I

A9040065

FLAT-PACK CASES 189 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Cerrar

A9040065

FLAT-PACK CASES 189 N, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x60mm
IP 40
A9040165 FLAT-PACK CASES 189 N, Vers. II

A9040165

FLAT-PACK CASES 189 N, Vers. II Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Cerrar

A9040165

FLAT-PACK CASES 189 N, Vers. II
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x60mm
IP 40
A9041065 FLAT-PACK CASE 189 H, Vers. I

A9041065

FLAT-PACK CASE 189 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Cerrar

A9041065

FLAT-PACK CASE 189 H, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x97mm
IP 40
A9041165 FLAT-PACK CASE 189 H, Vers. II

A9041165

FLAT-PACK CASE 189 H, Vers. II Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Cerrar

A9041165

FLAT-PACK CASE 189 H, Vers. II
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x97mm
IP 40
A9042065 FLAT-PACK CASE 189 H, Vers. I

A9042065

FLAT-PACK CASE 189 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Cerrar

A9042065

FLAT-PACK CASE 189 H, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x120mm
IP 40
A9043065 FLAT-PACK CASES 189 N, Vers. I

A9043065

FLAT-PACK CASES 189 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Cerrar

A9043065

FLAT-PACK CASES 189 N, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x70mm
IP 40

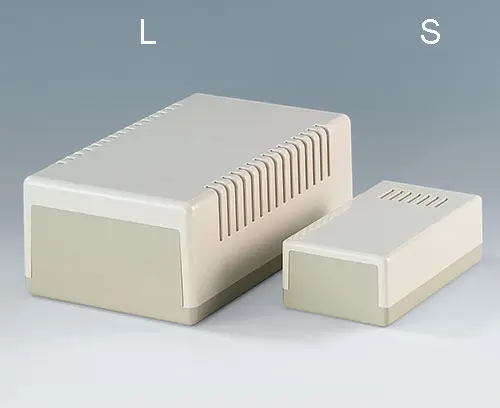

A9043265 FLAT-PACK CASE 189 L

A9043265

FLAT-PACK CASE 189 L Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Cerrar

A9043265

FLAT-PACK CASE 189 L
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x70mm

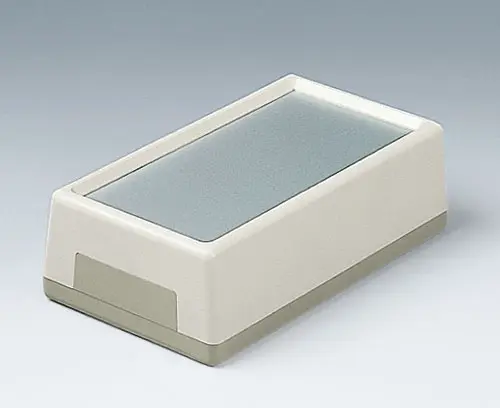

A9520165 FLAT-PACK CASE 120 A

A9520165

FLAT-PACK CASE 120 A Two-piece case. The front pane,l see accessory A9195201, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Cerrar

A9520165

FLAT-PACK CASE 120 A
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm
IP 40
A9530165 FLAT-PACK CASE 150 A

A9530165

FLAT-PACK CASE 150 A Two-piece case. The front panel, see accessory A9195301, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Cerrar

A9530165

FLAT-PACK CASE 150 A
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
150x85x45mm
IP 40
A9540165 FLAT-PACK CASE 210 A

A9540165

FLAT-PACK CASE 210 A Two-piece case. The front panel, see accessory A9195401, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Cerrar

A9540165

FLAT-PACK CASE 210 A
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
210x125x70mm
IP 40
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Cerrar

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Producto añadido a su lista

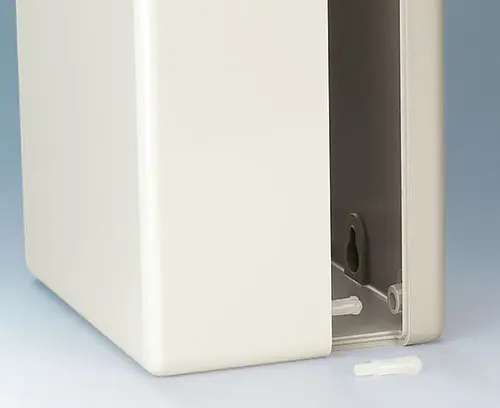

A9100008 Snap-lock

A9100008

Snap-lock Replaces the standard screw fixing of the case. Suitable for FLAT-PACK CASES A9040065-A9043265.

Supply 1 snap lock

Cerrar

A9100008

Snap-lock
Producto añadido a su lista
PA 6 (UL 94 HB)
natural-coloured

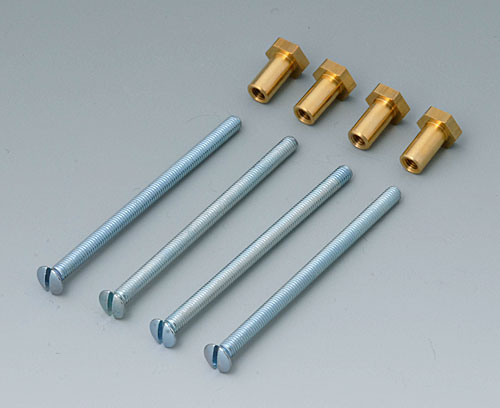

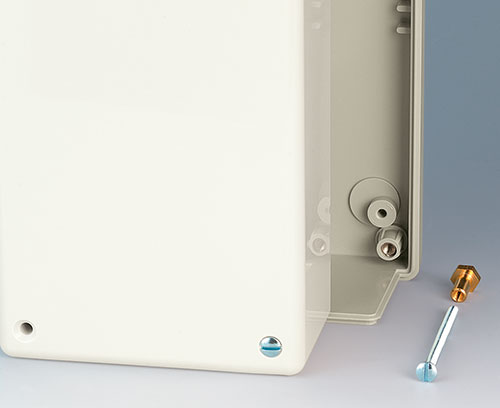

A9120000 Assembly kit for wall mounting

A9120000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9011... and A9020... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Cerrar

A9120000

Assembly kit for wall mounting
Producto añadido a su lista
A9130000 Assembly kit for wall mounting

A9130000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9030... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Cerrar

A9130000

Assembly kit for wall mounting
Producto añadido a su lista
A9132000 Assembly kit for wall mounting

A9132000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9032... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Cerrar

A9132000

Assembly kit for wall mounting
Producto añadido a su lista

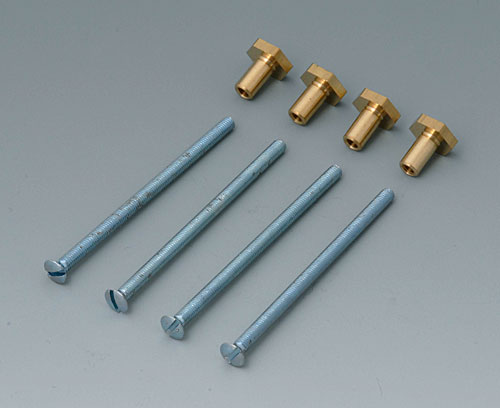

A9140000 Assembly kit for wall mounting

A9140000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9040... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Cerrar

A9140000

Assembly kit for wall mounting
Producto añadido a su lista
A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Cerrar

A9172107

Belt/Pocket clip
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
62x30mm
A9195201 Front panel

A9195201

Front panel Front panel for FLAT-PACK CASE A9520165.

Supply 1 front panel

Cerrar

A9195201

Front panel
Producto añadido a su lista
Aluminium
matt anodised
113x58x1mm
A9195301 Front panel

A9195301

Front panel Front panel for FLAT-PACK CASE A9530165.

Supply 1 front panel

Cerrar

A9195301

Front panel
Producto añadido a su lista
Aluminium
matt anodised
141,8x71,6x1,5mm

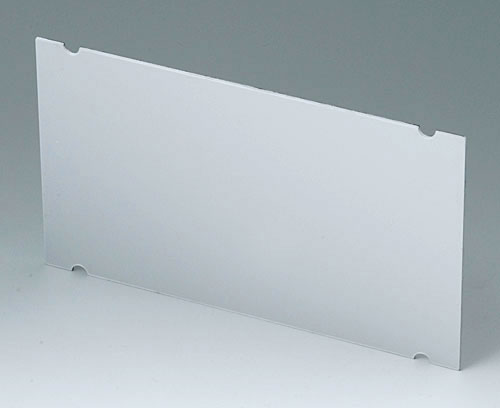

A9195401 Front panel

A9195401

Front panel Front panel for FLAT-PACK CASE A9540165.

Supply 1 front panel

Cerrar

A9195401

Front panel
Producto añadido a su lista
Aluminium
matt anodised
201x116x1,5mm
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Cerrar

A9207150

Anti-slide feet 6.5 x 2 mm
Producto añadido a su lista
transparent
A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Cerrar

A9210290

Anti-slide feet 9.5 x 3.8 mm
Producto añadido a su lista
transparent
A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Cerrar

A9250807

Tilt foot bar
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Cerrar

A9250817

Tilt foot bar
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Cerrar

B1350048

Wall suspension elements
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Cerrar

B1360048

Wall suspension elements
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032

Opciones de productos para Cajas planas

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
