A9031065

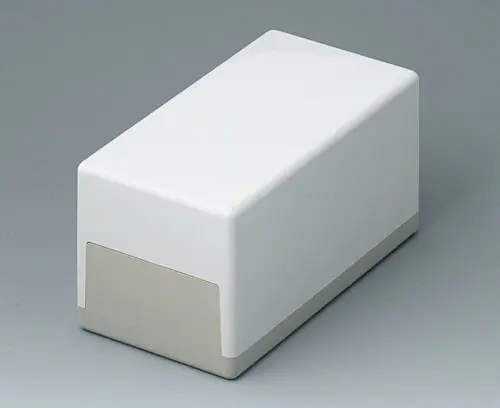

FLAT-PACK CASE 150 H, Vers. I
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Versionwithout handle bar.
Supply1 top and base part, assembly kit and 4 screws for the mounting of PCBs
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para A9031065
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory "wall/holder"
B1360048
Wall suspension elements
Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
B1360048
Wall suspension elementsProducto añadido a su lista
pebble grey RAL 7032
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Producto añadido a su lista
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)Producto añadido a su lista
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Producto añadido a su lista
Accessory
A9210290
Anti-slide feet 9.5 x 3.8 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mmProducto añadido a su lista
A9250807
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply 1 tilt foot bar, assembly kit
A9250807
Tilt foot barProducto añadido a su lista
off-white RAL 9002
A9250817
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply 1 tilt foot bar, assembly kit
A9250817
Tilt foot barProducto añadido a su lista
off-white RAL 9002
Customising options for A9031065
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Material
Protection class
Color
Top part
off-white RAL 9002,
Bottom part pebble grey RAL 7032
Bottom part pebble grey RAL 7032
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Longitud
150 mm
Anchura
80 mm
Altura
80 mm
PCB length, base
126 mm
PCB width, base
73 mm
PCB length, top
142 mm
PCB width, top
72 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 179 KB
- AutoCAD DWG-File 375 KB
- AutoCAD DXF-File 868 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 1.100 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00009885.x_t 1.053 KB
- 00009885.STEP 2.179 KB
- 00009885.SAT 2.951 KB
Weight/1 part
193 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9031065 y no olvide solicitar presupuesto.
