DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.
Supply1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B6043091
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory to complete
B6143111
Front panel
Front panel for DIN-MODULAR CASE 144 x 72.
Supply 1 front panel
B6143111
Front panelProducto añadido a su lista
matt anodised
139,2x67,3x1,5mm
B6143112
Rear panel
Rear panel for DIN-MODULAR CASE 144 x 72.
Supply 1 rear panel
B6143112
Rear panelProducto añadido a su lista
matt anodised
118,9x62,6x1,5mm
B6143221
Front panel
Front panel for DIN-MODULAR CASE 144 x 72.
Supply 1 front panel
B6143221
Front panelProducto añadido a su lista
black RAL 9005
139,3x67,5x2mm
B6143222

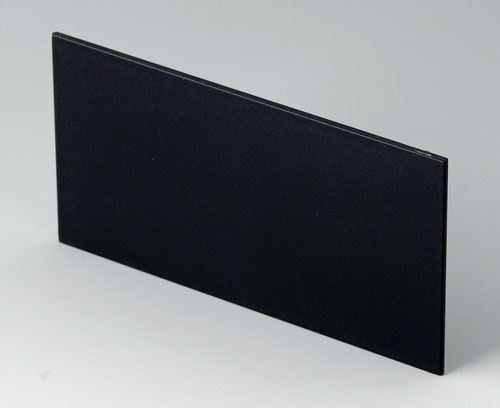

Rear panel
Rear panel for DIN-MODULAR CASE 144 x 72.
Supply 1 rear panel
B6143222
Rear panelProducto añadido a su lista
black RAL 9005
119,1x62,7x2mm
B6143331

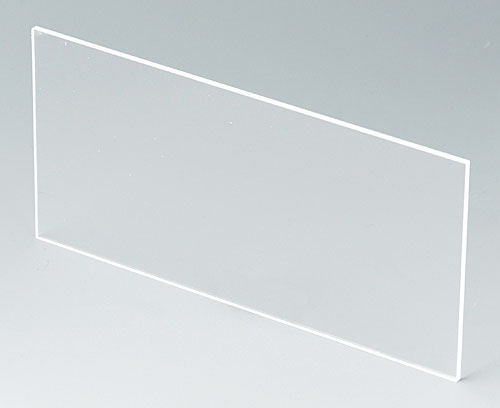

Front panel
Front panel for DIN-MODULAR CASE 144 x 72.
Supply 1 front panel
B6143331
Front panelProducto añadido a su lista
transparent
139,2x67,3x2mm
B6143341

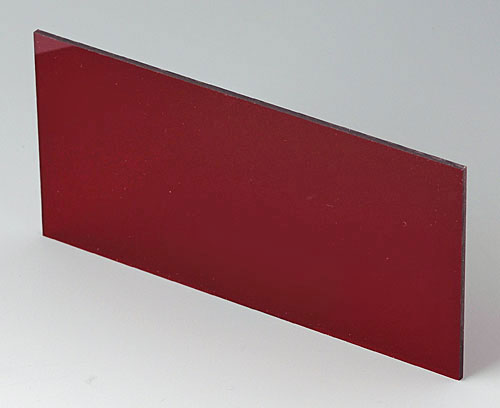

Front panel
Front panel for DIN-MODULAR CASE 144 x 72.
Supply 1 front panel
B6143341
Front panelProducto añadido a su lista
red transparent
139,2x67,3x2mm
Accessory "protection"
B6143533

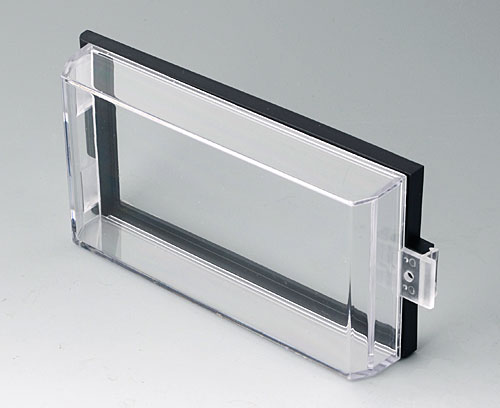

Protection cover
Protection cover for DIN-MODULAR CASE 144 x 72.
Supply 1 protection cover
B6143533
Protection coverProducto añadido a su lista
transparent
Customising options for B6043091
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Anchura
144 mm
Altura
72 mm
Profundidad
156 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 166 KB
- AutoCAD DWG-File 339 KB
- AutoCAD DXF-File 1.087 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 128 KB
Weight/1 part
233 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Italia
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B6043091 y no olvide solicitar presupuesto.
