AltText

B6143331

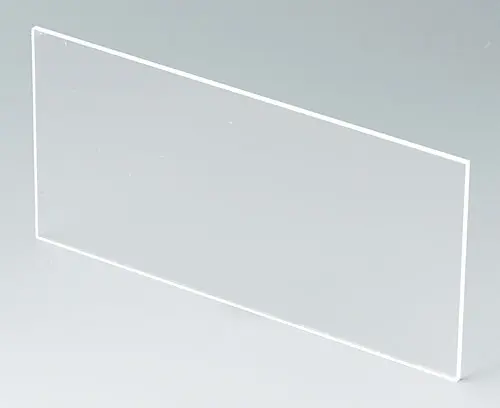

Front panel

Front panel for DIN-MODULAR CASE 144 x 72.

Supply

1 front panel

  • Utilizado para
  • Modificaciones específicas del cliente
AltText

B6043011

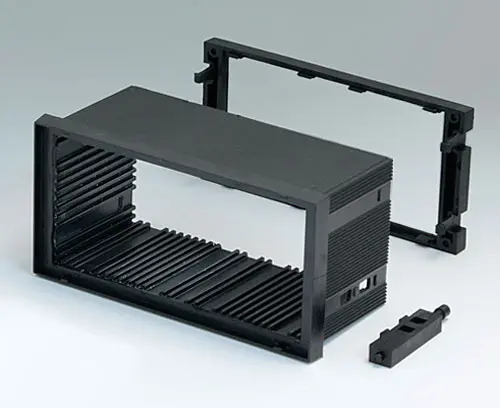

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043011

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x57mm
AltText

B6043021

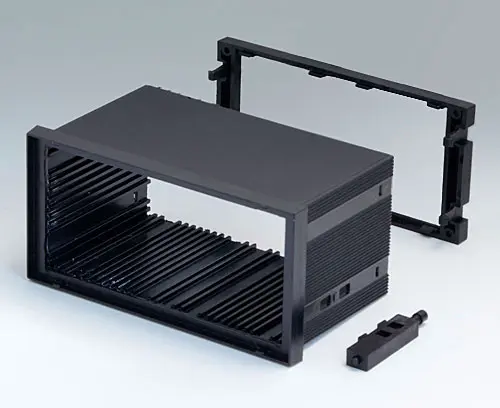

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043021

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x75mm
AltText

B6043031

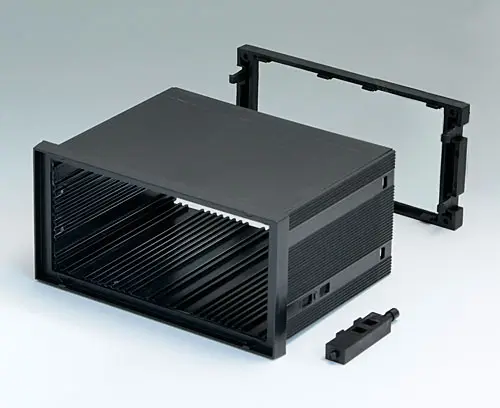

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043031

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x100mm
AltText

B6043041

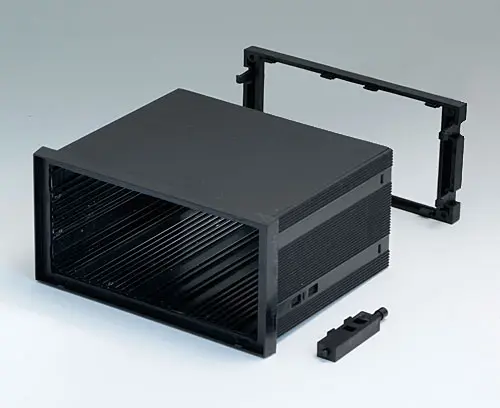

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043041

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x109mm
AltText

B6043061

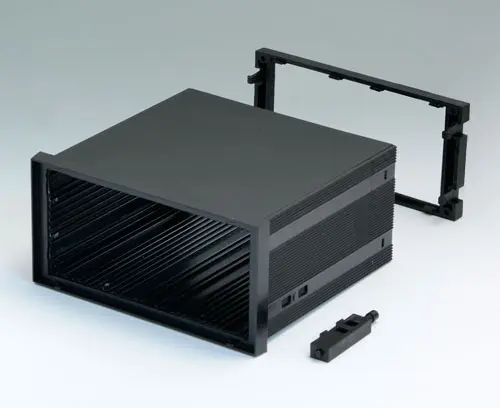

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043061

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x124mm
AltText

B6043071

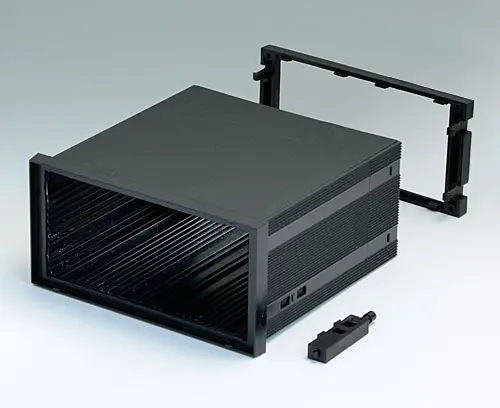

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043071

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x131mm
AltText

B6043091

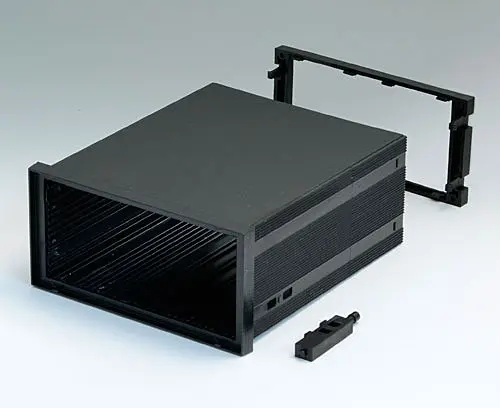

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043091

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x156mm

Customising options for B6143331

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Purchasing Data
Color
transparent
Width
139,2 mm
Height
67,3 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
25 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
