B6143111 Front panel
Scroll

B6143111

Front panel

Front panel for DIN-MODULAR CASE 144 x 72.

Supply

1 front panel

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para B6143111

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Utilizado para
  • Modificaciones específicas del cliente
B6043011 DIN-MODULAR CASE TYPE A

B6043011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043011

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x57mm

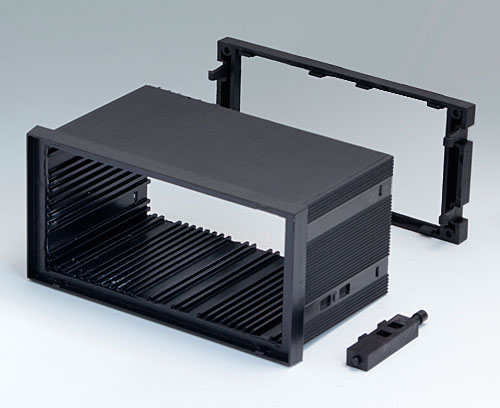

B6043021 DIN-MODULAR CASE TYPE A

B6043021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043021

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x75mm

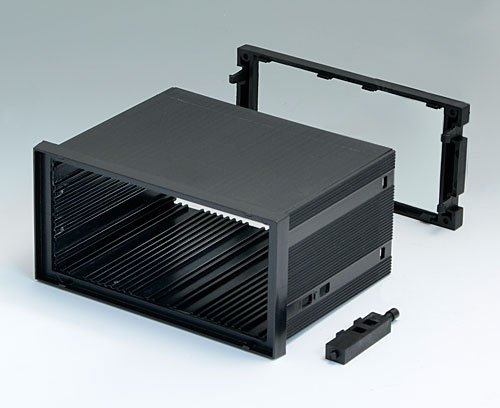

B6043031 DIN-MODULAR CASE TYPE A

B6043031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043031

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x100mm
B6043041 DIN-MODULAR CASE TYPE A

B6043041

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043041

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x109mm
B6043061 DIN-MODULAR CASE TYPE A

B6043061

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043061

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x124mm
B6043071 DIN-MODULAR CASE TYPE A

B6043071

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043071

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x131mm
B6043091 DIN-MODULAR CASE TYPE A

B6043091

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6043091

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
144x72x156mm

Customising options for B6143111

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Purchasing Data
Material
Aluminium
Color
matt anodised
Standards
RoHS compliant
REACH compliant
Width
139,2 mm
Height
67,3 mm
Thickness
1,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
37 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Italia
