Аксессуары для корпусов
C2304969

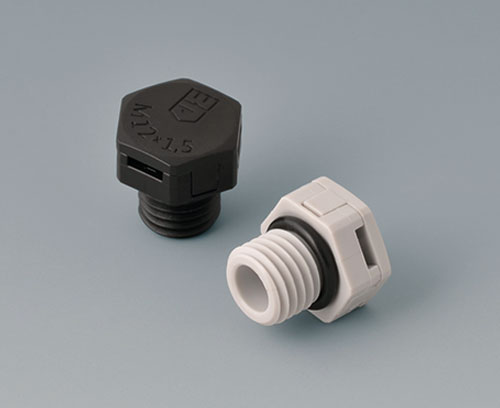

Клапан компенсации давления, M12х1,5
Pressure equalisation elements with a high air flow rate protect sensitive electronics. A temperature drop, for example due to changing weather conditions, can lead to a build-up of negative pressure inside sealed enclosures. As a result, water and dirt may be drawn in through the seals, potentially damaging the electronics.
The pressure equalisation elements feature a metric connection thread. Suitable lock nuts with M12 threads from the OKW portfolio are available for installation inside the enclosures.
Theoretical air flow rate RQ: 10 l/h - 0.07 bar
Water ingress point: > 0.83 bar (dynamic WEP, 30 seconds)
Temperature range: -40°C / +100°C.
Seal material: Water and oil-repellent PES membrane
Protection rating: IP66, IP69
Note: The pressure equalisation element will not function if it is blocked by dust and/or submerged in water.
1 клапан компенсации давления c герметизирующая шайба
Сгенерировать вашу спецификацию в формате PDF для C2304969
Выберите те пункты, которые вы хотите включить в PDF.
Прочие аксессуары
C2312117
Комплект поставки 1 контргайка
C2312117
Контргайка M12 х 1,5светло-серый RAL 7035
(изделия OKW)
